INSTALL GRILLE
6. Finish ceiling.
Install ceiling material. Cut out around housing.
7. Attach grille
to housing.
Squeeze grille
springs and insert
them into tabs
on each side of
housing.
8. Push grille
against
ceiling.

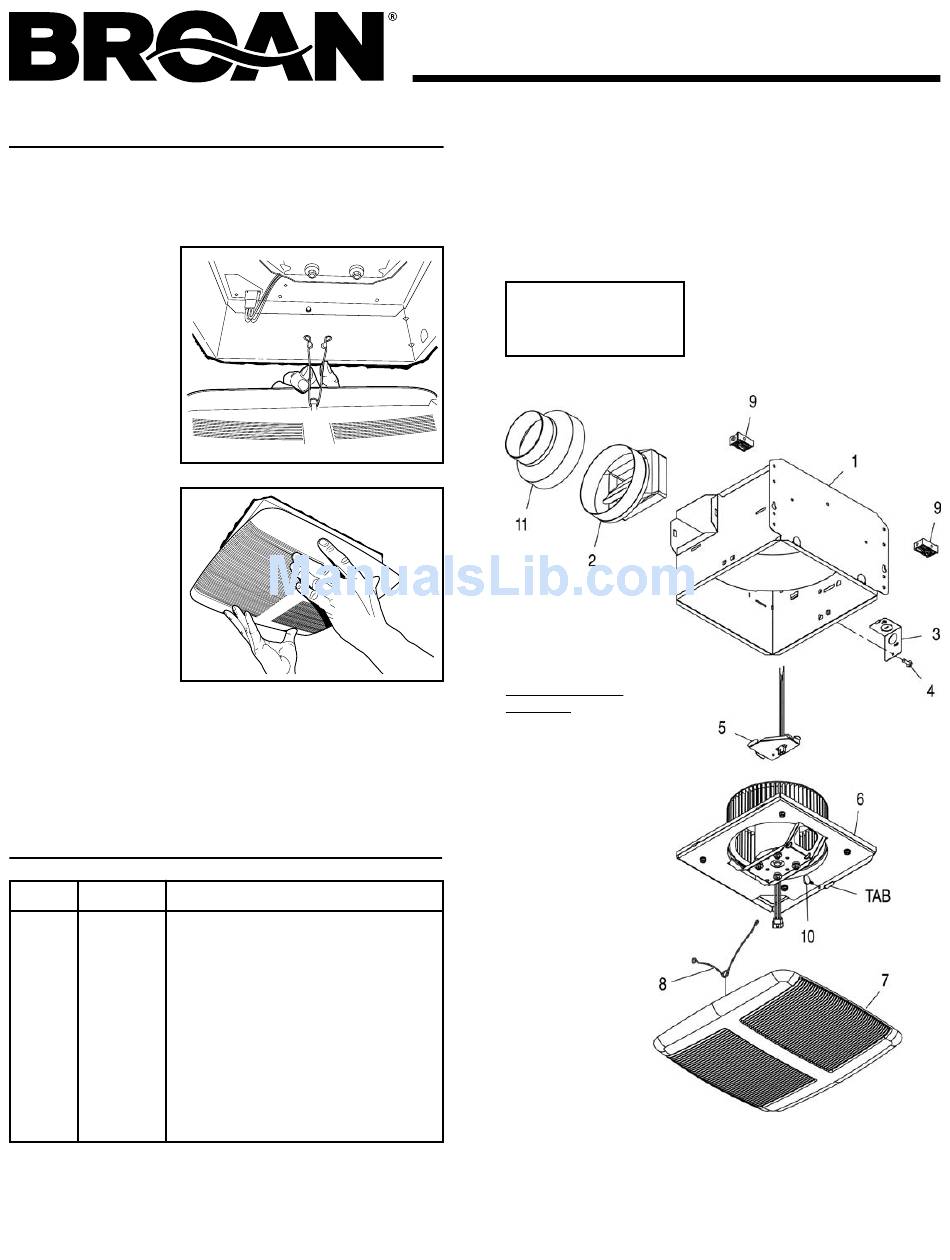

SERVICE PARTS

Key No. Part No.
1 97016466 Housing
2 97016450 Duct Connector - 6"
3 98010102 Wiring Plate
4 99170245 Screw, #8-18 X .375
5 97018010 Wire Panel/Harness Assembly
6 97016591 Blower Assembly
7 97016497 Grille Assembly
8 99140199 Grille Spring (2 req'd)
9 97018014 Spacer (2 supplied)
10 99420665 Thumbscrew, #8-18 x .375
11 475 Duct Reducer - 6" to 4"
Order service parts by "Part No." - not by "Key No."
Description
(includes key no. 8)
Replacement parts
can be ordered on our
website. Please visit us
at www.broan.com
SERVICE NOTE
To remove Blower
Assembly:
Unplug motor.
Remove
thumbscrew (10)
from motor plate
flange.
Find the single TAB
on the motor plate
(located next to the
receptacle).
Push up near motor
plate tab while
pushing out on side
of housing. Or insert
a straight-blade
screwdriver into slot
in housing (next to
tab) and
twist screwdriver.
MODEL QT140E
Page 4
99044873A
