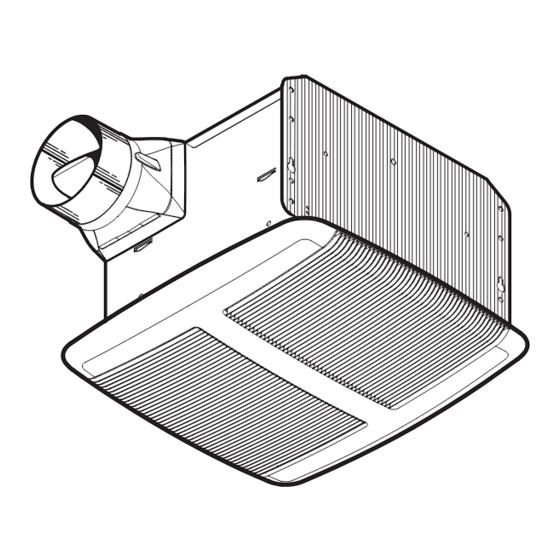

MODEL QT80E
VENTILATION FAN
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR IN-
JURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer.
If you have questions, contact the manufacturer at the address
or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service
panel and lock the service disconnecting means to prevent
power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a
qualified person(s) in accordance with all applicable codes
and standards, including fire-rated construction codes and
standards.
4. Sufficient air is needed for proper combustion and exhausting
of gases through the flue (chimney) of fuel burning equip-
ment to prevent backdrafting. Follow the heating equipment
manufacturer's guideline and safety standards such as those
published by the National Fire Protection Association (NFPA),
and the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code authori-
ties.
5. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Acceptable for use over a tub or shower when connected to
a GFCI (Ground Fault Circuit Interrupter) - protected branch
circuit (ceiling installation only).
8. This unit must be grounded.
CAUTION
1. For general ventilating use only. Do not use to exhaust hazard-
ous or explosive materials and vapors.
2. This product is designed for installation in ceilings up to a
12/12 pitch (45 degree angle). Duct connector must point up.
DO NOT MOUNT THIS PRODUCT IN A WALL.
3. To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. off power
unit.
4. Please read specification label on product for further informa-
tion and requirements.
Installer: Leave this manual with the homeowner.
To register this product visit:
www.broan.com
CLEANING & MAINTENANCE
For quiet and efficient operation, long life, and attractive appear-
ance - lower or remove grille and vacuum interior of unit with the
dusting brush attachment.
The motor is permanently lubricated and never needs oiling. If the
motor bearings are making excessive or unusual noises, replace
the blower assembly (includes motor and impeller).
OPERATION
Use an on/off switch or solid-state speed control to operate this
ventilator. See "Connect Wiring" for details.
WARRANTY
BROAN-NUTONE THREE YEAR LIMITED WARRANTY
Broan-NuTone warrants to the original consumer purchaser of its products that
such products will be free from defects in materials or workmanship for a period
of three years from the date of original purchase. THERE ARE NO OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE.
During this three-year period, Broan-NuTone will, at its option, repair or replace,
without charge, any product or part which is found to be defective under normal
use and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS,
TUBES, HALOGEN AND INCANDESCENT BULBS, FUSES, FILTERS, DUCTS,
ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING.
This warranty does not cover (a) normal maintenance and service or (b) any
products or parts which have been subject to misuse, negligence, accident,
improper maintenance or repair (other than by Broan-NuTone), faulty installation
or installation contrary to recommended installation instructions.
The duration of any implied warranty is limited to the three-year period as specified
for the express warranty. Some states do not allow limitation on how long an
implied warranty lasts, so the above limitation may not apply to you.
BROAN-NUTONE'S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-
NUTONE'S OPTION, SHALL BE THE PURCHASER'S SOLE AND EXCLUSIVE
REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LIABLE
FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING
OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE.
Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights,
which vary from state to state. This warranty supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan-NuTone at the address or
telephone number below, (b) give the model number and part identification and (c)
describe the nature of any defect in the product or part. At the time of requesting
warranty service, you must present evidence of the original purchase date.
Broan-NuTone LLC, 926 W. State Street, Hartford, Wisconsin 53027
www.broan.com 888-336-3948
MODEL QT80E
Page 1

Advertisement

Table of Contents
loading

Summary of Contents for Broan QT80E

  • Page 1 CAUTION The duration of any implied warranty is limited to the three-year period as specified for the express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. BROAN-NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN- 1. For general ventilating use only. Do not use to exhaust hazard- NUTONE’S OPTION, SHALL BE THE PURCHASER’S SOLE AND EXCLUSIVE ous or explosive materials and vapors. REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LIABLE 2. This product is designed for installation in ceilings up to a FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE.
  • Page 2: Typical Installations

    MODEL QT80E Page 2 TYPICAL INSTALLATIONS PLAN THE INSTALLATION COOKING AREA Do not install above or inside this area. Housing mounted to joists. NOT FOR USE IN Cooking A COOKING AREA. Equipment Floor INSULATION (Place around and ROOF CAP* over fan housing.)
  • Page 3: Connect Wiring

    MODEL QT80E Page 3 INSTALL HOUSING & DUCT CONNECT WIRING 1. Bend housing tabs. Use a pliers to bend housing TABS out to 90 TABS 2. Mount SPACER housing to (use for mounting to I-Joist) joist. Hold housing in place so that the housing tabs contact the bottom of the joist. The hous- ing mounts with I-JOIST four (4) screws or nails. Screw or nail housing to joist through lowest holes in each mounting flange, then through highest holes. NOTE: Mounting to I-JOIST (shown) requires use of SPACERS (in- cluded) between the highest hole of each mounting flange and the I-joist. 5. Connect electrical wiring.
  • Page 4: Service Parts

    MODEL QT80E Page 4 INSTALL GRILLE 6. Finish ceiling. Install ceiling material. Cut out around housing. 7. Attach grille to housing. Squeeze grille springs and insert them into slots on each side of hous- ing. Replacement parts can be ordered on our web- site. Please visit us at www.broan.com 8. Push grille against ceil- ing.
  • Page 5: Limpieza Y Mantenimiento

    MODELO QT80E Página 5 MODELO QT80E Para registrar este producto visite: VENTILADOR www.broan.com LEA Y CONSERVE ESTAS INSTRUCCIONES LIMPIEZA Y MANTENIMIENTO ADVERTENCIA Para lograr un funcionamiento silencioso y eficiente, como tam- PARA REDUCIR EL RIESGO DE INCENDIOS, DESCARGAS bién larga vida y una apariencia atractiva, baje o retire la rejilla ELÉCTRICAS O LESIONES PERSONALES, OBSERVE LAS y aspire el interior de la unidad con el accesorio del cepillo para SIGUIENTES PRECAUCIONES: sacudir polvo.
  • Page 6: Instalaciones Típicas

    MODELO QT80E Página 6 INSTALACIONES TÍPICAS PLANIFICACIÓN DE LA INSTALACIÓN ÁREA QUE COCINA No instale sobre o dentro de esta área. Montaje de cubierta en viguetas. NO PARA EL USO EN UN Equipo ÁREA QUE COCINA. para cocinar Piso AISLAMIENTO...
  • Page 7: Conexión Eléctrica

    MODELO QT80E Página 7 INSTALE LA CUBIERTA Y EL CONDUCTO CONEXIÓN ELÉCTRICA 1. Doble las lengüetas de la cubierta. Con un alicate, doble las LENGÜE- TAS de la cubierta LENGÜETAS a 90 2. Monte la SEPARADOR (se usa para el montaje cubierta en a la vigueta “I”) la vigueta. Sostenga la cubi- erta en su lugar de manera que las lengüetas de la cubierta hagan contacto con la parte inferior de la vigueta. Para...
  • Page 8: Piezas De Repuesto

    MODELO QT80E Página 8 INSTALE LA REJILLA 6. Termine el cielo raso. Instale el material del cielo raso. Recorte alrededor de la cubierta. 7. Acople la rejilla a la cubierta. Apriete los resortes de la rejilla e insér- Las piezas de telos en las ranuras recambio se que se encuentran pueden ahora pedir a cada lado de la en nuestro Web site. cubierta. Visítenos por favor en www.broan.com...
