Two-stage, 4-way multipoise variable-speed condensing gas furnace
Hide thumbs Also See for PG96VAT:

Advertisement

Table of Contents

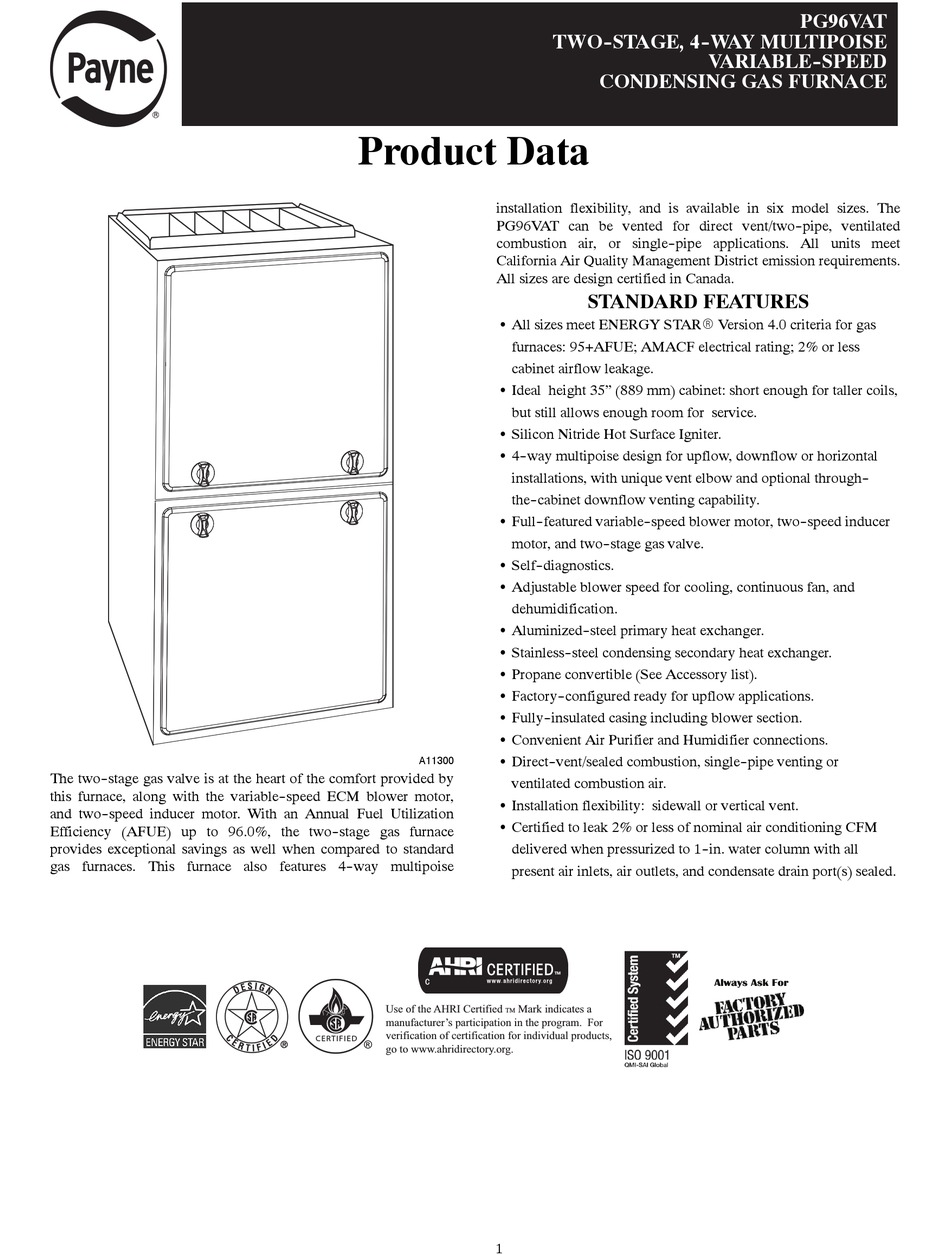

The two- -stage gas valve is at the heart of the comfort provided by
this furnace, along with the variable- -speed ECM blower motor,
and two- -speed inducer motor. With an Annual Fuel Utilization
Efficiency (AFUE) up to 96.0%, the two- -stage gas furnace
provides exceptional savings as well when compared to standard
gas furnaces. This furnace also features 4- -way multipoise
Product Data
A11300
Use of the AHRI Certified
manufacturer's participation in the program. For
verification of certification for individual products,
CERTIFIED
go to www.ahridirectory.org.
TWO- -STAGE, 4- -WAY MULTIPOISE
CONDENSING GAS FURNACE
installation flexibility, and is available in six model sizes. The
PG96VAT can be vented for direct vent/two- -pipe, ventilated
combustion air, or single- -pipe applications. All units meet
California Air Quality Management District emission requirements.
All sizes are design certified in Canada.
STANDARD FEATURES
S All sizes meet ENERGY STARR Version 4.0 criteria for gas
furnaces: 95+AFUE; AMACF electrical rating; 2% or less
cabinet airflow leakage.
S Ideal height 35" (889 mm) cabinet: short enough for taller coils,
but still allows enough room for service.
S Silicon Nitride Hot Surface Igniter.
S 4- -way multipoise design for upflow, downflow or horizontal
installations, with unique vent elbow and optional through- -
the- -cabinet downflow venting capability.
S Full- -featured variable- -speed blower motor, two- -speed inducer
motor, and two- -stage gas valve.
S Self- -diagnostics.
S Adjustable blower speed for cooling, continuous fan, and
dehumidification.
S Aluminized- -steel primary heat exchanger.
S Stainless- -steel condensing secondary heat exchanger.
S Propane convertible (See Accessory list).
S Factory- -configured ready for upflow applications.
S Fully- -insulated casing including blower section.
S Convenient Air Purifier and Humidifier connections.
S Direct- -vent/sealed combustion, single- -pipe venting or
ventilated combustion air.
S Installation flexibility: sidewall or vertical vent.
S Certified to leak 2% or less of nominal air conditioning CFM
delivered when pressurized to 1- -in. water column with all
present air inlets, air outlets, and condensate drain port(s) sealed.
Mark indicates a
TM
1
PG96VAT
VARIABLE- - SPEED
Always Ask For

Advertisement

Table of Contents
loading

Related Manuals for Payne PG96VAT

Summary of Contents for Payne PG96VAT

  • Page 1 CONDENSING GAS FURNACE Product Data installation flexibility, and is available in six model sizes. The PG96VAT can be vented for direct vent/two- -pipe, ventilated combustion air, or single- -pipe applications. All units meet California Air Quality Management District emission requirements.

  • Page 2: Dimensions

    Robust Igniter — Payne’s unique SiN igniter is not only especially quiet operation. By sealing the entire combustion physically robust but it is also electrically robust. It is capable of...

  • Page 3: Specifications

    SPECIFICATIONS Heating Capacity and Efficiency 30040 42060 48080 60080 60100 66120 High Heat (BTUH) 40,000 60,000 80,000 80,000 100,000 120,000 Input Low Heat (BTUH) 26,000 39,000 52,000 52,000 65,000 78,000 High Heat (BTUH) 39,000 58,000 78,000 78,000 97,000 117,000 Output Low Heat (BTUH) 25,000...

  • Page 4: Model Number Nomenclature

    MODEL NUMBER NOMENCLATURE Example of a Model Number 3 - 4 8 - 9 10 - 12 15 - 16 Brand Base Effy. Product Voltage/Motor Major Series Htg. Stages Cooling Cap. Minor Series Heating Cap. Width/Variation Variations Brand 0 - +90 AFUE 2 - +92 AFUE Product 3 - +93 AFUE...
  • Page 5 ACCESSORIES DESCRIPTION PART NUMBER 30040 42060 48080 60080 60100 66120 Venting Accessories Vent Kit - Through the Cabinet KGADC0101BVC Vent Terminal - Concentric - 2” (51 mm) KGAVT0701CVT Vent Terminal - Concentric - 3” (76 mm) KGAVT0801CVT See Venting Tables Vent Terminal Bracket - 2”...
  • Page 6 AIR DELIVERY - - CFM COOLING AND HEATING AIR DELIVERY - CFM (Bottom Return With Filter) (SW1-5 and SW4-3 set to OFF, except as indicated. See notes 1 and 2.) Unit Size Cooling Switch Settings External Static Pressure (ESP) SW2-3 SW2-2 SW2-1 30040...
  • Page 7 AIR DELIVERY - - CFM (CONTINUED) COOLING AND HEATING AIR DELIVERY - CFM (Bottom Return With Filter) (SW1-5 and SW4-3 set to OFF, except as indicated. See notes 1 and 2.) Unit Size Cooling Switch Settings External Static Pressure (ESP) SW2-3 SW2-2 SW2-1...
  • Page 8 MAXIMUM EQUIVALENT VENT LENGTH - - FT. (M) NOTE: Maximum Equivalent Vent Length (MEVL) does NOT include elbows or terminations. Use Table - Deductions from Maximum Equivalent Vent Length to determine allowable vent length for each application. Table 1 – Maximum Equivalent Vent Length - - Ft. (M) 0 to 4500 Ft.

  • Page 9: Manufacturer's Instructions

    Venting System Length Calculations The Total Equivalent Vent Length (TEVL) for EACH combustion air or vent pipe equals the length of the venting system, plus the equivalent length of elbows used in the venting system from Table 2. Standard vent terminations or factory accessory concentric vent terminations count for zero deduction. See vent system manufacturer’s data for equivalent lengths of flexible vent pipe or other termination systems.
  • Page 10 MAXIMUM EQUIVALENT VENT LENGTH - - FT. (M) (CONTINUED) NOTE: Maximum Equivalent Vent Length (MEVL) includes standard and concentric vent termination and does NOT include elbows. Use Table 2 - Deductions from Maximum Equivalent Vent Length to determine allowable vent length for each application. Table 3 –...
  • Page 11 MAXIMUM ALLOWABLE EXPOSED VENT LENGTHS INSULATION TABLE - - FT. (M) No Insulation 3/8-in. (9.5 mm) 1/2-in. (12.7 mm) Two Stage Pipe Pipe Diameter-inches (mm) Pipe Diameter-inches (mm) Pipe Diameter-inches (mm) Winter Design Furnace High Length in Temp ° F (° C) Heat Input Ft.

  • Page 12: Return Air Temperature

    RETURN AIR TEMPERATURE This furnace is designed for continuous return- -air minimum temperature of 60_F (15_C) db or intermittent operation down to 55_F (13_C) db such as when used with a night setback thermometer. Return- -air temperature must not exceed 80_F (27_C) db. Failure to follow these return air limits may affect reliability of heat exchangers, motors and controls.
  • Page 13 Payne cased coil is used. It is combustion air to be drawn in through the outer pipe.

  • Page 14: Typical Wiring Schematic

    TYPICAL WIRING SCHEMATIC FIELD 24-V WIRING FIELD 115-, 208/230-, 460-V WIRING FACTORY 24-V WIRING FACTORY 115-V WIRING NOTE 2 THERMOSTAT FIVE WIRE FIELD-SUPPLIED TERMINALS DISCONNECT THREE-WIRE HEATING-ONLY 208/230- OR BLOWER DOOR SWITCH 460-V THREE PHASE 208/230-V SINGLE PHASE AUXILIARY 115-V FIELD- J-BOX SUPPLIED NOTE 1...

  • Page 15: Dimensional Drawing

    DIMENSIONAL DRAWING A12267 PG96VAT SHIP WT. FURNACE SIZE LB (KG) CABINET WIDTH OUTLET WIDTH BOTTOM INLET WIDTH AIR INTAKE 30040 14--- 3/16 (361) 12--- 1/2 (319) 12--- 9/16 (322) 7--- 1/8 (181) 121.0 (54.4) 42060 141.5 (63.7) 17--- 1/2 (445)

  • Page 16: Guide Specifications

    Draft inducer motor shall be two- -speed PSC design. descriptions for specific features and available enhancements. Catalog No: SS---PG96VAT ---02 E2012 Payne Heating & Cooling Systems D 7310 W. Morris St. D Indianapolis, IN 46231 Edition Date: 09/12 Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
