- Page 1 Owner’s Guide Installation Instructions Electric Water Heater This water heater must be installed and serviced by an authorised person. Please leave this guide with the householder.
- Page 2 Compliance Certificate. PATENTS This water heater may be protected by one or more patents or registered designs in the name of Rheem Australia Pty Ltd. TRADEMARKS ® Registered trademark of Rheem Australia Pty Ltd.
-
Page 3: Table Of Contents
CONTENTS HOUSEHOLDER - We recommend you read pages 4 to 14. The other pages are intended for the installer but may be of interest About Your Water Heater ............4 Regular Care ................8 Water Supplies ................10 Save A Service Call ..............12 Installation .................. -
Page 4: About Your Water Heater

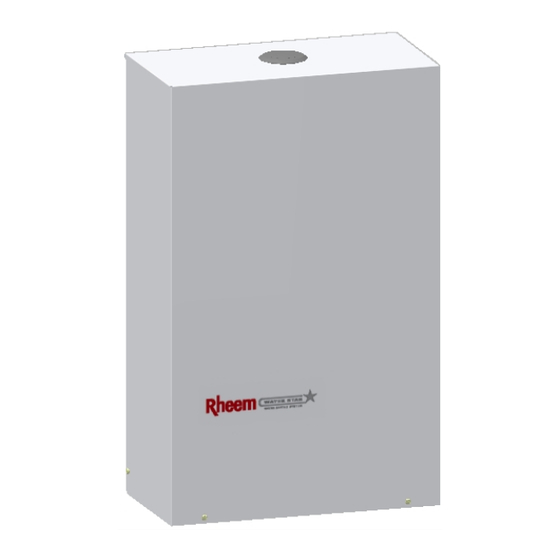

The Rheem Water Star water heater you have chosen can be installed indoor or outdoor. The Water Star has been designed to be installed with a continuous flow gas water heater. Where the water heater is installed with a continuous flow gas water heater and a hot tap is turned on, the Water Star commences to deliver hot water immediately from its outlet. - Page 5 We recommend and it may also be required by regulations that an approved temperature limiting device be fitted into the hot water pipe work to the bathroom and ensuite when a Water Star water heater is installed. This will keep the water temperature below 50°C at the bathroom and ensuite. The risk of scald injury will be reduced and still allow hotter water to the kitchen and laundry.
- Page 6 The thermostat is fully automatic and power is only used when heating is required. The thermostat on a Water Star has a fixed setting at 70°C. This cannot be adjusted. TO TURN OFF THE WATER HEATER If you plan to be away from home for only a few nights, we suggest you leave the water heater switched on.
- Page 7 Open the cold water isolation valve fully on the cold water line to the water heater. If not already connected to the Water Star or to another power outlet, plug in the power supply cord of the continuous flow water heater at the electrical socket on the underside of the Water Star.
-
Page 8: Regular Care
If water does not flow freely from the drain line when the lever is lifted, then the water heater should be checked by the Rheem Service or their nearest Accredited Service Agent. The temperature pressure relief valve should be checked for performance or replaced at intervals not exceeding 5 years, or more frequently in areas where “Water Supplies”... -
Page 9: Regular Care
The expansion control valve may discharge a small quantity of water from its drain line during the heating period instead of the temperature pressure relief valve on the Water Star water heater. Operate the easing lever on the expansion control valve once every six months. -
Page 10: Water Supplies
Where the saturation index is less than –1.0, the water is very corrosive and warranty does not apply to a copper cylinder in a Water Star water heater. In a scaling water supply calcium carbonate is deposited out of the water onto any hot metallic surface. -
Page 11: Water Supplies
WATER SUPPLIES SATURATION INDEX (SI) WATER STAR WATER HEATER WITHIN WARRANTY SPECIFICATION -1.0 +0.4 +0.8 SATURATION INDEX (calculated @ 80°C water temperature) scaling very corrosive corrosive very scaling CHANGE OF WATER SUPPLY The changing or alternating from one water supply to another can have a detrimental effect on the operation and / or life expectation of a water heater cylinder, a temperature pressure relief valve and a heating unit. -
Page 12: Save A Service Call
13. WATER TEMPERATURE TOO HIGH A Water Star has a fixed thermostat setting of 70°C. When a hot tap is turned on, hot water delivered from the Water Star will be up to this temperature. The water temperature will decrease to the outlet temperature setting of the continuous flow water heater when the hot water from the continuous flow water heater reaches the tap. - Page 13 Heavy flows of hot water until water heater is cold - then stops until water reheats The water heater must be switched off at the isolating switch. Phone Rheem Service or their nearest Accredited Service Agent to arrange for an inspection. EXPANSION CONTROL VALVE RUNNING...
- Page 14 An increase in hot water usage will result in an increase in water heater operation. Has your tariff rate been increased by your electricity retailer since your previous account? IF YOU HAVE CHECKED ALL THE FOREGOING AND STILL BELIEVE YOU NEED ASSISTANCE, CALL RHEEM SERVICE OR THEIR NEAREST ACCREDITED SERVICE AGENT.
-
Page 15: Installation
INSTALLATION THIS WATER HEATER IS NOT SUITABLE FOR POOL HEATING The Water Star has been designed to be installed with a continuous flow gas water heater. The Water Star water heater must not be installed with a continuous flow water heater that is rated to deliver temperatures not exceeding 50°C in accordance with AS 3498. - Page 16 * Expansion control valve not supplied with water heater TANK WATER SUPPLY Although the Water Star water heater does not have a minimum water supply pressure requirement, generally a continuous flow water heater does. If the water heater is supplied with water from a tank supply and a minimum...
- Page 17 It is necessary and we recommend that a temperature limiting device be fitted between a Water Star water heater and the hot water outlets in any ablution area such as a bathroom or ensuite, to reduce the risk of scalding. The...
- Page 18 INSTALLATION Two Temperature Zones Using a Temperature Limiting Device Water Star with Continuous Flow Water Heater – with an ECV REDUCING HEAT LOSSES LEGEND The cold water line to and the hot water line from the water heater must be insulated in accordance with the requirements of AS/NZS 3500.4.
- Page 19 WATER STAR & CONTINUOUS FLOW WATER HEATER INSTALLATION TYPICAL INSTALLATION – OUTDOOR LOCATION Water Star – with a Continuous Flow Water Heater...
- Page 20 INSTALLATION DIMENSIONS 624 565 TPR VALVE WATER DRAIN OUTLET OUTLET WATER INLET POWER OUTLET POWER WATER OUTLET INLET WATER OUTLET TPR VALVE DRAIN OUTLET RHEEM WATER STAR - ELECTRIC WATER HEATER DIMENSION DRAWING...
-
Page 21: Connections - Plumbing
A disconnection union must always be provided at the water inlet and hot water outlet on the water heater to allow for disconnection of the water heater. WATER STAR PLASTIC CAP REMOVAL... - Page 22 CONNECTIONS – PLUMBING A full flow isolation valve, such as a gate valve or ball valve, must be installed on the water line from the continuous flow gas water heater to the Water Star water heater. If there is no expansion control valve installed, then the non return valve must be installed between the continuous flow and Water Star water heaters.
- Page 23 The minimum recommended water supply pipe and hot pipe size is DN20 when the Water Star is installed with a continuous flow water heater. TEMPERATURE PRESSURE RELIEF VALVE The temperature pressure relief valve is supplied installed in position at the top of the water heater cylinder, underneath the jacket.
- Page 24 CONNECTIONS – PLUMBING RELIEF VALVE DRAIN DN15 copper drain lines must be fitted to the temperature pressure relief valve and expansion control valve (if one is installed) to carry the discharge clear of the water heater. Connect the drain lines to the valves using disconnection unions.
-
Page 25: Connections - Electrical
This socket allows for an additional loading of up to 1200 watts from the continuous flow water heater. Therefore only one GPO is required for the power supply to both the Water Star and continuous flow water heater. The GPO is for the Water Star water heater. - Page 26 160 watts. Note: Do not plug the three pin plug from the Water Star water heater into the power outlet on the underside of this water heater.
-
Page 27: Wiring Diagram
CONNECTIONS – ELECTRICAL WIRING DIAGRAM THERMOSTAT ELEMENT THERMOSTAT CLAMP 3 PIN PLUG & LEAD BLUE GREEN/YELLOW POWER EARTH SOCKET STUD GREEN/YELLOW Wiring Diagram Water Star Water Heater – Robertshaw “ST” Thermostat... -
Page 28: Commissioning
Water Star (refer to page 25). Plug in the power supply cord of the Water Star at the power outlet. Switch on the electrical supply at the isolating switch to the water heater. -
Page 29: Draining The Water Heater
This will let air into the water heater and allow the water to drain through the hose. This will enable the water to be drained from the water heater, down to the level of the water inlet connection of the Water Star cylinder. - Page 30 This page is intentionally blank.
-
Page 31: Warranty
Rheem or further than 25 km from a regional 7. The water heater must be sized to supply the hot Rheem branch office, or an Accredited Service... - Page 32 Rheem water heater. This warranty must be read subject to that legislation and nothing in this warranty has the effect of excluding, restricting or modifying those rights.
