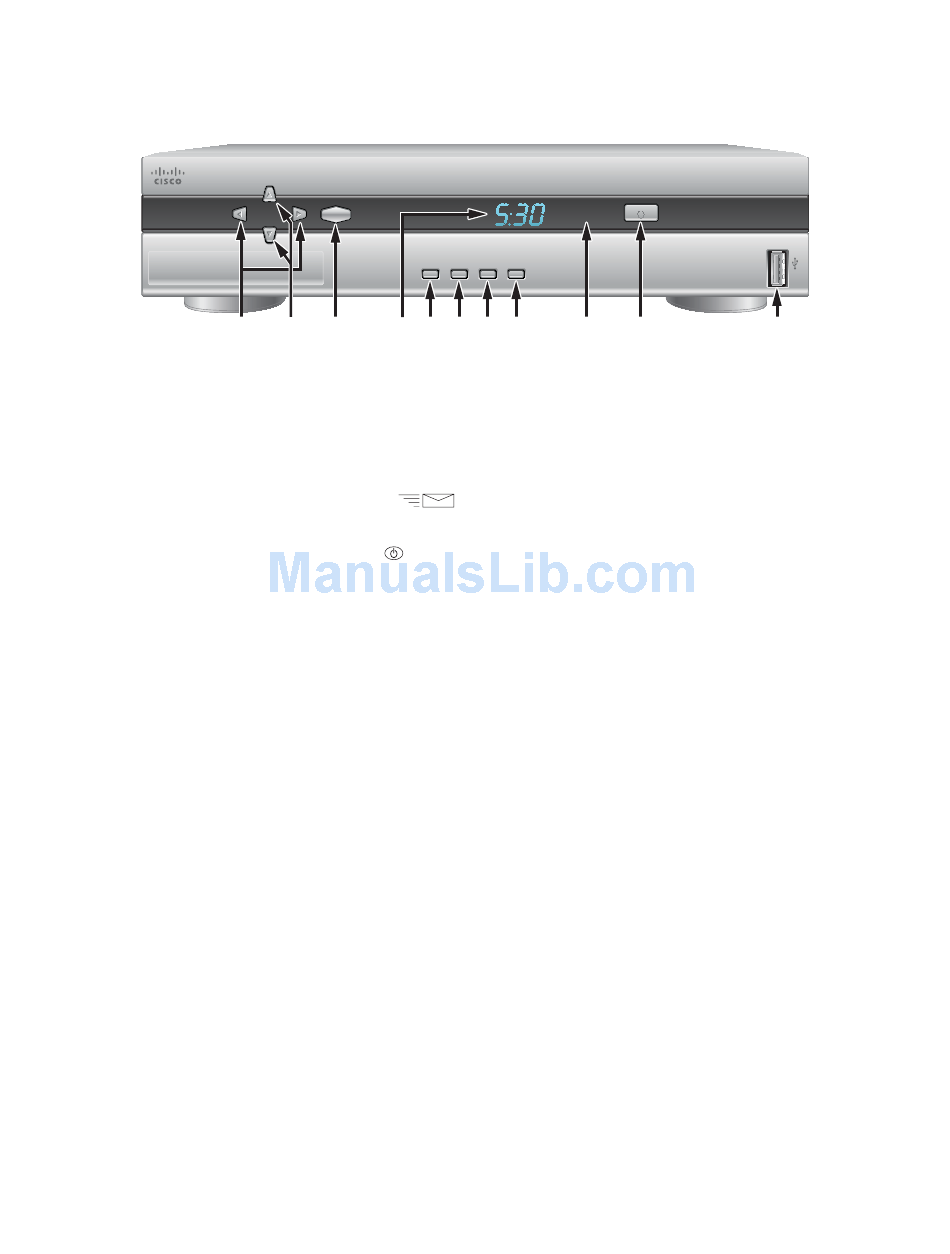

What's on the Front Panel?

CH+
VOL- VOL+
CH-
1 2
T13022
1 VOL +, VOL - Increases and decreases the volume
2 CH+, CH - Scrolls up and down through the channels
3 Select Provides access to your on-screen selection
4 LED Display Displays the selected channel number and time of day. The LED also
displays the following:
• Message (
• HDTV
• Power (
• Output Resolution (1080i, 720p, 480p, or 480i)
• AUTO - Automatically outputs native scan rates that your TV can accept
5 Guide Accesses on-screen services, such as the on-screen guide, video-on-
demand, or pay-per-view
6 Info Displays a description of the selected program. This button is available
from the on-screen guide and while viewing a program
7 Exit Exits menus, the on-screen guide, and program information
8 Settings Accesses the Settings menu
9 IR Sensor Receives the infrared signal from the remote control
10 Power Turns the set-top on and off
11 USB Port Connects to external equipment, such as a keyboard or mouse
(reserved for future use)
Note: This illustration may vary from the actual product.
SELECT
GUIDE INFO EXIT SETTINGS
3 4 5 6 7
)
)
POWER
8 9 10
EXPLORER ® 4550HDC ™
11
3
