Cisco Explorer 4640HDC and 4650HDC High-Definition
Set-Tops with Multi-Stream CableCARD Interface
Power, flexibility, and advanced security features highlight the Cisco
4650HDC High-Definition Set-Tops with Multi-Stream CableCARD™ (M-Card™) Interface.
The 4640HDC and 4650HDC set-tops support the tru2way™ (formerly OCAP™) and Federal
Communications Commission (FCC) mandates for separable security. The set-tops also offer
MPEG-4 (H.264) high definition (HD) and standard definition (SD) decoding with HD and SD
®
outputs and DOCSIS 2.0 data capability. The 4650HDC set-top also provides analog tuning.

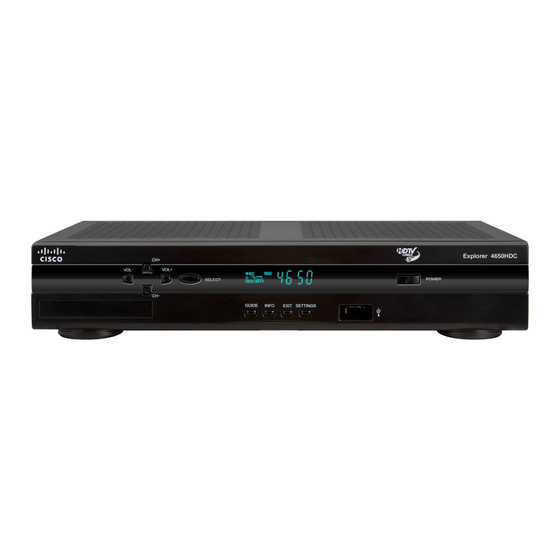

Figure 1. Cisco Explorer 4650HDC front panel (image may vary from actual product and specification)
Features
Network Utilization Enhancements
1 GHz Tuning enables cable operators to expand network bandwidth to provide additional
●
services such as VOD, tru2way, DOCSIS 2.0, and high-speed data
MPEG-4 (H.264) Decoding supports compression technology that provides better video
●
quality at approximately half the data rate of MPEG-2
DOCSIS 2.0 provides greatly increased upstream throughput for future advanced services
●
and provides a path for future IP video services (optional software)
OpenCable™ and Conventional Network Support
M-Card Interface uses a Multi-Stream CableCARD (M-Card) for separable security
●
Axiom™ Middleware supports tru2way applications such as Service Navigators, Games,
●
and other future tru2way applications (optional software)
DSG (DOCSIS Set-top Gateway) provides a powerful standard transport mechanism for
●
command and control signaling between the set-top and service provider network (optional
software)
DAVIC Receiver/Transmitter allows IP-based, real-time, two-way communication between
●
the set-top and the service provider network for on-demand services (optional software)
Data Sheet
® ®
Explorer 4640HDC and
Page 1 of 4
