Icom IC-F3061S Service Manual page 30

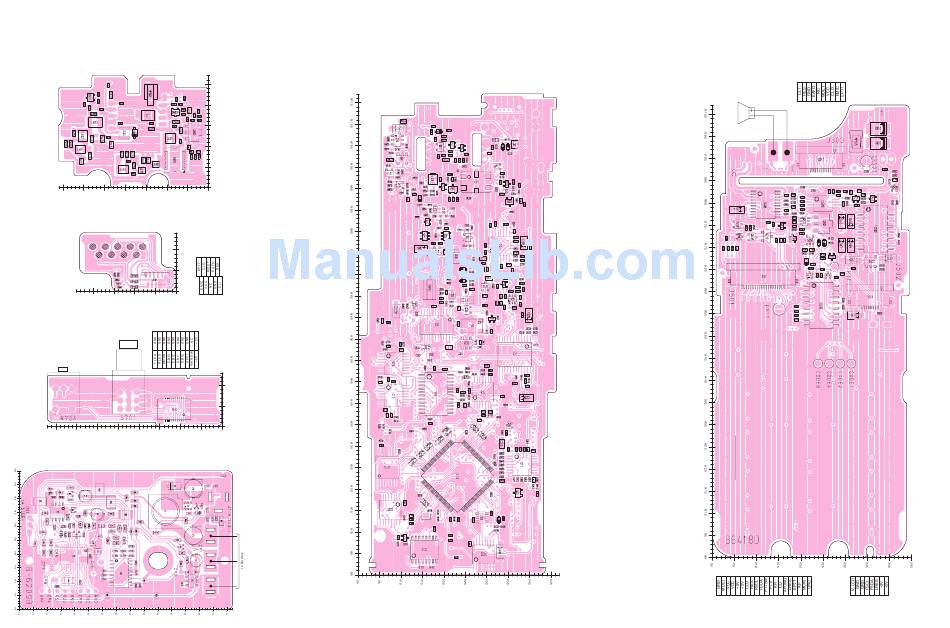

• BOTTOM VIEW (RF UNIT)
H35 H30 H25 H20 H15 H10 H5
• BOTTOM VIEW (JACK UNIT)
V10
J801
V5
V0
H20 H15 H10 H5 H0
• BOTTOM VIEW (VR UNIT)
to MAIN unit J4
20
J701
ROTARY
SELECTOR
VOL
19
H40 H35 H30 H25 H20 H15 H10
• BOTTOM VIEW (BC-160)
• BOTTOM VIEW (MAIN UNIT)
V25
V20
V15
V10
V5
V0
H0
1 9
to FRONT
unit J503
2 10
2
1
V10
V5
V0
H5 H0
CHARGE
VSENS
GND
• BOTTOM VIEW (FRONT UNIT)
to JACK
unit J801
10 1
J503
CHASSIS SP1
W502
W501
J501 J502
20 1 8
to LCD
to MAIN unit J3
10 - 2
1
