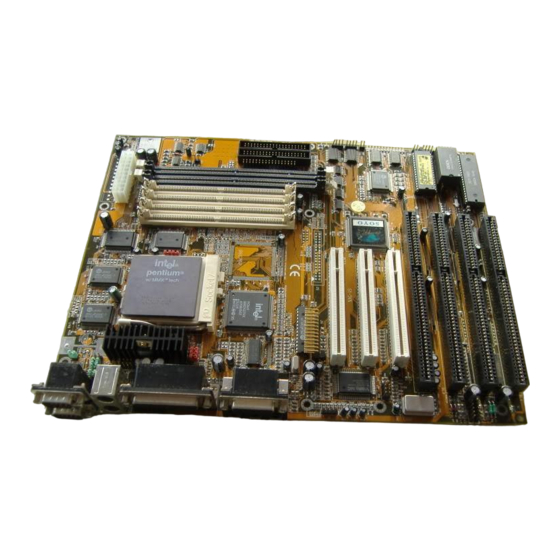

- Page 1 Pentium 82430 HX / P54C PCI Mainboard User’s Guide & Technical Reference 5T F0/F2/F5...
-
Page 2: About This Guide
It is the policy of Soyo Computer Inc. to respect the valid patent rights of third parties and not to infringe upon or assist others to infringe upon such rights. -
Page 3: Table Of Contents
Table of Contents Chapter 1: Introduction ..........1 Key Features ................1 Unpacking the Mainboard ............2 Electrostatic Discharge Precautions..........2 Mainboard Layout w/ default settings ........3 Chapter 2: Hardware Setup ..........5 Jumpers ..................5 Factory Set Jumpers .............. 5 JP3: Display Type .............. - Page 4 J22 Ð Turbo LED Connector ..........16 IDE1/IDE2 Ð On-board Primary/Secondary IDE HDD Connectors ................16 J24 Ð HDD LED Connectors ..........16 COM1/COM2 Connectors........... 16 FDC1 Connector ..............16 P1 Ð Parallel Port Connector ..........16 J4 Ð Pipelined Burst SRAM Module Slot ......16 J5, U8 Ð...
-
Page 5: Chapter 1: Introduction
1 Introduction The 82430 HX/P54C PCI mainboard is a high-performance system board that supports Pentium P54CX family CPUs. You can install 256K to 512K of external cache memory on the mainboard. The mainboard is fully compatible with industry standards, and adds many technical enhancements. -
Page 6: Unpacking The Mainboard
Introduction Unpacking the Mainboard The mainboard package contains: ¥ The 82430 HX/P54C Mainboard ¥ This User's Guide ¥ One Triones IDE/ATAPI CD-ROM Bus Master Drivers Diskette Note: Do not unpack the mainboard until you are ready to install it. Follow the precautions below while unpacking the mainboard. -
Page 7: Mainboard Layout W/ Default Settings
Introduction Mainboard Layout w/ default settings Figure 1Ð1. Mainboard Layout 1. P54C/6x86 in ZIF socket 7 10. 5V DC Power Connector 2. Pipelined Burst SRAM 11. Keyboard Connector 3. 82430 HX Chipset 12. PS/2 Mouse Connector 4. Pipelined Burst SRAM Module 13. - Page 8 Introduction Default settings are as follows: Pentium 100MHz CPU, 256K W/B Pipelined Burst cache, Address Pipeline Enabled, On-board Local Bus IDE Enabled, FDC Enabled, 2 high speed UARTS Enabled (w/ 16550 FIFO), 1 EPP/ECP port (ECP + EPP mode). JP40 KB BIOS Super I/O CHIP...
-
Page 9: Chapter 2: Hardware Setup
2 Hardware Setup This chapter explains how to configure the mainboardÕs hardware. After you install the mainboard, you can set jumpers, install memory on the mainboard, and make case connections. Refer to this chapter whenever you upgrade or reconfigure your system. CAUTION: Turn off power to the mainboard, system chassis, and peripheral devices before performing any work on the... -
Page 10: J3: Ps/2 Mouse Connector
Hardware Setup J3: PS/2 Mouse Connector Attach PS/2 mouse cable to this connector to enable the PS/2 mouse function. JP13, JP14: Bus Fraction Core/Bus Ratio Select Set this jumper according to your CPU clock. For Pentium X / Y MHz, X stands for CPU core clock, Y stands Note: for bus clock. -
Page 11: Jps2: Ps/2 Mouse Function Jumper
Hardware Setup JPS2: PS/2 Mouse Function Jumper Set PS/2 mouse function enabled or disabled. PS/2 Mouse Function JPS2 Disabled (default) Enabled Note: The IRQ12 is dedicated to PS/2 mouse when choose enabled of PS/2 Mouse Function. -
Page 12: Cpu Type Configuration
Hardware Setup CPU Type Configuration Set the mainboardÕs CPU jumpers JP10, JP11, JP13, and JP14 according to CPU type as described below, and then set JP23 and JP24 for the proper voltage of the CPU. Step 1: Frequency Setting Pentium – 75*/90*/100* CPU Settings (1.5 x clock) AMD K5 –... -
Page 13: Pentium Ð 100*/120*/133* Cpu Settings (2.0 X Clock)
Hardware Setup Pentium – 100*/120*/133* CPU Settings (2.0 x clock) Cyrix 6x86/6x86L – P120 + /P133 +/ P150 + /P166 + CPU Settings (2.0 x clock) Pentium – 100*/50 MHz Cyrix 6x86/6x86L – P120 + /50 MHz (Red Caps) JP10 JP11 JP10 JP11... -
Page 14: Pentium Ð 150* Cpu Settings (2.5 X Clock)
Hardware Setup Pentium/AMD – 150/166 CPU Settings (2.5 x clock) JP10 JP11 Pentium – 150*/60 MHz AMD K5 – PR150 (Red Caps) JP10 JP11 586 CPU Pentium – 166*/66 MHz Family JP13 JP14 AMD K5 – PR166 (Red Caps) JP10 JP11 Figure 2Ð1Ð3. -
Page 15: Step 2: Cpu Single/Dual Voltage Setting
Hardware Setup Step 2: CPU Single/Dual Voltage Setting Single Voltage CPU Setting Signal voltage CPUs use the same voltage for VIO and VCore and has been used traditionally. The CPUs which fall into this category are Intel P54CX, AMD-K5-PRxxxBx, AMD-K5-PRxxxCx, AMD-K5-PRxxxFx, and Cyrix 6x86. -
Page 16: Dual Voltage Cpu Setting
Hardware Setup Dual Voltage CPU Setting (Optional) Dual voltage CPUs are designed to use different voltage for VIO and VCore and they include Intel P55CX, AMD-K5-PRxxxHx, AMD-K5- PRxxxJx, AMD-K5-PRxxxKx, Cyrix 6x86L, and Cyrix M2. Refer to the following figure to set these CPUsÕ voltage: 2.5V CPU JP32 JP33... -
Page 17: Cache Size And Ram Locations
Hardware Setup Cache Size and RAM Locations Cacheable Cache Size Cache RAM TAG RAM Range 256KB 32K x32, 2 pcs 16K x 8/ 64 MB (or 256K module)/ U2, U4 (or J4) Upgrade to 32K x 32, 2pcs + 16K x 8/ 64MB 512KB 256K module/... -
Page 18: 512K Pipelined Burst Cache Configuration
Hardware Setup Upgrade to 512K/Onboard 512KB Pipelined Burst Cache Configuration 1. Insert Jumper into JP20 when you have 512K Pipelined Burst SRAM CHIPs onboard or 256K SRAM CHIPs and 256K Pipelined Burst SRAM module. 2. Due to the various design, contact the supplier for Pipelined Burst SRAM module when you want to upgrade to 512K cache on your motherboard. -
Page 19: Connectors
Hardware Setup Connectors Attach the mainboard to case devices, or an external battery, via connectors on the mainboard. Refer to Figure 1-1 for connector locations and connector pin positions. J2 – Keyboard Connector A five-pin female DIN keyboard connector is located at the rear of the board. -
Page 20: J22 Ð Turbo Led Connector
Hardware Setup J22 – Turbo LED Connector Attach the turbo LED to J22. The LED lights when the system is in Turbo mode. IDE1/IDE2 – On-board Primary/Secondary IDE HDD Connectors Attach on-board hard disk drives to these connectors. J24 – HDD LED Connectors Attach on-board hard disk drive LEDs to this connector. -
Page 21: Chapter 3: Bios Setup
3 BIOS Setup The mainboardÕs BIOS setup program is the ROM PCI/ISA BIOS from Award Software Inc. Enter the Award BIOS programÕs Main Menu as follows: 1. Turn on or reboot the system. After a series of diagnostic checks, you are asked to press DEL to enter Setup. -
Page 22: Standard Cmos Setup
BIOS Setup Standard CMOS Setup Run the Standard CMOS Setup as follows. 1. Choose ÒSTANDARD CMOS SETUPÓ from the Main Menu. A screen appears. ROM PCI/ISA BIOS STANDARD CMOS SETUP AWARD SOFTWARE, INC. Date (mm:dd:yy) : Fri, Feb 1 1995 Time (hh:mm:ss) : 7 : 30 : 33 HARD DISKS... -
Page 23: Bios Features Setup
BIOS Setup BIOS Features Setup Run the BIOS Features Setup as follows. 1. Choose ÒBIOS FEATURES SETUPÓ from the Main Menu and a screen with a list of items appears. (The screen below shows the BIOS default settings.) ROM PCI/ISA BIOS BIOS FEATURES SETUP AWARD SOFTWARE, INC. -
Page 24: Bios Setup
BIOS Setup Boot Sequence The default setting attempts to first boot from drive A:, drive C, or CD-ROM. You can reverse this sequence with ÒC: A:Ó, but then drive A: cannot boot directly. (It depends on the specifications of CD- ROM or CD-ROM drivers to boot from CD-ROM.) Swap Floppy Enabled changes the sequence of the A: and B:... - Page 25 BIOS Setup Video or BIOS shadow copies BIOS code from slower ROM Adapter BIOS to faster RAM. BIOS can then execute from RAM. Shadow These 16K segments can be shadowed from ROM to RAM. BIOS is shadowed in a 16K segment if it is enabled and it has BIOS present.
-
Page 26: Chipset Features Setup
BIOS Setup Chipset Features Setup The Chipset Features Setup option changes the values of the chipset registers. These registers control system options in the computer. Note: Change these settings only if you are familiar with the Chipset. Run the Chipset Features Setup as follows. 1. - Page 27 BIOS Setup DRAM R/W Leadoff Use the default setting. Timing DRAM RAS to CAS Use the default setting. Delay DRAM Read Burst Use the default setting. Timing DRAM Write Burst Use the default setting. Timing Turbo Read Leadoff Use the default setting. DRAM Speculative Use the default setting.
- Page 28 BIOS Setup Chipset Special Features Use the default setting. DRAM ECC/PARITY Choose ECC or Parity (default) according Select the type of DRAM you have. Memory Parity/ECC Auto: Active memory checking Check automatically. Enabled: Enable memory checking. Disabled: Disable memory checking. Single Bit Error Report Enabled: System will report DRAM error to CPU.
-
Page 29: Power Management Setup
BIOS Setup Power Management Setup The Power Management Setup option sets the systemÕs power saving functions. Run the Power Management Setup as follows. 1. Choose ÒPOWER MANAGEMENT SETUPÓ from the Main Menu and a screen with a list of items appears. ROM PCI/ISA BIOS CMOS SETUP UTILITY POWER MANAGEMENT SETUP... - Page 30 BIOS Setup PM Control by Choose Yes or No (default). APM stands for Advanced Power Management. To use APM, you must run Òpower.exeÓ under DOS v6.0 or later version. Video Off Method Choose V/H Sync+Blank (default), Blank screen, or DPMS for the selected PM mode. Doze Mode When the set time has elapsed, the BIOS sends a command to the system to enter doze mode...
-
Page 31: Pnp/Pci Configuration Setup
BIOS Setup PNP/PCI Configuration Setup This option sets the mainboardÕs PCI Slots. Run this option as follows: 1. Choose ÒPNP/PCI CONFIGURATION SETUPÓ from the Main Menu and the following screen appears. (The screen below shows default settings.) ROM PCI/ISA BIOS PNP/PCI CONFIGURATION AWARD SOFTWARE, INC. -
Page 32: Load Setup Defaults
BIOS Setup IRQX and Choose PCI/ISA PnP or Legacy ISA. If the first DMAX assigned item is set to Manual, you could choose IRQX and DMAX assigned to PCI/ISA PnP card or ISA card. PCI/ISA PnP: BIOS auto assigns IRQ/DMA to the device. -
Page 33: Load Bios Defaults
BIOS Setup Load BIOS Defaults Choose this item and the following message appears: ÒLoad BIOS Defaults (Y/N)?NÓ To use the BIOS defaults, change the prompt to ÒYÓ and press <Enter>. Note: BIOS DEFAULTS values are adjusted for high performance. If you run into any problems after loading BIOS DEFAULTS, please load the SETUP DEFAULTS for the stable performance. - Page 34 BIOS Setup IDE HDD Block Mode Choose Enabled (default) or Disabled. Enabled invokes multi-sector transfer instead of one sector per transfer. Not all HDDs support this function. PCI Slot IDE 2nd Choose Enabled (default) or Disabled. Channel When Enabled is set, IRQ15 is dedicated for secondary IDE use.
- Page 35 BIOS Setup Onboard Parallel Port Choose the printer I/O address: 378H/IRQ7 (default), 3BCH/IRQ7, 278H/IRQ5 Onboard Printer Mode Choose ECP + EPP (default), SPP or EPP, ECP mode. The mode depends on your external device that connects to this port. ECP Mode DMA Select Choose DMA3 (default) or DMA1.
-
Page 36: Supervisor Password
BIOS Setup Supervisor Password Based on the setting you made in the ÒSecurity OptionÓ of the ÒBIOS FEATURES SETUPÓ, this Main Menu item lets you configure the system so that a password is required every time the system boots or an attempt is made to enter the Setup program. -
Page 37: User Password
BIOS Setup User Password Based on the setting you made in the ÒSecurity OptionÓ of the ÒBIOS FEATURES SETUPÓ, this Main Menu item lets you configure the system so that a password is required every time the system boots or an attempt is made to enter the Setup program. -
Page 38: Ide Hdd Auto Detection
BIOS Setup IDE HDD Auto Detection This Main Menu item automatically detects the hard disk type and configures the STANDARD CMOS SETUP accordingly. This function is only valid for IDE hard disks. Note: ROM PCI/ISA BIOS CMOS SETUP UTILITY AWARD SOFTWARE, INC. HARD DISKS TYPE SIZE... -
Page 39: Chapter 4: Drivers Installation Guide
4 Drivers Installation Guide IDE BUS Master Installation Guide MS-DOS/WINDOW/WFW 1) You should install CD-ROM in secondary channel in Windows (WFW). 2) Change the current directory to a: or b:. 3) Under DOS command line prompt, run the SETUP directly. After entering the setup utility, just follow the instructions of the setup. -
Page 40: Windows 95
Drivers Installation Guide WINDOWS 95 1) Close any running applications. 2) Insert the floppy disk into drive A:. 3) Open ÒMy ComputerÓ, double click ÒDrive A:Ó. 4) Double click ÒWin95Ó. 5) Double click the Setup program. 6) Then just follow the instruction. NOVELL 3.X&4.X 1) Copy the driver TRIN4X.DSK or TRIN312.DSK to the subdirectory which holds the file SERVER.EXE. -
Page 41: Sco Unix 5.0
Drivers Installation Guide Your floppy drive A device name could be: ¥ rfd096ds15,5.25 DSHD ¥ rfd0135ds18 3.5 DSHD ¥ rfd048ds9 5.25 DSDD ¥ rfd0135ds9 3.5 DSDD Now you have already made an installation diskette for the device driver. Start the installation by typing: custom. 6) Select the ÒInstallÓ...
