Summary of Contents for FujiFilm FINEPIX S1 Series

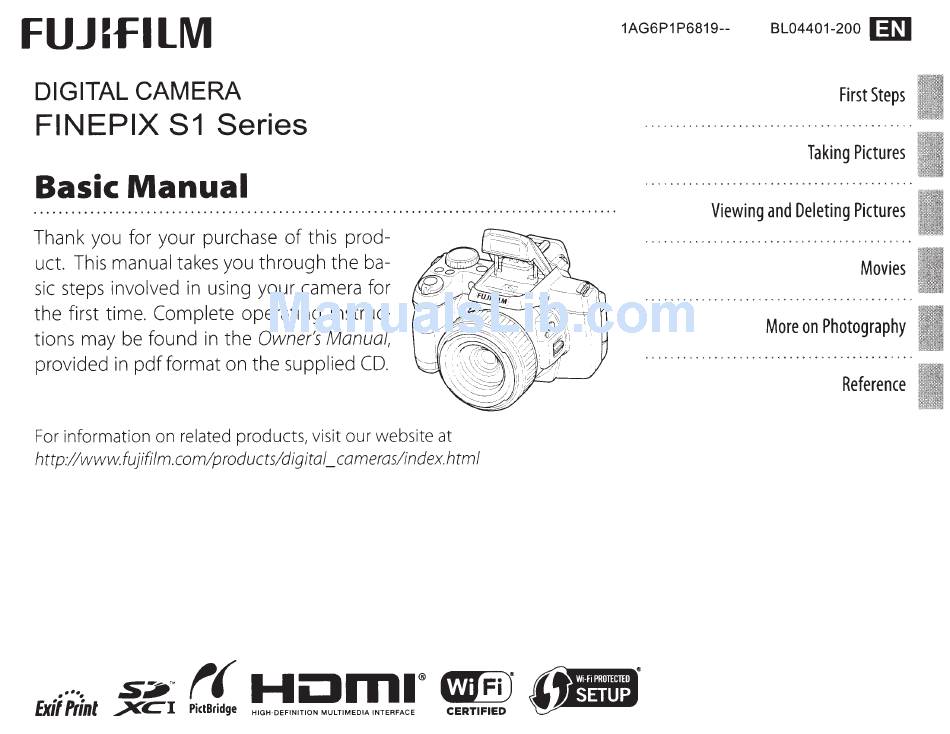

  • Page 39: Digital Camera

    Thank you for your purchase of this prod- uct. This manual describes how to use your More on Photography FUJIFILM digital camera and the supplied software. Be sure that you have read and understood its contents and the warnings More on Playback in “For Your Safety”...

  • Page 40: For Your Safety

    For Your Safety IMPORTANT SAFETY INSTRUCTIONS • Read Instructions: All the safety and not defeat the safety purpose of the This video product should never be appliance operating instructions should be polarized plug. placed near or over a radiator or heat and cart com- read before the appliance is oper- register.
  • Page 41 For Your Safety Power Lines: An outside antenna sys- Service Replacement Parts: When replace- tem should not be located in the ment parts are required, be sure Cleaning: Unplug this video product Servicing: Do not attempt to service vicinity of overhead power lines or the service technician has used from the wall outlet before clean- this video product yourself as open-...

  • Page 42: Safety Notes

    Circular icons with a diagonal bar tell you that the action indicated is shock. prohibited (“Prohibited”). • If the cord is damaged, contact your FUJIFILM dealer. Filled circles with an exclamation mark tell you an action that must be Do not place the camera on an unstable surface.
  • Page 43 For Your Safety WARNING Do not heat, change or take apart the battery. Do not drop or subject the bat- tery to impacts. Do not store the battery with metallic products. Do not use chargers other than the specified model to charge the battery. Any of these actions can cause the battery to burst or leak and cause fire or injury as a result.
  • Page 44 Request regular internal testing and cleaning for your camera. Build-up of dust in your camera can cause a fire or electric shock. • Contact your FUJIFILM dealer to request internal cleaning every 2 years. • Please note this is not a free of charge service.
  • Page 45 For Your Safety If you are using a heating pad, take this indicates that the battery has • Always keep the battery terminals Power Supply and Battery care not to place the battery di- reached the end of its effective life clean.
  • Page 46 DC input terminal. battery terminals makes the bat- and recharge them several times for which they can be used may be • Turn off the FUJIFILM Digital cam- teries charge less reducing the using the camera’s “Discharging shortened as a result.
  • Page 47 This is normal. tected under copyright laws is only System marks of FUJIFILM Corporation. The • If used near a radio, the AC power permissible within the restrictions NTSC: National Television System typefaces included herein are solely adapter may cause static.
  • Page 48 Mutual interference may occur when the transmitter is ference at distances of up • Use only as part of a wireless network. FUJIFILM does not used in the vicinity of other wireless devices operating in to 40 m.

  • Page 49: About This Manual

    About This Manual Before using the camera, read this manual and the warnings on pages ii-x. For information on specific topics, consult the sources below. ✔ Table of Contents ..........✔ Troubleshooting ..........The “Table of Contents” gives an overview of the Having a specific problem with the camera? Find entire manual.

  • Page 50: Table Of Contents

    Table of Contents For Your Safety ................. ii Basic Photography and Playback IMPORTANT SAFETY INSTRUCTIONS ........ii Taking Pictures in (Scene Recognition) Mode ...18 Safety Notes ..................iv Viewing Pictures ................23 About This Manual ................. xi More on Photography Before You Begin Shooting Mode ................24 Introduction ..................
  • Page 51 Table of Contents More on Playback Connections Playback Options ................55 Viewing Pictures on TV ...............68 Continuous Shooting ..............55 Connecting the Camera to High Definition (HD) TVs ..68 Playback Zoom ................55 Printing Pictures via USB ............69 Favorites: Rating Pictures ............56 Connecting the Camera ............69 Multi-Frame Playback ..............57 Printing Selected Pictures ............69 Viewing Panoramas ..............58...
  • Page 52 Table of Contents MARK FOR UPLOAD ............91 Technical Notes SLIDE SHOW .................93 Optional Accessories ..............109 RED EYE REMOVAL .............94 Accessories from FUJIFILM .............110 PROTECT ................95 Caring for the Camera ...............112 CROP..................96 Troubleshooting RESIZE ..................97 IMAGE ROTATE ..............98 Troubleshooting ................114 COPY ..................99...

  • Page 53: Introduction

    Introduction Symbols and Conventions The following symbols are used in this manual: : This information should be read before use to ensure correct operation. : Points to note when using the camera. : Additional information that may be helpful when using the camera. : Other pages in this manual on which related information may be found.

  • Page 54: Parts Of The Camera

    Introduction Parts of the Camera For more information, refer to the page listed to the right of each item. Microphone ..........64 (burst mode) button ......46 Flash ..............41 Hot shoe ..........87, 111 Flash pop-up button......41 Mode dial ............24 Strap eyelet ............ 8 Command dial ........32, 34 Zoom out button ........20 Diopter adjustment control ....
  • Page 55 Introduction Electronic viewfinder ....7 EVF/LCD (display selection) button ..7 Selector button (see below) (movie recording) button .... 64 Monitor ........... 4 (playback) button ....23, 55 DISP (display)/BACK button Terminal cover ....68, 69, 78 ..............5, 55 WiFi button .........63 Tripod mount Speaker ..........67 Battery-chamber cover ....

  • Page 56: Camera Displays

    Introduction Camera Displays The following indicators may appear during shooting and playback. The indicators displayed vary with camera settings. ■ Shooting Number of available frames ... 126 Blur warning ......41, 117, 122 Movie mode ..........66 IS mode ............20 Internal memory indicator * Date and time ..........17 DATE Focus warning ...........21...
  • Page 57 Introduction Hiding and Viewing Indicators Press DISP/BACK to cycle through shooting and playback indicators as follows: • Shooting: Indicators displayed/indicators hidden/best framing/HD framing/histogram • Playback: Indicators displayed/indicators hidden/ favorites ( 56)/photo info Histograms Histograms show the distribution of tones in the im- 100-0001 4:3 N age.

  • Page 58: The Monitor

    Introduction The monitor The monitor can be rotated and angled to suit your needs, such as self-portraits, low-angle shots, or high-angle shots. • For normal use, fold the monitor facing out. • When carrying the camera, fold the monitor facing inward to prevent dirt and scratches. Rotating the monitor Rotate the monitor gently.

  • Page 59: Diopter Adjustment Control

    Introduction The Electronic Viewfinder (EVF) The electronic viewfinder provides the same information as the monitor, and can be used when bright lighting conditions make the display in the monitor difficult to see. Press EVF/LCD button to select from the monitor or electric view finder mode. Bright Ambient Lighting Reflections and glare caused by bright ambient lighting may make it hard to see the display in the monitor, particularly when the camera is used outdoors.

  • Page 60: Attaching Accessories

    Attaching Accessories To avoid losing the lens cap, pass the supplied string The Strap through the eyelet ( ) and secure the lens cap to the Attach the strap to the two strap eyelets as shown strap ( ). below. The Lens Hood (Optional Accessory) Rotate the lens hood in the direction shown until it clicks into place.

  • Page 61: Inserting The Battery

    Inserting the Battery Insert the batteries in the camera as described Insert the battery. below. Insert the battery as shown in the illustration inside the battery chamber, using the bat- Open the battery-chamber cover. tery to keep the latch pressed to one side. Slide the battery-cham- ber latch in the direction Arrow...
  • Page 62 Inserting the Battery Close the battery-chamber cover. Batteries • Remove dirt from the battery terminals with a clean, Press the cover down un- dry cloth. Failure to observe this precaution could til it clicks into place. prevent the battery from charging. •...

  • Page 63: Inserting A Memory Card

    Inserting a Memory Card Although the camera can store pictures in inter- • Be sure card is in the correct orientation; do not nal memory, optional SD, SDHC and SDXC mem- insert at an angle or use force. If the memory ory cards (sold separately) can be used to store card is not correctly inserted or no memory additional pictures.
  • Page 64 Inserting a Memory Card Close the battery-chamber cover. Removing Memory Cards Press the cover down un- After confirming that the cam- til it clicks into place. era is off, press the card in and then release it slowly. The card can now be removed by hand.
  • Page 65 • miniSD or microSD adapters that are larger or smaller than the standard dimensions of an SD/SDHC/SDXC FUJIFILM and SanDisk SD, SDHC, and SDXC mem- card may not eject normally; if the card does not ory cards have been approved for use in the cam- eject, take the camera to an authorized service repre- era.

  • Page 66: Charging The Battery

    Charging the Battery The battery is not charged at shipment. Charge the battery before use. The camera charges the bat- tery internally. Attach the plug adapter to the AC power adapter. Attach the plug adapter as shown, making sure that it is fully inserted and clicks into place on the AC power adapter termi- nals.
  • Page 67 Charging the Battery Charge status The indicator lamp shows battery charge status. Indicator lamp Battery status Action Battery charging. — Charging complete. — Blinks Battery fault. See page 114 Charging via a computer The battery can be charged by connecting the camera to a computer. Connect the supplied USB cable as shown, making sure the connectors are fully inserted.

  • Page 68: Turning The Camera On And Off

    Turning the Camera On and Off Shooting Mode Playback Mode Press the button to turn the camera on. To turn the camera on and begin playback, press The lens will extend automatically. button for about a second. Press the button again or press the button to turn the camera off .

  • Page 69: Basic Setup

    Basic Setup A language-selection dialog is displayed the first time the camera is turned on. Set up the camera as described below (for information on resetting the clock or changing languages, see page 101). Choose a language. 1.1 Press the selector up or down to highlight a language. START MENU ENGLISH FRANCAIS...

  • Page 70: Taking Pictures In

    Taking Pictures in (Scene Recognition) Mode This section describes how to take pictures in mode. Turn the camera on. Press the button to turn the camera In this mode, the camera au- tomatically analyzes the com- position and selects a scene according to shooting condi- tions and the type of subject (the scenes in brackets are...
  • Page 71 Taking Pictures in (Scene Recognition) Mode Check the battery level. Frame the picture. Check the battery level in the display. Use the zoom control or side lever to frame the picture in the display. Select W to zoom out Select T to zoom in Zoom indicator Indicator Description...
  • Page 72 Taking Pictures in (Scene Recognition) Mode Holding the Camera • When setting the side lever to H, the side lever can Hold the camera steady with zoom faster. In the same way when setting the side both hands and brace your lever to L, the side lever can zoom slower.
  • Page 73 Taking Pictures in (Scene Recognition) Mode Focus. Shoot. Press the shutter button halfway Smoothly press the shutter button to focus. the rest of the way down to take the picture. The Shutter Button The lens may make a noise when the camera fo- The shutter button has two positions.

  • Page 74: Taking Pictures In (Scene Recognition) Mode

    Taking Pictures in (Scene Recognition) Mode The Indicator Lamp Indicator lamp The indicator lamp shows camera status as follows: Indicator lamp Camera status Glows green Focus locked. Blur, focus, or exposure warning. Pic- Blinks green ture can be taken. Blinks green Recording pictures.

  • Page 75: Viewing Pictures

    Viewing Pictures Pictures can be viewed in the monitor. When taking important photographs, take a test shot and check the results. Press the button. Deleting Pictures To delete the picture currently displayed in the monitor, press the selector up ( ). The following dialog will be displayed.

  • Page 76: Shooting Mode

    Shooting Mode Choose a shooting mode according to the scene or type of subject. The Mode Dial To select a shooting mode, align the mode icon with the mark next to the mode dial. P, S, A, M: Select for full control over cam- era settings, including aperture (M and A) (SCENE RECOGNITION): A “point- and/or shutter speed (M and S) (...

  • Page 77: Scene Recognition

    Shooting Mode SCENE RECOGNITION Adv. ADVANCED The camera automatically analyzes the composi- This mode combines “point-and-shoot” simplic- tion and selects the appropriate scene mode ac- ity with sophisticated photographic techniques. cording to the subject and shooting conditions Adv. MODE option in the shooting 18).
  • Page 78 Shooting Mode ■ ADVANCED FILTER Take photos with filter effects. Select a filter effect and press MENU/OK. Depending on the subject and camera settings, images may in some cases be grainy or vary in brightness and hue. Filter Description TOY CAMERA Choose for a retro toy camera effect.
  • Page 79 Shooting Mode ■ ■ PRO LOW-LIGHT Each time the shutter button Each time the shutter button is pressed, the cam- is pressed, the camera makes era takes a series of shots, each with different four exposures and combines exposure. These are combined into a single im- them into a single photograph.
  • Page 80 Shooting Mode ■ ■ Natural & Zoom Bracketing This mode helps ensure good results with back- Each time the shutter button is pressed, the cam- lit subjects and in other situations with difficult era takes three pictures: one at the current zoom lighting.

  • Page 81: Sp Scene Position

    Shooting Mode SP SCENE POSITION The camera offers a choice of “scenes,” each adapted to particular shooting conditions or a specific type of subject. Use the SCENE POSITION option in the shooting menu to choose the scene as- signed to the SP position on the mode dial. Scene Description PORTRAIT...

  • Page 82: Motion Panorama 360

    Shooting Mode Pan the camera in the di- MOTION PANORAMA 360 rection shown by the arrow. Follow an on-screen guide Shooting ends automati- to take photos that will cally when the progress bar automatically be joined is full and the panorama is to form a panorama.
  • Page 83 Shooting Mode For Best Results • Panoramas are created from multiple frames. The For best results, move the camera in a small circle at camera may in some cases record a greater or lesser a steady speed, keeping the camera horizontal and angle than selected or be unable to stitch the frames being careful only to pan in the direction shown by together perfectly.

  • Page 84: P: Program Ae

    Shooting Mode P: PROGRAM AE Program Shift Rotate the command dial to choose the desired com- In this mode, the camera sets exposure automati- bination of shutter speed and aperture. The default cally. If desired, you can choose different combi- values can be restored by raising the flash or turning nations of shutter speed and aperture that will the camera off.

  • Page 85: S: Shutter Priority Ae

    Shooting Mode S: SHUTTER PRIORITY AE A: APERTURE PRIORITY AE Choose the shutter speed using the command Choose the aperture using the command dial, dial, while the camera adjusts aperture for opti- while the camera adjusts shutter speed for opti- mal exposure.

  • Page 86: M: Manual

    Shooting Mode M: MANUAL • Noise in the form of randomly-spaced bright pixels In this mode, you choose both shutter speed and may occur in long exposures. aperture. If desired, exposure can be altered from • The shutter speed is restricted depending on the ISO the value suggested by the camera.

  • Page 87: C: Custom Mode

    Shooting Mode C: CUSTOM MODE In P, S, A and M modes, the CUSTOM SET option in the shooting menu ( 82) can be used to save current camera and menu settings. These settings are recalled whenever the mode dial is rotated to C (cus- tom mode).

  • Page 88: Intelligent Face Detection

    Intelligent Face Detection Intelligent Face Detection allows the camera to automatically detect human faces and set focus and exposure for a face anywhere in the frame for shots that emphasize portrait subjects. Choose for group portraits (in horizontal or vertical orientations) to prevent the camera from focusing on the back- ground.
  • Page 89 Intelligent Face Detection Intelligent Face Detection Intelligent Face Detection is recommended when using the self-timer for group- or self-portraits ( 43). When a picture taken with Intelligent Face Detection is displayed, the camera can automatically select faces for red-eye removal ( 94), playback zoom ( 55), slide shows (...

  • Page 90: Focus Lock

    Focus Lock To compose photographs with off-center subjects: Position the subject in the focus frame. Recompose the picture. Keeping the shutter button pressed halfway, recompose the picture. Focus. Press the shutter button halfway to set fo- cus and exposure. Focus and exposure will Shoot.
  • Page 91 Focus Lock Autofocus The AF-Assist Illuminator Although the camera boasts a high-precision autofo- If the subject is poorly lit, the AF-assist illuminator will cus system, it may be unable to focus on the subjects light to assist the focus operation when the shutter listed below.

  • Page 92: Macro And Super Macro Modes (Close-Ups)

    Macro and Super Macro Modes (Close-ups) For close-ups, press the selector left ( ) to choose from the macro options shown below. Choose from (macro mode), (super macro mode), or OFF (macro mode off) When macro mode is in effect, the camera focuses on subjects near the center of the frame. Use the zoom control to compose pictures.

  • Page 93: Using The Flash (Intelligent Flash)

    Using the Flash (Intelligent Flash) When the flash is used, the camera’s Intelligent Flash system instantly analyzes the scene based on such factors as the brightness of the subject, its position in the frame, and its distance from the camera. Flash output and sensitivity are adjusted to ensure that the main subject is correctly exposed while preserving the effects of ambient background lighting, even in dimly-lit indoor scenes.
  • Page 94 Using the Flash (Intelligent Flash) Focus. Press the shutter button halfway to focus. If the flash will fire, will be displayed when the shutter button is pressed halfway. At slow shutter speeds, will appear in the display to warn that pictures may be blurred; use of a tripod is recommended. Shoot.

  • Page 95: Using The Self-Timer

    Using the Self-Timer To use the self-timer, press the selector down ( ) and choose from the following options: Option Description (OFF) Self-timer off. The shutter is released ten seconds after the shutter button is pressed. Use for self-portraits. (10 SEC) The self-timer lamp on the front of the camera lights when the timer starts and begins to blink shortly before the photo is taken.

  • Page 96: Interval Shooting

    Using the Self-Timer Interval shooting • If you press the shutter button before shooting ends, interval shooting stops. You can automatically shoot at fixed intervals. • The LCD monitor turns off and the indicator lamp Press ( ), and then select flashes during interval shooting.

  • Page 97: The Fn Button

    The Fn Button The role played by the Fn button can be selected using the Fn BUTTON option in the setup menu ( 102). The following options are available: ISO ( 83)/IMAGE SIZE ( 83)/IMAGE QUALITY ( 84)/RAW (temporary RAW Fn button settings) ( 84)/WHITE BALANCE (...

  • Page 98: Continuous Shooting (Burst Mode)

    Continuous Shooting (Burst Mode) Capture motion or automatically vary selected settings over a series of pictures. Press the button and choose • Focus and exposure are determined by the first frame from the following options: in each series. The flash turns off automatically; the previously-selected flash mode is restored when con- OFF: OFF tinuous shooting is turned off.
  • Page 99 Continuous Shooting (Burst Mode) ■ Highlight the number of BEST FRAME CAPTURE Shots per burst shots and press the selec- The camera takes a series of pictures, starting CONTINUOUS SHOOTING SETUP before and ending after the shutter button is tor right. Press the selector SHUTTER FRAMES up or down to choose the...
  • Page 100 Continuous Shooting (Burst Mode) ■ Take photographs. The camera begins record- AE BKT ing while the shutter button is pressed half- Each time the shutter button is pressed, the cam- way, and completes the burst when the shut- era takes three shots: one using the metered val- ter button is pressed all the way down.

  • Page 101: Exposure Compensation

    Exposure Compensation Use exposure compensation when photographing very bright, very dark, or high-contrast subjects. Press the button. Return to shooting mode. Press the button to return to shooting The exposure indicator will be displayed. mode. Take pictures. Exposure indicator 1200 1000 F3.3 icon and exposure indicator are displayed at set-...
  • Page 102 Exposure Compensation Choosing an Exposure Compensation Value • Backlit subjects: choose values from + EV to +1 • Highly reflective subjects or very bright scenes (e.g., snowfields): +1 EV • Scenes that are mostly sky: +1 EV • Spotlit subjects (particularly if photographed against dark backgrounds): – •...

  • Page 103: White Balance

    WHITE BALANCE For natural colors, select  WHITE BALANCE in the shooting menu and choose a setting that match- es the light source. ■ : Custom White Balance Option Description AUTO White balance adjusted automatically. Choose to adjust white balance for unusual Measure a value for white balance.

  • Page 104: Focus Mode

    Focus Mode FOCUS MODE from the shooting menu to change how the camera focuses. Select FOCUS MODE from the shooting menu. The Focus Mode settings screen is displayed. Select the focus mode. Mode Description Focus manually using the command dial. Rotate the dial left to reduce the focus distance, right to increase.
  • Page 105 Focus Mode The camera continually adjusts focus to reflect changes in the distance to the subject even CONTINUOUS when the shutter button is not pressed halfway (note that this increases the drain on the batteries). Choose for moving subjects. Position the subject in the center focus area and press the selector left. Focus will track the TRACKING subject as it moves through the frame.

  • Page 106: Focus Frame Selection

    Focus Frame Selection When AREA is selected for FOCUS MODE in the shooting menu, the camera offers a choice of focus points. To position the focus frame, press the selector up, down, left, or right. Press MENU/OK to put the setting into effect. SELECT AF AREA Focus target CANCEL...

  • Page 107: Playback Options

    Playback Options To view the most recent picture in the monitor, Playback Zoom press the button. Select T to zoom in on pictures displayed in sin- gle-frame playback; select W to zoom out. When 100-0001 the picture is zoomed in, the selector can be used to view areas of the image not currently visible in the display.

  • Page 108: Favorites: Rating Pictures

    Playback Options Favorites: Rating Pictures Intelligent Face Detection Pictures taken with Intelligent To rate the picture currently displayed in full-frame Face Detection ( 36) are playback, press DISP/BACK and press the selector indicated by a icon. Press up and down to select from zero to five stars. button to zoom in on the subject selected with In- Favorites...

  • Page 109: Multi-Frame Playback

    Playback Options Multi-Frame Playback To change the number of images dis- Use the selector to highlight images and press played during playback, select W. MENU/OK to view the highlighted image full frame. In the nine- and hundred-frame displays, press the selector up or down to view more pictures. Two-Frame Display Two-frame display can be used 2050.

  • Page 110: Viewing Panoramas

    Viewing Panoramas If you press the selector down when a panorama is displayed full frame, the camera will play back the picture from left to right or from bottom to top. PLAY STOP PAUSE The following operations can be performed during playback: Operation Button Description...

  • Page 111: Photobook Assist

    PhotoBook Assist Create books from your favorite photos. Creating a PhotoBook Select PHOTOBOOK ASSIST in the play- Scroll through the images and press the selec- back menu. tor up to select or deselect the current image for inclusion in the book. To display the current Highlight NEW BOOK.

  • Page 112: Viewing Photobooks

    PhotoBook Assist Press MENU/OK. The new book will be Viewing PhotoBooks added to the list in the photobook Highlight a book in the photobook assist menu assist menu. and press MENU/OK to display the book, then press the selector left and right to scroll through the •...

  • Page 113: Image Search

    Image Search Search for pictures by date, subject, scene, file type, and rating. Select IMAGE SEARCH in the playback Select a search condition. Only pic- menu. tures that match the search condi- tion will be displayed. To delete or Highlight one of the following op- protect selected pictures or to view tions and press MENU/OK: the selected pictures in a slide show,...

  • Page 114: Deleting Pictures

    Deleting Pictures To delete individual pictures, multiple selected pictures, or all pictures, ERASE press the selector up ( ), and choose from the options below. Note FRAME SELECTED FRAMES that deleted pictures can not be recovered. Copy important pictures to a ALL FRAMES computer or other storage device before proceeding.

  • Page 115: Using Wireless Networks

    • Browsing and downloading the pictures on the camera using smartphones • Downloading location data from smartphones Before proceeding, download the free FUJIFILM Camera Remote app and install it on your smartphone. This option can also be enabled by WIRELESS COMMUNICATION from shooting or playback menu.

  • Page 116: Recording Movies

    Recording Movies Press to shoot a movie. During recording, the following indicators will be displayed and sound will be recorded via the built-in microphone (be careful not to cover the microphone during recording). REC icon Number of photos that 999m59s can be taken during recording Time remaining...
  • Page 117 Recording Movies Super Macro Movies Select Super Macro as the macro mode to shoot movies. Optical zoom can not be adjusted when shooting movies in super macro. DIGITAL IMAGE STABILIZER You can correct camera vibrations that occur when shooting movies to shoot images with only minor vibrations using the DIGITAL IMAGE STABILIZER in the setup menu.

  • Page 118: Movie Frame Size

    Recording Movies Movie Frame Size Before recording, select a frame size using the MOVIE MODE option in the shooting menu ( 82). Option Description 1920 × 1080 Full HD (High Definition). 1280 × 720 High Definition. 640 × 480 Standard definition. 640 ×...

  • Page 119: Viewing Movies

    Viewing Movies Progress is shown in the monitor during play- During playback ( 55), 100-006 movies are displayed in the back. monitor as shown at right. The following operations 12/31/2050 10 : 00 AM PLAY can be performed while a Progress bar movie is displayed: STOP...

  • Page 120: Viewing Pictures On Tv

    Viewing Pictures on TV Connecting the Camera to High Definition (HD) TVs When an HDMI cable (available from third-party suppliers) is connected, pictures and sound are played back on the TV. Turn the camera off and connect an HDMI cable available from third party suppliers. Insert into HDMI Insert into HDMI connector...

  • Page 121: Printing Pictures Via Usb

    Printing Pictures via USB If the printer supports PictBridge, the camera can be connected directly to the printer and pictures can be printed without first being copied to a computer. Note that depending on the printer, not all the functions described below may be supported. Connecting the Camera Printing Selected Pictures Connect the supplied USB cable as shown and...

  • Page 122: Printing The Dpof Print Order

    Printing Pictures via USB Printing the Date of Recording Printing the DPOF Print Order To print the date of recording on pictures, press DISP/ To print the print order created with PRINT BACK in steps 1–2 to display the PictBridge menu (see ORDER (DPOF) in the playback menu ( 72).
  • Page 123 Printing Pictures via USB Press MENU/OK to start printing. • Print pictures from a memory card that has been for- matted in the camera. During Printing • If the printer does not support date printing, the The message shown at right PRINT WITH DATE option will not be available in PRINTING...

  • Page 124: Creating A Dpof Print Order

    Printing Pictures via USB Creating a DPOF Print Order ■ WITH DATE PRINT ORDER (DPOF) option in the play- / WITHOUT DATE back menu can be used to create a digital “print To modify the DPOF print order, select PRINT order”...
  • Page 125 Printing Pictures via USB Press the selector up or down to Repeat steps 1–2 to complete the choose the number of copies (up to print order. Press MENU/OK to save 99). To remove a picture from the or- the print order when settings are der, press the selector down until the complete, or DISP/BACK to exit with- number of copies is 0.
  • Page 126 Printing Pictures via USB ■ RESET ALL • Print orders can contain a maximum of 999 pictures. To cancel the current print RESET DPOF OK? • If a memory card is inserted RESET DPOF OK? order, select RESET ALL containing a print order cre- in the PRINT ORDER ated by another camera, the...

  • Page 127: Viewing Pictures On A Computer

    Viewing Pictures on a Computer The supplied software can be used to copy pictures to a computer, where they can be stored, viewed, organized, and printed. Before proceeding, install the software as described below. Do connect the camera to the computer until installation is complete. Windows: Installing MyFinePix Studio Confirm that the computer meets the following system requirements: Windows 8/Windows 7 (SP 1)/Windows Vista (SP 2)
  • Page 128 Viewing Pictures on a Computer Start the computer. Log in to an account with If the Installer Does Not Start Automatically administrator privileges before proceeding. (Windows 8) 1 Select Desktop on the Start screen. Exit any applications that may be running and 2 Select File Explorer on the taskbar.

  • Page 129: Macintosh: Installing Raw File Converter

    Intel (Core 2 Duo or better) Pre-installed versions of Mac OS X version 10.6–10.9 (visit http://www.fujifilm.com/support/digital_cameras/compatibility/ for more information) 1 GB or more Free disk space A minimum of 200 MB required for installation with 400 MB available when RAW FILE CONVERTER is running Video 1,024 ×...

  • Page 130: Importing Pictures Or Movies To Mac (Macintosh)

    Viewing Pictures on a Computer Turn the camera off and connect the supplied Importing pictures or movies to Mac USB cable as shown, making sure the connec- (Macintosh) tors are fully inserted. Connect the camera di- Use a standard application in Mac OS such as Im- rectly to the computer;...
  • Page 131 Viewing Pictures on a Computer Disconnecting the Camera • If a memory card containing a large number of images After confirming that the indicator lamp is out, follow is inserted, there may be a delay before the software the on-screen instructions to turn the camera off and starts and you may be unable to import or save im- disconnect the USB cable.

  • Page 132: Menus

    Using the Menus: Shooting Mode Using the Shooting Menu Press MENU/OK to display the shoot- Press the selector up or down to ing menu. highlight the desired option. Press the selector up or down to Press MENU/OK to select the high- highlight the desired menu item.

  • Page 133: Shooting Menu Options

    Using the Menus: Shooting Mode Shooting Menu Options Menu item Description Options Default SCENE POSITION Choose a scene for SP mode ( 29). / / / Adv. MODE Choose an advanced shooting mode ( 25). AUTO (3200) / AUTO (1600) / Adjust ISO sensitivity.
  • Page 134 — — CATION using smartphones • Downloading location data from smartphones For information on using wireless networks, visit http:// fujifilm-dsc.com/wifi/. Choose the size of the bracketing increment when AE BKT EV STEPS ± EV / ± EV / ±1 EV ±...

  • Page 135: Iso

    Using the Menus: Shooting Mode IMAGE SIZE Control the camera’s sensitivity to light. Higher Choose the size and aspect ratio at which still pic- values can be used to reduce blur when light- tures are recorded. Large pictures can be printed ing is poor;...

  • Page 136: Image Quality

    Using the Menus: Shooting Mode IMAGE QUALITY Size Versus Aspect Ratio Choose a file format and compression ratio. Se- Size lect FINE or NORMAL to record JPEG images, Option Prints at sizes up to RAW to record RAW images, or FINE+RAW or 34 ×...

  • Page 137: Finepix Color

    Using the Menus: Shooting Mode FINEPIX COLOR PHOTOMETRY Enhance contrast and color saturation or take pic- Choose how the camera meters exposure when tures in black and white. Intelligent Face Detection is off. • MULTI: Automatic scene recognition is used Option Description to adjust exposure for a wide range of shooting...

  • Page 138: Movie Af Mode

    Using the Menus: Shooting Mode  MOVIE AF MODE FLASH This option controls how the camera selects the Adjust flash brightness. Choose from values be- focus area for movies. tween + EV and – EV. The default setting is ±0. Note that the desired results may not be achieved Option Description depending on shooting conditions and the dis-...

  • Page 139: External Flash

    EXTERNAL FLASH, the built-in flash will fire once to provide a signal for the optional flash unit to fire. • Fujifilm external flash units do not require this setting. • The camera can be used with flash units that provide aperture adjustment, external metering, and sensitiv- ity control.

  • Page 140: Using The Menus: Playback Mode

    Press the selector right to display op- smartphones For information on using wireless net- tions for the highlighted item. works, visit http://fujifilm-dsc.com/wifi/. Press the selector up or down to Upload pictures to a computer over a wireless network. For information on highlight the desired option.
  • Page 141 Using the Menus: Playback Mode Option Description Protect pictures from accidental dele- PROTECT tion ( 95). Create cropped copies of pictures CROP 96). RESIZE Create small copies of pictures ( 97). IMAGE ROTATE Rotate pictures ( 98). Copy pictures from internal memory to COPY a memory card ( 99).

  • Page 142: Movie Edit

    Using the Menus: Playback Mode  MOVIE EDIT Edit movies. ■ MOVIE TRIMMING ■ MOVIE JOIN Remove opening or ending footage to create an Add existing footage to the end of the current edited copy of the current movie. movie to create an edited copy. Display the desired movie.

  • Page 143: Mark For Upload

    Using the Menus: Playback Mode MARK FOR UPLOAD You can select images and movies to be queued for upload to YouTube, Facebook and MyFinePix.com. Select MARK FOR UPLOAD in the playback menu. ■ Add/Remove Items in the Upload Queue Repeat steps 3 and 4 as necessary and add or remove items.
  • Page 144 Using the Menus: Playback Mode ■ Removing All Items From the Upload Queue ■ Upload Items You can remove all items from the upload queue. Items added to the upload queue using the cam- era can be easily uploaded from a computer by Select RESET ALL.

  • Page 145: Slide Show

    Using the Menus: Playback Mode SLIDE SHOW View pictures in an automated slide show. Choose the type of show and press MENU/OK to start. Press DISP/BACK at any time during the show to view on-screen help. When a movie is displayed, movie play- back will begin automatically, and the slide show will continue when the movie ends.

  • Page 146: Red Eye Removal

    Using the Menus: Playback Mode RED EYE REMOVAL If the current picture is marked with a icon to indicate that it was taken with Intelligent Face De- tection, this option can be used to remove red-eye. The camera will analyze the image; if red-eye is detected, the image will be processed to create a copy with reduced red-eye.

  • Page 147: Protect

    Using the Menus: Playback Mode PROTECT Protect pictures from accidental deletion. The following options are available. ■ FRAME ■ SET ALL Protect selected pictures. Press MENU/OK to protect all SET ALL OK? IT MAY TAKE A WHILE pictures, or press DISP/BACK Press the selector left or right to dis- to exit without changing play the desired picture.

  • Page 148: Crop

    Using the Menus: Playback Mode CROP To create a cropped copy of a picture, play the picture back and select CROP in the playback menu 88). Use the zoom control to zoom in and out and Press MENU/OK to view the copy size. use the selector to scroll the picture until the Larger crops produce larger copies.

  • Page 149: Resize

    Using the Menus: Playback Mode RESIZE To create a small copy of a picture, play the picture back and select RESIZE in the playback menu 88). Press the selector up or down to Press MENU/OK to select the high- highlight the size. lighted option.

  • Page 150: Image Rotate

    Using the Menus: Playback Mode IMAGE ROTATE By default, pictures taken in tall orientation are Press the selector down to rotate the displayed in wide orientation. Use this option to picture 90 ° clockwise, up to rotate display pictures in the correct orientation in the the picture 90 °...

  • Page 151: Copy

    Using the Menus: Playback Mode COPY DISP. ASPECT Copy pictures from internal memory to a memory Choose how High Definition (HD) devices display card. pictures with an aspect ratio of 4 : 3 (this option is available only when an HDMI cable is connected). Select COPY in the playback menu.

  • Page 152: The Setup Menu

    The Setup Menu Using the Setup Menu Display the setup menu. Adjust settings. 1.1 Press MENU/OK to display the 2.1 Press the selector right to acti- menu for the current mode. vate the setup menu. 1.2 Press the selector left to high- 2.2 Press the selector up or down to highlight a menu item.

  • Page 153: Setup Menu Options

    The Setup Menu Setup Menu Options Menu item Description Options Default DATE/TIME Set the camera clock ( 17). — — TIME DIFFERENCE Set the clock to local time ( 104). Choose a language ( 17). — ENGLISH Disables the AF-assist illuminator (except for the shooting SILENT MODE mode), operation sounds, shutter sound, and movie playback...
  • Page 154 The Setup Menu Menu item Description Options Default POWER SAVE ON / POWER LCD POWER SAVE Choose whether to save power to increase battery life ( 106). POWER SAVE OFF SAVE ON AUTO POWER OFF Choose the auto power off delay ( 107).
  • Page 155 OK and — — press MENU/OK. Adjust settings for connection to a wireless network. For in- WIRELESS SETTING formation on using wireless networks, visit http://fujifilm-dsc. — — com/wifi/. Choose a destination for images uploaded using PC AUTO PC AUTO SAVE SETTING SAVE.

  • Page 156: Time Difference

    The Setup Menu TIME DIFFERENCE When travelling, use this option to switch the camera clock instantly from your home time zone to the local time at your destination. Specify the difference between local time Switch between local time and your home and your home time zone.

  • Page 157: Format

    The Setup Menu FORMAT IMAGE DISP. Format a memory card. Highlight OK and press Choose an option other than OFF to display pic- MENU/OK to begin formatting. tures in the monitor after shooting. Pictures can be displayed for 1.5 s (1.5 SEC), 0.5 s (0.5 SEC), or until the MENU/OK button is pressed (ZOOM •...

  • Page 158: Frame No

    The Setup Menu FRAME NO. PLAYBACK VOLUME New pictures are stored in Press the selector up or down to choose volume Frame number image files named using a for movie playback and press MENU/OK to select. 100-0001 four-digit file number as- LCD BRIGHTNESS signed by adding one to the Directory...

  • Page 159: Auto Power Off

    The Setup Menu AUTO POWER OFF QUICK START MODE Choose the length of time before the camera Allow the camera to restart in a fast manner after turns off automatically when no operations are turned off (24MIN/10 MIN/OFF). After specified performed.

  • Page 160: Intelligent Digital Zoom

    The Setup Menu INTELLIGENT DIGITAL ZOOM DATE STAMP If ON is selected, selecting T at the maximum To add shooting date and time, choose optical zoom position triggers intelligent digital To add only shooting date, choose . When OFF zoom, further magnifying the image while pro- is selected, no information will be added to the cessing it for sharp, high-resolution results.

  • Page 161: Optional Accessories

    Optional Accessories The camera supports a wide range of accessories from FUJIFILM and other manufacturers. FINEPIX S1 Series ■ Printing ■ Audio/Visual HDMI cable (sold separately) HDTV PictBridge-compatible SD/SDHC/SDXC printer memory card Printer ■ Computer Related USB cable (supplied) SD card slot or card reader Computer Available separately.

  • Page 162: Accessories From Fujifilm

    Optional Accessories Accessories from FUJIFILM The following optional accessories are available from FUJIFILM. For the latest information on the acces- sories available in your region, check with your local FUJIFILM representative or visit http://www.fujifilm. com/products/digital_cameras/index.html. Rechargeable NP-85 Additional large-capacity NP-85 rechargeable batteries Li-ion batteries can be purchased as required.
  • Page 163 Optional Accessories Shoe-mounted EF-20 This hot-shoe clip-on flash unit has a guide number of flash units 20 (ISO 100), supports i-TTL, can be angled up to 90° for bounce-flash photography, and takes two AA 1.5 V batteries. EF-42 This hot-shoe clip-on flash unit has a guide number of 42 (ISO 100), features 24–105 mm auto zoom, supports i-TTL, can be angled up to 90°...

  • Page 164: Caring For The Camera

    Caring for the Camera To ensure continued enjoyment of the product, observe the following precautions. ■ Water and Sand Storage and Use If the camera will not be used for an extended pe- This camera cannot be used under water. Keep riod, remove the battery and memory card.
  • Page 165 Any remaining stains can be removed by wiping gently with a piece of FUJIFILM lens-cleaning pa- per to which a small amount of lens-cleaning fluid has been applied. Care should be taken to avoid scratching the lens or monitor.

  • Page 166: Troubleshooting

    The battery has been charged many times. life. Purchase a new battery. If the battery still — the battery does fails to charge, contact your FUJIFILM dealer. not charge. The battery is too hot or too cold. Wait for the battery temperature to stabilize.
  • Page 167 Troubleshooting Menus and Displays Problem Possible cause Solution Page Menus and displays are English is not selected for the Select ENGLISH. 17, 101 not in English. option in the setup menu. Shooting Problem Possible cause Solution Page Memory is full. Insert a new memory card or delete pictures.
  • Page 168 Troubleshooting Problem Possible cause Solution Page Face detection Intelligent Face Detection is not available in Choose a different shooting mode. not available. the current shooting mode. The subject’s face is obscured by sunglasses, a Remove the obstructions. hat, long hair, or other objects. The subject’s face occupies only a small area Change the composition so that the subject’s Intelligent...
  • Page 169 Troubleshooting Problem Possible cause Solution Page The lens is dirty. Clean the lens. The lens is blocked. Keep objects away from the lens. Pictures are is displayed during shooting and the fo- blurred. Check focus before shooting. cus frame is displayed in red. is displayed during shooting.
  • Page 170 Troubleshooting Playback Problem Possible cause Solution Page Pictures are The pictures were taken with a different make or — — grainy. model of camera. Pictures The picture has been resized or cropped to Playback zoom or is from another make or model of —...
  • Page 171 Troubleshooting Connections Problem Possible cause Solution Page Monitor is off. The camera is connected to a TV. View pictures on the TV. The camera is not properly connected. Connect the camera correctly. No picture or Input on the television is set to “TV”. Set the TV input correctly.
  • Page 172 Troubleshooting Wireless Networks Problem Possible cause Solution Page The smartphone is too far away. Move the devices closer. — Move the camera and smartphone away Nearby devices are causing radio interference. — from microwave ovens or cordless phones. The smartphone and camera can connect to The smartphone is connected to another de- Problem connecting or upload- only one device at a time.
  • Page 173 The camera does not Remove and reinsert the battery. If the prob- Temporary camera malfunction. function as expected. lem persists, contact your FUJIFILM dealer. No sound. — Turn silent mode off. Hue or content of display changes unex- ON is selected for MONITOR SUNLIGHT MODE.

  • Page 174: Warning Messages And Displays

    TURN THE CAMERA OFF, REMOVE to touch the lens. If the message persists, contact a LENS CAP OR OBSTRUCTION AND FUJIFILM dealer. TURN THE CAMERA ON The camera has been used continuously at high temperatures. If no action is taken, the Turn the camera off and wait for it to cool.
  • Page 175 The memory card contacts require cleaning. is repeated, format the memory card ( 105). If the message persists, replace the memory card. Camera malfunction. Contact a FUJIFILM dealer. PROTECTED CARD The memory card is locked. Unlock the memory card ( 11).
  • Page 176 ( 105). If the message persists, replace the memory card. Camera malfunction. Contact a FUJIFILM dealer. Format the memory card and select RENEW for the FRAME NO. option in the SET-UP menu. Take The camera has run out of frame numbers (cur- FRAME NO.
  • Page 177 Warning Messages and Displays Warning Description Solution CAN NOT ROTATE Movies can not be rotated. — A connection error occurred while pictures Confirm that the device is turned on and that the USB COMMUNICATION ERROR were being printed or copied to a computer or cable is connected.

  • Page 178: Memory Card Capacity

    Memory Card Capacity The following table shows the recording time or number of pictures available at different image sizes. All figures are approximate; file size varies with the scene recorded, producing wide variations in the number of files that can be stored. The number of exposures or length remaining may not diminish at an even rate.

  • Page 179: Specifications

    Specifications System Model Digital Camera FinePix S1 Series Effective pixels 16.2 million Image sensor -in., square-pixel CMOS with primary color filter Storage media • Internal memory (approx. 37 MB) • SD/SDHC/SDXC memory cards File format • Still pictures: Compliant with Design Rule for Camera File System (DCF) Compressed: Compliant with Exif 2.3 JPEG, and Digital Print Order Format (DPOF)
  • Page 180 Specifications System Exposure compensation –2 EV – +2 EV in increments of EV (P, S, and A modes) Picture stabilization Optical stabilization, lens shift Shutter speed (combined • P, S, A: 4 s – • M: 30 s – • : 3 s –...
  • Page 181 Specifications System Monitor 3.0-in. (7.6 cm), 920k-dot color LCD monitor Frame coverage Approx. 97% (shooting), 100% (playback) Movie frame rate • 1920 × 1080: 1080p, 60 fps • 1280 × 720: 720p, 60 fps • 640 × 480: VGA, 30 fps •...
  • Page 182 Specifications Wireless transmitter Access protocols Infrastructure NP-85 rechargeable battery Nominal voltage DC 3.7 V Nominal capacity 1700 mAh Operating temperature 0 °C – +40 °C/+32 °F – +104 °F Dimensions (W × H × D) 43 mm × 32 mm × 13.5 mm/1.6 in. × 1.2 in. × 0.5 in. Weight Approx.
  • Page 183 European countries and China. Notices • Specifications subject to change without notice. FUJIFILM shall not be held liable for damages resulting from errors in this manual. • Although the monitor is manufactured using advanced high-precision technology, small bright points and anomalous colors (particularly in the vicinity of text) may appear.
  • Page 184 Memo...
  • Page 185 Memo...
  • Page 186 7-3, AKASAKA 9-CHOME, MINATO-KU, TOKYO 107-0052, JAPAN http://www.fujifilm.com/products/digital_cameras/index.html...

Table of Contents
