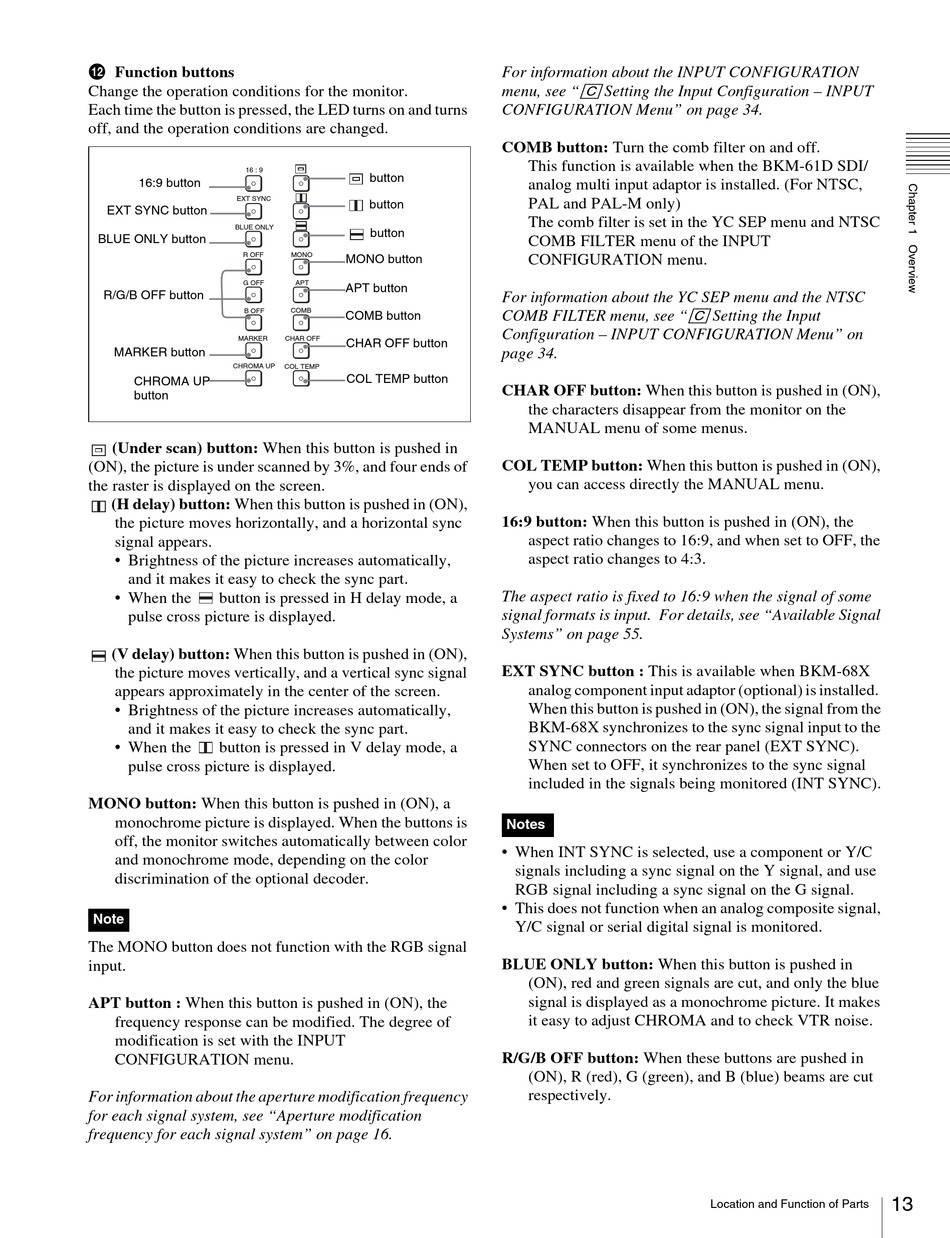

l Function buttons
Change the operation conditions for the monitor.
Each time the button is pressed, the LED turns on and turns
off, and the operation conditions are changed.
16 : 9
16:9 button
EXT SYNC
EXT SYNC button
BLUE ONLY
BLUE ONLY button
R OFF
G OFF
R/G/B OFF button
B OFF
MARKER
MARKER button
CHROMA UP
CHROMA UP
button
(Under scan) button: When this button is pushed in
(ON), the picture is under scanned by 3%, and four ends of
the raster is displayed on the screen.
(H delay) button: When this button is pushed in (ON),
the picture moves horizontally, and a horizontal sync
signal appears.
• Brightness of the picture increases automatically,
and it makes it easy to check the sync part.
• When the button is pressed in H delay mode, a
pulse cross picture is displayed.
(V delay) button: When this button is pushed in (ON),
the picture moves vertically, and a vertical sync signal
appears approximately in the center of the screen.
• Brightness of the picture increases automatically,
and it makes it easy to check the sync part.
• When the button is pressed in V delay mode, a
pulse cross picture is displayed.
MONO button: When this button is pushed in (ON), a
monochrome picture is displayed. When the buttons is
off, the monitor switches automatically between color
and monochrome mode, depending on the color
discrimination of the optional decoder.
Note
The MONO button does not function with the RGB signal
input.
APT button : When this button is pushed in (ON), the
frequency response can be modified. The degree of
modification is set with the INPUT
CONFIGURATION menu.
For information about the aperture modification frequency
for each signal system, see "Aperture modification
frequency for each signal system" on page 16.
button
button
button
MONO
MONO button
APT
APT button
COMB
COMB button
CHAR OFF
CHAR OFF button
COL TEMP
COL TEMP button
For information about the INPUT CONFIGURATION
[C]
menu, see " Setting the Input Configuration – INPUT
CONFIGURATION Menu" on page 34.
COMB button: Turn the comb filter on and off.
This function is available when the BKM-61D SDI/
analog multi input adaptor is installed. (For NTSC,
PAL and PAL-M only)
The comb filter is set in the YC SEP menu and NTSC
COMB FILTER menu of the INPUT
CONFIGURATION menu.
For information about the YC SEP menu and the NTSC
COMB FILTER menu, see "
Configuration – INPUT CONFIGURATION Menu" on
page 34.
CHAR OFF button: When this button is pushed in (ON),
the characters disappear from the monitor on the
MANUAL menu of some menus.
COL TEMP button: When this button is pushed in (ON),
you can access directly the MANUAL menu.
16:9 button: When this button is pushed in (ON), the
aspect ratio changes to 16:9, and when set to OFF, the
aspect ratio changes to 4:3.
The aspect ratio is fixed to 16:9 when the signal of some
signal formats is input. For details, see "Available Signal
Systems" on page 55.
EXT SYNC button : This is available when BKM-68X
analog component input adaptor (optional) is installed.
When this button is pushed in (ON), the signal from the
BKM-68X synchronizes to the sync signal input to the
SYNC connectors on the rear panel (EXT SYNC).
When set to OFF, it synchronizes to the sync signal
included in the signals being monitored (INT SYNC).
Notes
• When INT SYNC is selected, use a component or Y/C
signals including a sync signal on the Y signal, and use
RGB signal including a sync signal on the G signal.
• This does not function when an analog composite signal,
Y/C signal or serial digital signal is monitored.
BLUE ONLY button: When this button is pushed in
(ON), red and green signals are cut, and only the blue
signal is displayed as a monochrome picture. It makes
it easy to adjust CHROMA and to check VTR noise.
R/G/B OFF button: When these buttons are pushed in
(ON), R (red), G (green), and B (blue) beams are cut
respectively.
[C]
Setting the Input
Location and Function of Parts
13
