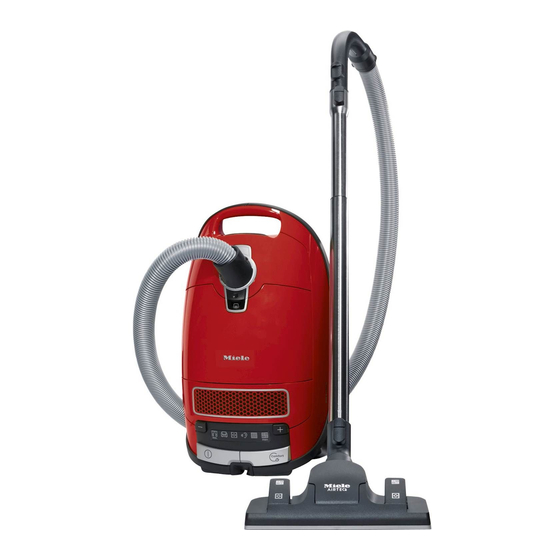

Miele S 8000 Operating Instructions Manual

Vacuum cleaner
Hide thumbs Also See for S 8000:
Table of Contents

Advertisement

Quick Links

Operating Instructions

Vacuum Cleaner

S 8000
Only Miele dustbags, filters and accessories with the
"Original Miele" logo can be used with this vacuum. Only
then can the suction power of the vacuum cleaner reach its
optimum potential creating the best possible cleaning results.
To prevent accidents
and machine damage,
read these instructions
before
installation and use.
en - US, CA
HS15
M.-Nr. 09 257 881

Advertisement

Table of Contents
loading

Related Manuals for Miele S 8000

Summary of Contents for Miele S 8000

  • Page 1: Operating Instructions

    Vacuum Cleaner S 8000 Only Miele dustbags, filters and accessories with the "Original Miele" logo can be used with this vacuum. Only then can the suction power of the vacuum cleaner reach its optimum potential creating the best possible cleaning results.
  • Page 2 The "Original Miele" Logo will appear on the packaging or directly on the dustbag. Purchasing new dustbags and filters Original Miele dustbags and filters can be purchased from an authorized Miele vacuum dealer or by visiting the Miele store at www.mieleusa.com.

  • Page 3: Table Of Contents

    Contents IMPORTANT SAFETY INSTRUCTIONS....... . . 4 Guide to the vacuum ..........8 Before using the vacuum cleaner .

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE Keep these operating instructions in a safe place and pass them on to any future user. WARNING- To reduce the risk of electric shock, To reduce the risk of fire, electric...
  • Page 5 Persons which lack physical, Use only as described in this sensory or mental abilities or manual. Use only Miele recommended experience with the machine should not accessories. use it without supervision or instruction by a responsible person.

  • Page 6: Using Accessories

    Using accessories Keep the power cord, hair, loose The socket on the vacuum cleaner is clothing, fingers and all parts of the only to be used with the Miele body away from openings and moving Powerbrush. parts. Unplug the vacuum when changing...
  • Page 7 Only then will the manufacturer and render the plug useless. Ensure guarantee its safety. Only use genuine the appliance presents no danger to Miele filter bags with the Miele quality children while being stored for signet and original Miele filters and disposal.

  • Page 8: Guide To The Vacuum

    Guide to the vacuum The illustrations show the vacuum cleaner and all available options.
  • Page 9 Exhaust filter * k Park-System for storage (on both sides of the vacuum) l Dust compartment filter (motor protection) m Bracket cover for the Powerbrush outlet n Original Miele filter bag o Carrying handle p Floor tool * q Lock release button...

  • Page 10: Before Using The Vacuum Cleaner

    Before using the vacuum cleaner Attaching the suction hose ^ Insert the elbow into the suction socket until it clicks into place. Disconnecting the hose ^ Press the release buttons on the sides of the elbow and lift the hose from the socket.
  • Page 11 Before using the vacuum cleaner Connecting the suction hose and handpiece Depending on the model, the handpiece is already pre-fitted at the other end of the hose at the factory. If the handpiece of your model is separate, it just needs to be connected to the hose.
  • Page 12 The floor brush is intended for everyday use on carpets, rugs, and hard flooring that is not susceptible to scratching. For other floor coverings, we recommend using the special Miele brushes (see the section on "Optional accessories").
  • Page 13 Before using the vacuum cleaner Adjusting the floor brush Observe the cleaning instructions of the floor manufacturer. To clean carpets and rugs, lower the bristles by ^ pressing the foot switch marked with a %. To clean hard flooring, raise the tool by ^ pressing the foot switch marked with a ).
  • Page 14 Before using the vacuum cleaner Inserting batteries into the LED handle a Loosen the screws on the cover. b Press down on both sides of the cover to remove. c Take out the battery holder and insert the three batteries supplied making sure they are inserted correctly.

  • Page 15: Using The Included Accessories

    Using the included accessories The following accessories are included: a Crevice nozzle For cleaning in folds, crevices and corners. b Dust brush with natural bristles For cleaning moldings, ornate, carved or especially sensitive items. The brush head can be swiveled to the optimal cleaning position.
  • Page 16 Using the included accessories Removing the accessories ^ Press the release button. The accessory compartment opens. ^ Take out the accessory needed. ^ Close the accessory compartment by pressing on the lid. Standard floor brush Also suitable for vacuuming stairs. For your own safety, always vacuum stairs from bottom to top.

  • Page 17: Use

    Power cord Unwind the cord completely to aid the vacuum in dissipating heat. Do not pull or carry by the cord, use the cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners. Do not run the appliance over the cord.

  • Page 18: Turning The Vacuum Cleaner On And Off

    Turning the vacuum cleaner on and off ^ Press the On/Off foot switch s. Selecting the suction power You can adjust the suction power to suit the situation. When you reduce the suction power, the floor brush can be moved with less effort. On the vacuum cleaner you will see various symbols showing examples of which power level is recommended for...
  • Page 19 Depending on the model, your vacuum cleaner will be equipped with one of the following suction settings. Foot switches When used for the first time, the vacuum cleaner will turn itself on to the highest power level. The next time it is used, it will turn on to the power level last selected.

  • Page 20: Opening The Auxiliary Air Regulator

    Opening the auxiliary air regulator (depending on model) You can easily reduce the suction power briefly to prevent the brush from sticking to textile flooring, for example. ^ Open the auxiliary air regulator just far enough so that the suction nozzle moves easily.

  • Page 21: Illuminating The Work Area

    Illuminating the work area Your vacuum cleaner is equipped with an LED on the handle to illuminate the work area (depending on model). ^ Press the I button on the LED handle. It will turn itself off automatically after approx. 30 seconds.

  • Page 22: Parking, Transport And Storage

    Parking, transport and storage Park-System (not for use with Powerbrushes SEB 228 / EB03 and SEB 236 / EB01) The Park-System allows you to park the telescopic wand and the suction unit on the vacuum cleaner during brief pauses. ^ Insert the parking clip attachment on the suction unit into the parking slot from above.
  • Page 23 Parking, transport and storage Park-System for storage Turn the vacuum cleaner off after use. Unplug the power plug from the electrical outlet. ^ Stand the vacuum cleaner upright. It is helpful to completely insert the tubes into the telescopic wand. ^ Insert the suction unit with the parking slot from above into either side of the Park-System (cannot be...

  • Page 24: Maintenance And Care

    Purchasing new filter bags and Turn off and unplug the vacuum filters cleaner before performing any Original Miele filter bags and filters can maintenance work. be purchased from an authorized Miele vacuum dealer or by visiting the Miele The Miele filter system consists of the store at http://store.miele.com.

  • Page 25: When To Change The Filter Bag

    Maintenance and care When to change the filter bag Change the filter bag when the colored marker in the airflow indicator completely fills the display in red. Filter bags are disposable and are designed to be used only once. Dispose of full filter bags. Do not attempt to reuse.

  • Page 26: How To Change The Filter Bag

    Maintenance and care How to change the filter bag ^ Lift the release button and open the dust compartment lid upwards until it clicks into place. The filter bag has a flap that automatically closes to prevent dust from escaping when the bag is removed.

  • Page 27: When Should I Change The Dust Compartment Filter

    When should I change the dust compartment filter? Change the filter each time you open a new box of genuine Miele filter bags. A dust compartment filter is supplied with every box of Miele filter bags. How to change the dust compartment filter ^ Open the dust compartment lid.

  • Page 28: When Should I Change The Exhaust Filter

    Air Clean Change the exhaust filter each time you open a new box of Miele filter bags. A new Air Clean exhaust filter is included in every box of Miele filter bags. b Active Air Clean SF-AAC 50 (black) c Active HEPA SF-AH 50 (blue) Replace this exhaust filter after approx.

  • Page 29: How To Replace The Air Clean Exhaust Filter

    Maintenance and care How to replace the Air Clean exhaust filter? Make sure that only one exhaust filter is inserted in the frame. ^ Open the dust compartment lid. ^ Squeeze the release for the filter frame and open until it clicks. ^ Grasp one of the two clean corners (see arrow) to remove the used Air Clean exhaust filter.

  • Page 30: How Do I Change The Active Air Clean Or The Active Hepa Exhaust Filter

    Maintenance and care How do I change the Active Air Clean or the Active HEPA exhaust filter? Make sure that only one exhaust filter is inserted in the frame. ^ Open the dust compartment lid. ^ Lift the exhaust filter and remove it. ^ Install the new Active Air Clean or Active HEPA exhaust filter and press it...

  • Page 31: Exchanging Exhaust Filters

    Miele filter bags is opened. The indicator lights turn off when the reset button is pressed.
  • Page 32 Maintenance and care Changing the batteries on the LED handle You will need three AAA (1.5V) batteries. a Loosen the screws on the cover. b Press down on both sides of the cover to remove. c Take out the battery holder and change the 3 batteries, making sure they are inserted correctly.

  • Page 33: When To Change The Thread Catcher Of The Standard Floor Brush

    ^ With a screwdriver, for example, lift the thread catcher out of the slots. ^ Insert the new thread catcher. New thread catcher pads can be purchased from any authorized Miele vacuum dealer or Miele. Cleaning the floor roller (not required with the AirTeQ floor tool) a Release the roller pin using a coin.

  • Page 34: Cleaning And Care

    Cleaning and care Turn off the vacuum and unplug it from the outlet before performing any maintenance work. Vacuum cleaner and accessories The vacuum cleaner and other plastic accessories can be cleaned with a damp cloth or a cleaner suitable for plastics.

  • Page 35: Frequently Asked Questions / Technical Service

    20 - 30 minutes before resuming vacuuming. Technical service In the event of a fault which you cannot fix yourself please contact the Miele Service Department at the phone number listed on the back of this booklet. ^ Please quote the model type of your appliance.

  • Page 36: Optional Accessories

    (STB 205-3) For cleaning low carpet and textile You can order these and many other floorings. products via the Miele website. Some models come with the one or Hand Turbobrush Turbo Mini more of the following accessories. Compact (STB 20)
  • Page 37 Optional accessories Other accessories Crevice nozzle 22" (560 mm) (SFD 20) Accessory case MicroSet (SMC 20) Flexible crevice nozzle for vacuuming Accessories for use on small or hard to reach places. hard-to-reach items (stereos, keyboards, models, etc). Upholstery nozzle, 7 1/2" (190 mm) (SPD 10) Accessory case CarCare (SCC 10) Extra wide upholstery nozzle for...

  • Page 38: Caring For The Environment

    Caring for the environment Disposal of the packing Disposal of an old machine material Old appliances may contain materials that can be recycled. Please contact The cardboard box and packaging your local recycling authority about the protect the appliance during shipping. possibility of recycling these materials.
  • Page 40 Alteration rights reserved / S 8310 - S 8790 / 2512 M.-Nr. 09 257 881 / 00 INFORMATION IS SUBJECT TO CHANGE. PLEASE REFER TO OUR WEBSITE TO OBTAIN THE MOST CURRENT PRODUCT SPECIFICATIONS, TECHNICAL & WARRANTY INFORMATION.
