Summary of Contents for Harbinger HA80

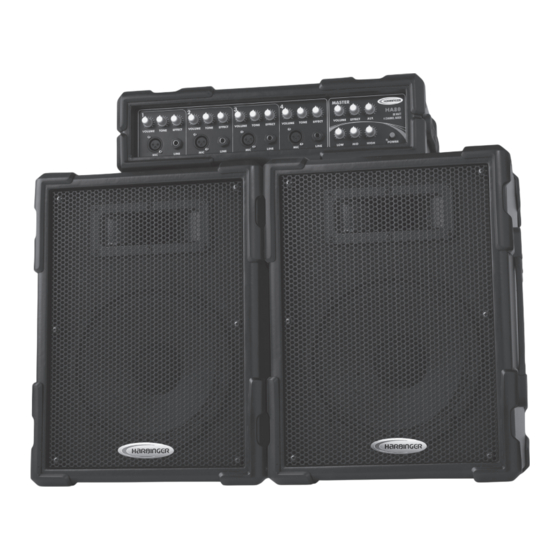

- Page 1 HA80 User Manual 4 Channel PA System www.harbingerproaudio.com...
- Page 2 PA that sounds great, night after night. This manual will help you setup your new system. By following our guidelines and suggestions, your new Harbinger will provide many years of great sound and reliable service.
-
Page 3: Important Safety Instructions
User Manual Important Safety Instructions DANGER IMPORTANT SAFETY INSTRUCTIONS Exposure to extremely high noise levels may cause permanent hearing loss. Individuals vary considerably 1. Read all safety and operating instructions before using to noise-induced hearing loss but most will lose some this product. -
Page 4: Front Panel
HA80 Front Panel 10 11 1. Volume Control - This controls the volume for each channel and sends the signal to the master mix bus. Typical operation is between 4 and 8, depending upon the device(s) on the channel. Please remember that this acts like a preamp, so if you are using a device that has a volume output control (i.e. -
Page 5: Back Panel
3. Line Out - 1/4”, 2-conductor line level output. The impedance is 1k Ohm @ -10 dBv. It is used to connect the HA80 to either an additional power amplifier or an external recording device. This line level signal comes out after the master EQ section and before the power amp. -
Page 6: Specifications
HA80 Specifications Model HA80 4 Channel Powered Mixer 80 Watts 4 Ohms Power Output 55 Watts 8 Ohms Mic XLR Balanced. Line 1/4” Unbalanced CH 1 - 4 Mono Inputs Line Level RCA Stereo IN, summed AUX IN internally for mono playback through system. - Page 7 Harbinger products. This guarantee gives you specific legal rights. You may have other legal rights, which vary from state to state.
- Page 8 www.harbingerproaudio.com...
