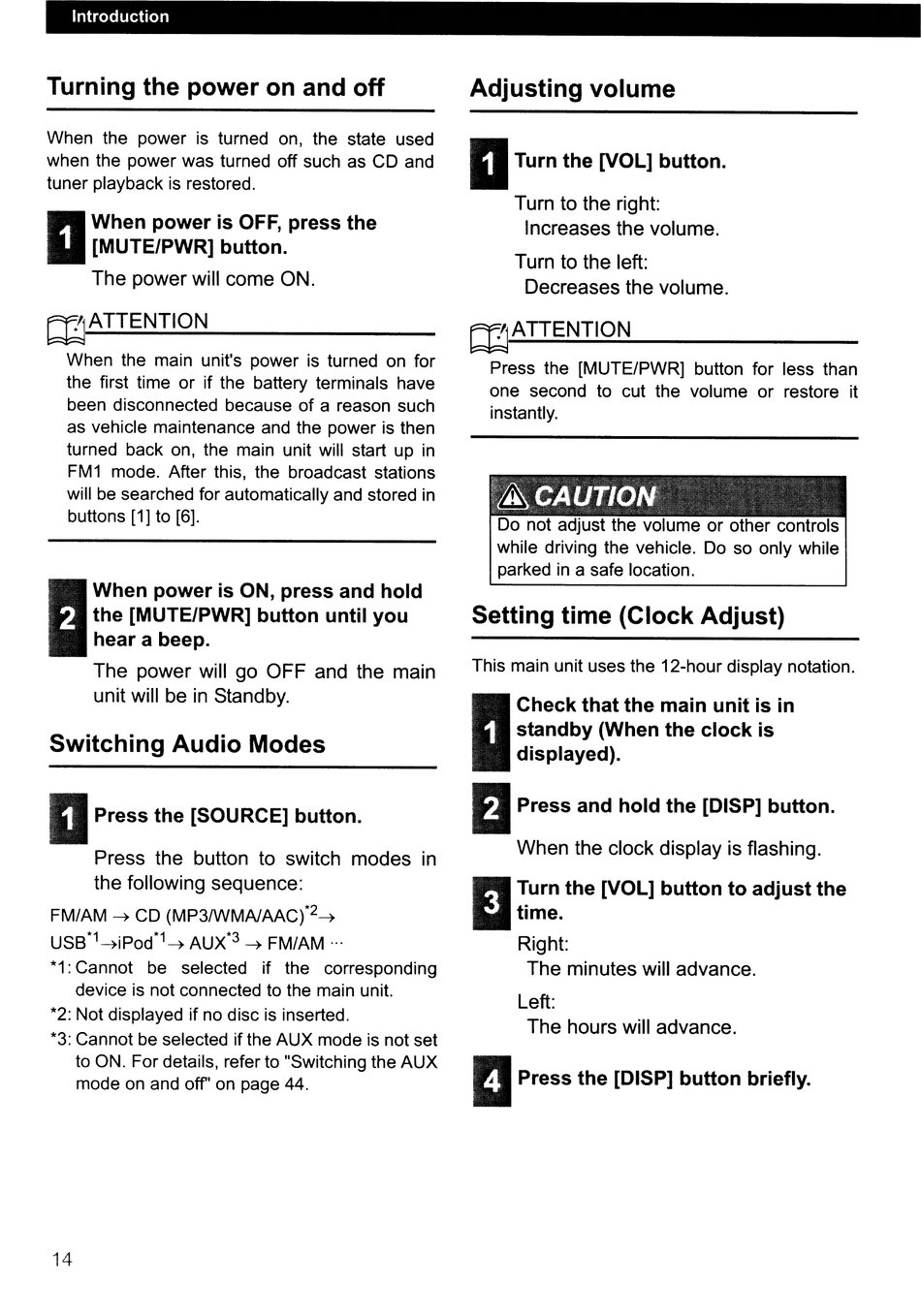

Turning The Power On And Off; Switching Audio Modes; Adjusting Volume; Setting Time (Clock Adjust) - Eclipse CD1200 Handy Reference Manual

Introduction
Turning the power on and off
When the power is turned on, the state used
when the power was turned off such as CD and
tuner playback is restored.
II
When power is OFF, press the
[MUTE/PWR] button.
The power will come ON.
mATTENTION
When the main unit's power is turned on for
the first time or if the battery terminals have
been disconnected because of a reason such
as vehicle maintenance and the power is then
turned back on, the main unit will start up in
FM1 mode. After this, the broadcast stations
will be searched for automatically and stored in
buttons [1] to [6].
I
When power is ON, press and hold
the [MUTE/PWR] button until you
hear a beep.
The power will go OFF and the main
unit will be in Standby.
Switching Audio Modes
II
Press the [SOURCE] button.
Press the button to switch modes in
the following sequence:
FM/AM ~ CD (MP3IWMAlAAC)'2~
USB'1~iPod'1~
AUX'
3
~
FM/AM ...
*1: Cannot be selected if the corresponding
device is not connected to the main unit.
*2: Not displayed if no disc is inserted.
*3: Cannot be selected if the AUX mode is not set
to ON. For details, refer to "Switching the AUX
mode on and off' on page 44.
14
Adjusting volume
II
Turn the [VOL] button.
Turn to the right:
Increases the volume.
Turn to the left:
Decreases the volume.
mATTENTION
Press the [MUTE/PWR] button for less than
one second to cut the volume or restore it
instantly.
~CAUTION
Do not adjust the volume or other controls
while driving the vehicle. Do so only while
parked in a safe location.
Setting time (Clock Adjust)
This main unit uses the 12-hour display notation.
I
Check that the main unit is in
standby (When the clock is
displayed).
B
Press and hold the [DISP] button.
When the clock display is flashing.
II
Turn the [VOL] button to adjust the
time.
Right:
The minutes will advance.
Left:
The hours will advance.
II
Press the [DISP] button briefly.
