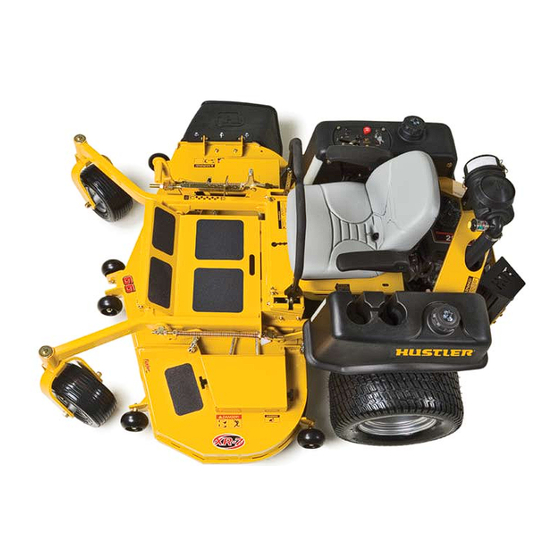

HUSTLER Super XR-7 Specifications

THE HUSTLER Zs: BE DIFFERENT. BE BETTER.
With an extremely wide footprint, the lowest seat height in the industry,
and idealized placement of weight over the drive tires, Hustler Zs & Super Zs
both deliver superb machine balance, resulting in improved traction and
exceptionally responsive handling. In fact, the new Hustler Zs & Super Zs
handle better on slopes than any other midmount rider. Because of its heavier
construction the Hustler Zs & Super Zs will perform like a mountain goat on the
most intimidating inclines.
At the same time, the Z incorporates all the details of Hustler design,
the extra added touches that distinguish this mower from any other
Z-rider out there.
• Thicker foam padding on steering levers for ideal comfort in
any operating position
• Seat and steering levers are adjustable to guarantee a perfect
fit for nearly any operator
• Very high blade-tip speed for superior quality of cut and ideal
distribution of clippings
• Cutting heights from 1" to 5" in 1/4" increments.
• 1" spindle shaft for maximized durability
• Oil cooler with cooling fan on the Super Z
Demo a Super Z or Hustler Z today. Waiting for you will be the most durable, The 9-bushel BAC-VAC™ fiberglass catcher
most productive, most feature-rich Z-rider on the market. At one of the empties from the driver's seat and features
industry's lowest purchase prices among 60-inch-deck models – legendary a flow-through venting system
Hustler performance and reliability at a very affordable price.
Experience the difference.
H u s t l e r T u r f E q u i p m e n t S u p e r Z ™ X R - 7 ™ & H u s t l e r Z ™ X R - 7 ™
Hustler Z and Super Z Specifications
™ ™
Engine Specifications
Honda kawasaki kawasaki kawasaki LC kohler kohler
Horsepower
24 23 25 26 27 30
no. of Cylinders 2 2 2 2 2 2
Displacement 40.9 cu in (670 cc) 41.2 (675 ) 41.2 (675 ) 45.5 (745 ) 44.0 (725 ) 44.0 (725 )
cu in cc cu in cc cu in cc cu in cc cu in cc
Compression Ratio 8.3:1 8.1:1 8.1:1 8.6:1 9.0:1 9.0:1
Max. Torque 37.5 ft lbs @ 2500 rpm 37.0 @ 2400 41.0 @ 2400 43 @ 2400 42.7 @ 3000 47.1 @ 2200
ft lbs rpm ft lbs rpm ft lbs rpm ft lbs rpm ft lbs rpm
Starter 12-volt (.8 kw), solenoid shift positive engagement W/60 in Deck Length: Blade Tip Speed 54 in: 18,400 fpm
78, 80,81.5 in (198.12, 203.2, 207 cm)
Ignition Electronic Overall width: 61 in (154.94 cm) w/discharge chute up 60 in: 18,400 fpm
Charging System 12-volt, 15-amp Tire-to-tire width: 52 in (132.08 cm) 66 in: 18,900 fpm
Fuel Filter Replaceable, automotive-type Weight: 1212 lbs (549.75 kg) 72 in: 18,900 fpm
Air Filter Heavy-duty air cleaner to extend the service interval for
Blade Drive V-belt drive to all three spindles. Spring tension idler pulley.
W/66 in Deck Length: 80, 82, 83.5 in (203.2, 208.28, 212 cm)
excessive, dirty applications and improved performance
Overall width: 67 in (170.18 cm) w/discharge chute up
Cooling Air cooled. Fly-wheel fan Spindles Machine ductile housing, 1 in (2.5 cm) diameter high carbon
Tire-to-tire width: 59 in (149.86 cm)
Governor Mechanical steel shafts and sealed ball bearings. 3-year warranty on spindle bearings.
Weight: 1254 lbs: (568.8 kg)
TracTion Drive SySTem Flotation Suspended mower floats on four spring-assisted chains. 6 anti-
W/72 in Deck Length: 81, 83, 84.5 in (205.7, 210.8, 214.6 cm)
Type Dual hydrostatic. Individual pumps power two direct-drive wheel scalp wheels are standard.
Overall width: 73 in (185.42 cm) w/discharge chute up
motors. Hydrostatic system operates on 10W40 motor oil. Super Z
Tire-to-tire width: 59 in (149.86 cm) Discharge Chute Molded rubber. Over-center design allows chute to be
features transmission drive (oil) cooler for increased system life.
folded up for improved trailering or to pass thru gates, etc.
Weight: 1296 lbs (587.86 kg)
Pumps Two variable displacement, axial-piston type. Each pump
powers one drive-wheel motor. Hydro-Gear BDP21 (Super Z), Width of Cut 54 in: 54 in (137.16 cm)
SAFeTy FeATuReS Operator presence system connected to deck and
Hydro-Gear BDP10 (Hustler Z) 60 in: 60 in (152.4 cm)
drive clutches. Stabilizer rollers at rear of tractor
Pump Drive V-belt drive from engine crankshaft 66 in: 66 in (167.64 cm)
Hydraulic Lines Stainless-steel, high-pressure lines with Parker Seal- SeAT 72 in: 72 in (182.88 cm)
Lok ™ O-Ring Face-Seal fittings, Hydraulic lines and fittings guaranteed Standard: Molded-vinyl seat with armrests. Fore and aft adjustment
to never leak! optional: Molded-vinyl suspension seat with armrests. Fore and aft Trim Capacity (left side) 54 in: 0 in (0 cm)
Final Drive Direct-drive high-torque wheel motors. One for each drive adjustment 60 in: 3 in (7.62 cm)
66 in: 4 in (10.16 cm)
wheel. White CE 18 (Super Z), Ross MB 15 (Hustler Z)
ConSTRuCTIon: Mainframe is 1.5 in x 3 in x .187 in (3.8 cm x 7.62
Filter Spin-on type; 25 micron (Super Z), 40 micron (Hustler Z), 72 in: 7 in (17.78 cm)
cm x .47 cm) rectangular steel tubing with internal gusset in frame bend
Drive motors mounted to .179 in (.45 cm) welded steel. Front caster
Ground Speed Infinitely variable:
wheels mounted with roller bearings on each wheel. Front caster forks are
Forward: Super Z: 0-15 mph (0-22.53 kph),
.5 in (1.27 cm) steel
Hustler Z: 0-9 mph (0-14.48 kph)
Reverse: Super Z: 0-7.5 mph (0-12.07 kph)
DeCk LIFT: Foot-operated deck height adjustment. Pin for setting height,
Hustler Z: 0-5 mph (0-8 kph)
detent for transport position
Steering Twin-lever SmoothTrak ™ steering provides independent control ConTRoLS: Hand-operated choke/throttle, ignition switch, electric
of each drive wheel. Speed, forward, reverse, brake, and turns are all
mower clutch. Integrated parking brakes
controlled with hand-operated controls
InDICAToRS: Hour meter, engine warning light
Turning Radius True zero degree. Turns within its own length. Counter-
rotating, independent drive wheels CuP HoLDeR: Two cup holders molded into the left side fuel tank.
Accommodates nearly any cup size including Big Gulp™
Brakes
Service: Hydrostatic dynamic braking MoWInG DeCkS
Parking: Automotive-style drum brakes. When steering levers are
54", 60", 66", and 72" Side-Discharge Decks
placed in neutral position, integral park brakes are
automatically engaged Type Free-floating mower using three blades with center blade to the ACCeSSoRIeS
Mower Drive Single V-belt drive from engine with electric clutch. Spring
front. Mower is suspended at the corners. Includes 6 deck-mounted rollers BAC-VAC™ Catcher Rear-mounted, 9-bushel hopper is dumped from
tension idler for extended belt life.
to improve flotation in rolling and uneven terrain. the seat without leaving the machine. Blower is powered from right-side
deck spindle (no pony engine required). Hopper and blower can be added
Deck Lift Raise and lower deck from driver's seat with simple foot-
TIReS: Front: 13 x 6.50 – 6, rib tread
or removed in seconds.
operated deck height adjustment. Pin for setting height, transport
Drive: 54"in 23 x 9.50 – 12, turf tread
position. Change cutting heights, hop curbs and trailer more easily. Mulch kit Easiest-to-install mulch kit on the market! Recycles clippings
60 & 72"in 24 x 12.00 – 12, turf tread
Construction 7 gauge deck plate with an 11-gauge deck plate doubler under deck allowing clippings to be cut and recut, then discharged down
CAPACITIeS: into the grass. Reduces handling of clippings, improves appearance, and
with 7-gauge triplers at each spindle mount (nearly 1/2-in thick!) Solid
Fuel System: 14.4 US gal (54.5 l) recycles nutrients back to the soil.
1-1/2 in x 1/2 in flat steel flat bars reinforce impact areas on trim edges.
Hydraulic Oil: Super Z 2 US gal (7.57 l)
7-gauge reinforced front edge. Lifetime warranty on leading edge of deck. Air-Containment kit Can be used when catching or mulching
Hydraulic Oil: Hustler Z 1.5 US gal (5.7 l)
Steel deck housing is 5.80 in (10.16 cm) deep to provide room for high- Striping kit Steel roller mounts to rear of deck. Produces beautiful
striping patterns in lawn.
DIMenSIonS: Height: 39 in (99 cm) capacity mowing. Molded rubber discharge chute.
Flex Forks™ Shock-absorbing front caster wheel forks for a smooth ride
Cutting Heights Foot-operated deck height adjustment. Pin for
W/54 in Deck and a smoother cut.
setting height, detent for transport position. Height adjustment in .25 in
Length: 78, 80,81.5 in (198.12, 203.2, 207 cm) Flex Seat™ a rocking chair for your mower.
increments from 1 in to 5 in (2.55 cm to 12.7 cm).
Overall width: 55 in (139.7 cm) w/discharge chute up
Hydraulic Deck Lift kit Raise and lower the deck with the flip of a
Tire-to-tire width: 52 in (132.08 cm) Mowing Blades Heavy-duty, heat-treated, high-lift steel blades
switch.
Weight: 1180 lbs (535.24 kg) 54 in: 18.50 in x 2.50 in x .203 in flat blade, high sail Fusion™ blade
Hitch kit Optional bolt-on hitch with 7/8-inch hole. Will accept any
60 in: 20.50 in x 2.50 in x .203 in flat blade, high sail Fusion™ blade
standard ball.
66 in: 22.50 in x 2.50 in x .203 in flat blade, high sail Fusion™ blade
RoPS Roll Over Protective Structure.
72 in: 24.50 in x 2.50 in x .230 in flat blade, high sail Fusion™ blade
Specifications subject to change without notice.
w w w . h u s t l e r t u r f . c o m
F o r m o r e i n f o r m a t i o n :
H u s t l e r T u r f E q u i p m e n t • H e s s t o n , K a n s a s 6 7 0 6 2 • 1 - 8 0 0 - 3 9 5 - 4 7 5 7
H u s t l e r T u r f E q u i p m e n t S u p e r Z ™ X R - 7 ™ & H u s t l e r Z ™ X R - 7 ™
kohler eFI
28
2
44.0 (725 )
cu in cc
9.0:1
44.8 @ 2200
ft lbs rpm
Form No. 782698 4-07
Announcing the newest trend in Z-riders:
THE SOUND BARRIER
The spoiler is not just for looks: the Hustler Super Z™ is fast, at a scorching 15 miles-
per-hour, the fastest z-rider on the market. While the Super Z makes quick work of
even the largest, most obstacle-prone mowing jobs, it delivers a professional-grade
cut, a finish that belies the speed of the mowing. From the toughest front caster forks
in the industry to the day-long 14-gallon fuel capacity, the Super Z has been built for
speed. Large Hydro-Gear hydraulic pumps and White wheel motors draw power from
fuel-efficient, high-horse Honda, Kawasaki, or Kohler engines. An oil cooler protects
the hydraulics, dramatically extending the system's life at top speed. And – with its
wide stance and low, low profile – the Super Z clings goatlike to slopes, stable and
sure, as flat-out productive as on the level straightaways.
Like the Super Z, the Hustler Z™ has been built tough in an almost military way.
Heavy-gauge rectangular tubing for the mainframe, drive motors mounted to welded
steel, roller bearings for the front caster mounts, high-horse engines up to 725 CC, a
12-volt positive-engagement starter, dual hydrostatic traction drive with big Hydro-
Gear pumps and Ross high-torque wheel motors – the components of a mower with
long, hard use on its mind. No other mowers can match Hustler Zs in the unbending
strength of their frames, front forks, decks, and blade spindles, each supported by
warranties with serious teeth.
Hustler Zs are quick out of the shop too, with the simplest maintenance requirements
in commercial mowing. As you'd expect with a Hustler, the warranties are anything
but fast – a full two-year bumper-to-bumper deal, parts and labor, with a lifetime
guarantee backing up the frame and leading edge of the deck. Even the hydraulic
hoses and fittings are guaranteed to never leak!
That loud boom which often accompanies the arrival of Super Zs in the
neighborhood?
Pay it no mind.
The XR-7 Deck with
attached mulching
kit for flawless
dual side
trimming.
