OILLESS AIR COMPRESSOR
ASSEMbLy And OPERAtIOn InStRuCtIOnS
Due to continuing improvements, actual product may differ slightly from the product described herein.
Visit our website at: http://www.harborfreight.com
tO PREVEnt SERIOuS InjuRy, REAd And undERStAnd
ALL WARnIngS And InStRuCtIOnS bEfORE uSE.
Copyright
2007 by Harbor Freight Tools
©
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
135 PSI
Model
Please note: Air Hose sold separately.
your Warranty Is Voided If:
a.
you drop the Air Compressor.
Always lift the Air Compressor using its Handle.
3491 Mission Oaks Blvd., Camarillo, CA 93011
96087
CAutIOn!
. All rights reserved. No portion of this
®
®
Advertisement
Table of Contents
Related Manuals for Central Pneumatic 96087
Summary of Contents for Central Pneumatic 96087

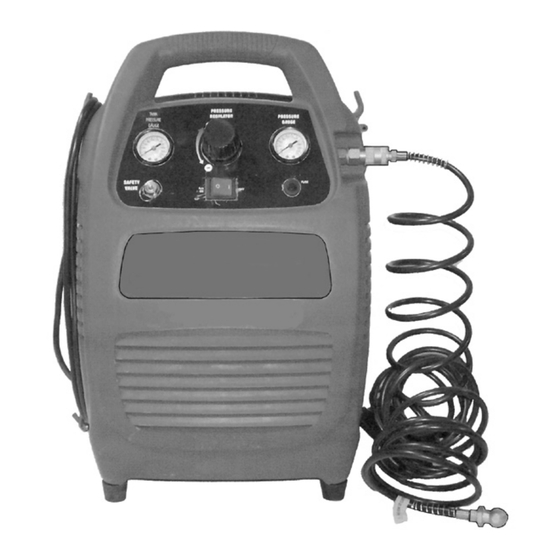

- Page 1 OILLESS AIR COMPRESSOR 135 PSI Model 96087 ASSEMbLy And OPERAtIOn InStRuCtIOnS Please note: Air Hose sold separately. Due to continuing improvements, actual product may differ slightly from the product described herein. CAutIOn! your Warranty Is Voided If: you drop the Air Compressor.
-
Page 2: Specifications
Protect others in the work area from debris such as chips and sparks. Provide barriers or shields as needed. Children should not be allowed in the work area. for technical questions, please call 1-800-444-3353. SKU 96087 Page 2... -
Page 3: Personal Safety
Many accidents are caused by poorly maintained tools. use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one tool may become hazardous when used on another tool. for technical questions, please call 1-800-444-3353. SKU 96087 Page 3... -
Page 4: Specific Safety Rules And Precautions
10 PSI of air pressure in the Tank. Do not unscrew the Drain Valve so that more than four threads are showing. Avoid injury. Never direct air hose (not included) at people or animals. do not alter, remove, or tamper with the Safety Valve (5). for technical questions, please call 1-800-444-3353. SKU 96087 Page 4... - Page 5 It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator. for technical questions, please call 1-800-444-3353. SKU 96087 Page 5...
-
Page 6: Grounded Tools: Tools With Three Prong Plugs
Your tool must be plugged into an appropriate outlet, properly installed and grounded in accordance with all codes and ordinances. The plug and outlet should look like those in the following illustration. (See 3-Prong Plug and Outlet.) for technical questions, please call 1-800-444-3353. SKU 96087 Page 6... -
Page 7: Product Features
PRESSuRE gAugE (28) OVERLOAd PROtECtOR (24) SAfEty VALVE (5) AIR OutPut POWER CORd (35) POWER SWItCH (23) Please note: Air hose sold separately. fIguRE A • dRAIn VALVE (18) for technical questions, please call 1-800-444-3353. SKU 96087 Page 7... -
Page 8: Operating Instructions
Stop the Compressor: Turn the Power Switch (23) to its “Off” position. (See figure A.) WARnIng! Unplug the Air Compressor’s Power Cord (35) from the electrical outlet. (See figure A.) for technical questions, please call 1-800-444-3353. SKU 96087 Page 8... -
Page 9: Inspection, Maintenance, And Cleaning
Power Switch will not turn off Defective Power Switch. Immediately unplug Compressor from its Compressor. electrical outlet. Do not operate Compressor until a qualified service technician can replace Power Switch. for technical questions, please call 1-800-444-3353. SKU 96087 Page 9... -
Page 10: Please Read The Following Carefully
Hoop Rubber Bumper Soft Tube Power Cord Value Tank Drain Valve nOtE: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. for technical questions, please call 1-800-444-3353. SKU 96087 Page 10... -
Page 11: Assembly Diagram
ASSEMbLy dIAgRAM Power Cord (35) not shown. (SEE fIguRE A, PAgE 7.) nOtE: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. for technical questions, please call 1-800-444-3353. SKU 96087 Page 11... -
Page 12: Limited 1 Year / 90 Day Warranty
This warranty gives you specific legal rights and you may also have other rights which vary from state to state. 3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 444-3353 for technical questions, please call 1-800-444-3353. SKU 96087 Page 12...
