MODEL 542F
DESCRIPTION

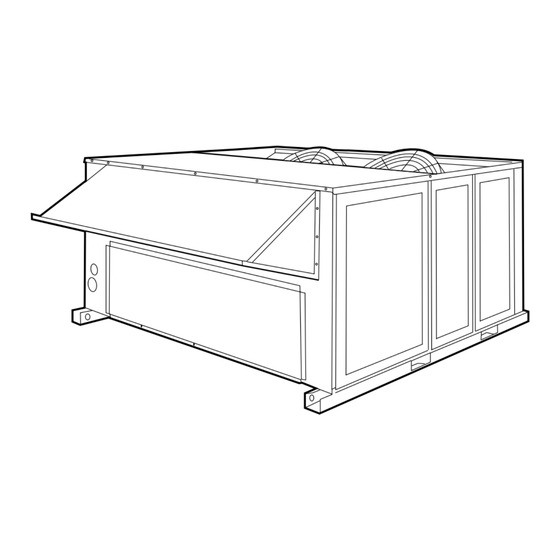

Model 542F is a high-efficiency, single-package heat pump that
has an energy efficiency ratio (EER) of 8.5 and a coefficient of
performance (COP) of 3.0 at 47 F outdoor temperature rating
point.
The 542F has supply- and return-air openings on the bottom of
the unit and is designed primarily for rooftop installation on a
factory-supplied 14- or 24-in. high roof curb. The air ducts con-
nect to the curb only; therefore, the curb and ductwork may be
installed before the unit arrives at the jobsite.
A 24-in. high factory-supplied adapter for horizontal supply/
return duct connections to an over-and-under duct configuration
is also available for grade level or rooftop installation.
''Variable circuited'' indoor and outdoor coils allow both coils to
operate with parallel circuits when they are performing as
evaporators, and with a series of circuits when they are perform-
ing as condensers.
STANDARD FEATURES
FACTORY-ASSEMBLED PACKAGE is a compact, fully self-
contained heating/cooling unit that is prewired, prepiped, and
precharged for minimum installation time and expense.
TWO RUGGED, SERVICEABLE, SEMI-HERMETIC COM-
PRESSORS provide two stages of heating and cooling. These
compressors are electrically and mechanically independent.
COMPRESSOR ISOLATION MOUNTING minimizes vibration
(noise) transmission to building.
TWO SUCTION-TUBE ACCUMULATORS protect compres-
sors against liquid slugging — permitting operation over wide
range of temperatures.
CRANKCASE HEATERS AND FILTER DRIERS are standard.
HIGH- AND LOW-PRESSURE SAFETY DEVICES are included
to prevent major component breakdown when abnormal refrig-
erant operating conditions occur.
INTERNAL AND EXTERNAL PROTECTION is provided
against compressor overload and overheat conditions.
COMMERCIAL ROOFTOP
PACKAGED HEAT PUMP
HIGH-STATIC, BELT-DRIVEN BLOWER with an adjustable
motor pulley permits variable airflow rates. An optional motor
pulley adjusts the airflow range to meet most applications.
WEATHERIZED CABINET of heavy-duty phosphated and zinc-
coated steel is standard. Baked-on finish is corrosion and fade
resistant.
VERTICAL CONDENSER AIR DISCHARGE prevents recircu-
lation of hot condenser air and reduces the operating sound
level.
MANUAL OUTDOOR-AIR DAMPER (standard equipment on
units without optional economizer) provides up to 25% outdoor
air for ventilation.
SUPPLEMENTAL ELECTRIC HEATERS are available as ac-
cessory equipment for operation on 208, 230, and 460 v, and
are modular in design for easy installation.
SINGLE-POINT POWER CONNECTION is provided on units
with field-installed electric heaters. Only one power supply with
one disconnect switch is required.
PROTECTION AS REQUIRED BY NEC (National Electrical
Code) for fan motors is factory supplied.
TWO-IN. FILTERS are standard.
RIGGING HOLES are provided in unit base rails for a 4-point lift
to facilitate lifting and moving operations.
THERMALLY AND ACOUSTICALLY INSULATED air-handling
section provides quieter and more efficient operation.
FACTORY-INSTALLED OPTIONS
DESCRIPTION AND USAGE
Economizer — The economizer will allow a fixed percentage
(between 0 and 100%) outdoor ventilation air into the unit any
time the indoor fan is running. A dry-bulb changeover thermostat
allows up to 100% outdoor air whenever the temperature of the
outdoor air alone will adequately provide cooling. If the econo-
mizer alone cannot provide enough cooling, then simultaneous
economizer and compressor operation will provide the most
economical operation.
SUGGESTED USE:
• To allow a fixed percentage of outdoor air any time the indoor
fan is on, or operates in economizer mode if outdoor air can
provide cooling, but closes when the indoor fan is off to pre-
vent cold backdrafts and wasted energy.
• To reduce energy usage. Use whenever the number of hours
of operation at below 55 F is significant.
• The damper may be used on either vertical or horizontal
applications.
Alternate Indoor-Fan Drive — Alternate drive allows operation
of the indoor fan at conditions outside the range of the standard
factory motor and drive combination.
SUGGESTED USE:
• When higher static/airflow is required to meet job conditions.
Form No. PDS 542F.180.2B
Model 542F
Size 180
15 Tons

Advertisement

Table of Contents
loading

Summary of Contents for Bryant 542F

  • Page 1 PROTECTION AS REQUIRED BY NEC (National Electrical point. Code) for fan motors is factory supplied. The 542F has supply- and return-air openings on the bottom of TWO-IN. FILTERS are standard. the unit and is designed primarily for rooftop installation on a RIGGING HOLES are provided in unit base rails for a 4-point lift factory-supplied 14- or 24-in.
  • Page 2: Table Of Contents

    Time Guard Device — Package consists of a control to be FIELD-INSTALLED ACCESSORY field wired into the unit controls, and provides a 5-minute delay DESCRIPTION AND USAGE in compressor operation between cooling cycles. Roof Curbs (Vertical) — Full-perimeter galvanized steel sup- SUGGESTED USE: port frame in 14- and 24-in.
  • Page 3: Model Description

    MODEL DESCRIPTION ODS CATALOG ORDERING NUMBER NOMENCLATURE ARI* CAPACITY RATINGS COOLING HEATING-HIGH TEMP HEATING-LOW TEMP Total Total Total Total Total Capacity Capacity Capacity (Btuh) (Btuh) (Btuh) 21.0 162,000 6750 166,000 17.5 92,000 14.3 LEGEND Cooling ratings are net values, reflecting the effects of circulating fan heat.
  • Page 4: Dimensional Drawings

    DIMENSIONAL DRAWING — BASE UNIT NOTE: Space required for service clearance and airflow: Allow 6 -0 above the unit; 7 -0 on filter access panel end; and 4 -0 on remaining sides of unit.
  • Page 5 DIMENSIONAL DRAWING — HORIZONTAL AND VERTICAL ROOF CURBS AND HORIZONTAL ADAPTER NOTE: To prevent the hazard of stagnant water build-up in the drain pan of the indoor-air section, unit can only be pitched as shown. ACCESSORY CURB DESCRIPTION ‘‘A’’ ‘‘B’’ ‘‘C’’...
  • Page 6: Dimensional Drawings

    DIMENSIONAL DRAWING — HORIZONTAL ADAPTER INSTALLATION NOTE: 389210-201 is a fully factory preassembled horizontal adapter which includes an insulated high static regain transition duct and substantially improves fan static performance.
  • Page 7: Specifications

    SPECIFICATIONS UNIT 542F 180 (15 TON) OPERATING WT (lb) Unit 1760 with Economizer 1870 Roof Curb COMPRESSOR Semi Hermetic, 4 Cyl Quantity...Type 2...06D Oil (oz) 112 ea Capacity Steps 0, 50, 100 REFRIGERANT (Capillary Control) R-22 Charge (lb) Sys 1*, Sys 2 16.8, 16.8...
  • Page 8: Selection Procedure

    95 F, indoor air entering at Convert bhp to Watts using the formula found in the note 6000 cfm and 67 F ewb. The 542F unit will provide a total following the Air Delivery table on page 10.
  • Page 9: Gross Cooling Capacities

    GROSS COOLING CAPACITIES UNIT 542F180 Outdoor Air (F) Indoor Air Capacity Capacity Capacity Capacity Compr Compr Compr Compr MBtuh MBtuh MBtuh MBtuh Total Sensible Total Sensible Total Sensible Total Sensible 176.1 169.7 13.9 167.2 165.4 14.9 158.0 157.9 16.0 148.4 148.4 17.7 5500...
  • Page 10: Air Delivery

    AIR DELIVERY EXTERNAL STATIC PRESSURE (in. wg) 0.20 0.40 0.60 0.80 1.00 1.20 1.40 1.60 5500 1.88 1002 2.13 1075 2.35 1143 2.58 1208 2.80 1271 3.01 1334 3.24 1394 3.49 6000 2.36 1066 2.63 1135 2.88 1200 3.12 1260 3.36 1320 3.59...
  • Page 11: Electric Resistance Heater Data

    INDOOR FAN DRIVE DATA ELECTRIC RESISTANCE HEATER DATA FAN RPM HEATER kW* HEATING % HEAT MAXIMUM TYPE Turns Open Unit Voltages STAGES PER STAGE STAGES† 1186 1132 1079 1029 50/50 1428 1374 1321 1267 1213 1158 33/67 50/50 *Field-installed accessory only. †Maximum number of stages using accessory outdoor-air thermostats.
  • Page 12: Operating Sequence

    OPERATING SEQUENCE BASE UNIT OPERATING SEQUENCE Cooling, Units With Economizer Cooling, Units Without Economizer — With unit main power Outdoor Air Enthalpy Above Set Point — Indoor and outdoor on, set thermostat at COOL position and desired room tempera- fans and compressors energize when there is a call for cooling. ture.
  • Page 13: Application Data

    APPLICATION DATA 1. Ductwork must be attached to the curb on all units. Interior emergency heat switch (DPST toggle switch) must be installation may proceed before unit is set in place on roof. used. Emergency heat subbase cannot be used with the re- Field-fabricated concentric ductwork may be connected as mote control panel.
  • Page 14: Typical Field Wiring

    TYPICAL FIELD WIRING...
  • Page 15: Typical Installation

    LEGEND FOR TYPICAL FIELD WIRING — Adjustable Heat Anticipator — Switch BKR W/AT — Breaks With Amp Turns — Terminal Block — Contactor — Thermostat, Cooling — Circuit Breaker — Thermostat, Heating — Cooling Compensator TRAN — Transformer — Cooling Lockout —...
  • Page 16: Engineers' Specification Guide

    The outdoor motors shall be protected as required by NEC and be supplied with rainshields. SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Bryant UNIT MUST BE INSTALLED IN ACCORDANCE Air Conditioning WITH INSTALLATION INSTRUCTIONS Copyright 1995 Carrier Corporation Printed in U.S.A.
