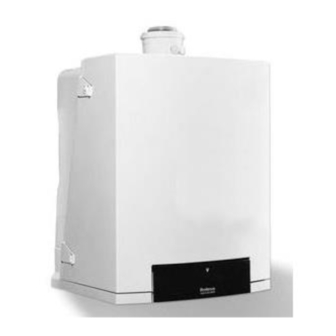

Buderus GB142 Series Technical Service Bulletin

Bulletin Number: TBG-35 | Model: GB142 series boilers
Technical service bulletin
Heat Exchanger Replacement
Heat Exchanger Replacement Procedure

Remove the cable plug from the gas control valve.

Remove both cable plugs [Fig.2, pos. 1 ] from the fan unit.

Pull down on both retaining clips [Fig.3, pos. 1 ] to open and
remove the burner cover.
1. 1.

Remove the burner [Fig.4, pos. 1 ].
1 of 3
Figure 1
Figure 2
1 1
Figure 3
1. 1.

Disconnect the supply [Fig.5, pos. 1 ] and return [Fig.5, pos.2]
sensors.
CAUTION: electrical short circuit
To prevent mix-ups, the supply sensor is marked by a
red sleeve on the side of the cable harness.
1 1

Disconnect the safety sensor
Data subject to change without notice | BTC 435002107 B | 02.2021
Figure 4
1 1
Figure 5
2 2
[Fig.6, pos. 1 ].
Figure 6
1 1
