• Always refer to the operator’s guide instructions for im por tant details if the tiller is to be stored for an ex- tended period. CAUTIONS, IMPORTANTS, AND NOTES ARE A MEANS OF ATTRACTING ATTENTION TO IMPORTANT OR CRIT I CAL IN FOR MA TION IN THIS MANUAL.
We have com pe tent, well-trained tech ni cians and the proper tools to service or repair this unit. Please read and retain this manual. The in struc tions will enable you to assemble and main tain your tiller prop erly. Always observe the “SAFETY RULES”. SAFETY RULES ...2 CUSTOMER RESPONSIBILITIES...3...
Your new tiller has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tiller all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness.
Page 5
• Rotate handle assembly down. Insert rear carriage bolt fi rst, with bolt head on L.H. side of tiller and loosely assemble locknut (See Fig. 5). • Insert pivot bolt in front part of plate and tighten.
Tilt tiller forward by lifting handle. Separate cardboard cover from leveling shield. • Rotate tiller handle to the right and pull tiller out of carton. CHECK TIRE PRESSURE The tires on your unit were overinfl ated at the factory for shipping purposes.

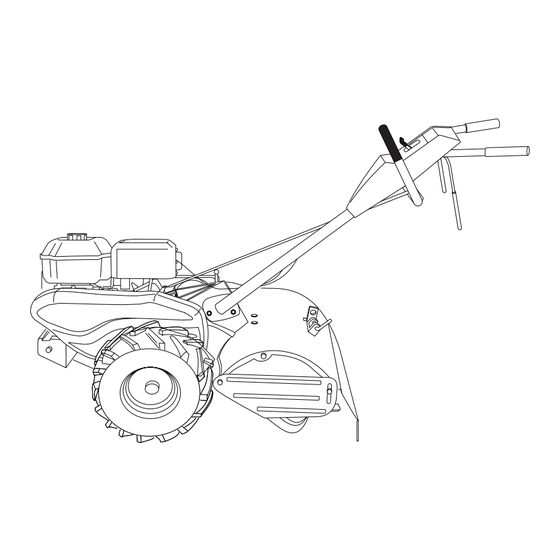

KNOW YOUR TILLER READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TILLER. Compare the illustrations with your tiller to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. These symbols may appear on your Tiller or in literature supplied with the product. Learn and understand their meaning.
Page 8
The operation of any tiller can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields before starting your tiller and while tilling. We recommend a wide vision safety mask for over spectacles or standard safety glasses.
Page 9
• Release the depth stake pin. Move the depth stake down to the top hole for transporting the tiller. Place depth stake pin in hole of depth stake to lock in posi- tion. This prevents tines from scuffi ng the ground.
Loose, unpacked soil helps root growth. Best tilling depth is 4" to 6" (10-15 cm). A tiller will also clear the soil of unwanted vege ta tion. The de com po si tion of this vegetable mat ter enriches the soil.
2 - Service more often when operating in dirty or dusty conditions. GENERAL RECOMMENDATIONS The warranty on this tiller does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, the operator must main tain tiller as instructed in this manual.
Change the oil after every 25 hours of operation or at least once a year if the tiller is not used for 25 hours in one year. Check the crankcase oil level before starting the engine and after each fi...
• Maintain 20 PSI (1.4 kg/cm ) of tire pressure. If tire pres sures are not equal, tiller will pull to one side. • Keep tires free of gasoline or oil which can damage rubber. TO REMOVE WHEEL (See Fig. 21) •...
SERVICE AND ADJUSTMENTS TO REPLACE GROUND DRIVE BELT (See Fig. 23) • Remove belt guard (See “TO REMOVE BELT GUARD” in this section of this manual). • Remove old belt by slipping off engine pulley fi rst then remove from transmission pulley. •...
Page 16
A badly worn tine causes your tiller to work harder and dig more shallow. Most important, worn tines cannot chop and shred organic matter as effectively nor bury it as deeply as good tines.
SERVICE AND ADJUSTMENTS ENGINE TO ADJUST THROTTLE CONTROL CABLE (See Fig. 27) The throttle control has been preset at the factory and ad just ment should not be necessary. If adjustment is necessary, proceed as follows: • With engine not running, move remote throttle control lever to “FAST”...
Immediately prepare your tiller for storage at the end of the season or if the unit will not be used for 30 days or more. WARNING: Never store the tiller with gasoline in the tank inside a build ing where fumes may reach an open fl ame or spark.
1. Ground too dry and hard. diffi cult handling Soil balls up or clumps 1. Ground too wet. Engine runs but tiller 1. Drive control bar is not engaged. won’t move 2. V-belt not correctly adjusted. 3. V-belt is off pulley(s).
It is the Owner’s and Dealer’s responsibility to make certain that the Warranty Registration Card is properly fi lled out and mailed to Husqvarna Forest & Garden Company. This card should be mailed within ten (10) days from the date of purchase in order to confi rm the warranty and to facilitate post-sale service.
