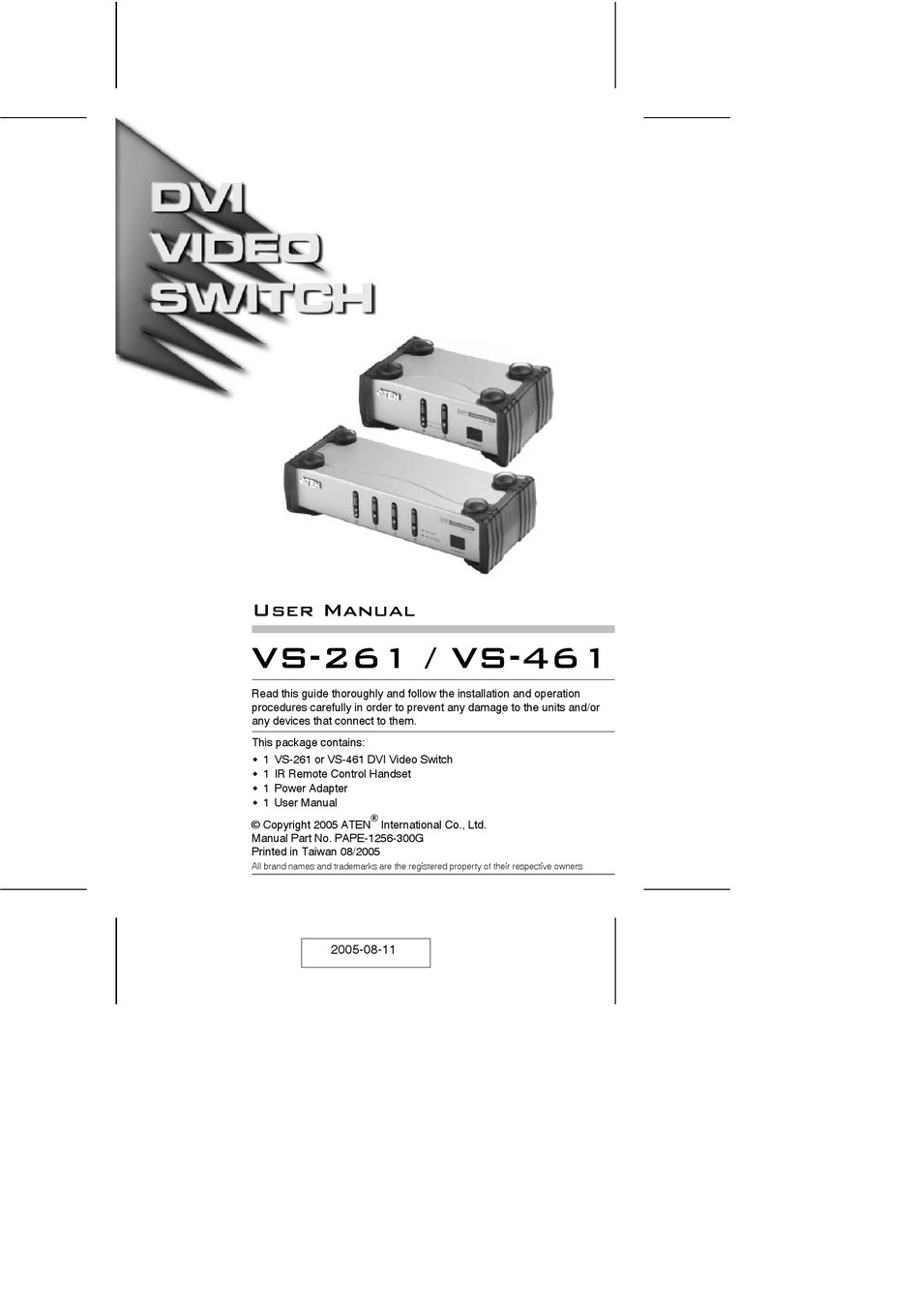

User Manual
User Manual
VS-261 / VS-461
Read this guide thoroughly and follow the installation and operation
procedures carefully in order to prevent any damage to the units and/or
any devices that connect to them.
This package contains:
! 1 VS-261 or VS-461 DVI Video Switch
! 1 IR Remote Control Handset
! 1 Power Adapter
! 1 User Manual
®
© Copyright 2005 ATEN
International Co., Ltd.
Manual Part No. PAPE-1256-300G
Printed in Taiwan 08/2005
All brand names and trademarks are the registered property of their respective owners.
2005-08-11
Advertisement
Table of Contents
Related Manuals for ATEN VS-261
Summary of Contents for ATEN VS-261
-
Page 1: User Manual
This package contains: ! 1 VS-261 or VS-461 DVI Video Switch ! 1 IR Remote Control Handset ! 1 Power Adapter ! 1 User Manual ®... - Page 2 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to pr ovide r eas onable pr otec tion against harmful interference in a residential installation.
- Page 3 Overview The 2 port VS-261 and 4 port VS-461 chart a revolutionary new direction in multimedia functionality by combining a Digital Visual Interface (DVI) Video Switch with stereo quality audio. It is not necessary to have a separate display and set of speakers for each source.
- Page 4 Features ! DVI video switch with stereo audio support ! Output sound and video signals from 2 (VS-261) or 4 (VS-461) DVI or analog video sources ! Compliant with the DVI specification ! Video source selection via front panel switches or IR remote...
-
Page 5: Hardware Requirements
! An audio output port (optional - for audio accompaniment to the display) Cables Two (VS-261) or four (VS-461) DVI cables are required to properly operate this DVI Switch (not included). Note: 1. Cables are not included in this package. Since the... - Page 6 VS-261 / VS-461 Front View Port Press a switch to display video (playback Selection audio) from the device attached to the Switches corresponding port. Port LEDs The Port LEDs are built into the Port Selection Switches. - The ON LINE LED lights to indicate that the device attached to the corresponding port is on.
- Page 7 VS-261 / VS-461 Rear View Power Jack The power adapter cable plugs in here. Video/Audio The output section is comprised of a DVI-I Output connector and two RCA audio jacks. The cables that connect to the video and audio input ports on the Video Display plug in here.
-
Page 8: Ir Remote Control Unit
(3 to 2, 2 to 1, etc.). Port The button numbers correspond to the media Selection input ports on the rear panel of the VS-261 / VS-461. Press a button to switch the media input focus to the device attached to the button’s corresponding port. -
Page 9: Installation
Installation Important: Ensure that all devices are powered off and properly grounded before connecting them to the switch. Installing your DVI Video Switch involves the following five steps (please also refer to the installation diagram): 1. Use a DVI-I compatible cable to connect the Video Out port on the switch to the video input port on the DVI Video Display. - Page 10 - 8 - 2005-08-11...
-
Page 11: Manual Selection
(1, 2, 3, or 4) that corresponds to the to which the device is connected. Note: Pressing button 3 or 4 has no effect on the VS-261. The infrared signal range is ten (10) meters (maximum). You must aim the remote control unit at the IR Receiver located on the front panel of the switch (see p. -
Page 12: Powering Off And Restarting
Powering Off and Restarting If you turn off the VS-261 / VS-461, before turning it on again you must do the following: 1. Shut down all the devices that are attached to it. 2. Unplug its power adapter cable. 3. Wait 10 seconds, then plug the power adapter cable back in. -
Page 13: Specifications
Specifications Function VS-261 VS-461 Connections Port Selection Front Panel Switches; IR Remote Control LEDs Selected 2 (Green) 4 (Green) On Line 2 (Orange) 4 (Orange) Connectors Video Out 1 x DVI-I port (f) Audio Out 2 x RCA jacks Video In... -
Page 14: Troubleshooting
Troubleshooting Symptom Possible Cause Action Erratic Unit not receiving Use a DC 5.3V, 2.4A power behavior. enough power. adapter. Check that it is plugged in and functioning properly. Video DVI specification of There are three DVI standards: doesn’t the source device DVI-A;... - Page 15 Notes: - 13 - 2005-08-11...
- Page 16 Notes: - 14 - 2005-08-11...
