Getting started

Connecting the device

Please observe the safety information in
CE conformance and optimum picture quality are guaranteed only if
you use the data cables supplied.
► Switch off the monitor and the computer.
► Disconnect the power plug from the computer.

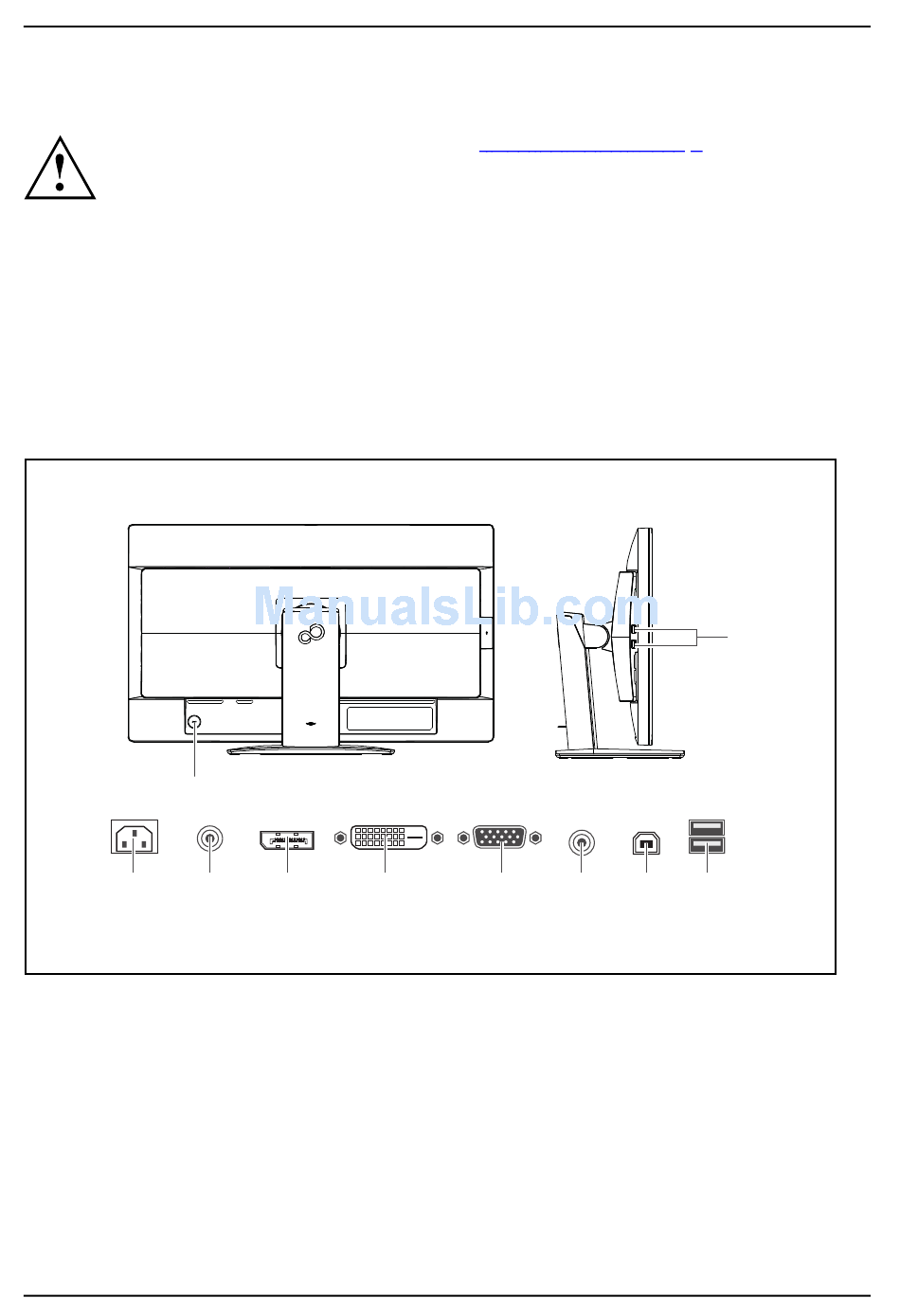

Connecting cables to the monitor
The data cables supplied have two 15-pin D-SUB connectors or two 24-pin DVI
connectors for connection to the monitor and to the computer.
Information on the computer connections and interfaces is contained in the
operating manual for the computer.
1
2
1 = Security slot for Security Lock
2 = Power connector
3 = AUDIO-IN socket
4 = DisplayPort socket
5 = DVI-D socket (DVI)
► Select the appropriate data cable for your computer.
16
3
4
"Important notes", Page
5 6
6 = D-SUB socket (VGA)
7 = AUDIO-OUT socket
8 = USB IN (Upstream)
9 = USB OUT (Downstream)
7.
9
7
8 9
