READ THIS

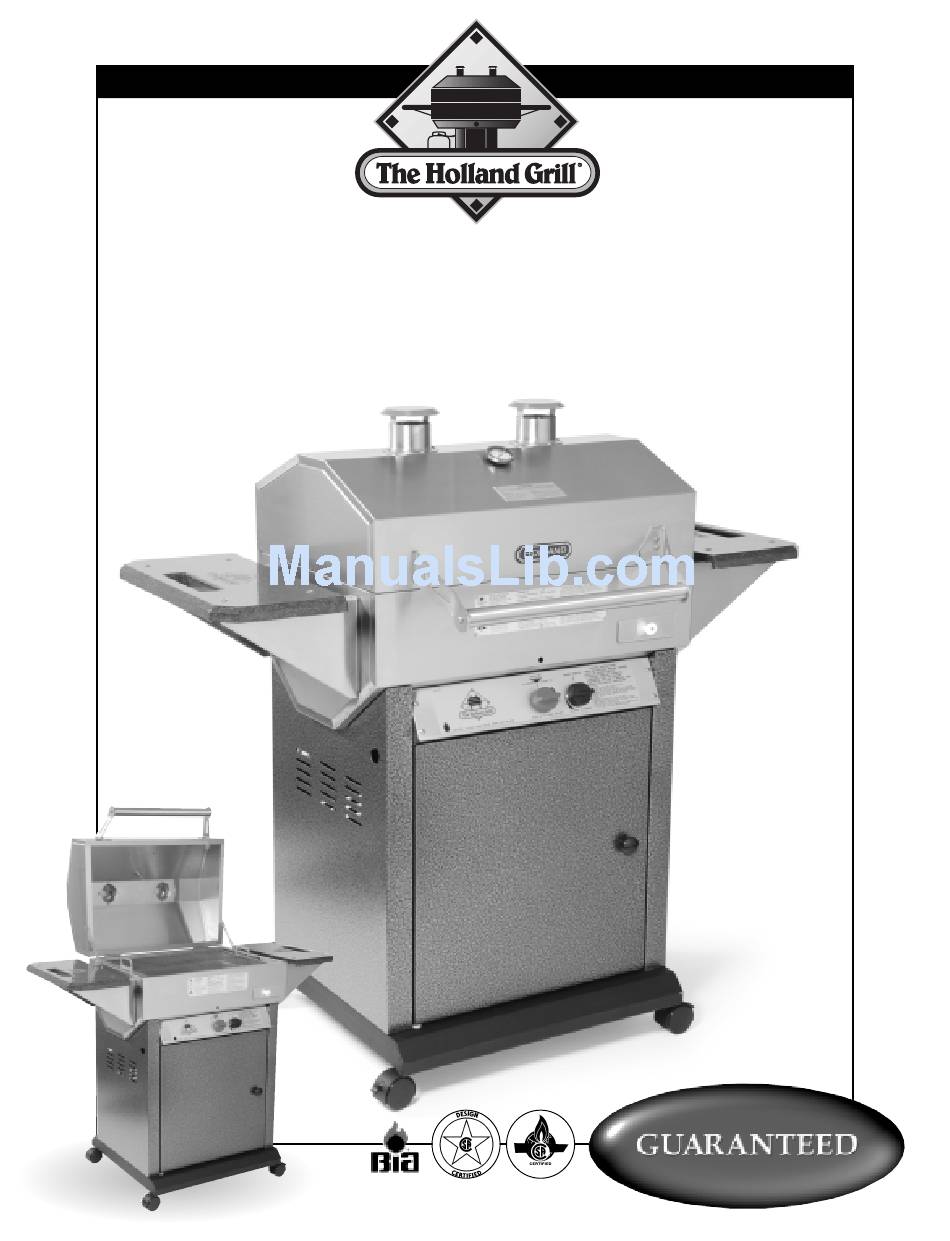

Instruction Manual
The
Apex
Apex
TM
BARBECUE INDUSTRY
ASSOCIATION MEMBER
BOOK FIRST
By Holland
BH421-SS5
L.P. Tank
not included.
L.P. NOTICE: This grill shall
be connected only to a 20 lb.
L.P. cylinder that is equipped
with a Sherwood Valve
#PV3349 AND an overfill
protection device (OPD).
The only Grill
not to flare up!
TM
©The Holland Grill Co., Inc. V2008 PN SS5-MAN
ANSI Z21.58b-2006/CSA 1.6b-2006

Advertisement

Table of Contents
loading

Related Manuals for Holland Apex BH421-SS5

Summary of Contents for Holland Apex BH421-SS5

  • Page 1 20 lb. L.P. cylinder that is equipped with a Sherwood Valve #PV3349 AND an overfill protection device (OPD). The only Grill not to flare up! BARBECUE INDUSTRY ASSOCIATION MEMBER ©The Holland Grill Co., Inc. V2008 PN SS5-MAN ANSI Z21.58b-2006/CSA 1.6b-2006...

  • Page 2: If You Smell Gas

    DANGER IF YOU SMELL GAS: 1. SHUT OFF GAS TO APPLIANCE. 2. EXTINGUISH ANY OPEN FLAME. 3. OPEN LID. 4. IF ODOR CONTINUES, KEEP AWAY FROM THE APPLIANCE AND IMMEDIATELY CALL YOUR GAS SUPPLIER OR YOUR FIRE DEPARTMENT. WARNING 1. DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE LIQUIDS OR VAPORS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
  • Page 3 Not only will you be able to enjoy time with friends and family while you grill worry-free, you’ll be able to do so for years to come. All Holland grills are made of top quality materials which give them a sturdiness that will last for years. We use only the best materials to ensure your new grill will look like new and cook like new well into the future.

  • Page 4: Safety Information

    PERFORMANCE. visual inspection should include leak testing the entire length of hose • CHOOSE ONLY A LEVEL LOCATION FOR GRILL OPERATION. THE HOLLAND GRILL and fittings. (See final assembly instructions for more information.) MUST BE SITTING SECURELY ON A LEVEL SURFACE FOR PROPER OPERATION AND EVEN HEAT DISTRIBUTION.
  • Page 5 The LP gas cylinder shall be used only outdoors in a well ventilated to set it up properly. The N.G. Holland Grill is set to operate at 7 space and not in a building, garage, or any other enclosed area. The LP inches water column pressure, using an orifice with a #53 drill size.
  • Page 6 FIGURE 2b Cabinet side, LEFT FIGURE 3 Cabinet side, RIGHT Cabinet BACK Insert and fasten Bucket Bracket into slot as shown FIGURE 2a Cabinet side, RIGHT 8-32 x 3/8 Screw 10-24 Phillips head screw and lock washer 1/4 - 20 Hex Bolt Loosen these 2 bolts.
  • Page 7 FIGURE 4a Bottom Assembly 1/4 - 20 Hex Bolt 1/4 Lock Washer (both sides) FIGURE 4b Door Pivot Bracket Route electrode wire through obround hole 10 - 24 x 3/8 Phillips Screw and Lock Washer Upper Door pivot bracket 1/4 - 20 x 5/8 mounting Hex Bolt and Lock Washer 1/4 - 20 Hex Bolts and...
  • Page 8 FIGURE 5a Shelf 10 - 24 Phillips screw must be inserted in slot of Lid Stop Lid Stop 1/4 - 20 x 5/8 Hex Bolt and Lock Washer 1/4 - 20 Hex Bolt Hinge and Lock Washer T- Nut 1/4 - 20 x 1 Round head Phillips Screw and Lock Washer 10 -24 x 1/2 Carriage Bolt FIGURE 5b...
  • Page 9 FIGURE 6 10 -24 x 1” Carriage bolt Cooking Grid Drip Pan FIGURE 8 Drain Pipe 10 -24 Hex Nut and Lock Washer Shelf Bracket Chip Tray Drain Valve Screws onto drain pipe Hand tighten only Utensil Hook Drip Bucket Hangs on Bucket Bracket Cutaway to...

  • Page 10: Lighting Instructions

    There should be no need for re-adjustment for the life of your Holland Grill, but it is wise to check the flame color each Air shutter time you light your grill. When proper setting is obtained be sure to &...

  • Page 11: Turning Grill Off

    Following these instructions will improve the longevity and quality of cooking. To assure safe operation of your Holland Grill, the area for cooking should always be kept free of combustible materials of any type, such as gasoline or other flammable vapors or liquids.

  • Page 12: Cooking Instructions

    • It is important to realize cooking on a Holland Grill uses a different located on the right front process in order for the grill to perform correctly. It is essential that of your grill.

  • Page 13: Replacements Parts List

    CAST HOLLAND LOGO SS5-914C LID STOP WARRANTY CARD If you have a question about the warranty or want to order parts or accessories, please contact your local Holland Grill dealer or call 800-880-9766 or visit us on the web at hollandgrill.com A-10...

  • Page 14: Grilling Instructions

    Approximately 20 minutes crab legs, etc. NOTE: Remember, the Holland Grill needs to warm up completely. Temperature will remain about 400 degrees F. All grilling times are approximate depending on size, weight and individual taste preference. Grill needs to remain closed at all times during grilling to be accurate with this time chart.
  • Page 15 STEP 8 Replace the No. 53 Natural gas orifice with the No. 57 LP (propane) gas orifice. Installation is the reverse. STEP 9 Use only a Holland Grill factory authorized LP (propane) hose and regulator assembly. STEP 10 Attach the regulator hose to the gas valve inlet and then attach big black plastic nut to LP tank.
  • Page 16 The Holland Grill Company, Inc. 121 Thomas Mill Road Holly Springs, NC 27540 Call 1-800-880-9766 or visit www.hollandgrill.com for a dealer near you. ©The Holland Grill Co., Inc. V2008a...
