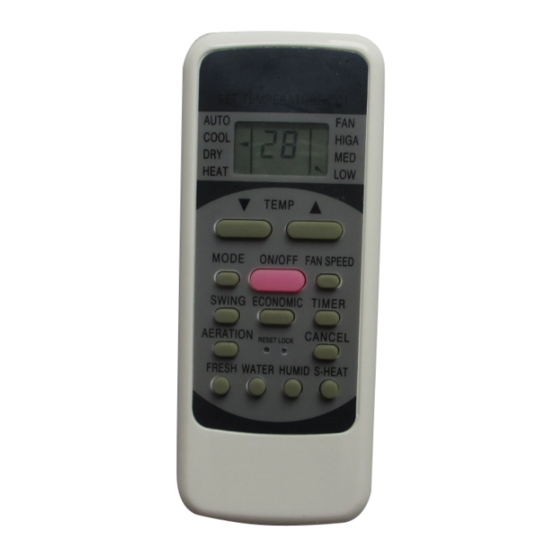

- Page 1 REMOTE CONTROL GUIDE Portable Room Air Conditioner Remote Control for: PSH-141A PS-81A PS-101A PS-121A French version of this manual is available on our website Heat Controller, Inc. • 1900 Wellworth Ave. • Jackson, MI 49203 • (517)787-2100 • www.heatcontroller.com...
-
Page 2: Table Of Contents
REMOTE CONTROL Installation, Operation & Maintenance Heat Controller, Inc. INTRODUCTION This guide shows you how to set up and operate your Comfort-Aire Portable Air Conditioner. The remote control is already programmed to work with the unit you purchased. TABLE OF CONTENTS Replacing batteries .....................3... -
Page 3: Replacing Batteries
REMOTE CONTROL Heat Controller, Inc. Installation, Operation & Maintenance REPLACING BATTERIES Before you operate the remote control, you must install (2) AAA batteries located in the battery compartment on the rear of the remote. (1) Remove the cover by pressing and sliding off. -
Page 4: Remote Controller Specifications
REMOTE CONTROL Installation, Operation & Maintenance Heat Controller, Inc. REMOTE CONTROLLER SPECIFICATIONS Model RG51B1/(C)EU, RG51B14/(C)E,RG51B31/(C)E RG51B/(C)EU, RG51B16/(C)E,RG51B31/(C)EU RG51B17/(C)EU, RG51B18/(C)E,RG51B32/(C)EU RG51B19/(C)E-M, RG51B20/(C)E,RG51B30/(C)EU RG51B25/(C)E, RG51B26/(C)EU;RG51B27/(C)E, RG51B30/(C)E. Rated Voltage (2) AAA: 3.0 volts Lowest Voltage of 2.0V CPU Emitting Signal Signal Receiving 26 ft. (8m) - Page 5 REMOTE CONTROL Heat Controller, Inc. Installation, Operation & Maintenance FUNCTIONS TEMP DOWN Button Push this button to decrease the indoor temperature setting in 2°F (1°C) increments to 88°F (30°C). TEMP UP Button Push this button to increase the indoor temperature setting in 2°F (1°C) increments to 62°F (17°C).
- Page 6 REMOTE CONTROL Installation, Operation & Maintenance Heat Controller, Inc. FUNCTIONS continued TIMER OFF Button Press this button to activate the Auto-off time setting. Each press will increase the time setting in 30 minutes increments, up to 10 hours, then at 1 hour increments up to 24 hours. To cancel the Auto-off time setting, just press the button until the time setting is 0.0.
-
Page 7: Lcd Display Icons
REMOTE CONTROL Heat Controller, Inc. Installation, Operation & Maintenance LCD DISPLAY ICONS MODE display Displays the current selected mode. Including AUTO, COOL, DRY, HEAT (heat pump models only) and FAN. Transmission Indicator This transmission indicator will light when remote controller transmits signals to the appliance. -
Page 8: Operating Modes
REMOTE CONTROL Installation, Operation & Maintenance Heat Controller, Inc. OPERATING MODES Auto Operation Ensure the unit is plugged in and power is available. The OPERATION indicator on the display panel of the appliance illuminates. 1. Press the MODE button to select Auto. -
Page 9: Swing Operation
REMOTE CONTROL Heat Controller, Inc. Installation, Operation & Maintenance OPERATING MODES Dry (Dehumidifying) Operation Ensure the unit is plugged in and power is available. The OPERATION indicator on the display panel of the indoor unit illuminates. 1. Press the MODE button to select DRY mode. -
Page 10: Timer Operation
REMOTE CONTROL Installation, Operation & Maintenance Heat Controller, Inc. OPERATING MODES Timer Operation Press the TIMER ON button to set the auto-on time of the unit. Press the TIMER OFF button can set the auto-off time of the unit. To set the Auto-on time. - Page 11 REMOTE CONTROL Heat Controller, Inc. Installation, Operation & Maintenance OPERATING MODES Example of Timer Setting TIMER ON (Auto-on Operation) The TIMER ON feature is useful when you want the unit to turn on automatically at a particular time, such as before you return home from work.
- Page 12 REMOTE CONTROL Installation, Operation & Maintenance Heat Controller, Inc. OPERATING MODES Timer Off (Auto-off Operation) The TIMER OFF feature is useful when you want the unit to turn off at a particular time automatically such as when you go to bed. The appliance will stop automatically at the set time.
- Page 13 REMOTE CONTROL Heat Controller, Inc. Installation, Operation & Maintenance OPERATING MODES TIMER ON TIMER OFF (Off Start Stop operation) This feature is useful when you want to start the air conditioner before you wake up and stop it after you leave the house. To start the air conditioner 2 hours after setting, and stop it 5 hours after setting.
- Page 14 3-2013 04/2009...
