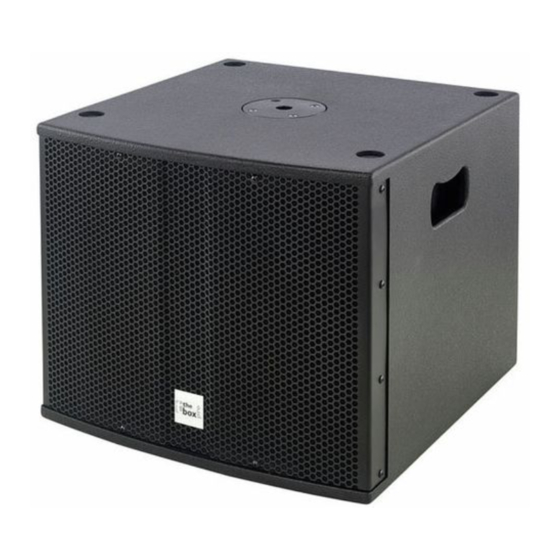

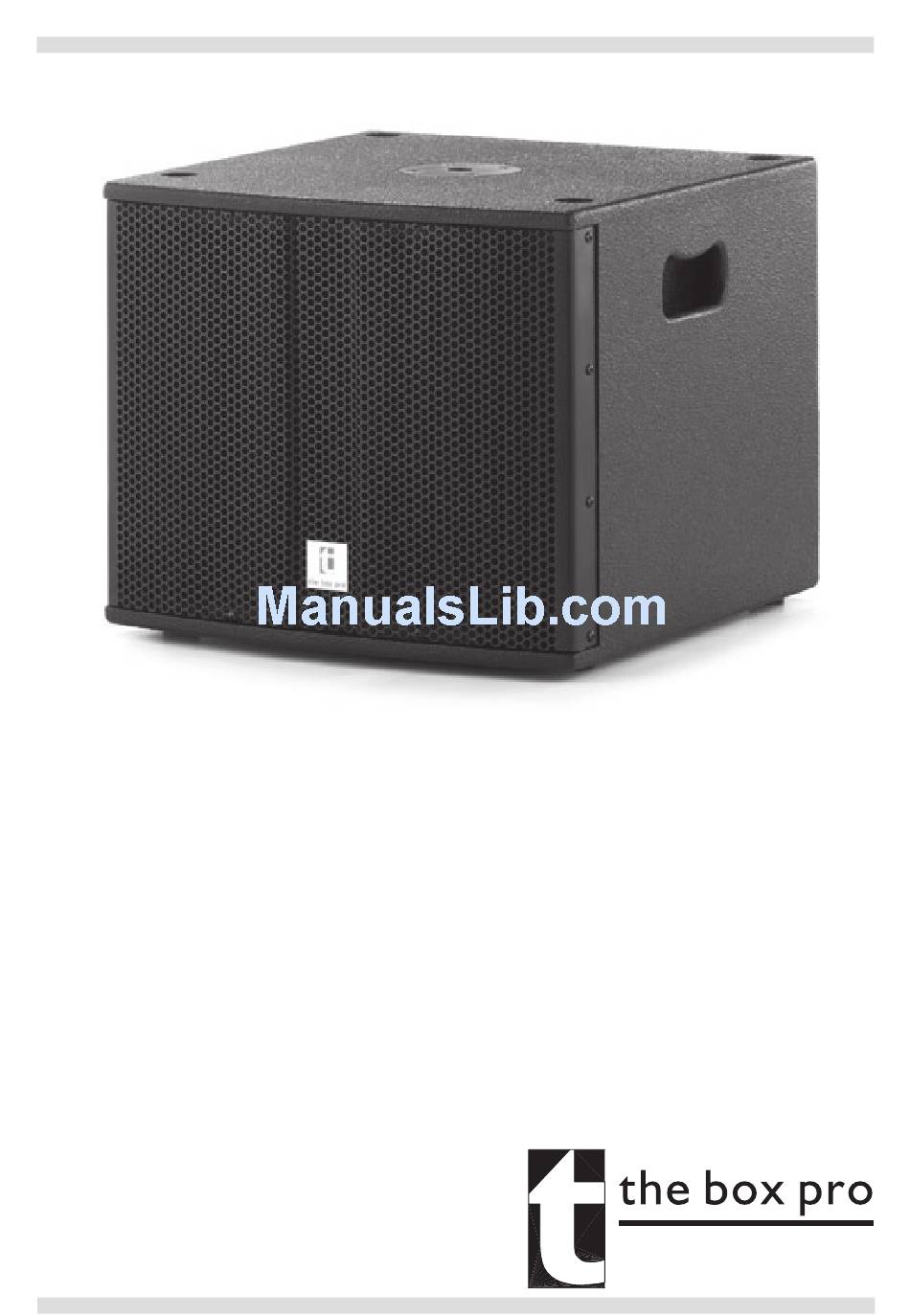

- Page 1 ACHAT 112 SUBA Owner‘s Manual Active Subwoofer 12“...
-
Page 2: Important Safety Instructions
Important Safety Instructions For your own safety you must read this section in full first! Intended Use This active speaker is intended exclusively for the transmission of audio signals according to this manual and the specifications given here. By using it in any other way you face the risk of electric shock. No warranty claims will be granted for damage resulting from improper use! Risk of electrical shock! •... - Page 3 • Always grasp the power cord by the plug. Do not pull on the cord itself and never touch the power cord with wet hands as this could result in a short circuit or an electrical shock. Do not place the device, other speaker cabinets or anything else on the power cord and make sure that it does not become clamped.
- Page 4 Features • 12” speaker chassis • Built-in amplifier with 350 W power • Frequency response 45-250 Hz • Adjustable high cut 80-250 Hz • Cabinet plywood with M20 pole mount socket on top • Shallow profile, fits under a 40cm stage platform •...
- Page 5 5. Mains Fuse If this fuse blows, a qualified technician must replace it by a new one of same specifications. 6. INV Phase inverting switch. 7. VOLUME Volume control for the input. Increase the volume by rotating clockwise and decrease the volume by rotating counter-clockwise. Attention: First please adjust the volume to minimum before switching the unit on and transmitting signals.
- Page 6 Technical Specifications Mains voltage ....... : AC115V~, 50/60Hz ............: AC230V~, 50/60Hz System .......... : Active low frequency speaker Cabinet Material ......: Playwood Cabinet Color ........ : Black Driver ..........: 12”x1 (Bass) Frequency Response (-3dB) ..: 40Hz - 250Hz Max Sound Level ......
- Page 8 © 2010 Musikhaus Thomann Treppendorf 30 • 96138 Burgebrach • Germany www.thomann.de...
