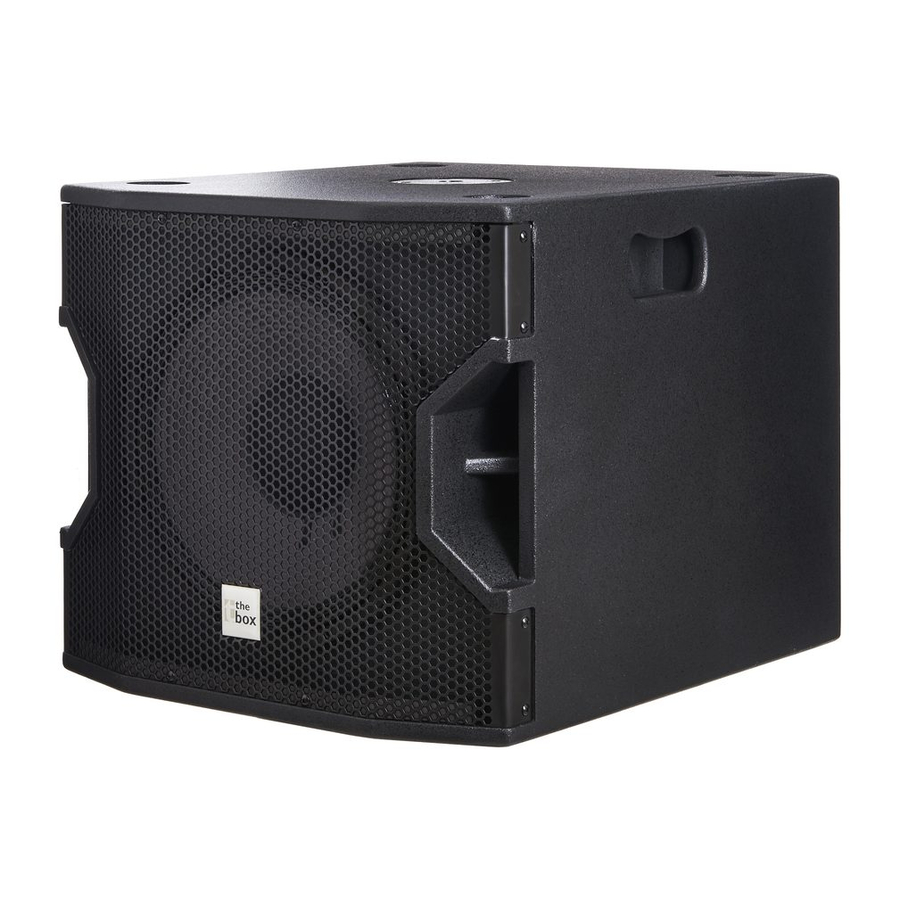

thomann Pyrit 112 Sub A User Manual

Active subwoofer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Pyrit 112 Sub A
active subwoofer
user manual

Advertisement

Table of Contents
loading

Related Manuals for thomann Pyrit 112 Sub A

Summary of Contents for thomann Pyrit 112 Sub A

  • Page 1 Pyrit 112 Sub A active subwoofer user manual...
  • Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 21.11.2014, ID: 351886...

  • Page 3: Table Of Contents

    1.3 Symbols and signal words....................... 6 Safety instructions............................. 8 Features............................... 12 Installation..............................13 4.1 Tips on handling speakers......................14 Connections and operating elements................... 15 Technical specifications........................18 Plug and connection assignment....................19 Protecting the environment......................22 Pyrit 112 Sub A...

  • Page 4: General Information

    General information General information This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual.

  • Page 5: Further Information

    General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 6: Notational Conventions

    General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual.
  • Page 7 This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – danger zone. Pyrit 112 Sub A...

  • Page 8: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended to be used in a sound reinforcement system. Use the device only as described in this user manual. Any other use or use under other operating conditions is consid‐ ered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.
  • Page 9 Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug. Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a regis‐ tered electrician. Pyrit 112 Sub A...
  • Page 10 Safety instructions CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
  • Page 11 Failure to do so could result in damage to the device and possibly injure the user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. Pyrit 112 Sub A...

  • Page 12: Features

    Features Features Special features of the device: 12" woofer with 4" voice coil Class D amplifier Integrated sound processor (DSP) with three modes, tailored to the appropriate satellites with midrange speakers and tweeters (Pyrit 10A, Pyrit 12A, Pyrit 15A) Connectivity options: XLR / 1/4" combo sockets for signal input and XLR socket for signal output Pole mount flange (36 mm) Two carrying handles...

  • Page 13: Installation

    NOTICE! Possible property damage by magnetic fields Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate distance to devices that can be adversely affected or damaged by an external magnetic field. Pyrit 112 Sub A...

  • Page 14: Tips On Handling Speakers

    Installation 4.1 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area.

  • Page 15: Connections And Operating Elements

    Connections and operating elements Connections and operating elements Pyrit 112 Sub A...
  • Page 16 Connections and operating elements 1 [MODE] Slide switch to select the operating mode of the integrated sound processor: [T10a], [T12a], [T15a]. Thus, the sound characteristic is adjusted to the satellite speaker used (midrange and tweeter). The yellow LEDs indicate the selected mode. Before you change the mode, please turn off the unit.
  • Page 17 Balanced line signal input, designed as XLR / 1/4" combo socket. 7 [LINE OUT B] Line signal output, designed as XLR chassis socket. 8 IEC chassis plug for the power supply. 9 Fuse holder. 10 [POWER ON/OFF] Mains switch. Turns the device on and off. Pyrit 112 Sub A...

  • Page 18: Technical Specifications

    Technical specifications Technical specifications Speakers 1 × 12" woofer (4" voice coil) Inputs XLR / 1/4" combo socket (balanced) Input impedance 10 kΩ (unbalanced), 20 kΩ (balanced) Outputs XLR socket Frequency response 45 Hz … 150 Hz Output power 500 W (RMS) / 1000 W (PEAK) Sound pressure level 126 dB / 1 m (max.) Operating supply voltage...

  • Page 19: Plug And Connection Assignment

    In addition to the conduc‐ tors ‘Ground’ and ‘Signal’, in a balanced transmission a second core is added. This also transfers the signal, but phase-shifted by 180°. Pyrit 112 Sub A...
  • Page 20 Plug and connection assignment Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise inter‐ ference. 1/4" TS phone plug (mono, unbalanced) Signal Ground, shielding 1/4"...
  • Page 21 Plug and connection assignment XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) Pyrit 112 Sub A...

  • Page 22: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 24 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
