INTRODUCTION
Thank you for purchasing the Oregon Scientific weather station.
This weather station has been designed specifically with
performance and ease of use in mind. As with all Oregon
Scientific products, this barometer is made to the highest quality
standards using precision electronic components and should give
you many years of trouble free use. Please note that the accuracy
of the weather forecasting is about 70 ~ 75 percent.

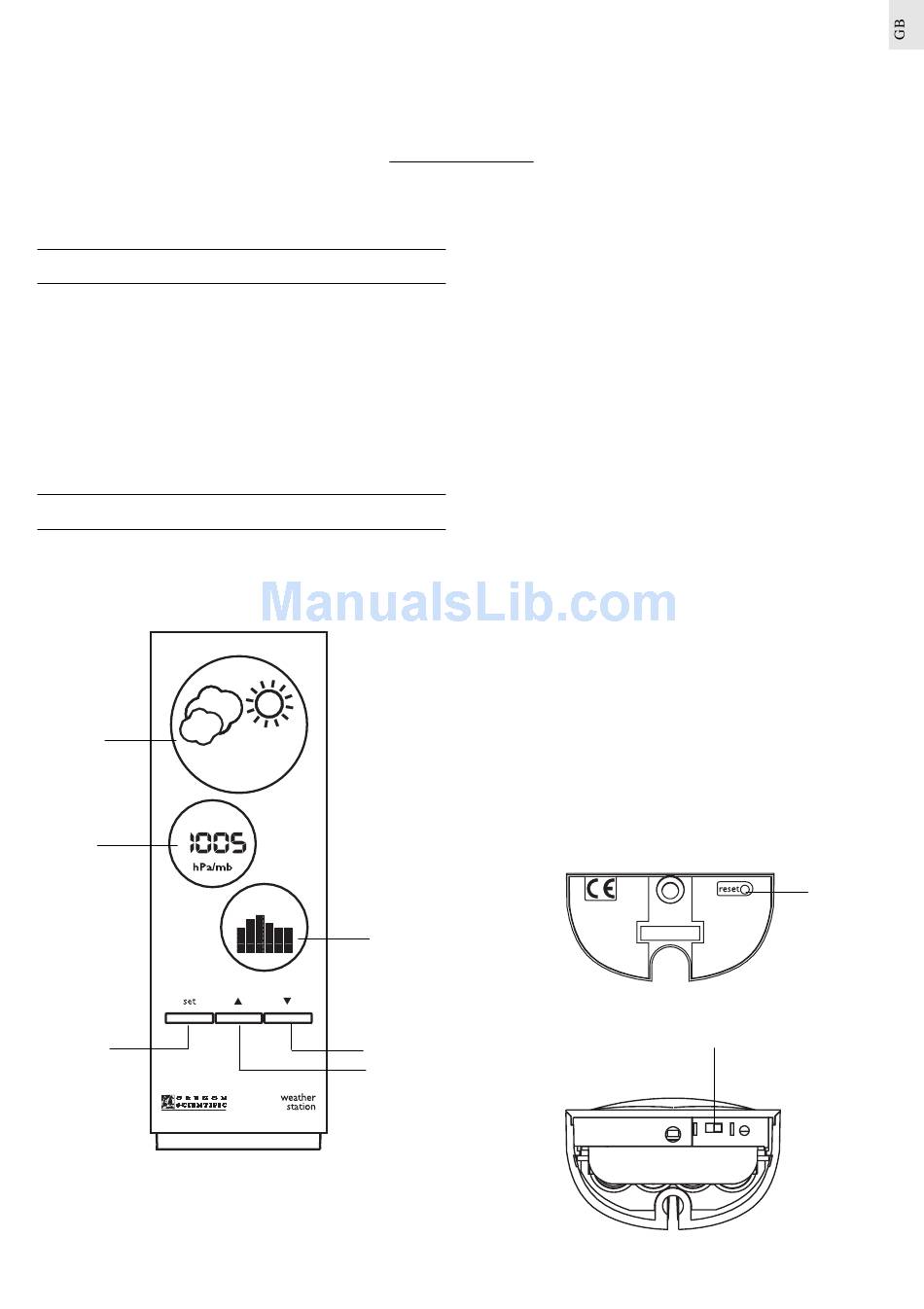

FEATURES & KEY CONFIGURATION
A
B
D

WEATHER STATION

MODEL: BHB613
USER'S MANUAL
A.
WEATHER FORECAST WINDOW
Weather forecast indication shows sunny, slightly cloudy,
cloudy and rainy.
B.
PRESSURE READING WINDOW
Displays the current pressure reading.
C.
PRESSURE TREND CHART WINDOW
D.
[SET] button
To set the altitude
E.
[UP] button
Increases the value of setting by 10
F.
[DOWN] button
Decreases the value of setting by 10
G.
[RESET] BUTTON
Returns all settings to default value and erases all memories.
H.
[hPa/mb-inHg] Slide switch
Selects between hPa/mb or inHg display unit.
C
F
E
1
G
H

Advertisement

Table of Contents
loading

Related Manuals for Oregon Scientific BHB613

Summary of Contents for Oregon Scientific BHB613

  • Page 1: Weather Station

    WEATHER FORECAST WINDOW INTRODUCTION Weather forecast indication shows sunny, slightly cloudy, Thank you for purchasing the Oregon Scientific weather station. cloudy and rainy. This weather station has been designed specifically with performance and ease of use in mind. As with all Oregon...

  • Page 2: How To Set The Altitude

    BATTERT INSTALLATION 2. The weather forecasts symbols reflect forecast 12-24 hours in the future and not the current situation.. The unit uses four UM-4 "AAA" size batteries. If the " " 3. A ' Sunny ' forecast reflects fine clear weather. indicator appears, removes the exhausted batteries and follow these steps to replace the batteries: 1.

  • Page 3: Low Battery Signal Indication

    HOW TO SELECT THE BAR OR LINE Connector: CHART FOR THE PRESSURE TREND Use wall-mount connector to align with other wall-mount bracket if necessary. - To get the line chart display, press the [RESET] button at the bottom of the unit while pressing and holding the [SET] key in the bar chart display.

  • Page 4: Specification

    SPECIFICATION Pressure measuring range 794 to 1050 hPa/mb ( 24.45 to 31.00 inHg) Altitude compensation for barometric pressure reading -100 to 2500 meters (-328 to 8223 feet) Pressure display resolution 1 hPa/mb (0.03inHg) Pressure sampling cycle 15 minutes Power source Four pcs.

  • Page 5: Battery Installation

    RADIO CONTROLLED ALARM CLOCK MODEL : BHM-612A USER’S MANUAL A RF SIGNAL INDICATOR INTRODUCTION - Indicates the signal-receiving status of the unit Congratulations on purchasing the BHM-612A Radio Controlled B MAIN WINDOW Alarm Clock. - Displays the current time with seconds or day-of-the week A smart-looking and easy-to-operate timepiece, the BHM-612A C SECONDARY WINDOW is designed to automatically synchronize the current time and...

  • Page 6: Display Modes

    HOW TO ENABLE OR DISABLE AUTO- RECEPTION To disable the automatic signal reception feature and cause the BHM-612A to operate as a quartz clock, hold down [ZONE] for three seconds. To enable the feature again, hold down the [UP] button for three seconds.

  • Page 7: The Reset Button

    THE RESET BUTTON Un-install the brackets: The [RESET] button is used to clear all user selected or pro- grammed settings and to cause the settings to return to their factory set defalut setting. Use a blunt stylus to hold down the button.
  • Page 8 CAUTION — The content of this manual is subject to change without further notice. — Due to printing limitation, the displays shown in this manual may differ from the actual display. — The contents of this manual may not be reproduced without the permission of the manufacturer.

  • Page 9: Main Unit

    MULTI-CHANNEL IN-OUT CABLEFREE THERMO-HYGROMETER MODEL: BHGR618 USER’S MANUAL A RF SIGNAL INDICATOR INTRODUCTION - Indicates the signal-receiving status of the unit Congratulations on your purchase of the Multi-Channel In-Out B Upper window Thermometer / Hygrometer (BHGR618) with a 433MHz cable- - Displays the temperature data free thermo-hygro sensor.

  • Page 10: Battery And Channel Installation: Remote Unit

    Note that the effective range is vastly affected by the building materials and where the main and remote units are positioned. Try various set-ups for best result. Though the remote units are weather resistant, they should be placed away from direct sunlight, rain or snow. BATTERY AND CHANNEL INSTALLATION: REMOTE UNIT The remote thermo-hygro sensor unit uses two (2) UM-4 or...

  • Page 11: Temperature And Humidity

    selected. Optionally, press and hold IN/REMOTE for 2-seconds to enforce a search. MAXIMUM AND MINIMUM TEMPERATURE AND HUMIDITY The maximum and minimum recorded temperature and humidity readings will automatically be stored in the memory. To display the maximum and minimum display memory: 1.

  • Page 12: Low Battery Warning

    HOW TO READ LOW BATTERY WARNING THE RF SIGNAL INDICATOR When it is time to replace batteries, the respective low-battery indicator will show up when the respective channel is selected. The RF signal indicator shows the signal-receiving status of the The battery level of the main unit will be shown on the indoor main unit.

  • Page 13: Note On Compliance

    Un-install the brackets: General RF Transmission Frequency : 433 MHz No. of Remote unit : Maximum of 3 RF Transmission Range : 100 feet Temperature compensation : 0.1° C to ( 0.2°F) Temperature sensing cycle : around 40 seconds Power Main unit : 2 pcs UM-3 or “AA”...
  • Page 14 Consult the dealer of an experienced radio/TV technician for help. Company Name: Oregon Scientific, Inc. Address:19861 SW 95th Place, Tualatain, Oregon 97062, USA Telephone Number:1-800-853-8883 Name and model number of the product: Multi-Channel in-...
  • Page 15 WIRELESS RAIN GAUGE MODEL: BHR616 USER’S MANUAL A. Upper Window INTRODUCTION - Displays the total rainfall, clock and date. Congratulations on purchasing the BHR616 Wireless Rain Guage. RF Signal Indicator Enclosed with this package is one (1) main display unit and one - Indicates the signal-receiving status of the unit (1) remote rain collector.
  • Page 16 RAIN COLLECTOR: FEATURES 1. Remove the screws on the Rain collector as indicated in the diagram and insert the batteries in accordance with the polarities shown. 2. Remove the fiber tape from the Rain Collector assembly. Antenna 3. Position the main unit and rain collector within effective -Transmits signal to main unit range of each other (up to 100 feet).
  • Page 17 LOW BATTERY WARNING HOW TO READ THE RF SIGNAL INDICATOR There are two low-battery indicators [ ]. The indicator for the rain collection unit is shown as " [ ] out", and the The RF signal indicator shows the signal-receiving status of the indicator for the main unit is shown as [ ].
  • Page 18 Wall-mounting: 4. Do not tamper with the unit’s internal components. Doing so will terminate the unit’s warranty and may cause damage. The unit contains no user-serviceable parts. 5. Only use new batteries as specified in this instruction manual. Do not mix new and old batteries as the old batteries may leak.
  • Page 19 Consult the dealer of an experienced radio/TV technician for help. Company Name: Oregon Scientific, Inc. Address:19861 SW 95th Place, Tualatain, Oregon 97062, USA Telephone Number:1-800-853-8883 Name and model number of the product: Wireless Rain Gauge...
