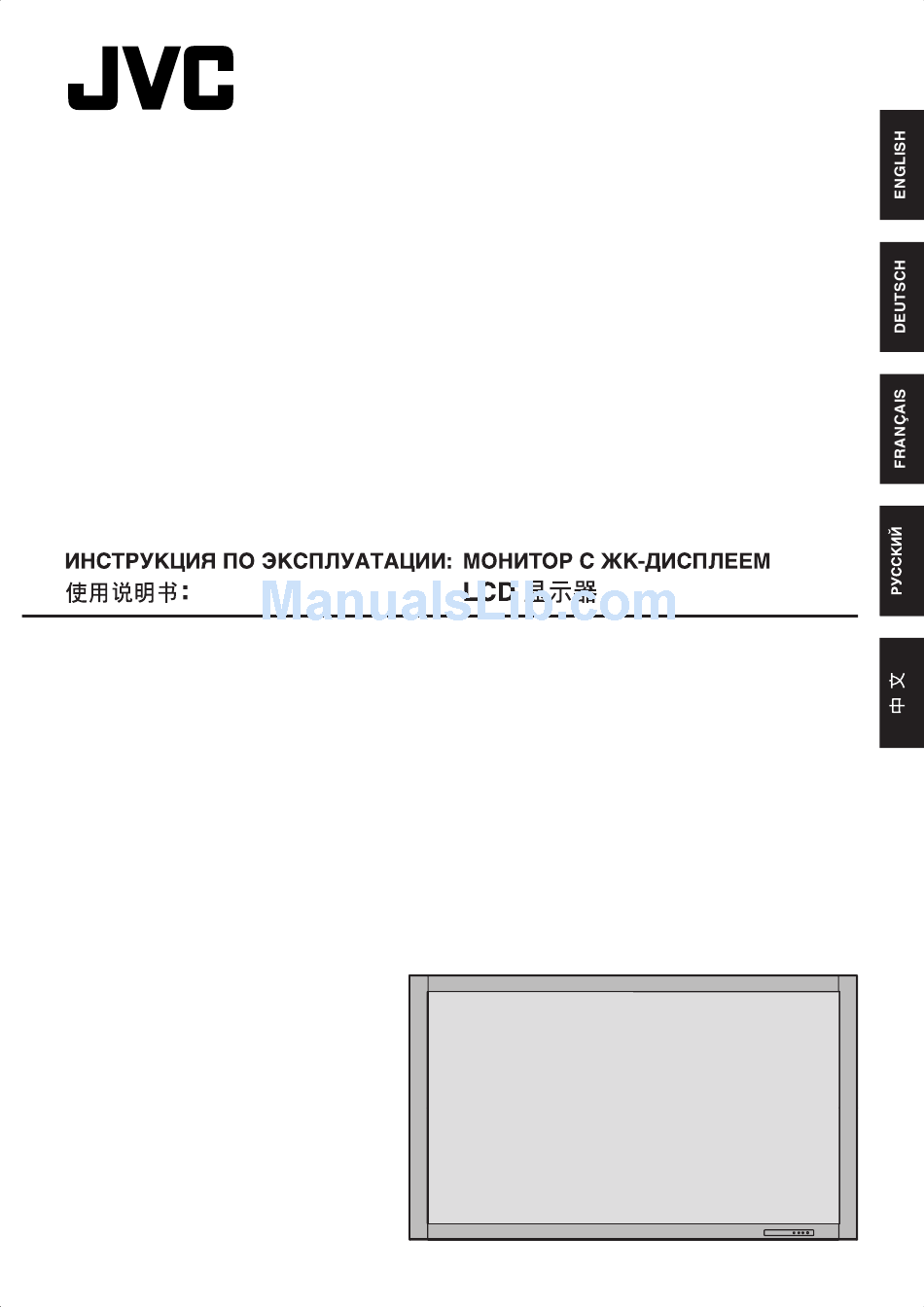

- Page 1 LCD DISPLAY MONITOR BEDIENUNGSANLEITUNG: LCD-DISPLAYMONITOR MANUEL D’INSTRUCTIONS: MONITEUR LCD GD-F52L1 INSTRUCTIONS...
-
Page 2: Dear Customer
Dear Customer, This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety. European representative of Victor Company of Japan, Limited is: JVC Technology Centre Europe GmbH Postfach 10 05 52 61145 Friedberg Germany... -
Page 3: Important Information
GD-F52L1 LCD DISPLAY MONITOR ENGLISH IMPORTANT INFORMATION FOR CUSTOMERS IN U.K. IMPORTANT The wires in this mains lead are coloured in accordance with the following code: GREEN-AND-YELLOW : Earth BLUE : Neutral BROWN : Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: •... - Page 4 European Union. (Business users) If you wish to dispose of this product, please visit our web page www.jvc-europe.com to obtain information about the take-back of the product. [Other Countries outside the European Union] If you wish to dispose of this product, please do so in accordance with applicable national legislation or...
-
Page 5: Dear Jvc Customer
DEAR JVC CUSTOMER Thank you for your purchase of a JVC LCD product. To ensure safety and many years of trouble-free operation of your product, please read the Safety Precautions carefully before using this product. SAFETY PRECAUTIONS Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. - Page 6 SAFETY PRECAUTIONS (Continued) 15. Replacement parts — In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorised parts can result in fire, electric shock and/or other danger.
-
Page 7: Tips And Safety Instructions
- Never rub or tap the monitor with hard objects. - Unplug the power cord if it is not used for a long time. - Please understand that JVC bears no responsibility for errors - Do not attempt to repair the power cord if it is broken made during use by the customer or a third party, nor for any or malfunctioning. -
Page 8: Table Of Contents
Contents Introduction Basic Operation IMPORTANT INFORMATION ..........1 Turning Power On/Off ............14 DEAR JVC CUSTOMER ...........3 Turning on the main power ........14 SAFETY PRECAUTIONS ..........3 Turning power on/off ..........14 TIPS AND SAFETY INSTRUCTIONS .......5 Disabling power on/off operations ......14 Supplied Accessories ............7 Basic Operation .............15... -
Page 9: Supplied Accessories
� Power cord: 1 � AA/R6 battery: 2 � INSTRUCTIONS: 1 � Blank sticker: 1 Place a blank sticker onto the JVC logo to cover the logo. � Remote control � Vertical logo � Temporary stand: 2 � Cable clamp: 2 �... -
Page 10: Rear View
Part Names Rear view 1. Main power switch (See page 14.) 2. AC input terminal (See page 12.) 3. PC/AV output terminal (DVI-D) (See page 11.) 4. PC1 input terminal (DVI-D) (See page 10.) AV1 input terminal (DVI-D) (See page 10.) 5. -
Page 11: How To Install The Monitor
How to Install the Monitor Mounting precautions If it is difficult to provide such space because the monitor is installed inside a housing or for other reasons, take other measures to keep the ambient temperature between • Since the monitor is heavy, consult your dealer before 0°C and 40°C such as installing a fan in the housing. -
Page 12: Connecting Peripheral Equipment
Connecting Peripheral Equipment Connection with AV equipment Caution • Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/ AV1 input terminal disconnecting cables. Also, read the manual of the equipment to be connected. •... -
Page 13: Other Terminals
Connecting Peripheral Equipment Other terminals Connecting multiple monitors PC/AV audio output terminals You can connect multiple monitors (up to 5 monitors) in a • Audio from the equipment connected to the AV audio input daisy chain by using the PC1/AV1 input terminals and PC/AV terminals or PC audio input terminal is output. -
Page 14: Connecting The Power Cord
Connecting the Power Cord Caution • Do not use a power cord other than the one supplied with the monitor. 1. Turn off the main power switch. 2. Plug the power cord (supplied) into the AC input terminal. 3. Plug the power cord (supplied) into the AC power outlet. For power Main power switch outlet... -
Page 15: Binding Cables
Binding Cables Attaching the cable clamp Cable clamp The cables connected to the terminals on the back of the positions monitor can be neatly bundled using the supplied cable clamps as shown in the illustration. Insert the cable Caution clamp into a hole. Cable clamp (any hole available) attachment... -
Page 16: Turning Power On/Off
Turning Power On/Off Caution TIPS • Turn on the monitor first before turning on the PC or • If the monitor is in the input signal standby mode and you playback device. press the POWER button on the remote control unit, the monitor enters standby mode. -
Page 17: Basic Operation
VOLUME ID No. mode, and press to enter. MODEL GD-F52L1 * You can select the input terminal by pressing the input switch of the monitor. Input mode Video Audio 1 0 2 4 x 7 6 8 V: 60 Hz H: 48.4 kHz... -
Page 18: Basic Operation
Basic Operation Switching the screen size Even when the screen size is changed, the display may remain the same depending on the input signal. WIDE PC input Displays image so it fills the entire screen. AV input An image with a 4:3 aspect ratio is stretched to fill the entire screen. ZOOM 1 PC input An image with a 4:3 aspect ratio is enlarged to fill the entire screen... -
Page 19: Menu Items
Menu Items Displaying the menu screen Menu screen display Video and audio adjustment and settings of various functions are enabled. This section describes how to use the menu SCREEN PICTURE PC2 ANALOG items. See pages 18 to 20 for details of each menu items. PICTURE AUTO Example of operation... -
Page 20: Menu Item Details
Menu Items Menu item details COLOR MODE Changes the colour mode on the screen. The colour mode The menu will differ depending on the input mode. on the screen can also be changed using a remote control unit. (See page 15.) SCREEN (PC2/PC3) * sRGB is PC input only. - Page 21 Menu Items SETUP OPTION OSD H-POSITION DATE/TIME SETTING Adjusts the horizontal display position of menu screen. Set the date and time. Press to select the date and time, and press to change the numerical OSD V-POSITION values. Adjusts the vertical display position of menu screen. Set the date in “Year/Month/Day”...
-
Page 22: Dual Screen Display
Menu Items ENLARGE (PC input) TIPS • When WHITE BALANCE is set to THRU, BLACK LEVEL, ENLARGE MODE CONTRAST and GAMMA cannot be set. Sets the number of screen splits used for the enlargement. • If COLOR MODE is set to sRGB or VIVID, the following (See page 21.) items cannot be set. - Page 23 Menu Items Enlarge SCHEDULE You can align 4, 9, 16, or 25 monitors and integrate them into You can set the time to switch the monitor on and off. a single large screen to display. Set this function with “SCHEDULE” in the OPTION menu. (See Enlarged views of separated images are displayed in each page 19.) monitor.
-
Page 24: Adjustments For Pc Screen Display
Menu Items Adjustments for PC screen display Caution • Do not switch off the main power after setting the Automatic adjustment SCHEDULE. • Specify the correct date and time. (See pages 14 and 19.) When you use the PC2 input terminal or PC3 input terminals SCHEDULE does not function unless the date and time are to display a PC screen for the first time, or when you change specified. -
Page 25: Initialisation (Reset)/Functional Restriction Setting
Initialisation (Reset)/Functional Restriction Setting You can return the settings to their factory-preset values and restrict operations. SIZE 1. After pressing for about 5 seconds, press , and in that order. FUNCTION ALL RESET ADJUSTMENT LOCK OSD DISPLAY RS-232C UNLOCKED END … [MENU] 2. -
Page 26: Controlling The Monitor With A Pc
Controlling the Monitor with a PC Communication conditions You can control this monitor from a PC via RS-232C (COM port) on the PC. You can also connect multiple monitors via a daisy chain by Set the RS-232C communication settings on the PC to match using a PC. -
Page 27: Controlling The Monitor With A Pc
Controlling the Monitor with a PC Response code format Communication interval When a command has been executed correctly • After OK or ERR is returned, you must send the following commands. Return code To set a timeout for the command response, specify 10 , 0A seconds or longer. -
Page 28: Commands For Id Control
Controlling the Monitor with a PC Commands for ID control IDLK ..The parameter of this command sets the ID number of the monitor. The monitor is subject to all The command examples shown on this page assume the subsequent commands. following connection and ID number set up. -
Page 29: Repeater Control
Controlling the Monitor with a PC Repeater control This system has a function to allow setting of multiple monitors connected in a daisy chain using a single command. This function is called repeater control. You can use Repeater control function without assigning ID numbers. [Example] Set 1 Set 2... -
Page 30: Rs-232C Command Table
Controlling the Monitor with a PC RS-232C command table How to read the command table Command: Command field (See page 24.) Direction: W When the “Parameter” is set in the parameter field (see page 24), the command functions as described under “Control/Response Contents”. -
Page 31: Picture Menu
Controlling the Monitor with a PC PICTURE menu Function Command Direction Parameter Reply Control/Response contents AUTO AGIN When the input mode is PC2, PC3. CONTRAST CONT 0-60 0-60 0-127 on PC2/PC3. BLACK LEVEL BLVL 0-60 0-60 0-127 on PC2/PC3. TINT TINT 0-60 0-60 When the input mode is AV. -
Page 32: Option Menu
Controlling the Monitor with a PC OPTION menu Function Command Direction Parameter Reply Control/Response contents DATE/TIME SETTING DATE AABBCCDDEE AABBCCDDEE AA: Year, BB: Month, CC: Day, DD: Time, EE: Minute SCHEDULE SC01- ABCDEFFGGH ABCDEFFGGH Schedule of a specified number SC08 A: Schedule 0 = Not effective, 1 = Effective B: Power... - Page 33 Controlling the Monitor with a PC Initialisation/Functional Restriction Setting (FUNCTION) menu Functio Command Direction Parameter Reply Control/Response contents ALL RESET RSET ADJUSTMENT LOCK ALCK 0-2 0: OFF OSD DISPLAY LOSD 0-1 0: ON, 1: OFF OFLD 0-1 0: ON, 1: OFF Others Function Command...
-
Page 34: Troubleshooting
Remove dust if possible. power to all the monitors connected in a daisy chain and Ask JVC dealer about removing internal dust. then turn the power on again. PC3 or AV2 does not appear properly. -
Page 35: Specifications
Specifications Product Specifications Model GD-F52L1 LCD element 52" wide (132.2 cm diagonal) ASV low-reflection black TFT LCD Max. resolution (pixels) 1920 x 1080 Max. colours 16.77 M colours (8 bits/colour) Pixel pitch 0.600 mm (H) x 0.600 mm (V) Viewing angle 176°... -
Page 36: Dimensional Drawings
When mounting the monitor, be sure to use a wall-mount / ceiling-mount bracket they comply with the VESA-compatible mounting method. JVC recommends using M6 screws and tighten the screws. Note that screw hole depth of the monitor is 10 mm. Loose holding may cause the product to fall, resulting in serious personal injuries as well as damage to the product. -
Page 37: Power Management
Specifications Power management This monitor conforms to VESA DPMS and DVI DMPM. Both your video card and computer must support the same standard in order for the monitor’s power management function to work. DPMS: Display Power Management Signaling DMPM: Digital Monitor Power Management Power Power DPMS... - Page 38 M E M O...
- Page 40 1007STH-MW-SH 07K DSC1 © 2007 Victor Company of Japan, Limited TINSM1118MPZZ(1)
