Summary of Contents for Eneo DLR4-08
-

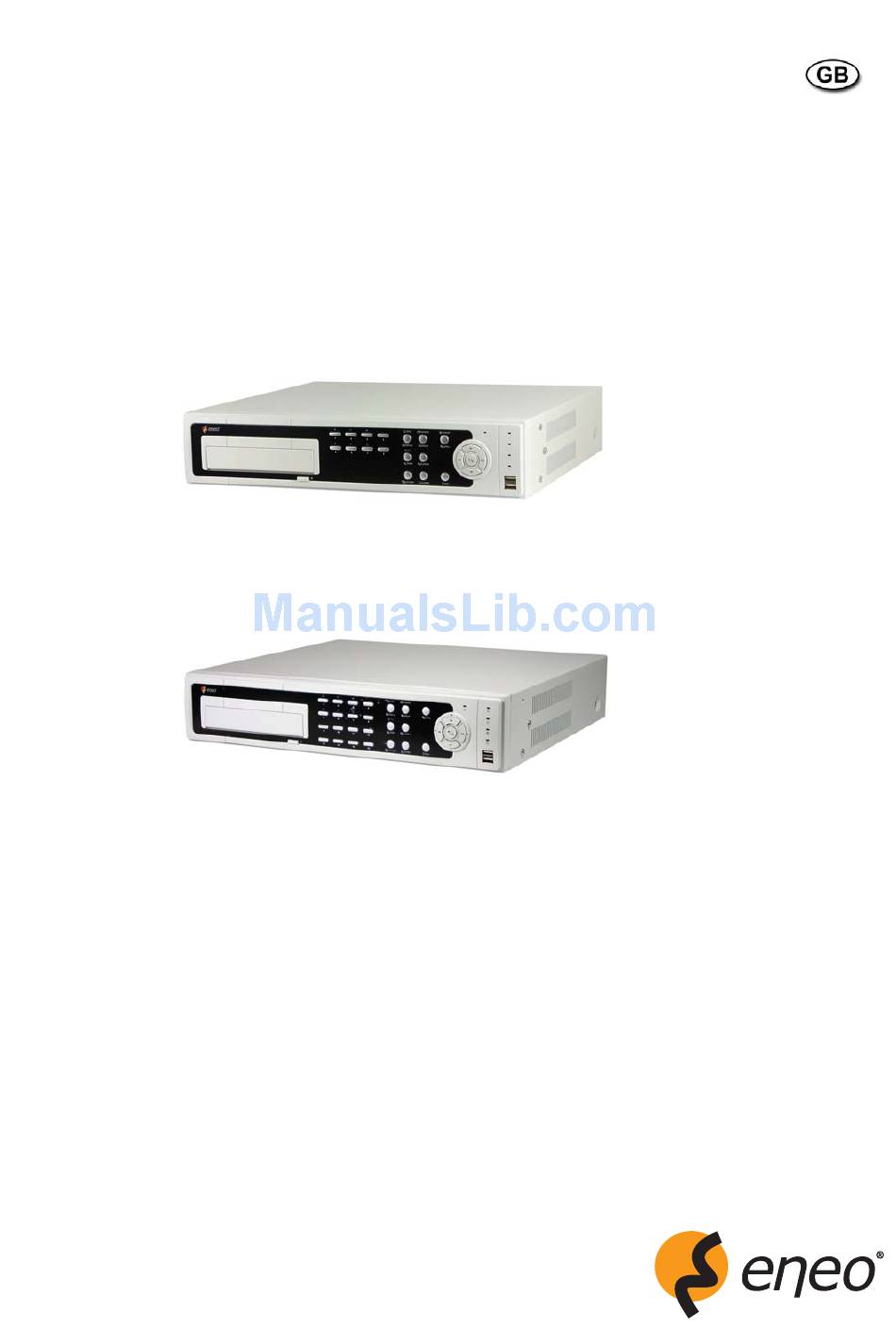

Page 1: Digital Video Recorder
Operating Instructions Digital Video Recorder H.264, DVD-RW, Ethernet DLR4-08/xxx(T)DV (8-Channel) DLR4-16/ xxx(T)DV (16-Channel) -
Page 3: Safety Instructions
Digital Video Recorder Safety instructions EMC class ► This video recorder (DVR) is a class A device in accordance with EN 55022. ► This device may cause interference to other equipment in domestic use. In such cases the persons operating the DVR are required to provide appropriate countermeasures, for which they themselves bear the cost. -
Page 4: Table Of Contents
Operating Instructions Table of Contents Chapter 1 — Introduction ......................1 Feature ..........................1 Technical Overview......................1 Chapter 2 — Installation......................3 Package Contents........................3 Required Installation Tools....................3 .....................3 Video Input ..................3 Video Loop Through .....................4 RS485 Port ...................4 Alarm Input/Output ....................4 Network Port ....................4 RS232C Port .......................5... - Page 5 Digital Video Recorder ....................13 Date/Time ......................14 Storage ......................15 User .....................17 Shutdown Network Setup ........................17 .......................17 Network ....................20 Notification Devices Setup........................21 .......................21 Camera ..................23 Alarm-Out Screen ......................24 Display .....................26 Remote Control Recording Setup ........................27 ......................27 Record ......................28 Schedule .....................30 Pre-Event Event Setup ........................
- Page 6 Operating Instructions ....................55 Text-In Search .....................56 Clip-Copy ......................57 Print Appendix ..........................58 USB Hard Disk Drive Preparation ..................58 ..........58 Preparing the USB hard disk drive in Windows 2000 ..........58 Preparing the USB hard disk drive in Windows 98 Text-In Search Examples....................59 ..................59 Search Example I ..................59...
- Page 7 Digital Video Recorder Figure 21 — WebGuard setup screen.....................20 Figure 22 — Notification Mail setup screen....................20 Figure 23 — Notification Callback setup screen..................21 Figure 24 — Devices menu........................21 Figure 25 — Camera setup screen......................21 Figure 26 — Camera PTZ setup screen....................22 Figure 27 —...
-
Page 9: Chapter 1 - Introduction
Digital Video Recorder Chapter 1 — Introduction Feature Your color digital video recorder (DVR) provides recording capabilities for eight or 16 camera inputs. It provides exceptional picture quality in both live and playback modes, and offers the following features: 8 or 16 Composite Video Input Connectors Compatible with Color (NTSC or PAL) and B&W (CCIR and EIA-170) Video Sources Auto Detection for NTSC and PAL H.264 Codec... -
Page 10: Figure 1 - Typical Dvr Installation
Operating Instructions Figure 1 — Typical DVR installation. NOTE: This manual covers the 8- and 16-channel digital video recorders. The DVRs are identical except for the number of cameras and alarms that can be connected and the number of cameras that can be displayed. For simplicity, the illustrations and descriptions in this manual refer to the 16-camera model. -
Page 11: Chapter 2 - Installation
Digital Video Recorder Chapter 2 — Installation Package Contents The package contains the following: Digital Video Recorder Power Cord Operating Instructions (This Document) RAS Software CD and Operating Instructions Rack-mount Kit Assembly Screws and Guide Rails for Adding Hard Disk Drives Infrared Remote Control Required Installation Tools No special tools are required to install the DVR. -
Page 12: Rs485 Port
Operating Instructions If you would like to connect your video source to another device, you can use the Loop BNC connectors. NOTE: The Loop BNC connectors are auto terminated. Do NOT connect a cable to the Loop BNC unless it is connected to a terminated device because it will cause poor quality video. -
Page 13: Video Out
Digital Video Recorder Video Out A VGA connector is provided so that you can use a standard, multi-sync computer monitor as your main monitor. Use the cable supplied with your monitor to connect it to the DVR. Connect the main monitor to the Video Out connector. Connect the spot monitor to the SPOT connector as needed. -
Page 14: Chapter 3 - Configuration
Operating Instructions Chapter 3 — Configuration NOTE: Your DVR should be completely installed before proceeding. Refer to Chapter 2 — Installation. Front Panel Controls Figure 3 — 16-Channel DVR front panel. Camera Buttons SPOT/Display Button Sequence/Group Button Cameo/Menu Button Power LED HDD LED Alarm Out LED Network LED... -
Page 15: Camera Buttons (1 To 16)
Digital Video Recorder Figure 4 — Infrared remote control. NOTE: For simplicity, the button descriptions in this manual refer to the front panel buttons. Camera Buttons (1 to 16) Pressing the individual camera buttons will cause the selected camera to display full screen. Buttons 1 to 9 are also used to enter passwords. -
Page 16: Cameo/Menu Button
Operating Instructions CAMEO/MENU Button Pressing and holding the button for three seconds or longer enters the cameo mode. The yellow outline CAMEO/MENU surrounding the video indicates the active cameo, and pressing the arrow buttons moves the active cameo. Pressing the desired camera button in the active cameo edits the cameo and displays the video of selected camera. Pressing the (Play/Pause) button exits the Active Cameo mode. -
Page 17: Play/Pause Button
Digital Video Recorder In the playback mode, pressing the button plays video backward at high speed. Pressing the button again toggles the playback speed from . The screen displays respectively. Pressing the button plays video forward at high speed. Pressing the button again toggles the playback speed from . -
Page 18: Turning On The Power
Operating Instructions Turning on the Power Connecting the power cord to the DVR turns on the unit. The unit takes approximately 60 seconds to initialize. Initial Unit Setup Before using your DVR for the first time, you will want to establish the initial settings. This includes items such as time and date, display language, camera, remote control, record mode, network and password. -
Page 19: System Setup
Digital Video Recorder Press the button or move the mouse pointer to the top of the screen and then select (Setup) in the Live MENU Monitoring menu to enter the setup screen. While setting up the DVR, there will be many opportunities to enter names and titles. When making these entries, a Virtual Keyboard will appear. - Page 20 Operating Instructions To upgrade the software, connect a USB device containing the upgrade package file to the DVR. Highlight Upgrade… and press button. The Upgrade screen appears. The screen displays the upgrade package file names that are available. The “.rui” indicates that the file is for software upgrades and “.ofi”...
-
Page 21: Date/Time
Digital Video Recorder Highlighting Clear All Data… and pressing the button will clear all video data. You will be asked to verify that you wish to clear all data before the DVR erases the video data. Clear All Data… will not clear the System Log. Date/Time Highlight Date/Time in the System menu and press the button. -
Page 22: Storage
Operating Instructions Highlight the box beside Automatic Sync. and press the button. This toggles between On and Off. Highlight the box beside Time Server and press the button. A virtual keyboard appears that you can use to enter the IP address or domain name of the time server. -
Page 23: User
Digital Video Recorder If you want to erase recorded data on the selected device, highlight Clear and press the button. You will be asked whether or not you want to delete the data. If you want to use a USB hard disk drive, highlight Use and press the button after connecting the device. - Page 24 Operating Instructions CAUTION: Write down the new password and save it in a secure place. If the password is forgotten, the unit must be reset using the Factory Reset Button and all data settings will be lost. Highlighting a User Name and pressing the button allows you to add or change the password assigned to that user.
-
Page 25: Shutdown
Digital Video Recorder Shutdown Highlight Shutdown in the System menu and press the button. The Shutdown screen displays asking you to confirm whether or not you want to shut the system down. After selecting Shutdown and pressing the button, a screen will appear telling you when it is safe to disconnect power. -
Page 26: Figure 19 - Lan (Manual) Setup Screen
Operating Instructions Highlight the LAN tab, and the LAN screen displays. Highlight the box beside Type and press the button. You can select the type of network configuration from: Manual, DHCP and ADSL (with PPPoE). Select the desired type and press the button. -
Page 27: Figure 20 - Dvrns Setup Screen
Digital Video Recorder Selecting ADSL (with PPPoE) allows you to set up the ADSL network. Highlight the box beside ID and press the button. A virtual keyboard appears allowing you to enter the ID for ADSL connection. Highlight the box beside Password and press the button. -
Page 28: Notification
Operating Instructions Highlight the WebGuard tab, and the WebGuard screen displays. Highlight Use WebGuard Service and press the button to toggle between On and Off. See Appendix – WebGuard for detailed descriptions of the WebGuard service. Highlight the box beside Port and press the button. -
Page 29: Devices Setup
Digital Video Recorder Highlight the Callback tab, and the Callback screen displays. Highlight LAN and press the button to toggle between On and Off. When LAN is turned On you can change the IP addresses. Highlight the IP Address box that you want to change and press the button. -
Page 30: Figure 26 - Camera Ptz Setup Screen
Operating Instructions Highlight the PTZ tab, and the PTZ setup screen displays. NOTE: You will only be able to set up PTZ devices if the PTZ port is set to RS232 or RS485. Figure 26 — Camera PTZ setup screen. Highlight the box in the Product column for the PTZ camera you wish to configure and press the button. -
Page 31: Alarm-Out Screen
Digital Video Recorder Alarm-Out Screen Highlight Alarm-Out in the Devices menu and press the button. The Alarm-Out screen allows you to change the settings and establish a schedule for each alarm output from the DVR. Each alarm output can be given its own title by highlighting the box under the Title heading and pressing the button. -
Page 32: Display
Operating Instructions Display Highlight Display in the Devices menu and press the button. The Display screen allows you to select what information will be displayed on the monitor. Highlighting an item and pressing the button toggles that item On and Off. When an item is On, there is a checkmark in the box beside it. -
Page 33: Figure 31 - Spot Monitor Screen
Digital Video Recorder You can define the screen layout in a variety of formats and set the DVR to sequence through the different screen layouts (pages) so that all the cameras will be displayed. You can also set up the DVR to display one camera or a group of cameras all the time while cycling through the remaining cameras in a “cameo”... -
Page 34: Remote Control
Operating Instructions Highlighting Position and pressing the button allows you to adjust the screen position on the VGA monitor. Use the arrow buttons on the setup screen to move the VGA screen position in the direction you want. Selecting the default button at the center cancels the screen positioning operation and reloads the default position. -
Page 35: Recording Setup
Digital Video Recorder Recording Setup Figure 34 — Record menu. Record Highlight Record in the Record menu and press the button. The Record setup screen appears. Highlighting Recycle and pressing the button toggles between On and Off. In the Recycle mode, the DVR records over the oldest video data once all available storage space has been used. -
Page 36: Schedule
Operating Instructions CAUTION: When more than one disk is installed in the unit, the DVR records video on the disks sequentially based on time. And these sequentially recorded videos have the advantage that you can search recorded video easily even though a disk is removed from the unit. However, video recorded in the same time range might be saved on different disks by channel and by the type of recording mode. -
Page 37: Figure 38 - Schedule - Settings (Advanced Mode) Setup Screen
Digital Video Recorder Highlighting Schedule On and pressing the button toggles between On and Off. In the Schedule On mode, the DVR records video based on the schedule established in the Schedule screen. When turning Schedule recording Off, you will be asked to confirm your decision, and displays at the top-left corner of each camera screen. -
Page 38: Record Schedule
Operating Instructions Highlight Default… and press the button. The Default screen appears. Highlighting boxes under ips and pressing the button allows you to set the images per second for Time and Event recording. You can select from 1.00 to 30.00 ips (25.00 ips PAL). Highlighting boxes under Quality and pressing the button allows you to set the recorded image quality for Time and Event recording. -
Page 39: Event Setup
Digital Video Recorder Event Setup Figure 40 — Event menu. Alarm-In Highlight Alarm-In in the Event menu and press the button. The Alarm-In setup screen appears. The alarm terminal strip on the back of the DVR has inputs associated with each alarm. You can set up each input on the Alarm-In screen. -
Page 40: Motion Detection
Operating Instructions NOTE: For the Alarm-Out action, the alarm output and beep you select should be set to the Event mode in the Alarm-Out setup screen (Schedule tab). Highlight the desired box under the Notify heading, and press the button. The Alarm-In Notify menu appears. You can toggle the entire list On and Off by highlighting Notification and pressing button. -
Page 41: Figure 45 - Motion Detection Actions 1 Screen
Digital Video Recorder The Motion Detection Zone screen is laid over the video for the selected camera. You can set up motion detection zones by selecting or clearing blocks. NOTE: You can set up motion zones one block at a time in groups of 8 or 16 individual block groups (8- and 16-channel DVR respectively). -
Page 42: Video Loss
Operating Instructions Highlight the box under the Record heading and press the button. A list of cameras appears. You can associate as many cameras with that camera as you wish. If the DVR detects motion on the selected camera, it starts recording video from all the associated cameras. -
Page 43: Figure 48 - Video Loss Actions 1 Screen
Digital Video Recorder Highlight the Actions 1 and Actions 2 tabs and the Video Loss Actions 1 and Actions 2 screens display. The DVR can be set to react to video loss differently for each camera. Each camera can be associated with another camera, trigger an Alarm-Out connector, sound the DVR’s internal buzzer, notify a number of different devices, move PTZ cameras to preset positions, and/or display a camera on a... -
Page 44: Video Blind
Operating Instructions Video Blind Highlight Video Blind in the Event menu and press the button. The Video Blind setup screen appears. The DVR checks to see if anything is blinding a camera. Figure 50 — Video Blind Settings screen. Highlighting the box under the Sensitivity heading allows you to adjust the DVR’s sensitivity to video blind for Black and White independently from 0 (Never) and 1 (least sensitive) to 15 (most sensitive). -
Page 45: Text-In
Digital Video Recorder Highlight the box under the Alarm-Out heading and press the button. A list of Alarm Outputs appears. You can associate as many Alarm-Outs with that camera as you wish. When the DVR detects video blind on the selected camera, it will trigger output signals on all the associated Alarm-Out connectors. -
Page 46: Figure 54 - Text-In Device Screen
Operating Instructions Highlight the box beside Port, and press the button. Select from None, RS232, RS485 and USB-Serial (1~8). NOTE: When If you have set the Port as None, you will not be able to make any changes to the screen. NOTE: A When using the USB to serial text-in device, do NOT remove the USB cable from the port while the... -
Page 47: Figure 55 - Text-In Actions 1 Screen
Digital Video Recorder Highlight the Actions 1 and Actions 2 tabs and the Text-In Actions 1 and Actions 2 screens display. The DVR can be set to react to text input. Text input can be associated with cameras, trigger an Alarm-Out connector, sound the DVR’s internal buzzer, notify a number of different devices, move PTZ cameras to preset positions, and/or display a camera on a SPOT monitor. -
Page 48: System Event
Operating Instructions System Event Highlight System Event in the Event menu and press the button. The System Event setup screen appears. The DVR can be configured to run self-diagnostics and report the results. Highlighting the box beside System and pressing the button allows you to select the interval that you want the DVR to run self-diagnostics on the system. -
Page 49: Event Status
Digital Video Recorder Highlight the Actions tab, and the System Event Actions screen displays. The DVR can be set to react to system events. System events can be associated with an Alarm-Out connector, sound the DVR’s internal buzzer, and/or notify a number of different devices. -
Page 50: Chapter 4 - Operation
Operating Instructions Chapter 4 — Operation NOTE: This chapter assumes your DVR has been installed and configured. If it has not, please refer to Chapters 2 and 3. The DVR’s controls are similar to a VCR. As with a VCR, the main functions are recording and playing back video. However, you have much greater control over recording and playing back video. -
Page 51: Live Monitoring Menu
Digital Video Recorder Live Monitoring Menu Freeze Selecting (Freeze) in the Live Monitoring menu will freeze the current image on the screen until you select again. It is the same as pressing the (Play/Pause) button. Pressing any button except for the MENU ALARM PANIC... -
Page 52: Active Cameo Mode
Operating Instructions Alarm Reset Selecting (Alarm Reset) in the Live Monitoring menu resets the DVR’s outputs including the internal buzzer during an alarm. It is the same as pressing the button. ALARM Panic Selecting (Panic) in the Live Monitoring menu starts panic recording of all cameras, and selecting again stops panic recording. -
Page 53: Figure 62 - Ptz Select Camera Menu
Digital Video Recorder To use the front panel buttons, press the Left and Right arrow buttons to pan left and right. Press the Up and Down arrow buttons to tilt the camera up and down. Press the button to zoom in, and press the button to zoom out. -
Page 54: Event Monitoring
Operating Instructions Event Monitoring When an event occurs, the DVR will display the camera associated with the event if Event Monitoring On is selected in the Display setup screen (OSD tab). How the cameras are displayed depends on the number of cameras associated with the event. If one camera is associated with the event, the DVR will display the camera full screen. -
Page 55: Using A Mouse
Digital Video Recorder Using a Mouse You can use a mouse instead of the front panel buttons to perform many of the DVR functions. In the Live Monitoring mode or Search mode, moving the mouse pointer to the left edge of the screen displays the following Mouse Display menu. Full Screen Previous Group Next Group... -
Page 56: Panic Recording
Operating Instructions Standard (CIF), High (Half D1) or Very High (D1). The factory default resolution is Standard. When set to Standard, the DVR has a maximum recording speed of 480 ips (240 ips for 8-channel model). When set to High, the DVR has a maximum recording speed of 240 ips (120 ips for 8-channel model). -
Page 57: Searching Video
Digital Video Recorder CAMEO Button: Pressing and holding the button for three seconds or longer enters the cameo mode. The yellow outline surrounding the video indicates the active cameo, and pressing the arrow buttons moves the active cameo. Pressing the desired camera button in the active cameo edits the cameo and displays the video of selected camera. Pressing the (Play/Pause) button exits the Active Cameo mode. -
Page 58: Search Menu
Operating Instructions Search Menu Search Selecting (Search) in the Search menu displays the following Search menu. See the following Event Log Search, Record Table Search, Calendar Search, Motion Search and Text-In Search sections for details. Event Log Search: Selecting Event Log Search selects video from the event log. Record Table Search: Selecting Record Table Search selects using a recording table. -
Page 59: Event Log Search
Digital Video Recorder Panic Selecting (Panic) in the Search menu starts panic recording of all cameras, and selecting again stops panic recording. It is the same as pressing the button. PANIC Data Source Selecting (Data Source) in the Search menu allows you to select the data source to be searched. Selecting Record searches recorded data on primary storage installed in the DVR, and selecting Other searches recorded data on storage used for another DVR then installed in this DVR. -
Page 60: Record Table Search
Operating Instructions Highlight the box beside Motion and press the button. You can select the cameras for which you want any reports of motion detection. Highlight the box beside Video Loss and press the button. You can select the cameras for which you want any reports of lost video. -
Page 61: Calendar Search
Digital Video Recorder There are three view modes. Standard view, Expanded view and Compact view. Standard view (default) displays combined recording information of all camera channels currently displayed on the screen. In the Standard view mode, selecting the icon located at the bottom switches to the Expanded view mode. The Expanded view displays the recording information of each camera channel currently displayed on the screen. -
Page 62: Motion Search
Operating Instructions NOTE: It is possible that no recorded image displays on the current screen. Press the button and DISPLAY change the screen mode to 4x4. You will be able to easily see the camera have recorded video during target time. Motion Search The Motion Search…... -
Page 63: Text-In Search
Digital Video Recorder Text-In Search The DVR maintains a log of each time there is Text Input. The Text-In Search screen displays this list. Use the arrow buttons to highlight the event for which you would like to see video. Pressing the (Play/Pause) button will extract the video associated with the Text Input and display the first image of... -
Page 64: Clip-Copy
Operating Instructions Clip-Copy Video clips can be copied on an internal DVD RW drive, or external USB hard disk or flash drive. The copied video clips can be viewed on computers running Microsoft Windows 98, ME, 2000, XP or Vista. Refer to the Appendix – USB Hard Disk Drive Preparation for information on preparing the external drive for clip copy. -
Page 65: Print
Digital Video Recorder Highlight Verify After Burning and press the button. This will toggle between On and Off. When this feature is On, you can verify that the data is written on the DVD RW properly. Highlight Use Site Name and press the button. -
Page 66: Appendix
Operating Instructions Appendix USB Hard Disk Drive Preparation Preparing the USB hard disk drive in Windows 2000 NOTE: Preparing a USB hard disk drive under Windows XP and Window Vista is almost identical to Windows 2000. Connect the USB hard disk drive to your computer using the USB Cable. Turn on your computer. -
Page 67: Text-In Search Examples
Digital Video Recorder Text-In Search Examples Search Example I 123456789012345678901234567890123456789012345678901234567890 Item Unit price amount ================================================== Coke 2.20 | 1(s) | $ 2.20 Fanta 2.20 | 1(s) | $ 2.20 Hotdog 3.50 | 3(s) | $ 10.50 Pepsi 1.95 | 1(s) | $ 1.95 ================================================== total : $... -
Page 68: Webguard
Operating Instructions For example, if you want to search for Coke with a Qty (Quantity) of more than 1 and Hotdog with an amount totaling over $8, the following search condition can be set. WebGuard WebGuard allows you to access a remote DVR, monitor live video images and search recorded video using Internet Explorer web browser anytime from virtually anywhere. -
Page 69: Web Monitoring Mode
Digital Video Recorder NOTE: The port numbers for WEBWATCH and WEBSEARCH should be the same port numbers used for Remote Watch and Remote Search set during Network setup. When running the updated WebGuard for the first time, Internet Explorer might occasionally load the information of the previous version. - Page 70 Operating Instructions ⑤ Click the screen format to select the desired display mode. When changing the screen format, the selected camera on the current screen will be located in the first cell of the new layout. ⑥ Click the camera button (1 to 16) to select the camera to be viewed. ⑦...
-
Page 71: Web Search Mode
Digital Video Recorder Web Search Mode WebSearch is a remote web search program that allows you to search recorded video on the remote DVR. NOTE: The remote site connection in the Web Search mode will automatically be disconnected if there is no activity for 30 minutes. -
Page 72: Time Overlap
Operating Instructions ⑪ Click the to set up the image drawing mode and OSD display. You can adjust the display speed by changing the image drawing mode, and select OSD information to be displayed on the screen. ⑫ Click the to reload the recording data. -
Page 73: Connector Pin Outs
Digital Video Recorder Connector Pin Outs I/O Connector Pin Outs AI (1 to 16) Alarm Inputs 1 to 16 Chassis Ground (6 connectors) Relay Alarm Output (Normally Closed) Relay Common Relay Alarm Output (Normally Open) Alarm Reset In RS485 Connector Pin Outs Master Unit Slave Unit TX+/ RX+... -
Page 74: Map Of Screens
Operating Instructions Map of Screens... -
Page 75: Troubleshooting
Digital Video Recorder Troubleshooting Problem Possible Solution Check power cord connections. No Power Confirm that there is power at the outlet. Check camera video cable and connections. Check monitor video cable and connections. No Live Video Confirm that the camera has power. Check camera lens settings. -
Page 76: Error Code Notices
Operating Instructions Error Code Notices System Upgrade Related Clip Copy Related Description Description Unknown error. Unknown error. File version error. Device error. Operating system version error. Mounting failed. Software version error. No media. Kernel version error. Invalid media. Upgrade device mounting failed. File already existed. -
Page 77: Specifications
Digital Video Recorder Specifications Type DLR4-08/250DV* DLR4-16/250DV* Art. No. 72911 72914 eneo DLR Series Pentaplex Operation mode PAL/NTSC (automatic selection) Video standard Video inputs (amount) 1Vp-p, (C)VBS, 75ohms, BNC (loop-through) Video inputs CVBS, VGA Main exits 1Vp-p, composite, 75ohms, BNC... - Page 78 100 ips (CIF), 50 ips (2CIF), PAL Transmission rate (Network) USB, 2x USB 2.0 Interfaces external storage RS-485, RS-232, RS-485 for telemetry control (proved protocols: eneo-Fastrax, Serial interfaces Pelco P&D) or remote keyboard control ATM/POS, 10 chann. max. Text insertion interface 64 Groups, 256 User.
- Page 79 Digital Video Recorder Optional Accessories Type Art. No. Description System Keyboard with 3-axis Joystick, 12VDC 74088 EDC-KBD1 System Keyboard w. Joystick, 5´´Monitor 12VDC, Fastrax Protocol 74092 EDC-KBDM-3 System Keyboard with 3-Axis Joystick and Jog Shuttle, 12VDC 74149 KBD-2 Network System Controller with 3-Axis Joystick and Jog Shuttle, 5VDC 74746 KBD-NSC-100 USB Mouse for Recorder Series DTR, DPR and DLR3...
- Page 80 ® is a registered trademark of Videor E. Hartig GmbH Exclusive distribution through specialised trade channels only. Videor E. Hartig GmbH Carl-Zeiss-Straße 8 · 63322 Rödermark, Germany V1.0 Tel. +49 (0) 6074 / 888-0 · Fax +49 (0) 6074 / 888-100 Technical changes reserved.
