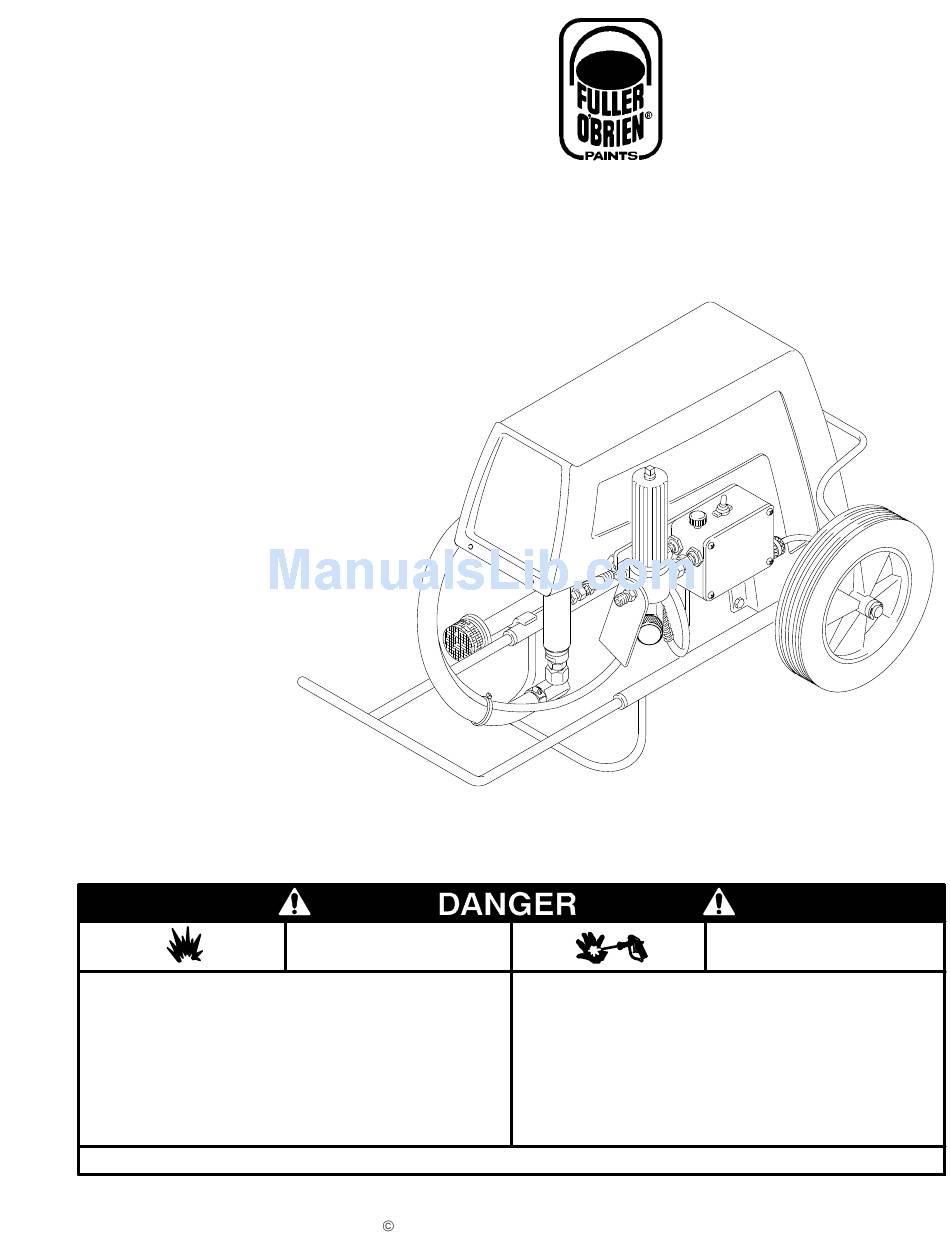

OWNER'S MANUAL
This manual contains IMPORTANT
INSTRUCTIONS and WARNINGS.
READ AND RETAIN FOR REFERENCE.
Model 224-605, Series A
2750 psi (190 bar) MAXIMUM WORKING PRESSURE

TABLE OF CONTENTS

. . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . .
. . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . .
NOTE: This is an example of the DANGER label on your sprayer.
This label is available in other languages, free of charge.
See page 28 to order.
Spray painting, flushing or cleaning equipment with flammable liq-
uids in confined areas can result in fire or explosion.
Use outdoors or in extremely well ventilated areas. Ground equip-
ment, hoses, containers and objects being sprayed.
Avoid all ignition sources such as static electricity from plastic drop
cloths, open flames such as pilot lights, hot objects such as ciga-
rettes, arcs from connecting or disconnecting power cords or turn-
ing light switches on and off.
Failure to follow this warning can result in death or serious injury.
READ AND UNDERSTAND ALL LABELS AND INSTRUCTION MANUALS BEFORE USE
THE O'BRIEN CORPORATION, 450 E. Grand Avenue, So. San Francisco, CA 94080
PRO 501
Airless Paint Sprayer
1/2 GPM, Electric
2
8
9
11
12
13
14
16
24
31
31
32
FIRE AND
EXPLOSION HAZARD
COPYRIGHT 1990, GRACO INC.
Liquids can be injected into the body by high pressure airless spray
or leaks - especially hose leaks.
Keep body clear of the nozzle. Never stop leaks with any part of the
body. Drain all pressure before removing parts.Avoid accidental trig-
gering of gun by always setting safety latch when not spraying.
Never spray without a tip guard.
In
case
of
accidental
"Surgical Treatment".
Failure to follow this warning can result in amputation or serious
injury.
308-031
Rev C
Supersedes Rev A and PCN C
(and Rev B, not published)
0893
SKIN INJECTION
HAZARD
skin
injection,
seek
immediate
