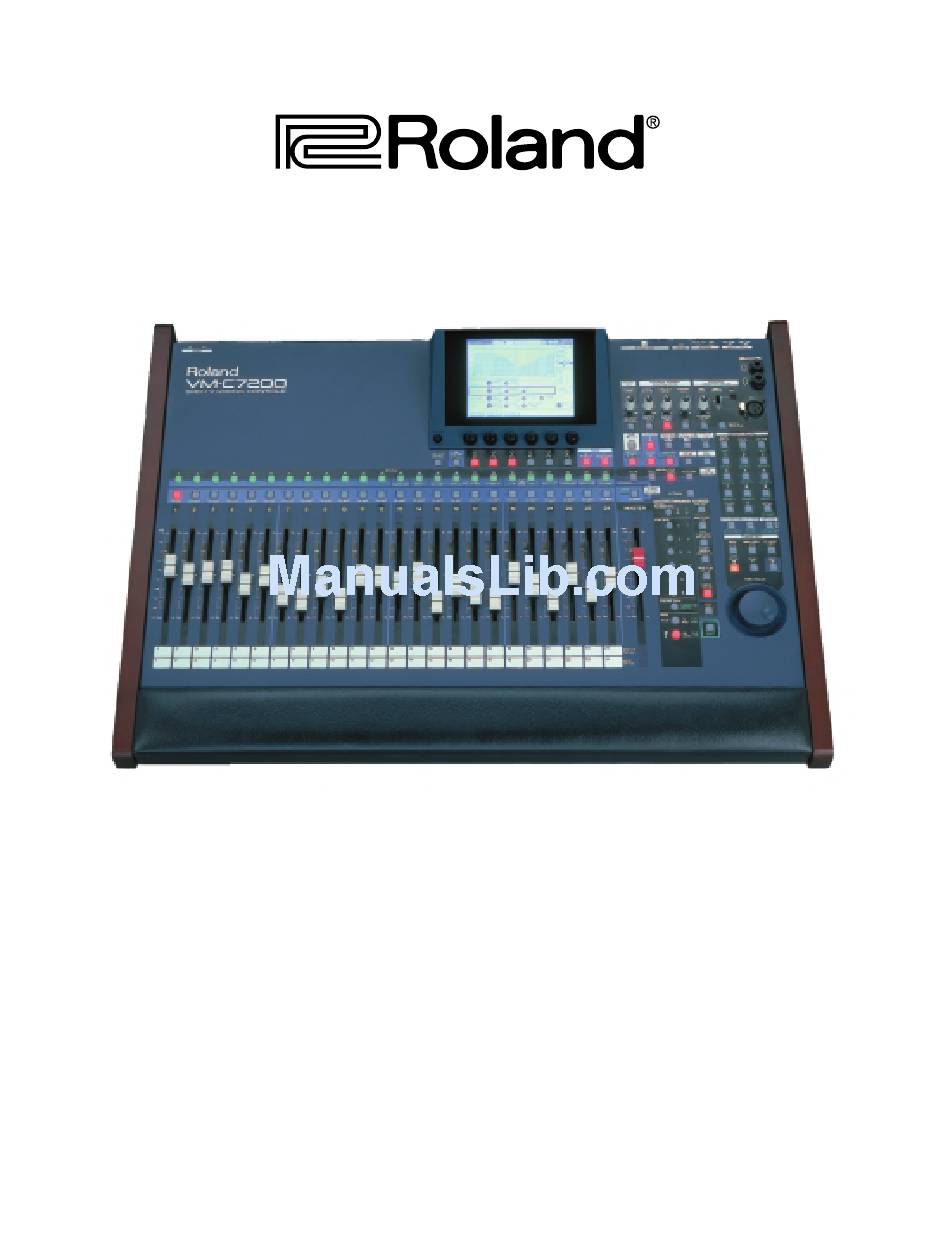

- Page 1 VM-7000 Series Mixers Configuration Guide EFFECTIVE July 23, 1999...
- Page 2 ® ®ÂØÒňΠ7000 Series Mixers PA System Application PA with V-Mixing System 2 AES/EBU Digital Cables Monitor Speaker Instruments (VM-Link) VM-C7200 or VM-C7100 VM-7200 or VM-7100 Main Speaker Stage ADA-7000 Conventional Analog PA System Connector Box Monitor Speaker Instruments Multi-channel Analog Audio Cables Connector Box...
- Page 3 How to configure a 7000 Series Mixing System in 4 simple steps Step 1) Choose the control surface or console you wish to use VM-C7100 (Console) VM-C7200 (Console) 13 Motorized Faders - Rack Mountable 25 Motorized Faders (Pictured with optional VM-SP71 Side Panel Kit) (Pictured with optional VM-SP72 Side Panel Kit) Will you need the Rack Mount? RO-C7100...
- Page 4 Step 3) How many additional stereo effects do you want? PER PROCESSOR VS8F-2 Expansion Board VS8F-2 Expansion Board VS8F-2 Expansion Board 2 Stereo FX 2 Stereo FX 2 Stereo FX VS8F-2 Expansion Board VS8F-2 Expansion Board VS8F-2 Expansion Board 2 Stereo FX 2 Stereo FX 2 Stereo FX VS8F-2 Expansion Board...
-
Page 5: Expansion Options
T-DIF™. Handles 8-in/8-out digital audio. 1/3 rackmount size. VSR-880 Rackmount Hard Disk Recorder With the new VSR-880, Roland puts its legendary ADA-7000 8-Channel AD/DA Converter V-Studio technology in a rack. The VSR-880 is an 8-track hard disk recorder with 24-bit AD/DA, 128...
