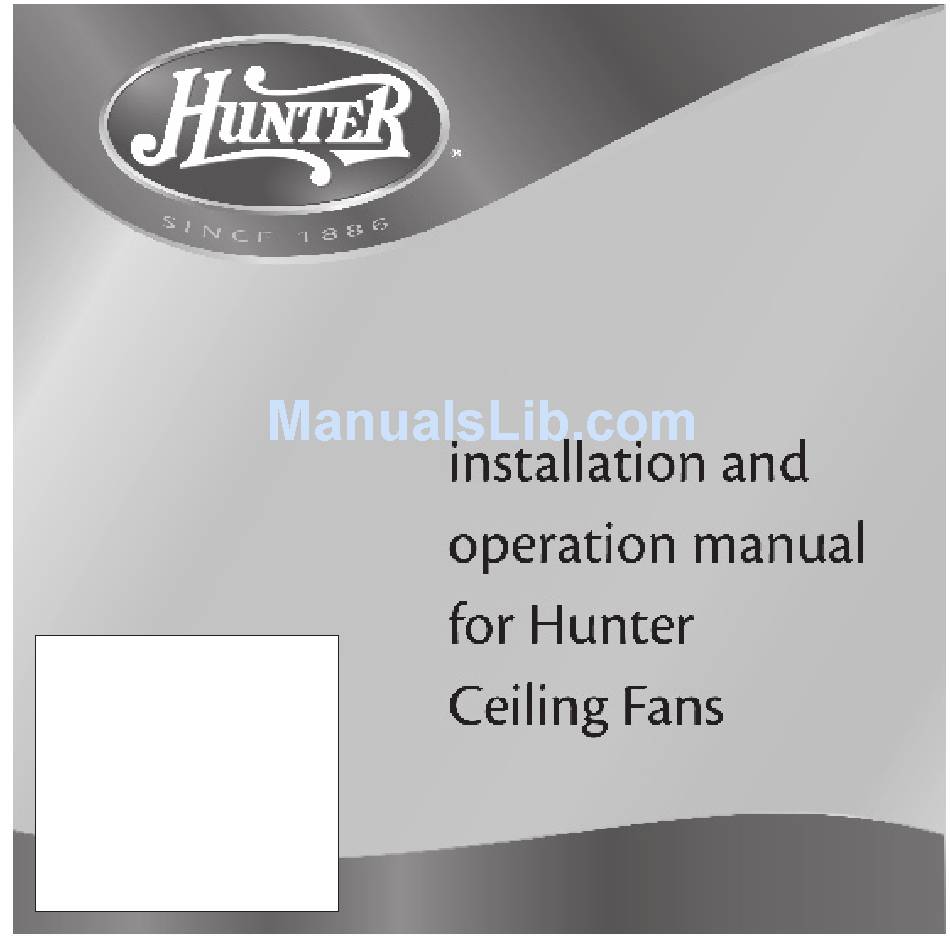

Hunter 42624-01 Installation And Operation Manual

Type 2 models
Hide thumbs

Advertisement

Table of Contents

For Your Records and Warranty
Assistance
Model Name: _____________________
Catalog/Model No.: ________________
Serial No.: ________________________
Date Purchased: ___________________
Where Purchased: _________________
TYPE 2 Models
For reference also attach your receipt or a
copy of your receipt to the manual.
42624-01 • 12/01/06

Advertisement

Table of Contents
loading

Related Manuals for Hunter 42624-01

Summary of Contents for Hunter 42624-01

  • Page 1 For Your Records and Warranty Assistance Model Name: _____________________ Catalog/Model No.: ________________ Serial No.: ________________________ Date Purchased: ___________________ Where Purchased: _________________ TYPE 2 Models For reference also attach your receipt or a copy of your receipt to the manual. 42624-01 • 12/01/06...

  • Page 2: Table Of Contents

    • READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING INSTALLATION. SAVE THESE INSTRUCTIONS. • Use only Hunter replacement parts. • To reduce the risk of personal injury, attach the fan directly to the support structure of the building according to these instructions, and use only the hardware supplied.
  • Page 3 Understanding Mounting and Installer’ s Choice® Hunter’s patented 3-position mounting system provides you maximum installation fl exibility and ease. You can install your Hunter fan in one of three ways, depending on ceiling height and your preference: Low Profi le, Standard, or Angle mounting. Th e steps in this manual include instructions for all three Installer’s Choice mounting methods.

  • Page 4: Getting Ready

    • Drill holes for and install wood screws. • Identify and connect electrical wires. • Lift 40 pounds. If you need help installing the fan, your Hunter fan dealer can direct you to a licensed installer or electrician. Gathering the Tools You will need the following tools for installing the fan: •...

  • Page 5: Installing The Ceiling Plate

    For Angled Ceilings: Be sure to orient the ceiling plate so that the two tabs are pointing towards the ceiling peak. 2-2. Your fan comes with four preinstalled noise isolators. Check to make sure all four isolators are in place and were not removed during shipment.

  • Page 6: Assembling The Fan

    For Standard or Angle mounting: Downrod 3-2. Insert the downrod through the canopy and canopy trim ring. Feed the wires from the fan through the downrod on one side of the pin in the ball. Canopy 3-3. Loosen the square head set screw on the adapter to install the pipe and ball assembly.

  • Page 7: Hanging And Wiring The Fan

    4-1. Raise the fan and align the slots in the canopy with the hooks on the ceiling plate. Note: To hang the fan, you must tilt the canopy to an almost vertical position so that the canopy slots sit on the ceiling plate hooks.

  • Page 8: Installing The Canopy And Canopy Trim Ring

    Note: Your fan may have multiple tabs and grooves that must be aligned. 5-2. Swing the fan up to align the canopy screw holes with the mounting holes on the ceiling plate. WARNING: Th e slots in the canopy must remain engaged while swinging the canopy for alignment.

  • Page 9: Assembling The Blades

    Hunter fans use several styles of fan blade irons (brackets that hold the blade to the fan). 6-1. Your fan may include blade grommets. If your fan has grommets, insert them by hand into the holes on the blades. 6-2. Attach each blade to a blade iron using three blade assembly screws.

  • Page 10: Completing Your Installation With Or Without A Light Fixture

    Step 7-4 Hunter Fan Company Your Hunter fan comes with an integrated light fi xture assembly and an optional switch housing cap and plug button. Th is feature gives you the option of installing the fan with OR without the included light fi xture.
  • Page 11 7. Install the switch housing cap and plug button to the lower switch housing. 8. Continue with step 7-6 on page 12. Male Dummy Terminal Female Dummy Terminal 42624-01 • 12/01/06 Steps 3 – 5 Plug Button Lower Switch Housing Th readed Rod Step 7...
  • Page 12 If you are not installing the light fi xture, your installation is complete. Otherwise, proceed with step 7-8. 7-8. Th e last installation step when installing the light fi xture is to install the glass bowl. See “Installing the Glass Bowl” on page 13 for instructions. 42624-01 • 12/01/06...
  • Page 13 (You may fi nd the plastic breakaway connector on the end of the extra chain.) 3. Th read the fan pull chain through the hole in the metal disk. Th en, thread the fan pull chain through the hole in the center of the glass bowl.

  • Page 14: Operating And Cleaning Your Ceiling Fan

    Hunter Fan Company 8-1. Turn on electrical power to the fan. 8-2. Th e fan pull chain controls power to the fan. Th e pull chain has four settings in sequence: High, Medium, Low and Off . • Pull the chain slowly to change settings.

  • Page 15: Troubleshooting

    2. Tighten all blade and/or blade iron screws. 3. Turn power off , support fan very carefully, and check that the hanger ball is properly seated. If you need parts or service assistance, please call 888-830-1326 or visit us at our Web site at http://www.hunterfan.com.
