Summary of Contents for Invacare Canada LP

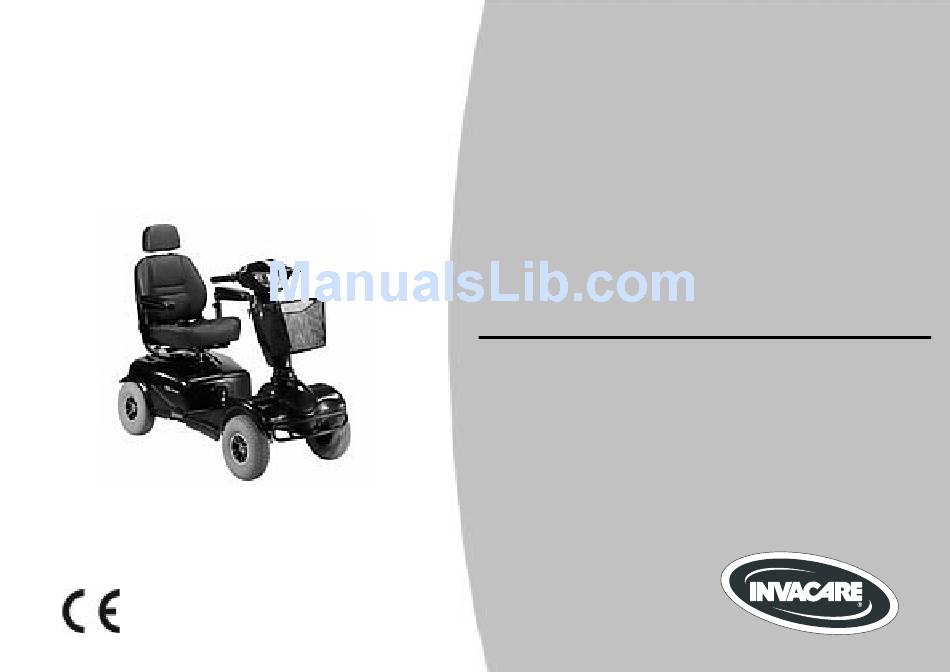

- Page 1 Invacare Canada LP Meteor Scooter User Manual...
- Page 2 How can you get in touch with Invacare®? If you have any questions or need support, please contact your authorized Invacare Canada Dealer, who has the necessary know-how and equipment plus the special knowledge concerning your Invacare® product, and can offer you all-round satisfactory service. Should you wish to contact Invacare® directly, you can reach us in Canada at the following addresses and phone numbers.
-
Page 3: Table Of Contents
Table of Contents Chapter Page Introduction Important symbols in this manual ...................8 Type classification and permissible use.................9 Safety Notes General Safety Notes ......................10 Safety information with regard to care and maintenance ...........13 Safety Information on Electromagnetic Interference............14 Safety Information on Driving and Freewheel Mode............15 Key features Driving Before driving for the first time....................18... - Page 4 6.1.2 Status display .......................24 6.1.3 Battery charge display ....................25 Driving the Scooter .........................26 Diagnostics and Trouble Shooting..................27 6.3.1 Diagnosing Faults ......................28 Error Codes and Diagnostic Codes..................29 Adjustment features Adjusting the backrest angle ....................32 Moving the seat position forwards or backwards..............33 Disengaging the seat to rotate it or remove it ..............34 Adjusting the armrest width ....................35 Adjusting the armrest height....................36...
- Page 5 10.1.1.1 Removing the rear wheel..................51 10.1.1.2 Removing the front wheel (4-wheeler version)............52 10.1.1.3 Removing the front wheel (3-wheeler version)............53 10.1.1.4 Repairing punctured tires ..................54 11 Technical specifications 12 Inspections Performed...
-
Page 6: Introduction
The decision whether the model is suitable for the user may only be taken by medical specialists with appropriate aptitude. Invacare Canada LP or their authorized representatives can accept no liability in cases in which the mobility product has not been adapted to suit the user's handicaps. - Page 7 This manual contains copyrighted information. It may not be reproduced or copied in whole or in part without the prior written consent of Invacare Canada or its authorized representative. It may also contain information that pertains to models sold only in certain countries. In this case the information will be clearly marked as pertaining to a particular country-specific version.
-
Page 8: Important Symbols In This Manual
Important symbols in this manual WARNING! This symbol warns you of danger! • Always follow the instructions to avoid injury to the user or damage to the product! EXPLOSION HAZARD! This symbol warns you of an explosion hazard, which can be caused by excessive tire pressure in a pneumatic tire! •... -
Page 9: Type Classification And Permissible Use
Type classification and permissible use Because of its size it is less suitable for use in indoor environments, but has a longer driving range and the ability to overcome larger and more difficult obstacles in outdoor settings. You can find exact information on speed, turning radius, range, safe climbing ability, maximum obstacle height and permissible operating conditions in chapter "Technical specifications"... -
Page 10: Safety Notes
Safety Notes • READ WELL BEFORE OPERATION! General Safety Notes Danger of injury if this scooter is used in any other way than the purpose described in this manual! • Adhere strictly to the instructions in this user manual! Danger of injury if the scooter is driven when your ability to drive is impaired by medication or alcohol! •... - Page 11 Danger of injury if the On/Off Button is pressed while the vehicle is in motion, due to it coming to an abrupt, sharp stop! • If you have to brake in an emergency, simply release the drive lever, which will bring you to a halt! Only switch the vehicle off while in motion as a last resort! Danger of injury if the scooter is transported in another vehicle with the occupant seated in it!
- Page 12 Invacare® for this purpose! Have all electrical installations done by your authorized Invacare Canada Dealer! Danger of technical failure and injury if unauthorized spare parts and components are used! • Only use original Invacare® spare parts, which have been approved for use with this vehicle!
-
Page 13: Safety Information With Regard To Care And Maintenance
Safety information with regard to care and maintenance Danger of accident and loss of guarantee if maintenance is insufficient! • For reasons of safety and in order to avoid accidents which result from unnoticed wear, it is important that this electric vehicle undergoes an inspection once every year under normal operating conditions (see inspection plan contained in service instructions)! •... -
Page 14: Safety Information On Electromagnetic Interference
Safety Information on Electromagnetic Interference This electric vehicle was successfully tested in accordance with International standards as to its compliance with Electromagnetic Interference (EMI) Regulations. However, electromagnetic fields, such as those generated by radio and television transmitters, and cellular phones, can influence the functions of electric vehicles. -
Page 15: Safety Information On Driving And Freewheel Mode
Safety Information on Driving and Freewheel Mode Danger of injury if the vehicle tips over! • Only ever negotiate gradients up to the maximum tilt-resistant gradient and only with the backrest in an upright position, and the seat lifter in the lowest position (if installed)! •... - Page 16 Danger of injury if the vehicle tips over! (Continued) • Never use the vehicle to transport more than one person! • Do not exceed the maximum permissible load! • When loading the vehicle, always distribute the weight evenly! Always try to keep the centre of gravity of the vehicle in the middle, and as close to the ground as possible! •...
-
Page 17: Key Features
Key features 1) Driving lever 2) Lever for adjusting steering column inclination 3) Control panel 4) Handbrake / wheel lock 5) Keyswitch (ON/OFF) 6) Release lever for sliding seat rails (front right below seat) 7) Release lever for swivelling and removing seat (right below seat) 8) Disengaging lever 3 Wheel Version Shown Here,... -
Page 18: Driving
Driving Before driving for the first time... Before you take your first trip, you should familiarize yourself well with the operation of the vehicle and with all operating elements. Take your time to test all functions and driving modes. NOTE: If installed, use the restraining systems (seat belts) each time you use the vehicle. -
Page 19: Taking Obstacles
Taking Obstacles Your Invacare® Meteor can climb obstacles and curbs up to 4.33 inches in height. CAUTION: Danger of Tipping Over! • Never approach obstacles at an angle! • Put your backrest into an upright position before climbing an obstacle! -
Page 20: Driving Up And Down Gradients
Driving up and down gradients The maximum tilt-resistant climbing ability for the Invacare® Meteor depends on the version and the load capacity: 12.8 km/h version 4-wheeler (up to 150 kg / 330lbs load): • 12° (21%) 4-wheeler (up to 200 kg / 440lbs load): •... -
Page 21: Parking And Stationary
Parking and stationary When parking your vehicle or if your vehicle is stationary for a prolonged period: • Switch the vehicle's power system off (key switch). • Activate the parking brake . 4.4.1 Activating and de-activating the parking brake. Activating the brake •... -
Page 22: Pushing The Scooter By Hand
Pushing the scooter by hand The motors of the scooter are equipped with automatic brakes, preventing the scooter from rolling away out of control when the power supply is switched off. When pushing the scooter, the magnetic brakes must be disengaged. Disengaging Motors Danger of the vehicle running away! •... -
Page 23: The Control Panel
The Control Panel Control Panel layout Seat Lifter button (N/A in Canada) Battery charge indicator Hazard flashers Horn Right turn signal Driving speed adjustment Throttle lever Plug for external charger Reduced Speed Mode 10) Left turn signal 11) Lights... -
Page 24: Status Display
Seat Lifter Button (Not available on Canadian Models) 6.1.1 • Press the button to activate the Seat Lifter (if installed). The LED above the button lights up. • Raise or lower the seat using the throttle lever. • Press the button once again to de-activate the Seat Lifter. The throttle lever reverts back to driving mode. -
Page 25: Battery Charge Display
6.1.3 Battery charge display • All diodes lit: full driving range • Only red and yellow diodes lit: decreased drive range. Charge batteries at end of journey. • Only red diodes lit / flashing: battery reserve = very low drive range! Charge batteries immediately! NOTE Total discharge protection: After a certain drive time on reserve battery power the electronics... -
Page 26: Driving The Scooter
• Gently pull the left driving lever towards you to drive backwards. NOTE The controller is programmed with standard values ex-works. Your Invacare Canada Dealer can program it to fit your requirements. NOTE: To brake quickly, simply let go of the driving lever. It will automatically return to the middle... -
Page 27: Diagnostics And Trouble Shooting
Diagnostics and Trouble Shooting The electronics system provides diagnostics information to assist technicians to diagnose and correct faults within the scooter system. The existence of a fault will cause the status light to flash in bursts, separated by a pause. The nature of the fault is indicated by the number of flashes in each burst, also referred to as the Flash Code. -
Page 28: Diagnosing Faults
Check that all cables are connected correctly. If only the leftmost diode of the battery charge display is PERMANENTLY ON Contact your authorized Invacare Canada Dealer If the leftmost diode of the battery charge display is FLASHING Count the number of flashes and refer to the next section. -
Page 29: Error Codes And Diagnostic Codes
Error Codes and Diagnostic Codes Number of Fault Impact on Notes flashes Scooter Battery needs Will drive • Battery charge is running low. Recharge charging the batteries as soon as possible. Battery voltage Drive inhibited • Battery charge is empty. Recharge the too low batteries. - Page 30 • The controller has detected a short- circuited motor. Check the cable harness for short and check the motor: Contact your authorized Invacare Canada Dealer. Brake Fault Drive inhibited • Check that the declutching lever is in the engaged position.
- Page 31 Number of Fault Impact on Notes flashes Scooter Contact your authorized Invacare Canada Other Internal Drive inhibited • Errors Dealer.
-
Page 32: Adjustment Features
Adjustment features Adjusting the backrest angle The backrest is held firm by a metal plate on both sides. Both plates have four holes which allow the backrest to be adjusted for various angles. You can do this by selecting various combinations for the holes. -
Page 33: Moving The Seat Position Forwards Or Backwards
Moving the seat position forwards or backwards The disengaging lever for adjusting the seat is located front right below the seat • Pull the lever (1) to disengage the seat. • Slide the seat forwards or backwards into the required position. •... -
Page 34: Disengaging The Seat To Rotate It Or Remove It
Disengaging the seat to rotate it or remove it The seat can be turned to one side to make getting in and out of the scooter easier. The seat is also easier to remove from this position. The lever for disengaging the seat is located under the seat (1) on the right. -
Page 35: Adjusting The Armrest Width
Adjusting the armrest width The hand wheels for adjusting the armrests are located under the seat (1). • Turn the hand wheels to loosen the fixing for the armrest. • Adjust the armrests to the required width. • Retighten the handwheels... -
Page 36: Adjusting The Armrest Height
Adjusting the armrest height The hand wheels for adjusting the armrest height are located on the armrests (1). • Turn the hand wheels to loosen the fixing for the armrest (1). • Adjust the armrests to the required height. • Retighten the handwheels... -
Page 37: Adjusting The Seat Height
Adjusting the seat height The seat height can be adjusted to the following heights (measured from chassis / floor): 46 / 64 cm (18-20") • Requirements: • 2 x open-ended wrench 17 mm • Removing the seat • Remove the battery and motor compartment cover. •... -
Page 38: Adjusting The Suspension
• Adjust the seat height. • Reinsert the bolt and tighten. Adjusting the suspension The Meteor suspension can be individually adjusted. These adjustments should only be carried out by trained specialists. Please contact your authorized Invacare Canada dealer. -
Page 39: Electrical System
Electrical System Electronics Protection System The vehicle's electronics are equipped with an overload-protection system. If the motors are put under considerable strain for a longer period of time (for example, when driving up a steep hill) and especially when the ambient temperature is high, then the electronic system could overheat. -
Page 40: The Main Fuse
The entire electric system is protected against overload by two master fuses. The master fuses are mounted on the positive battery cables. NOTE A defective main fuse may be replaced only after checking the entire electric system. An Invacare Canada dealer must perform the replacement. Batteries 8.2.1 What you need to know about batteries Power is supplied by two 12V gel batteries. - Page 41 The batteries cannot be overcharged with the specified charger. Please use only charging devices in Class 2. This class of chargers may be left unattended during charging. All charging devices which are supplied by Invacare Canada and comply with these requirements.
-
Page 42: Charging The Batteries
Danger of explosion and destruction of batteries if the wrong battery charger is used! • Only ever use the battery charger supplied with your vehicle, or a charger that has been approved by Invacare Canada! Danger of electric shock and damage to the battery charger if it is allowed to get wet! •... - Page 43 The Meteor has one socket for charging the batteries. It is located on the rear edge of the operating console (1) (maximum charge current 8A). Connecting the battery charger • Switch off the Scooter at the operating console. • Connect the battery charger to the Scooter. Connect the battery charger to the outlet.
-
Page 44: Removing And Fitting Batteries
8.2.3 Removing and fitting batteries WARNING: Danger of injury if the batteries are not handled correctly during assembly and maintenance work! • New batteries should be installed by authorized technicians! • Observe the warnings on the batteries! • Take into account the heavy weight of the batteries! •... -
Page 45: Removing The Batteries
8.2.3.1 Removing the batteries Requirements: • 2x open-ended wrenches 11 mm • Remove seat (see chapter "Releasing seat for turning or removal" on page "35". • Remove the battery and motor compartment covers by pulling on the rear edge. • Disconnect the two battery cable plug connections (1). - Page 46 • Release the battery holder strap. • Removing the batteries. • Loosen the black cable battery clamp on the negative battery terminal with the open-ended wrench, and remove the cable. • Loosen the red cable battery clamp on the positive battery terminal with the open-ended wrench, and remove the cable.
-
Page 47: How To Handle Damaged Batteries Correctly
Only ever transport damaged batteries in an appropriate acid-resistant receptacle. • Wash all objects that have come into contact with acid with lots of water. Disposing of dead or damaged batteries correctly Dead or damaged batteries can be given back to your dealer or directly to Invacare Canada. -
Page 48: Care And Maintenance
Care and maintenance NOTE: Have your vehicle checked once a year by an authorized Invacare Canada dealer in order to maintain it's driving safety and roadworthiness. Cleaning the vehicle When cleaning the vehicle, pay attention to the following points: •... - Page 49 Clean all parts carefully. Once a year you should have your vehicle inspected and serviced by your authorized Invacare Canada dealer. A complete checklist of necessary maintenance work can be found in the Service Manual, which can be obtained from Invacare Canada.
-
Page 50: Repair Instructions
Invacare Canada (in this connection please see the addresses and phone numbers in section "How can you get in touch with Invacare Canada? " on page 2) . In case you require assistance, please contact your Invacare Canada Dealer. -
Page 51: Repairing Punctures (Pneumatic Tires Of Type 4.00 - 5)
Problems when removing wheel? It may be necessary to use a special tool Please ask your Invacare Canada dealer to help you. Reassembly Reassembly takes place in reverse order. - Page 52 10.1.1.2 Removing the front wheel (4-wheeler version) Requirements: • Open wrench, 17 mm. • Rubber hammer • Jack the scooter up and place a wooden block or similar under it to support it. • Remove the wheel locknut (1) with a 17 mm open-ended wrench.
- Page 53 10.1.1.3 Removing the front wheel (3-wheeler version) Requirements: • 2x open-ended wrenches 17 mm • Carefully tip the scooter onto one side. • Remove the wheel locknuts (1) using both open-ended wrenches, then remove the wheel from the fork. Reassembly Reassembly takes place in reverse order.
- Page 54 10.1.1.4 Repairing punctured tires Requirements (general) • inner tube repair set or a new inner tube • talcum powder • open-ended wrench, 13 mm • Remove valve cap. • De-inflate the tire by pressing in the centre valve pin. • Remove the four nuts (1) on the rear of the wheel using the 13 mm open-ended wrench.
- Page 55 Did the old inner tube get wet during the repair? If you repaired the old inner tube and reused it, and it became wet during repair, it is much easier to refit it into the wheel if you lightly powder it with talcum powder. •...
-
Page 56: Technical Specifications
Technical specifications Electrical System / Motor 400 W ( 12.8km/h) Batteries 2 x 70 AH Main battery fuse (10 km/h) Weight (Incl Batteries) 292lbs Maximum load Height Width 25 1/2" Length (w/o bumpers and anti-tippers) 57 1/2" Seat height (measured from the chassis, manuallyadjustable) 18-20"... - Page 57 ** Note: The scooter drive range is heavily dependent on various factors such as the battery charger status, the environmental temperature, the flatness of the route chosen, the state of the roads, the tire pressure, the driver's weight, driving style and use of batteries for lighting, actuators etc.
-
Page 58: Inspections Performed
It is confirmed by stamp and signature that all jobs listed in the inspection schedule of the Service and Repair Instructions have been properly performed. The list of the inspection jobs to be performed can be found in the Service Manual which is available through Invacare®. Delivery Inspection...
