Planet ICA-HM132 User Manual

2mega-pixel 20m ir vari-focal dome ip camera
Hide thumbs Also See for ICA-HM132:
Table of Contents

Advertisement

Quick Links

Download this manual

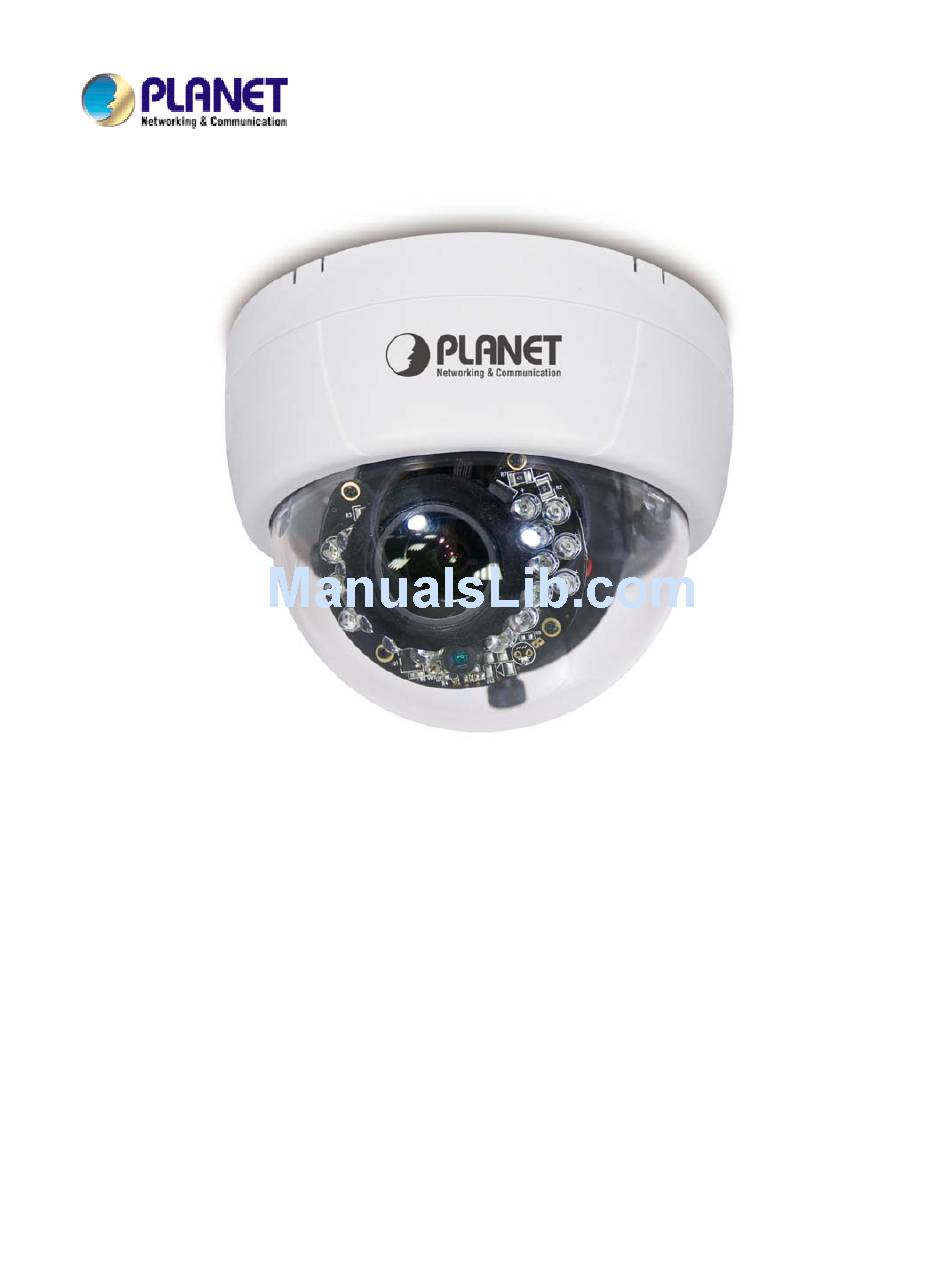

2Mega-Pixel 20M IR
Vari-Focal Dome IP Camera
ICA-HM132
User's Manual
Version: 1.00

Advertisement

Table of Contents
loading

Related Manuals for Planet ICA-HM132

Summary of Contents for Planet ICA-HM132

  • Page 1 2Mega-Pixel 20M IR Vari-Focal Dome IP Camera ICA-HM132 User’s Manual Version: 1.00...
  • Page 2 Copyright Copyright © 2011 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET.
  • Page 3 Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision User’s Manual for PLANET H.264 2Mega-Pixel 20M IR Vari-Focal Dome IP Camera Model: ICA-HM132 Rev: 1.00 (March. 2011) Part No. EM-ICAHM132...

  • Page 4: Table Of Contents

    2.3.1 Physical Installation ..............12 2.4 Initial Utility Installation................14 2.5 Initial Utility Installation................14 2.5.1 Search and Configure Network by PLANET IP Installer ....14 Search and Configure Network.............14 2.6 Setup ActiveX to use the Internet Camera ..........18 2.6.1 Internet Explorer 6 for Windows XP..........18 2.6.2 Internet Explorer 7 for Windows XP..........19...
  • Page 5 Appendix B: PING IP Address................54 Appendix C: 3GPP Access..................55 Appendix D: Bandwidth and Video Size Estimation ..........56 Appendix E: DDNS Application ................57 Appendix F: Configure Port Forwarding Manually..........62 Appendix G: SD Card Recommended ..............65 Appendix H: Troubleshooting & Frequently Asked Questions......66 Appendix I: Product Specification ...............70...

  • Page 6: Introduction

    The ICA-HM132 features zero-lux illumination. Via the new LED technology, the 18 IR LED built around the lens and it has built-in ICR (IR-cut filter Removable) for day / night surveillance, the ICA-HM132 can provide high-quality in both day and night surveillance up to 20 meters. And ICA-HM132 supports the network and analog video output interfaces are also provided in the ICA-HM132 for flexible viewing and recording implementations.

  • Page 7: Package Contents

    1.3 Package Contents User can find the following items in the package: Camera unit x 1 Power Adapter x 1 Accessories Kit x 1 User’s Manual CD x 1 Quick Installation Guide x 1 NOTE: 1. If any of the above items are missing, please contact your dealer immediately. 2.

  • Page 8: Basic Setup

    2. Basic Setup This chapter provides details of installing and configuring the Internet camera 2.1 System Requirements Network Interface 10/100Base-TX Ethernet Monitoring System Recommended for Internet Explorer 6.0 or later · CPU: Intel Dual Core 1.66G System Hardware · Memory Size : 1024 MB (1024 MB or above Recommended ) (Suggested) ·...

  • Page 9: Physical Description

    2.2 Physical Description 2.2.1 Identification of ICA-HM132 cable 1. RJ-45 LAN socket: Connect to PC or Hub/Switch. For connect to 10Base-T Ethernet or 100Base-TX Fast Ethernet cabling. This Ethernet port built N-Way protocol can detect or negotiate the transmission speed of the network automatically.

  • Page 10: Ica-Hm132 I/O Control Instruction

      2.2.2 ICA-HM132 I/O Control Instruction 1. Digital Input (GND + Alarm) An alarm input for connecting devices that can toggle between an open and closed circuit, for example: PIRs, door/window contacts, glass break detectors, etc. When a signal is received the state changes and the input becomes active.
  • Page 11 2. Relay Output Connection...

  • Page 12: Hardware Installation

    2.3 Hardware Installation 2.3.1 Physical Installation 1. Fix Internet camera to desired location with mount fixture 2. Connect an Ethernet cable Connect the LAN cable on the camera to the network device (hub or switch). NOTE: If there has an IEEE802.3af PoE switch in your network, you can connect the camera LAN cable to this PoE switch to obtain power.
  • Page 13 6. PoE (Power Over Ethernet) Power over Ethernet (PoE) is a technology that integrates power into a standard LAN infrastructure. It enables power to be provided to the network device, such as an IP phone or a network camera, using the same cable as that used for network connection. It eliminates the need for power outlets at the camera locations and enables easier application of uninterruptible power supplies (UPS) to ensure 24 hours a day, 7 days a week operation.

  • Page 14: Initial Utility Installation

    CD-ROM drive. 2.5 Initial Utility Installation When you installed the camera on a LAN environment, you may execute PLANET IP Installer to discover camera’s IP address and set up related parameters in the camera. 2.5.1 Search and Configure Network by PLANET IP Installer When you installed the Camera on a LAN environment, you have two easy ways to search your Cameras by PLANET IP Installer or UPnP discovery.
  • Page 15 2. The GUI of IP Installer is as follows (Default IP: 192.168.0.20). (1) IP Installer will search all IP Cameras connected on LAN. The user can click “Search Device” to search again. (2) Click one of IP Cameras listed on the left side of IP Installer, then the network configuration of that IP Camera will be listed on the right side.
  • Page 16 (6) A quick way to access remote monitoring is to left-click the mouse twice on a selected IP Camera listed on “Device list” of PLANET IP Installer. An IE browser will be opened. (7) Then, please key in the default “Username: admin” and “Password: admin” in the...
  • Page 17 (8) If the user name and password are input correctly, the following web page will be displayed.

  • Page 18: Setup Activex To Use The Internet Camera

    2.6 Setup ActiveX to use the Internet Camera The Internet camera web pages communicate with the Internet camera using an ActiveX control. The ActiveX control must be downloaded from the Internet camera and installed on your PC. Your Internet Explorer security settings must allow for the web page to work correctly. To use the Internet camera, user must setup his IE browser as follows: 2.6.1 Internet Explorer 6 for Windows XP ...

  • Page 19: Internet Explorer 7 For Windows Xp

    2.6.2 Internet Explorer 7 for Windows XP From your IE browse ”Tools” ”Internet Options…” ”Security” ”Custom Level…”, please setup your “Settings” as follow. Set the first 3 items • Allow previously unused ActiveX control to run… • Allows Script lets •...

  • Page 20: Internet Explorer 7 For Windows Vista

    2.6.3 Internet Explorer 7 for Windows Vista  From your IE browse ”Tools” ”Internet Options…” ”Security” ”Internet” ”Custom Level…”, please setup your “Settings” as follow. • Enable “Automatic prompting for ActiveX controls” • Prompt “Initialize and script active controls not marked….” From your IE browse ”Tools”...

  • Page 21: Web-Based Management

    “ http://192.168.0.20 “ The login window of Internet camera will appear, Default login username/password is: admin/ admin NOTE: If the User name and Password have been changed with PLANET IP Installer, please enter the new User name and Password here.
  • Page 22 Web browser may display the “Security Warming” window, select “Yes” to install and run the ActiveX control into your PC. After the ActiveX control was installed and run, the first image will be displayed. NOTE: If you log in the camera as an ordinary user, setting function will be not available. If you log in the camera as the administrator, you can perform all the settings provided within the device.

  • Page 23: Live View

    4. Live View Start-up screen will be as follow no matter an ordinary users or an administrator. Get into the administration page. (1)Configure .Video Snapshot (2)Snapshot Show system time, video resolution, and video refreshing rate. (3)Status Bar Select video screen “default, 1/2x, 1x, 2x” for view currently (4)Screen Size camera screen size.
  • Page 24 Shows how many people connect to this IP camera. (7)Online Visitor (8)Relay Control Control the relay which is connected to this camera. Double-click the video; it will change to full screen mode. Press “Esc” or double-click the video again, it will change back to normal mode. Right-Click the mouse on the video, it will show a pop-up menu.

  • Page 25: Configuration

    5. Configuration Click to get into the administration page. Click to go back to the live video page.

  • Page 26: System

    5.1 System 5.1.1 System Information 1. Server Information: Set up the camera name, select language, and set up the camera time. This is the Camera name. This name will show on the IP Server Name Installer. There are English, Traditional Chinese, Simplified Chinese, French, Russian, Italian, Spanish, German, Portuguese and Polish to select.
  • Page 27 Server time setting：Select options to set up time - “NTP”, “Synchronize with PC’s time”, “Manual”, “The date and time remain the same”.

  • Page 28: User Management

    5.1.2 User Management IP CAMERA supports three different users, administrator, general user, and anonymous user. Yes：Allow anonymous login Anonymous User Login No：Need user name & password to access this IP camera Add user Type the user name and password, then click “Add/Set”. Click “edit”...

  • Page 29: System Update

    5.1.3 System Update To update the firmware online, click “Browse…” to select the Firmware Upgrade firmware. Then click “Upgrade” to proceed. Reboot System Re-start the IP camera. Factory default Delete all the settings in this IP camera. User may download the current setting to PC, or upgrade from Setting Management previous saved setting.

  • Page 30: Network

    5.2 Network 5.2.1 IP Setting IP Camera supports DHCP and static IP. Using DHCP, IP Camera will get all the network parameters DHCP automatically. Please type in IP address, subnet mask, gateway, and DNS Static IP manually. User may need to assign different port to avoid conflict when setting up IP assignment.

  • Page 31: Using Upnp Of Windows Xp Or Vista

    This IP camera supports UPnP, If this service is enabled on your computer, the camera will automatically be detected and a new UPnP icon will be added to “My Network Places.” Note: UPnP must be enabled on your computer. Please follow the procedure to activate UPnP 5.2.2 Using UPnP of Windows XP or Vista 5.2.2.1 Windows XP UPnP™...
  • Page 32 The “Control Panel” will display on the screen and double click “Add or Remove Programs” to continue The “Add or Remove Programs” will display on the screen and click Add/Remove Widows Components to continue.
  • Page 33 The following screen will appear, select “Networking Services” and click “Details” to continue The “Networking Services” will display on the screen, select “Universal Plug and Play” and click “OK” to continue.
  • Page 34 Please click “Next” to continue The program will start installing the UPnP automatically. You will see the below pop-up screen, please wait while Setup configures the components.
  • Page 35 Please click “Finish” to complete the UPnP installation Double-click “My Network Places” on the desktop, the “My Network Places” will display on the screen and double-click the UPnP icon with Internet camera to view your device in an Internet browser.

  • Page 36: Windows Vista

    5.2.2.2 Windows Vista UPnP™ is short for Universal Plug and Play, which is a networking architecture that provides compatibility among networking equipment, software, and peripherals. This device is an UPnP enabled device. If the operating system, Windows Vista, of your PC is UPnP enabled, the device will be very easy to configure.
  • Page 37 Double-click “My Network Places“ on the desktop, the “My Network Places” will display on the screen and double-click the UPnP icon with Internet camera to view your device in an Internet browser.

  • Page 38: Pppoe

    5.2.3 PPPoE PPPoE: Stands for Point to Point Protocol over Ethernet A standard builds on Ethernet and Point-to-Point network protocol. It allows Internet camera connects to Internet with xDSL or cable connection; it can dial up your ISP and get a dynamic IP address.
  • Page 39 IP address is when you want to access your network over the Internet. The solution to the dynamic IP address problem comes in the form of a dynamic DNS service. The Internet uses DNS servers to lookup domain names and translates them into IP addresses. Domain names are just easy to remember aliases for IP addresses.
  • Page 40 Camddns, the procedures are: (1) Please enable this service (2) Key-in user name. (3) IP Schedule update is default at 5 minutes (4) Click “Apply”. DDNS Status (1) Updating：Information update (2) Idle：Stop service (3) DDNS registration successful, can now log by http://<username>.ddns.camddns.com： Register successfully.

  • Page 41: Mail & Ftp

    5.2.5 Mail & FTP To send out the video via mail of ftp, please set up the configuration first.

  • Page 42: A/V Setting

    5.3 A/V Setting 5.3.1 Image Setting For the security purpose, there are three areas can be setup for privacy mask. Click “Area” button first and pull an area on the above image. Finally, click “Save” button to reserve the setting. Adjust “Brightness”, “Contrast”, “Hue”, “Saturation”...
  • Page 43 NOTE: Max Video Frame Rate for both streaming combined is 30 FPS. Video System: click the drop down list to select the system type “NTSC/PAL”. Streaming 1 and 2Basic Mode: There are 8 resolutions can be chosen. Resolution 1600x 1200, 1280x1024, 1280x960, 1280x720, 800x600, 640x480, 320x240, 176x144 There are 5 levels to adjust: Best/ High/ Standard/ Medium/ Low...
  • Page 44 Streaming 1 and 2 Advanced Mode： There are 8 resolutions can be chosen. Resolution 1600x 1200, 1280x1024, 1280x960, 1280x720, 800x600, 640x480, 320x240, 176x144 There are CBR﹝Constant Bit Rate﹞ and VBR﹝Variable Bit Rate﹞to use. CBR：32Kbps~4Mbps (the higher the CBR is, the better the video quality is) Bitrate Control Mode VBR：1(Low) ~10(High) –...

  • Page 45: Audio

    3GPP mode suggested setting: 176x144 resolutions, 5FPS, MPEG4 format. 5.3.3 Audio The ICA-HM132 supports 2-way audio. User can send audio from ICA-HM132 Built-in mic to remote PC; User can also send audio from remote PC to ICA-HM132’s external speaker. (1) Audio from IP camera built-in mic to local PC: select “Enable” to start this function.
  • Page 46 NOTE: The Audio will not be smooth when enable SD card recording function simultaneously.

  • Page 47: Event List

    5.4 Event List The ICA-HM132 provides multiple event settings. 5.4.1 Event Setting...

  • Page 48: Schedule

    IP CAMERA allows 3 areas motion detection. When motion is triggered, it can send the video to some specific mail addresses, transmit the video to remote ftp server, trigger the relay, and Motion Detection save video to local SD card. To set up the motion area, click “Area Setting”.

  • Page 49: I/O Setting

    5.4.3 I/O Setting The ICA-HM132 supports 1 input/ 1 output. When input is triggered, it can send the video to some specific mail addresses, transmit the video to remote ftp server, trigger the relay, and save video to local SD card.
  • Page 50 By GPIO I/O port input that provides related action while I/O Alarm Input Setting input triggered. By GPIO I/O port output that provides On Off Switch, Slide GPIO Output Setting Switch & Pan/Tilt Module for using with relay box. GPIO pin define please refer to the part of Front / Back plane & I/O port pin assignment. GPIO 0 ALARM INPUT Normal: 3.3V (The voltage differential from GPIO pin &...

  • Page 51: Log List

    GPIO INSTALLATION EXAMPLE 2 Trigger the normal on (Normal Close) indoor illumination off when event / motion occur at COM: 5.4.4 Log List Sort by System Logs, Motion Detection Logs and I/O Logs. In addition, System Logs and I/O Logs won’t lose data due to power failure.
  • Page 52 The use of the SD card will affect the operation of the IP CAMERA slightly, such as NOTE: affecting the frame rate of the video. Playback, the procedures are: (1) It will show the capacity of the SD card. Click the date listed on this page. It will show the list of the video.

  • Page 53: Appendix A: Factory Default

    Appendix A: Factory Default To recover the default IP address and password, please follow the following steps. (1) Remove power and Ethernet cable, and press and hold the button in the back of IP CAMERA. (2) Power on (don’t plug Ethernet cable) the camera. Don’t release the button during the system booting.

  • Page 54: Appendix B: Ping Ip Address

    Appendix B: PING IP Address The PING (stands for Packet Internet Groper) command is used to detect whether a specific IP address is accessible by sending a packet to the specific address and waiting for a reply. It’s also a very useful tool to confirm Internet camera installed or if the IP address conflicts with any other devices over the network.

  • Page 55: Appendix C: 3Gpp Access

    Appendix C: 3GPP Access To use the 3GPP function, in addition to previous section, you might need more information or configuration to make this function work. That to use the 3GPP function, it strongly recommends to install the Networked Device Note: with a public and fixed IP address without any firewall protection.

  • Page 56: Appendix D: Bandwidth And Video Size Estimation

    Appendix D: Bandwidth and Video Size Estimation The frame rate of video transmitted from the Internet camera depends on connection bandwidth between client and server, video resolution, codec type, and quality setting of server. Here is a guideline to help you roughly estimate the bandwidth requirements for your Internet camera. The required bandwidth depends on content of video source.

  • Page 57: Appendix E: Ddns Application

    Appendix E: DDNS Application 1. Preface If you have a Cable modem or xDSL, this is a great way to host your own Networked Device or other TCP/IP Service. Get your own domain like www.yourname.com, www.yourname.com.tw etc. (Note: This domain must be registered with Internic via registration authorities such as Network Solutions, DirectNIC, Register.com etc).
  • Page 58 (3). After the columns show up at the left side, click “Create Account”. (4). Fill the application agreement and necessary information. a. Username b. E-mail address and confirmation c. Password and confirmation d. Submit all the input information and finish creating an account...
  • Page 59 Click these two options (5). Check your e-mail mailbox. There will be an e-mail with a title “Your DynDNS Account Information“. Click the hyperlink address to confirm the DDNS service that you just applied. Click to confirm Then DDNS you applied activated.
  • Page 60 (6). Enter the web page http://www.dyndns.org/ again. Input your username and password that you just applied to login administration interface of DDNS server. Input your account (7). If the correct username and password are input, you can see the following picture at the top-right of the login page.
  • Page 61 (9). Click the “ Dynamic DNS ”. (10). Click the “Create Hosts”. (11). We could create a domain name without any charge at this step. First, we input the host name. (No.1) Then we pick a domain that is easy to remember. Finally (No.2), click the “Add Host”...

  • Page 62: Appendix F: Configure Port Forwarding Manually

    Manually setup the device with a fixed IP address, for example, 192.168.0.100. 2. Access the Router with Your Web browser The following steps generally apply to any router that you have on your network. The PLANET WNRT-620 is used as an example to clarify the configuration process. Configure the initial settings of the router by following the steps outlined in the router’s Quick Installation Guide.
  • Page 63 Your WAN IP Address will be listed here. 3. Open/set Virtual Server Ports to enable remote image viewing The firewall security features built into the router and most routers prevent users from accessing the video from the device over the Internet. The router connects to the Internet over a series of numbered ports.
  • Page 64 A check mark appearing before the entry name will indicate that the ports are enabled. NOTE: Some ISPs block access to port 80. Be sure to check with your ISP so that you can open the appropriate ports accordingly. If your ISP does not pass traffic on port 80, you will need to change the port the camera uses from 80 to something else, such as 8080.

  • Page 65: Appendix G: Sd Card Recommended

    Appendix G: SD Card Recommended SD Card Recommended： SanDisk 128M SanDisk 256M SanDisk 512M SanDisk SanDisk SanDisk SanDisk SanDisk 16GB SanDisk 32GB Transcend Transcend Transcend 16GB Transcend 32GB...

  • Page 66: Appendix H: Troubleshooting & Frequently Asked Questions

    If IP address is not assigned to the PC which running PLANET IP Installer program, then PLANET IP Installer program cannot find device. Make sure that IP address is assigned to the PC properly.
  • Page 67 Microsoft’s Internet Explorer from the Microsoft webpage. PLANET IP Installer program fails Network may have trouble. Confirm the parameters and connections to save the network parameters.
  • Page 68 manual for details. Packet Filtering of the router may prohibit access from an external network. Refer to your router's manual for details. Access the Network Camera from the Internet with the global IP address of the router and port number of Network Camera. Some routers reject the global IP address to access the Network Camera on the same LAN.
  • Page 69 Use the operating system of the selected language. Set the The unreadable characters are Encoding or the Character Set of the selected language on the displayed. Internet Explorer. The traffic of the network and the object of the image affect the frame rate.

  • Page 70: Appendix I: Product Specification

    Appendix I: Product Specification Product ICA-HM132 Video Specification Image Device 1/3.2” 2Mega-Pixel CMOS Sensor Effective Pixels 1600 x 1200 pixels Sensitivity 1 lux Lens 2.7mm – 9mm Vari-focal lens with auto iris and IR cut filter / F=1.2 Illuminator 0 Lux IR on View Angle H:101~30.4 Degree / V: 75~23 Degree / D: 127.5~38 Degree...
  • Page 71 IE 6.0 or latter Cell Phone With 3GPP player Video Player VLC, Quick Time, Real Player Software Monitor/ Recording / CV3P (2-ch Cam Viewer Three Pro Trail Version) CV3L (64-ch Cam Viewer Three Lite Bundle Version) Management Search & Installation PLANET IP Installer...
