Summary of Contents for Harman Kardon HKTS 35BQ

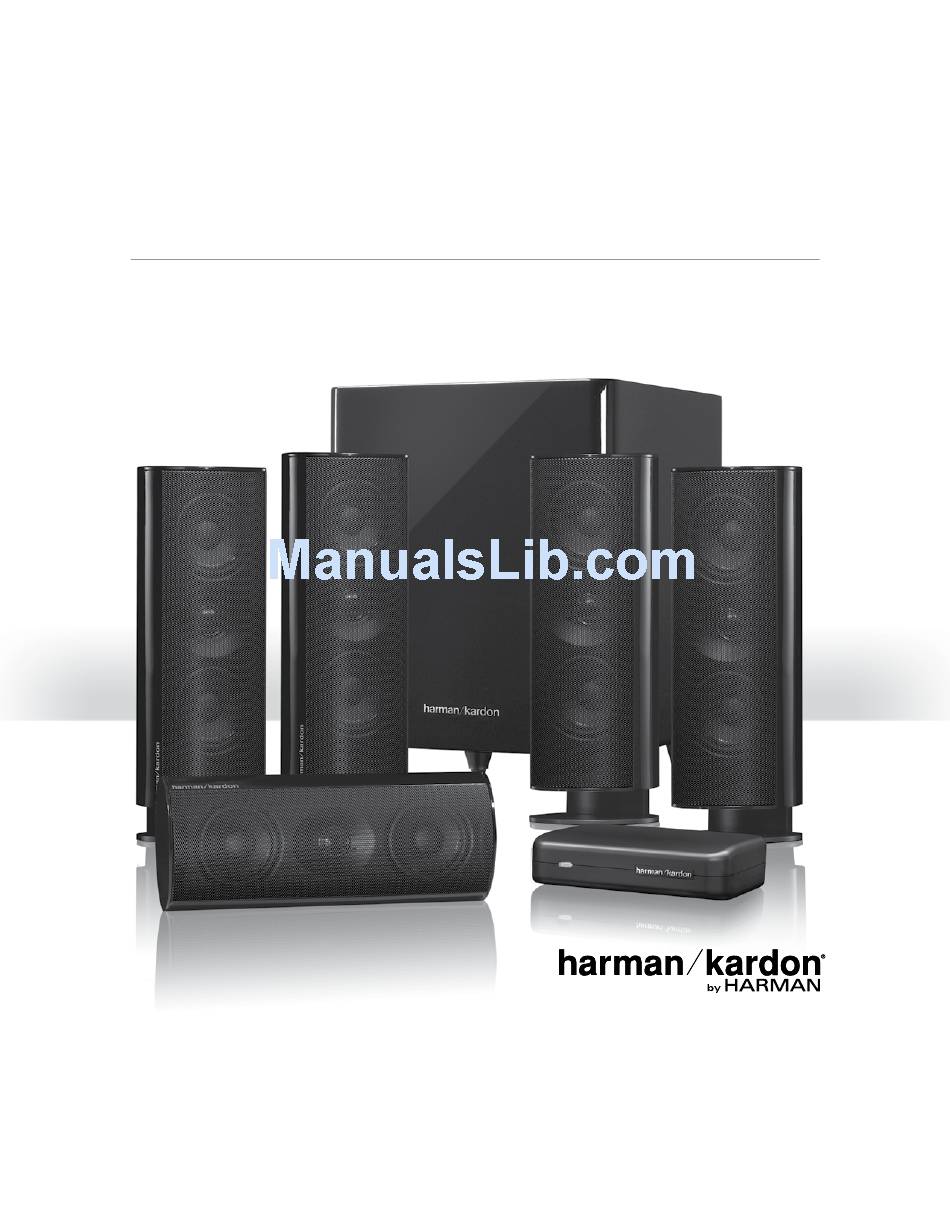

- Page 1 HKTS 35BQ Home theater speaker system Owner’s Manual...
-
Page 2: Included Items
Introduction, Description and Features, HKTS 35BQ and Included Items Introduction Included Items Thank you for purchasing the Harman Kardon HKTS 35 speaker system, with which ® you’re about to begin many years of listening enjoyment. The HKTS 35 has been custom designed to provide all the excitement and power of the cinema experience in your own living room. - Page 3 HKTS 35BQ Subwoofer Rear-Panel Controls and Connections Subwoofer Rear-Panel Controls and Connections Subwoofer Unit Phase Switch Bass Boost Switch Power On Mode Switch Subwoofer Level Control Input Mode Switch External Trigger Input Line-Level LFE In Connector Line-Level L/R In Connectors...
-
Page 4: Speaker Placement
Subwoofer Rear-Panel Controls and Connections (cont.), HKTS 35BQ Color-Coding System, and Speaker Placement Transmitter Unit Speaker Placement Front speakers DC 5V WIRELESS CODE Front Left Front Right INPUT Speaker Speaker Power Wireless Input Connector Code Connectors Switch Power connector: Plug the transmitter power supply into this connector and into a working AC outlet. -
Page 5: Surround Speakers
HKTS 35BQ Speaker Placement (cont.) Surround Speakers Subwoofer Front Left Center Front Right Speaker Speaker Speaker Surround Left Surround Right Speaker Speaker The performance of a subwoofer is directly related to its placement in the listening room and its physical position relative to the other speakers in the system. While it is true... -
Page 6: Speaker Mounting Options
HKTS 35BQ Speaker Mounting Options Speaker Mounting Options 4. Attach the wall portion of the wall-mount bracket onto the wall using hardware that is appropriate for the wall’s construction and materials. We recommend first anchoring the bracket using its keyhole, then attaching it with another anchor through its top Shelf Placement opening, as shown in the illustration. - Page 7 Speaker Mounting Options (cont.), HKTS 35BQ and Wall-Mounting: Center Speaker Wall-Mounting: Center Speaker 8. Connect the speaker wire to the speaker terminals as shown in the illustration: A) Push Down on Cap B) Insert Bare Wire C) Release Cap 1. Determine the location for the speaker.
-
Page 8: Subwoofer: Wireless Connection
HKTS 35BQ Connections Connections Connecting Satellite Speakers with the Supplied Bases 1. Remove the speaker’s base (see Shelf Placement, on page 5). Satellite and Center Speaker Connections 2. Pass the speaker wire through the opening in the speaker’s base. CAUTION: Before making speaker connections, be sure that your receiver or 3. -
Page 9: Turning The Subwoofer On And Off
Connections (cont.), HKTS 35BQ and Operating Your Subwoofer Subwoofer: Wired Connection Connect one end of a stereo RCA audio cable (not supplied) to the receiver’s or amplifier’s stereo line outputs and the other end to the subwoofer’s Line-Level L/R In connectors. Set As an alternative to wireless operation, you can connect the subwoofer conventionally, the subwoofer’s Input Mode switch in the “Normal”... -
Page 10: Wireless Operation
Operating Your Subwoofer (cont.), HKTS 35BQ and Specifications Wireless Operation Specifications When the wireless transmitter receives an audio signal from the source, it will immediately turn on and its status LED will change to flashing green or solid green: HKTS 35 System... -
Page 11: Troubleshooting
HKTS 35BQ Troubleshooting Troubleshooting Your HKTS 35 system is designed for trouble-free operation. Most problems that users encounter are due to operating or connection errors. So if you have a problem, first check this list for a possible solution. If the problem persists, consult your authorized Harman Kardon service center. - Page 12 © 2012 HARMAN International Industries, Incorporated. All rights reserved. Harman Kardon is a trademark of HARMAN International Industries, Incorporated, registered in the United States and/or other countries. CEA is a registered trademark of the Consumer Electronics Association. Dolby, Pro Logic and the Double-D symbol are registered trademarks of Dolby Laboratories.
