Summary of Contents for Jensen HD1BT

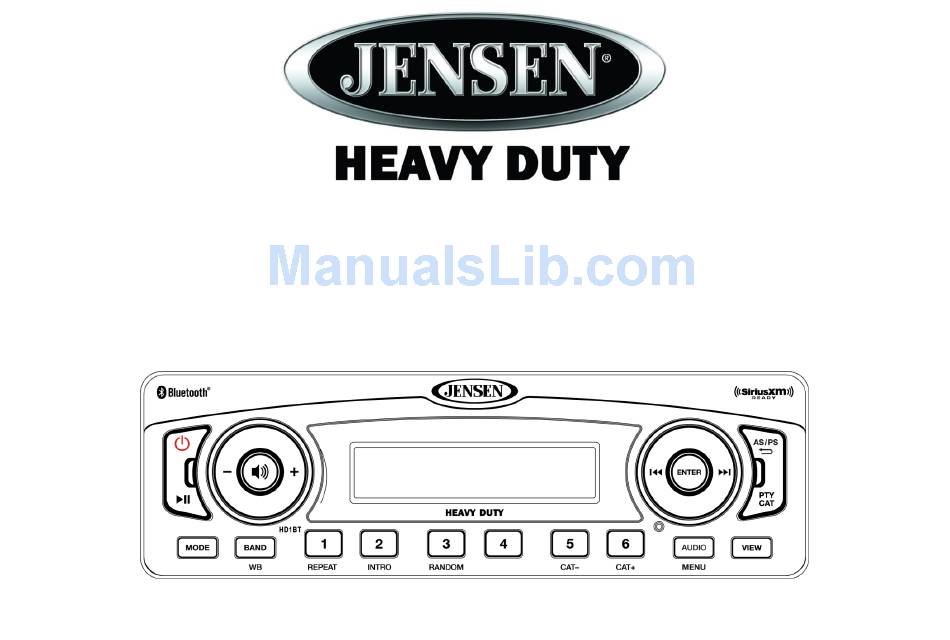

- Page 1 HD1BT AM/FM/RBDS/WB/USB/AUX-IN/BT/iPod Ready/SiriusXM Heavy Duty Radio Installation and Operation Manual...
-
Page 2: Table Of Contents
HD1BT CONTENTS Introduction ..........................1 Copyrights and Trademarks Safety Information ........................2 Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights Installation ..........................3 reserved. Wiring ............................3 Harley-Davidson and all related marks and logos are trademarks of Harley-Davidson, Inc. All Basic Operation ........................ -
Page 3: Introduction
HD1BT INTRODUCTION Optional Accessories System Features (Sold separately) Jensen Heavy Duty Universal Handlebar Control (JHDHBC) Features of Jensen HD1BT mobile audio system include: Yamaha, Suzuki and Kawasaki (UNIBRKT) Full Dot Matrix LCD Harley-Davidson and Honda (HDHNBRKT) AM/FM US/EURO Tuner with 30 Presets (12AM, 18FM) ... -
Page 4: Safety Information
HD1BT SAFETY INFORMATION When Driving Keep the volume level low enough to be aware of the road and traffic conditions. When Washing Your Vehicle Do not expose the product to high pressure wash. Moisture can cause electrical shorts, fire or other damage. -
Page 5: Installation
Remove 4 bolts (2 per side) and save for new installation. Pull factory radio out toward the front of the motorcycle, through fairing. Insert HD1BT from driver’s side of fairing until mounting holes match up with the mounting holes on motorcycle. -
Page 6: Wiring
HD1BT WIRING WARNING! Do not connect the +12VDC ACC switched wire to the battery. This wire MUST be connected to the Accessory/Ignition wire or a +12 volts switched power source. -
Page 7: Basic Operation
HD1BT BASIC OPERATION NOTE: SiriusXM (SXM) mode will be skipped when the Region menu option is set to EURO”. “ Reset The reset button should be activated for the following reasons: Initial installation of the unit when all wiring is completed ... -
Page 8: System Menu
HD1BT Loudness SAME Code 4: _ _ _ _ _ _ SAME Code 5: _ _ _ _ _ _ Press the AUDIO/MENU button (12) to enter LOUDNESS selection. Then press the VOL +/- SAME Code 6: _ _ _ _ _ _ ... -
Page 9: Tuner Operation
HD1BT TUNER OPERATION Automatically Store / Preset Scan (AS/PS) Automatically Store Select an AM or FM band. Press and hold the AS/PS button (15) for more than 2 seconds to automatically select 18 strong stations (12 for AM). “Storing Presets” appears on the screen and the new stations replace any stations already stored. -
Page 10: Weather Band Operation
HD1BT Weather Band Operation surrounding conditions, weather, obstructions of the signal by hills or mountains, etc. NOAA Weather Alert What is the NOAA Weather Radio/Weatheradio Canada? The Weather Alert function adds an additional level of user safety by automatically switching... -
Page 11: Usb Operation
HD1BT File Playback Accessing USB Mode Press the MODE button (3) to select USB mode. USB mode will not be selectable unless a USB device is connected. Selecting Tracks Press the >>| (16) or |<< button (18) to advance to the next track/ file. The selected track number will appear on the display. -
Page 12: Siriusxm Tm Radio Operation
HD1BT SIRIUSXM RADIO OPERATION Category Tuning Press the PTY/CAT button (2) to access Category mode. While in category mode, press 5/CAT- OR 6/CAT+ buttons (9, 10) to choose a category. Press the |<< / >>| buttons (18, 16) to navigate channels in that category. -
Page 13: Channel Lock
HD1BT Alternate Display Mode Reset SiriusXM Channel Lock Code Press the VIEW button (13) to change the display information between single and dual line text If you forget your Parental Control lock code, use the following directions to reset the code to the display. -
Page 14: Messages Reported By Siriusxm Vehicle Tuner
HD1BT Advisory Messages Reported by the SiriusXM Vehicle Tuner Table 3: SiriusXM Advisory Messages On-Screen Display Advisory Message Cause Explanation/Solution Verify that the antenna cable is connected to the SiriusXM Check Antenna Check Antenna The radio has detected a fault with the SiriusXM antenna. The antenna cable is either disconnected or damaged. - Page 15 HD1BT On-Screen Display Advisory Message Cause Explanation/Solution Channel Locked Channel Locked The channel that you have requested is Locked by the radio See the section on Parental Control, page 45 for more information on Parental Control feature. the Parental Control feature and how to access locked channels.
-
Page 16: Ipod Operation
HD1BT iPod OPERATION Controlling Playback Pausing Playback During playback, press the ►|| button (2) to pause the iPod player. “Pause” will appear on the LCD. Press ►|| again to resume playback. Repeat Play During playback, press the 1/REPEAT button (5) to repeat the current song. -
Page 17: Bluetooth Menu Options
5 devices are used, you must lock the Make sure the device is on and ready to receive a signal from the HD1BT. With the device. To lock/Unlock a device, press the ENTER button to display/change the HD1BT in Bluetooth Audio mode, choose “BT Pair”... - Page 18 HD1BT BT Audio (A2DP) The A2DP music is available for Bluetooth enabled phones when the phone is connected. To access Bluetooth mode and play songs stored on your phone, press the MODE button (3). While in Bluetooth mode, the Bluetooth Audio icon will illuminates on the LCD.
-
Page 19: Care And Maintenance
HD1BT CARE AND MAINTENANCE TROUBLESHOOTING Keep the product dry. If it does get wet, wipe it dry immediately. Liquids might contain minerals that can corrode the electronic circuits. Symptom Cause Solution Keep the product away from dust and dirt, which can cause premature wear of parts. -
Page 20: Specifications
HD1BT SPECIFICATIONS FCC Notes FM Radio WARNING! Changes or modifications to this unit not expressly approved by the party Frequency Coverage (USA) ......... 87.5 to 107.9 MHz responsible for compliance could void the user’s authority to operate the equipment. - Page 21 ASA Electronics Corporation www.asaelectronics.com www.jensenheavyduty.com ©2014 ASA Electronics Corporation v.100314...
