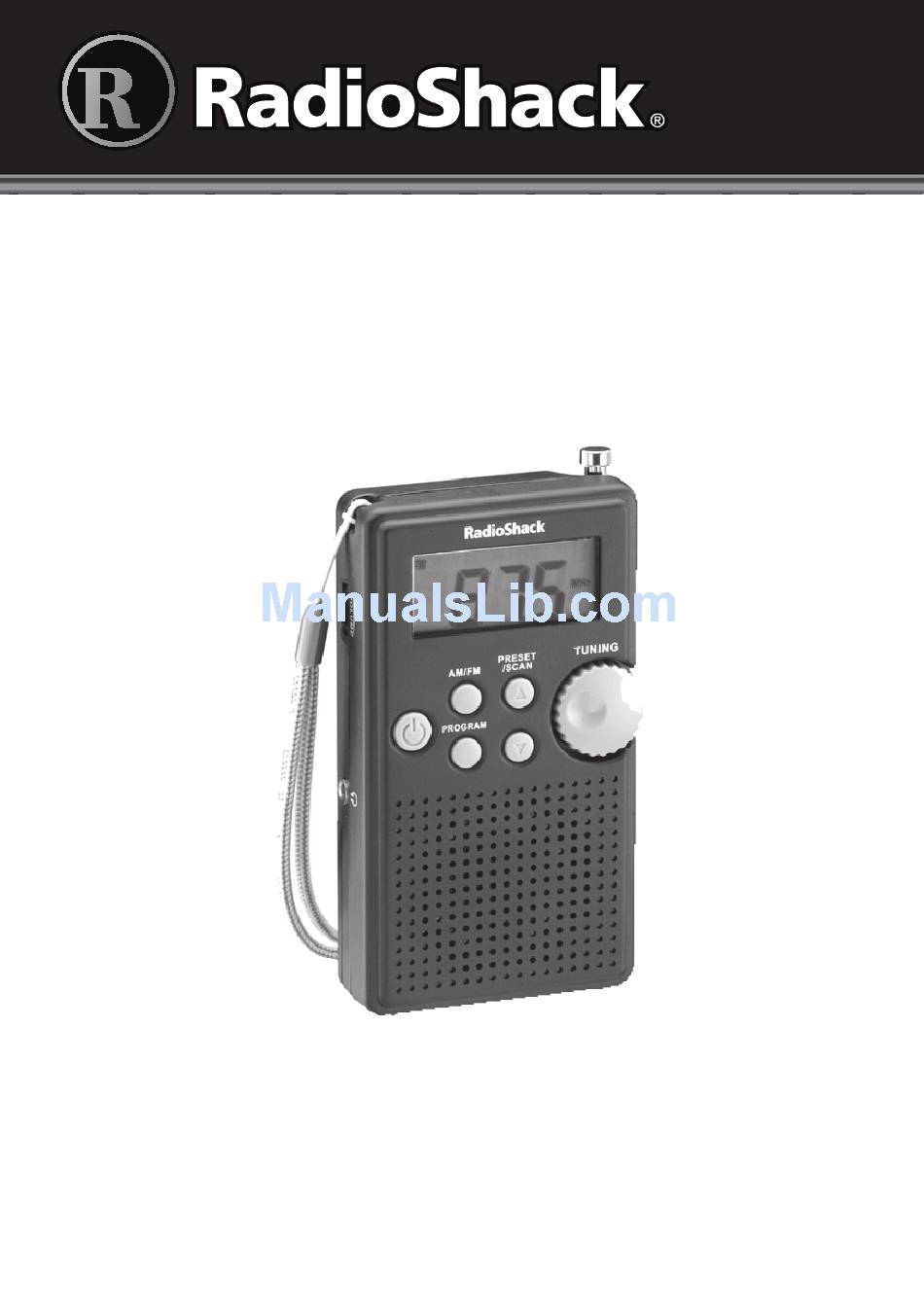

- Page 1 User’s Guide 1200587 AM/FM Digital Pocket Radio Thank you for purchasing your AM/FM Digital Pocket Radio from RadioShack. Please read this user’s guide before installing, setting up, and using your new radio.
-
Page 2: Package Contents
Package Contents • Pocket Radio • Nylon Lanyard • User’s Guide Features • Easy and accurate digital tuning • Programs 20 preset stations • Automatic scanning... -
Page 3: Install The Batteries
Install the Batteries Insert 3 AAA batteries (not included), matching polarity symbols (+ and –) inside the battery compartment. Battery Note: • Dispose of batteries promptly and properly. Do not burn or bury them. • Use only fresh batteries of the required size and type. • Do not mix old and new batteries, different types of batteries (alkaline or rechargeable), or rechargeable batteries of different capacities. - Page 4 Nylon Lanyard VOLUME AM/FM On/Off G Program Earphone Jack Insert stereo earphones (not included). Remove earphones to listen through the speaker. Note: The ST icon appears when you have inserted stereo earphones and are receiving a station with a strong stereo signal.
- Page 5 Antenna Extend the antenna for better FM reception. TUNING Rotate the tuning dial to tune to stations. LOCK Slide to the arrow direction to lock all the buttons. When the radio is locked, buttons and dials will not function. PRESET/SCAN / Press to select a preset station. Press and hold to scan radio stations.
-
Page 6: Store Preset Stations
Listen to Your Radio 1. Press G to turn on the radio. 2. Press AM/FM to select a radio band. 3. Rotate TUNING to tune to a station, or press and hold PRESET/SCAN / to scan available stations. Store Preset Stations You can store 10 FM and 10 AM stations. 1. Press AM/FM to select a band and then tune to a station. 2. Press PROGRAM. PRESET flashes. 3. Press PRESET/SCAN / to select a location (0 to 9) to store the current station, and press PROGRAM to confirm. 4. Repeat steps 1 through 3 to store additional stations. Listen to a Preset Station 1. Press AM/FM to select a radio band. 2. Press PRESET/SCAN / to find the desired station. -
Page 7: Listening Safely
Listening Safely Do not wear headphones, earphones, or earbuds while operating a motor vehicle or riding a bicycle. This can create a traffic hazard and could be illegal in some areas. To protect your hearing, follow these guidelines: • Do not listen at high volume levels. Extended high-volume listening can lead to permanent hearing loss. • Set the volume to the lowest setting. Then turn on your audio device and adjust the volume to a comfortable level. • Avoid increasing the volume. Your ears will adapt to the volume level, so a level that does not cause discomfort could still damage your hearing. Specifications Frequency Range ....AM: 530 ~ 1710 KHz FM: 88 ~ 108 MHz Power Supply ......... 3 AAA batteries Specifications are subject to change and improvement without notice. Actual product may vary from the images found in this document. -
Page 8: Fcc Information
FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult your local RadioShack store or an experienced radio/TV technician for help. If you cannot eliminate the interference, the FCC requires that you stop using your equipment. Changes or modifications not expressly approved by RadioShack may cause interference and void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules. Opera- tion is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 9: Limited Warranty
Limited Warranty RadioShack warrants this product against defects in materials and workmanship under normal use by the original purchaser for ninety (90) days after the date of purchase from a RadioShack-owned store or an autho- rized RadioShack franchisee or dealer. RADIOSHACK MAKES NO OTHER EXPRESS WARRANTIES. This warranty does not cover: (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions, improper installation or maintenance, alteration, accident, Acts of God (such as floods or lightning), or excess voltage or current; (b) improper or incorrectly performed repairs by persons who are not a RadioShack Authorized Service Facility; (c) consumables such as fuses or batteries; (d) ordinary wear and tear or cosmetic damage; (e) transportation, shipping or insurance costs; (f) costs of product removal, installation, set-up service, adjustment or reinstallation; and (g) claims by persons other than the original purchaser. Should a problem occur that is covered by this warranty, take the product and the RadioShack sales receipt as proof of purchase date to any RadioShack store in the U.S. RadioShack will, at its option, unless otherwise pro- vided by law: (a) repair the product without charge for parts and labor; (b) replace the product with the same or a comparable product; or (c) refund the purchase price. All replaced parts and products, and products on which a refund is made, become the property of RadioShack. New or reconditioned parts and products may be used in the performance of warranty service. Repaired or replaced parts and products are warranted for the remainder of the original warranty period. You will be charged for repair or replacement of the product made after the expiration of the warranty period. RADIOSHACK EXPRESSLY DISCLAIMS ALL WAR- RANTIES AND CONDITIONS NOT STATED IN THIS... - Page 10 LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND, IF APPLICABLE, THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, SHALL EXPIRE ON THE EXPIRATION OF THE STATED WARRANTY PERIOD. EXCEPT AS DESCRIBED ABOVE, RADIOSHACK SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO THE PUR- CHASER OF THE PRODUCT OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUD- ING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE AND ANY LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT AND ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF RADIOSHACK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. You may contact RadioShack at: RadioShack Customer Relations, 300 RadioShack Circle, Fort Worth, TX 76102 04/08 www.RadioShack.com Protect the environment by recycling used electronics. Go to E-CyclingCentral.com to find an electronic recycling center near you. ©2012. RadioShack Corporation. All rights Printed 02C12 reserved. RadioShack and RadioShack.com are in China 1200587 trademarks used by RadioShack Corporation.
