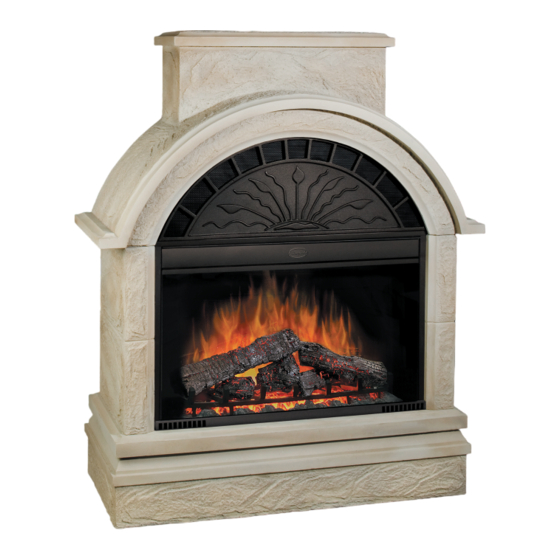

Dimplex fireplace Owner's Manual

Fireplace
Hide thumbs Also See for fireplace:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Valued Customer,
We appreciate that you have chosen to purchase an electric fireplace
from Dimplex North America Limited. For years to come, cherished
memories will occur around the warmth of your new hearth. Thank you
for allowing our product to become part of those special moments.
Owner's Manual Cover ENG.indd 1
Owner's
Manual
Serial Number:
Model Number:
10/17/07 2:13:19 PM

Advertisement

Table of Contents
loading

Related Manuals for Dimplex fireplace

Summary of Contents for Dimplex fireplace

  • Page 1 Valued Customer, We appreciate that you have chosen to purchase an electric fireplace from Dimplex North America Limited. For years to come, cherished memories will occur around the warmth of your new hearth. Thank you for allowing our product to become part of those special moments.

  • Page 2: Table Of Contents

    1. Prior to the first use of the fireplace verify the following: • Are the circuit breakers for the socket the unit uses on? 2. The information regarding the model of your fireplace can be found on the rating plate. See Page 6 for location.

  • Page 3: Important Instruction

    2. Always unplug the electric fireplace when not in use. 3. Do not operate any unit with a damaged cord or plug, or if the electric fireplace has been dropped or damaged in any manner. Return unit to authorized service facility for examination, electrical or mechanical adjustment, or repair.

  • Page 4: Fireplace Package Contents

    FIREPLACE PACKAGE CONTENTS Items Included With Your Fireplace Package A Mantel Top H Transformer B Mantel Body Transformer to Fireplace Connection wire C Mantel Base J Registration/Warranty Card D Mantel Pedestal K Owner’s Manual E Firebox L Product Catalog F MP3 Connection Wire...

  • Page 5: Unpacking Instructions (Firebox

    UNPACKING INSTRUCTIONS (FIREBOX) 1. Remove firebox from carton.
  • Page 6 UNPACKING INSTRUCTIONS (FIREBOX) 2. Carefully lay unit on it’s back. (Figure 1) 3. Remove screws from the left and right side of the front glass lower support. 4. Carefully insert the tip of a slot screwdriver between the glass edge and either the left or right side trim.

  • Page 7: Unpacking Instructions (Mantel

    1. Carefully unpack mantel components from boxes and place to one side. 2. Make sure all packing material has been removed from within the top and around the mantel component. NOTE Do not dispose of packing material until fireplace is completely installed.

  • Page 8: Important Instructions

    If you have any questions regarding our products please have the product model and serial numbers available upon calling Dimplex customer service or technical support. To locate the model and serial number labels see below (Figure 3). Record the Model number and Serial number on the front cover of this manual for future reference.

  • Page 9: Site Selection And Preparation

    Select a suitable, level location away from standing water. For ease of electrical hook up you may wish to locate the fireplace near an existing outlet. A 15amp, 120 volt outdoor GFI is required. Additional appliances on the same circuit may exceed the current rating of the circuit breaker.

  • Page 10: Fireplace Installation

    FIREPLACE INSTALLATION Assemble mantel as shown. NOTE A slight gap between mantel parts is normal and required for a tight fit. STEP 1 Back of Unit Mantel Body Mantel Base Mantel Pedestal...
  • Page 11 FIREPLACE INSTALLATION Install the fireplace assembly only into the mantel. STEP 2 Install cord before inserting firebox Firebox Cord...
  • Page 12 FIREPLACE INSTALLATION STEP 3 To stabilize the unit, loosen retainer bracket by turning screws ¼ turn counter-clockwise. Re-adjust bracket and tighten screw. NOTE Do Not Completely Remove Screws...
  • Page 13 FIREPLACE INSTALLATION STEP 4 Remove packing from inside the top of the mantel and assemble as shown. NOTE A slight gap between mantel parts is normal and required for a tight fit. Mantel Top NOTE Attach Speaker Wires Before Completing Assembly...

  • Page 14: Operation

    D. Storage Compartment A convenient location to place your CD’s or MP3 player. E. Stereo/MP3/CD Player This fireplace is equipped with a built-in stereo (refer to page 8 for operation) NOTE This unit does not have a heat option Access...
  • Page 15 50 feet (15.25m), it does not have to be pointed at the fireplace and can pass through most obstacles (including walls). To operate, push the ON button to turn fireplace on, push the OFF button to turn the fireplace off. This remote does not control the stereo system.

  • Page 16: Maintenance

    SEASONAL CLEANING To clean the glass or remove debris from inside unit. WARNING Gloves are required as edges may be sharp 1. Unplug fireplace. 1. Remove top from mantel. 2. Lift firebox out of mantel. 3. Lay firebox on it’s back.

  • Page 17: Stereo Instructions

    4. Store faceplate in dry areas where temperature is between –10 C to 60 C. 5. Prevent unit from falling or encountering any serious impact. 6. Close the fireplace access panel when not in use, or after operation. Control Panel Functions 1. Panel Open Button 12.

  • Page 18: Basic Operation

    STEREO INSTRUCTIONS BASIC OPERATION ON/OFF Press the on/off button to power on and press it again to power off. Press the on/off button to power the Radio CD and AUX/MP3 functions. To display the clock or to adjust the clock settings (1) Connect the faceplate to the stereo chassis and power on;...
  • Page 19 STEREO INSTRUCTIONS FAD BALANCE Press the SEL button four times (or twice EQ Preset Mode) to enter the FAD mode and the screen will display “FAD”. There are no rear speakers so this setting can stay at default or max out the front fade by turning the volume knob clockwise.
  • Page 20 STEREO INSTRUCTIONS INT: Browse Programs Press the INT button and the LCD will display the sign of “INT”, the player will play the introduction (5 seconds) of each track on the disc. Press the INT button again to stop browsing and enter into normal play mode. RPT: Repeat Playing Press the RPT button, the LCD will display “RPT”.
  • Page 21 STEREO INSTRUCTIONS Notes for Using CD 1. Keep the disc clean as possible. 2. Do not play damaged or deformed discs. 3. Keep the disc away from direct sunlight or high temperatures. 4. Put the disc in case after use. 5.

  • Page 22: Warranty

    Dimplex warrants such products to be free from defects in material and workmanship in respect to the fireplace components of this product for a period of 12 months; and in respect to the compact-disc player, stereo speakers and stereo components of this product for a period of 90 days from the date of the first purchase of the Product.
  • Page 23 Dimplex will in its sole discretion either repair or replace such defective Product or part without charge. If Dimplex is unable to repair or replace the Product or part, or if repair or replacement is not commercially practicable or cannot be timely made, Dimplex may, in lieu of repair or replacement, choose to refund the purchase price for the Product or part.
