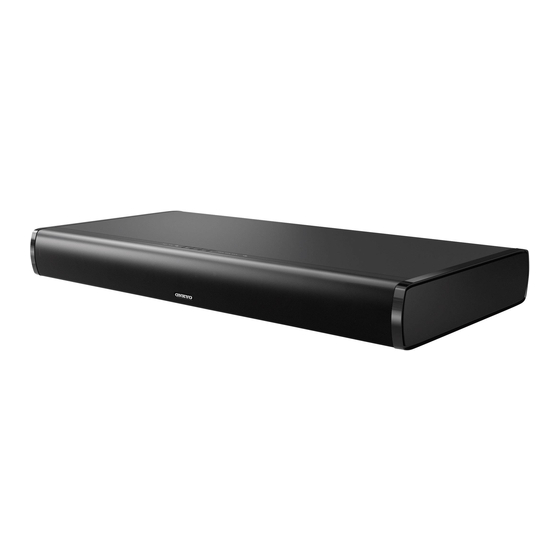

Onkyo LS-T10 Instruction Manual

PACKAGE CONTENTS
* 2 9 4 0 1 5 4 1 *
LS-T10
Make sure you have the following items before use.
‡
TV Speaker System The number in parenthesis indicates the quantity.
‡
In catalogs and on packaging, the letter at the end of the product name
Instruction Manual
indicates the color.
Main unit (1)
AC adapter (1)/
Thank you for purchasing an Onkyo product. Please read this manual thoroughly before
Power cord (1)
making connections and plugging in your new Onkyo product.
Following the instructions in this manual will enable you to obtain optimum performance and
listening enjoyment from your new product.
Remote controller (RC-877S) (1)
Please retain this manual for future reference.
A lithium-ion battery (CR2025) is supplied in
the remote control at the time of purchase.
Trademarks and Licensing
Manufactured under license from Dolby Laboratories. Optical digital
Dolby and the double-D symbol are trademarks of Dolby audio cable 5 ft. (1.5 m) (1)
Laboratories.
The Bluetooth® word mark and logos are registered
ф3.5 mm stereo mini plug
trademarks owned by Bluetooth SIG, Inc. and any use of such
cable (1)
marks by Onkyo is under license. Other trademarks and trade
names are those of their respective owners.
Cushion (8)
AuraSphere™ is a trademark of Onkyo Corporation.
AuraSphere is a listening experience technology developed by Onkyo
Corporation and Sonic Emotion ag.
E n
2
D1308-0
1. Attach the supplied cushions to the feet of the TV stand.
‡
PREPARATION Be very careful when attaching the cushions. Depending on the size and
weight of the TV in particular, be sure to have at least two people do the job to
prevent injury.
‡
Wrap the TV with a blanket or soft cloth to not scratch it and work carefully.
‡
When the supplied cushions and the feet of the TV do not match, cut and
Placement
shape the cushions for use as needed.
Select an appropriate placement for your environment.
‡ Reference for where to
To enjoy the best sound, do not place an object on both sides of the unit.
attach the cushion on the
Furthermore, mount this unit carefully since the subwoofer unit is housed on
bottom face of the TV stand
its bottom face.
(8 positions).
‡
Mount this unit on a firm surface such as a low board.
Mounting under TV
2. Mount the unit.
Accessories to be prepared: Cushion
To prevent vibration, mount this unit after attaching the supplied cushions to the
feet of the TV stand. Using the supplied cushions will allow you to limit the effect
of vibrations on the TV.
3 4
3. Connect all cables to the unit.
Precautions for mounting this unit under TV
(o See 7 to 8 pages) ‡
TVs that can be placed on top of this unit are those having a mass of 77 lbs (35 kg)
4. Mount the TV on the center of the top face of this unit. or less, stand width of 26 1/2" (674 mm) or less, and depth of 10 3/8" (265 mm) or
‡
less.
Mount the unit correctly by referring to the figure below. ‡
By referring to the figure on the left, mount the TV on the center of the mountable
range. If the TV protrudes from any of the mountable range, the TV may tip over and
cause injury.
‡
For TV tip-over/fall prevention measures, see the TV owner's manual.
Mountable range of the TV Stand
‡ ‡
Adjust the TV stand position within the shaded area. Onkyo is not responsible for accidents or damage caused by improper installation,
‡
improper cushion attachment, improper use or natural calamity, etc.
Place the TV stand in such a way that its center matches that of this unit.
Shaded area: Mountable range
5 6
Connections
‡
Connect the TV and this unit using one of the possible connection cables.
4
2
3
1
1
COAXIAL jack USB port
Connect a separately sold cable to Connect a USB flash drive.
input the sound.
OPTICAL jack
Connect the supplied optical
digital audio cable to input audio.
ANALOG jack
Connect the supplied stereo mini
plug cable to input audio.
7 8
Listening to TV
Turn on the TV.
‡
For details on operation, see the "BASIC OPERATION" (o P.11).
‡
The unit can be operated with your existing TV remote controller. For details
on operation, see the "Using TV Remote Controller" (o P.17).
Kitahama Chuo Bldg, 2-2-22 Kitahama, Chuo-ku, OSAKA 541-0041, JAPAN
http://www.onkyo.com/
1 1
The Americas
18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.
For Dealer, Service, Order and all other Business Inquiries:
2
Tel: 201-785-2600 Fax: 201-785-2650
http://www.us.onkyo.com/
For Product Support Team Only:
1-800-229-1687
2 3 3
http://www.us.onkyo.com/
Europe
1. Turn the power on.
Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY
2. Switch the input to TV.
Tel: +49-8142-4401-0 Fax: +49-8142-4208-213
http://www.eu.onkyo.com/
(On the buttons of the unit, switches
in the order of TV o USB o
Meridien House, Ground floor, 69 - 71 Clarendon Road, Watford, Hertfordshire, WD17 1DS, United Kingdom
Bluetooth.)
Tel: +44 (0)8712-00-19-96 Fax: +44 (0)8712-00-19-95
3. Adjust the volume. China
(Hong Kong)
Unit 1033, 10/F, Star House, No 3, Salisbury Road, Tsim Sha Tsui Kowloon, Hong Kong.
Tel: 852-2429-3118 Fax: 852-2428-9039
http://www.hk.onkyo.com/
(Mainland)
1301, 555 Tower, No.555 West NanJing Road, Jing'an District, Shanghai, China 200041,
Tel: 86-21-52131366 Fax: 86-21-52130396
http://www.cn.onkyo.com/
Asia, Oceania, Middle East, Africa
Please contact an Onkyo distributor referring to Onkyo SUPPORT site.
http://www.intl.onkyo.com/support/
The above-mentioned information is subject to change without prior notice.
Visit the Onkyo web site for the latest update.
SN29401541
9 (C) Copyright 2013 Onkyo Corporation Japan. All rights reserved.
