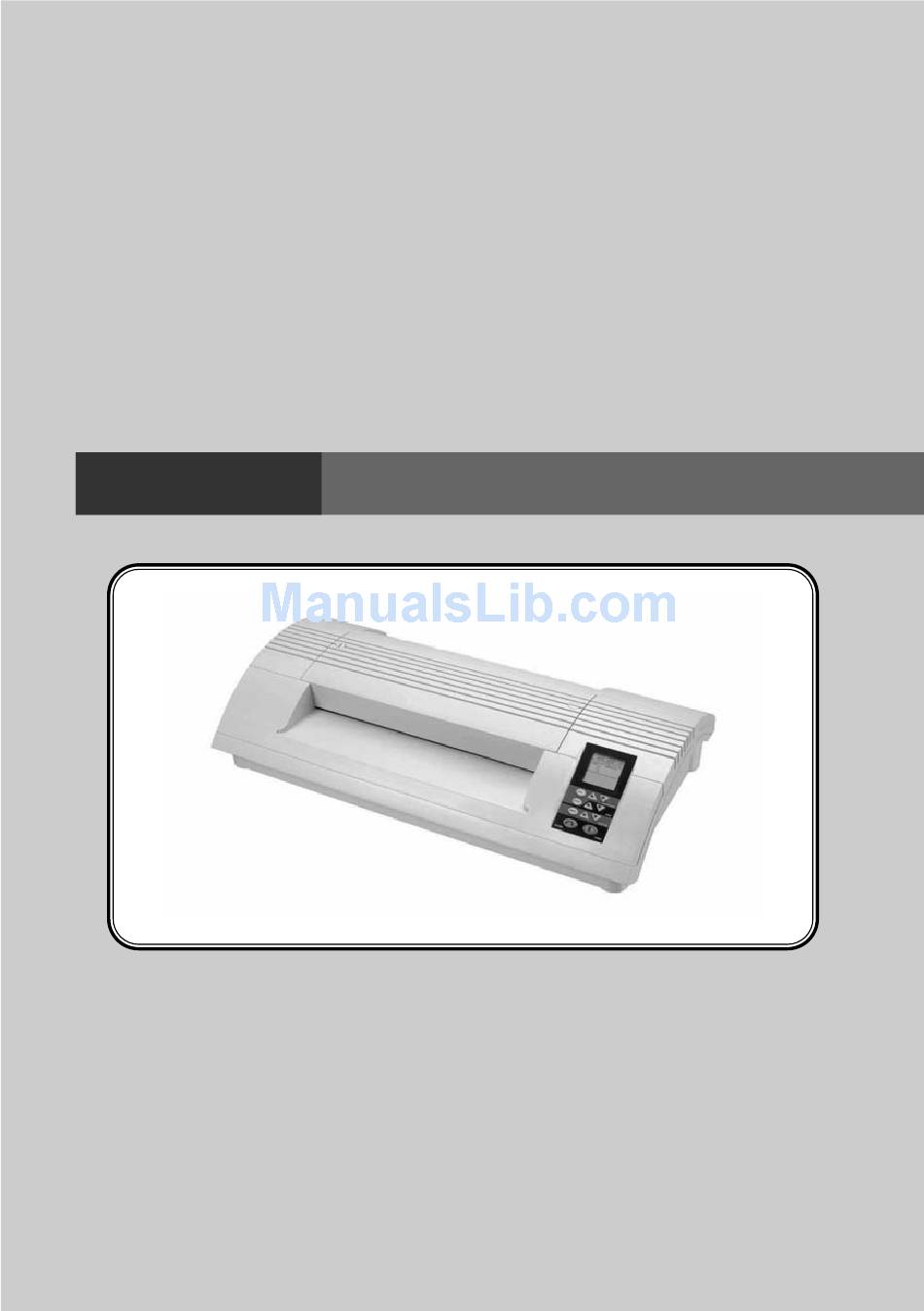

- Page 1 OWNER'S MANUAL LAMINATOR Model No. NPH-1200N/900N Read all instructions carefully before use.
-
Page 2: Table Of Contents
NPH-1200N/900N TABLE OF CONTENTS TOPIC PAGE MAJOR PARTS CHARACTERISTICS OF NPH SERIES SAFETY PRECAUTIONS CONTROL PANEL INSTRUCTIONS HOT LAMINATING PROCEDURE COLD LAMINATING PROCEDURE COLOR FOIL LAMINATING PROCEDURE POUCH BOARD LAMINATING PROCEDURE MAINTENANCE TROUBLESHOOTING SPECIFICATIONS POUCH FILM SETTINGS... -
Page 3: Major Parts
NPH-1200N/900N MAJOR PARTS Cover Roller Screw Cover Roller Power Cord Cover Front Opening Control Panel LCD Panel CHARACTERISTICS OF NPH-SERIES 1. The NPH Series has been designed and manufactured to provide Hot and Cold lamination for school, home and office needs. -
Page 4: Safety Precautions
NPH-1200N/900N SAFETY PRECAUTIONS Failure to comply with any of the following safety procedures could result in serious injury. Keep this information for future reference. 1. To prevent the possibility of fire or injury, do not allow articles of clothing (neckties, scarves, or paperclips etc.) inside the machine. -
Page 5: Control Panel Instructions
NPH-1200N/900N CONTROL PANEL INSTRUCTIONS Appropriate speed and temperature may be set, using the LCD controller. The LCD panel was designed for convenience, by incorporating the ability to program your settings into "Memory". 1. CONTROL PANEL SETTINGS LCD DISPLAY CONTROL PANEL... - Page 6 NPH-1200N/900N 2. LCD WINDOW 1. Pouch Thickness Foil 3mil 4mil 5mil Mic- Mic- Mic- SPEED TEMPERATURE 7mil 10mil Mic- Mic- Foil * 6 Pouch Thickness Options 75 mic =3 mil, 100 mic =4 mil, 125 mic =5 mil 175 mic =7 mil, 250 mic =10 mil 2.
- Page 7 NPH-1200N/900N 3. CONTROL PANEL FUNCTIONS : Press this to check the current T-Check temperature TEMPERATURE HOT/COLD : Press this to choose Hot SPEED or Cold function MEMORY PROGRAM : Press this to set current temperature in memory (up to 6 memory settings) or to recall preset temperature settings.
-
Page 8: Hot Laminating Procedure
NPH-1200N/900N HOT LAMINATING PROCEDURE 1. Place and use the laminator on a sturdy, flat work surface. 2. Plug in the laminator after verifying the correct outlet voltage. 3. Press the power button. 4. Make sure the machine is in the hot lamination mode by pressing the HOT/COLD button. -
Page 9: Color Foil Laminating Procedure
NPH-1200N/900N COLOR FOIL LAMINATING PROCEDURE IMPORTANT: Carrier is required for Foil Lamination 1. Make sure that the machine is in the Foil lamination mode by pressing the PROGRAM buttons up/down until it is in the foil mode. 2. Set the temperature and speed according to the pouch thickness (FOIL). -
Page 10: Maintenance
NPH-1200N/900N MAINTENANCE When adhesives from the film build up on the rollers the quality of lamination will decrease and jamming may occur. Please clean the rollers regularly. 1. Turn on the laminator and set the temperature at 100°C(212°F) and set the mil thickness at 100 mic(4mil). -
Page 11: Specifications
NPH-1200N/900N SPECIFICATIONS Model NPH-900N NPH-1200N Max. Lamination width 9.4” 13” Lamination pouch thickness 75~250mic /(3~10 mil) Max. Lamination thickness 2 (mm) /80 (mil) Lamination speed 2.5 ft/min Warm up time 6 min Heating method Hot roller Number of rollers Power consumption... - Page 12 Royal Sovereign International will repair or replace this product if it is found to be defective in material or workmanship. Defective product must be returned to Royal Sovereign International, freight prepaid, with proof of purchase and Return Shipping &...
