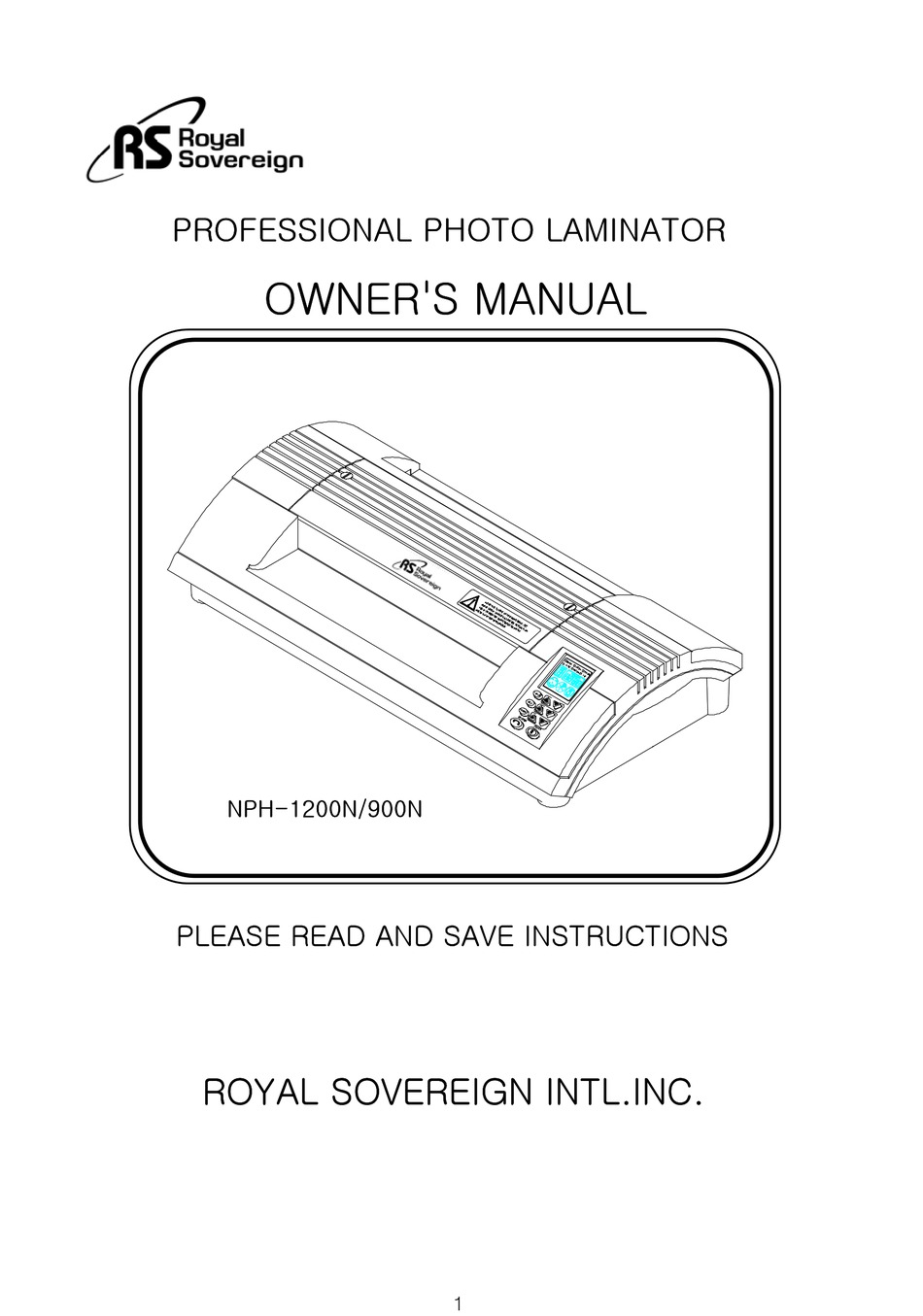

- Page 1 PROFESSIONAL PHOTO LAMINATOR OWNER'S MANUAL NPH-1200 / 900 NPH-1200N/900N PLEASE READ AND SAVE INSTRUCTIONS ROYAL SOVEREIGN INTL.INC.
-
Page 2: Table Of Contents
TABLE OF CONTENTS TOPICS INTRODUCTION ------------------------------------------ SAFETY PRECAUTIONS ------------------------------------ CHARACTERISTICS OF NPH-1200N/900N ---------------------- SPECIFICATIONS ----------------------------------------- SETUP ------------------------------------------------ MAJOR PARTS IDENTIFICATION ------------------------------ CONTROL PANEL INSTRUCTIONS ---------------------------- 1.CONTROL PANEL SETTINGS ---------------------------- 2.LCD WINDOW --------------------------------------- 3.BUTTON FUNCTIONS ---------------------------------- 4.HOW TO SET THE BUTTONS ---------------------------- *SET TEMPERATURE --------------------------------- *SPEED CONTROLS ---------------------------------- *CHECK TEMPERATURE ON THE ROLLER -----------------... -
Page 3: Introduction
Thank you for purchasing a Royal Sovereign Laminating Machine. To insure high quality lamination, please read this instruction manual thoroughly. For additional product support or factory-direct ordering information, call Royal Sovereign Customer Service at (201)568-0830 or toll free call, (800)397-1025. -
Page 4: Characteristics Of Nph-1200N/900N
CHARACTERISTICS OF LAMINATOR NPH-1200N/900N This machine has been designed using the latest laminating technology. 1. This machine is controlled by a state-of-the-art Microprocessor. a) Protect the rollers--When the power is off or a power failure occurs, rollers continue to turn until the unit properly cools down. -
Page 5: Specifications
Connect laminator to an electrical outlet that matches laminator's rated voltage and power requirements. If an extension cord is required, use a cord rated higher than the laminator's capacity. SPECIFICATIONS NPH - 1200N 580x290x135mm (22.8"x11.4"x5.3") -
Page 6: Major Parts Identification
MAJOR PARTS IDENTIFICATION 1. Top Cabinet 2. Roller Cover 3. Roller Cover Screws 4. Control Panel 5. LCD Window 6. Input 7. Output 8. Power Cord... -
Page 7: Control Panel Instructions
CONTROL PANEL INSTRUCTIONS Appropriate speed and temperature may be set, using the LCD controller. The LCD panel was designed for convenience, by incorporating the ability to program your settings into "Memory". 1. CONTROL PANEL SETTINGS T-Check HOT/COLD COLD MEMORY LCD DISPLAY BUTTONS... -
Page 8: Lcd Window
2. LCD WINDOW * 6 film thickness options 75 Mic=3 mil, 100 Mic=4 mil, 125 Mic=5 mil 175 Mic=7 mil, 250 Mic=10 mil 2. SPEED * 7 speed options Setting 1 is slowest / Setting 7 is fastest 3. TEMPERATURE Display the present temperature. -
Page 9: Button Functions
3. BUTTON FUNCTIONS T-Check HOT/COLD COLD MEMORY T-Check : Check current temperature : Hot/Cold function HOT/COLD : Working condition and MEMORY Cold function cancel : Increase temperature : Decrease temperature : Increase speed : Decrease speed : Restore the memorized working setting : Restore the memorized working setting... -
Page 10: How To Set The Buttons
4. HOW TO SET THE BUTTONS (Buzzer rings each time you press the button.) ***SET TEMPERATURE*** 1.Temperature available range from 2.Each time you press ***SPEED CONTROLS*** 1.You can use 7 different lamination speed. 2.You can change speed with ***CHECK TEMPERATURE ON THE ROLLER *** 1. -
Page 11: Using The Memory Setting
***MEMORIZING WORKING CONDITION AND USING THE MEMORIZED WORKING CONDITION*** 1) Memorizing working condition 1. The laminator can memorize up to 6 settings. 2. Use up and down arrows to set 3. When you complete the optimum laminating conditions MEMORY 4. To enter other settings into memory, repeat steps 2) Using the memorized settings 1. -
Page 12: Laminating Steps
* Do not laminate empty or thin pouch on a thick film setting. The pouch could stick to the roller. * Do not unplug laminator while laminating. This could be fatal for the rollers due to the high internal temperature. -
Page 13: Cold Laminating
1. Press the power button to turn on. 2. Press HOT/COLD 3. It is ready when LCD window 4. Insert document into a Royal Sovereign cold laminating pouch as follows. **HOW TO ATTACH DOCUMENT ON COLD POUCH FILM** Back Front 5. -
Page 14: Color Foil Laminating
3. COLOR FOIL LAMINATING **Your laminator has ability to add color by applying color foil to documents copied or printed by lasor printer or toner copier.** **PAPER CARRIER is required** 1. Press the power button to turn the laminator on. -
Page 15: Mount Board Laminating
4. MOUNT BOARD LAMINATING **You can laminate photographs or pictures on a hard mounting board up to 2mm thickness** 1. Press the power button to turn on. 2. Temperature 130 and speed 1 is set for Foil function. 3. It is ready when LCD window shows 4. -
Page 16: How To Clean Rollers And Remove Stuck
HOW TO CLEAN ROLLERS AND REMOVE STUCK OR JAMMED TO FILMS 1. Cleaning rollers with a clean and thick paper 1) If film adhesive apears on the laminated pouch surface, Insert a sheet of clean, thick paper (about 0.5mm(1/50") thickness) into the machine 2~3 times on 100℃(212℉) setting. -
Page 17: Important Safety Concerns
3. Always keep the area around the machine clean. To remove dust, finger prints, etc. from housing, use diluted alcohol on lint-free cloth and do not permit liquids to get into laminator. (Do not use strong alcohol or petroleum-based cleaning solvents or abrasives.) -
Page 18: One Year Limited Commercial/Professional Warranty
ONE YEAR LIMITED COMMERCIAL/PROFESSIONAL WARRANTY This product is warranted for 1 year from date of purchase to be free from electrical or mechanical defects in material and workmanship. Should product fail to operate during warranty period, return it, freight prepaid, to Royal Sovereign Corporation, 100 West Sheffield Avenue, Englewood, NJ 07631, for service.
