MONOBLOCK BIDET with
Speed Connect™ Drain
Congratulations on purchasing your American Standard
faucet with Speed Connect drain, a feature found only on
American Standard faucets.
Speed Connect Drain*
• Fewer parts, installs in less time
• Never needs adjustment
• Guaranteed to seal properly the first time, every time.
*Your new American Standard faucet is designed to work only with the Speed Connect drain.
To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.
Recommended tools
Screwdriver
1

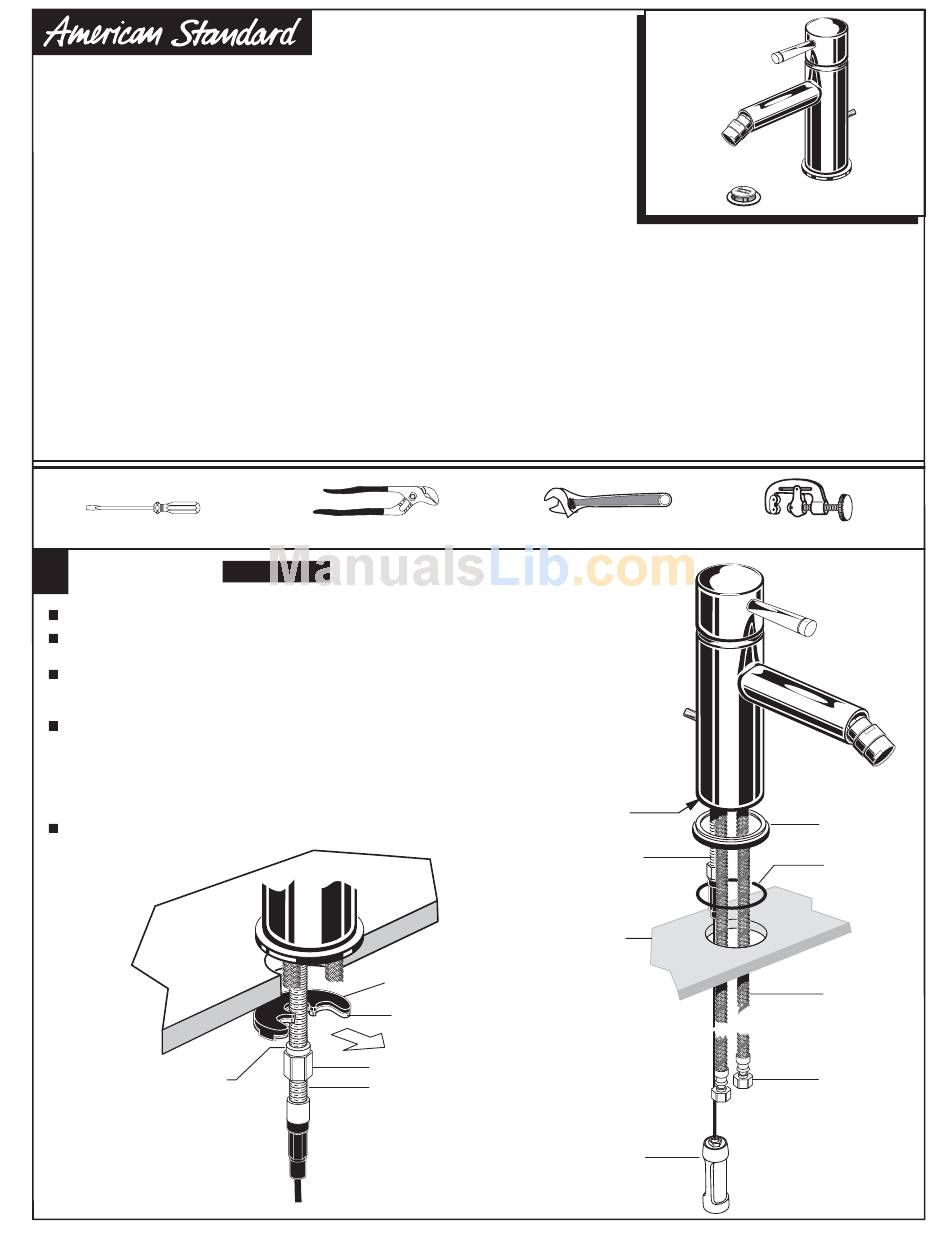

INSTALL FAUCET
Seat SEAL (1) into under side of ESCUTCHEON RING (2).
Seat ESCUTCHEON RING (2) with collar facing up into groove in
faucet base.
Feed FAUCET SUPPLIES (3), MOUNTING STUD (4) and DRAIN
CABLE ASSEMBLY (8) through ESCUTCHEON RING (2) and the
mounting hole of lavatory or mounting surface. Figure A.
From below, push GASKET (7) and RETAINING WASHER (5) onto
MOUNTING STUD (4). Secure Faucet with MOUNTING NUT (6),
pulling faucet to front of sink, so SUPPLIES (3) rests against
mounting hole. Before final tightening, make sure collar on
MOUNTING NUT (6) is seated into RETAINING WASHER (5).
Figure B.
Adjust Faucet so that it is centered. Tighten MOUNTING NUT (6)
to complete faucet mounting.
COLLAR ON
MOUNTING NUT
Channel Locks
Turn off hot and cold water
CAUTION
supplies before beginning.
7
5
6
4
Figure B
Installation
Instructions
2064.011
Adjustable Wrench
Figure A
GROOVE
(FAUCET
BASE)
MOUNTING
SURFACE
1
Certified to comply with ANSI A112.18.1
M968851 Rev.1.3
Tubing Cutter
4
8
2
1
3
5
