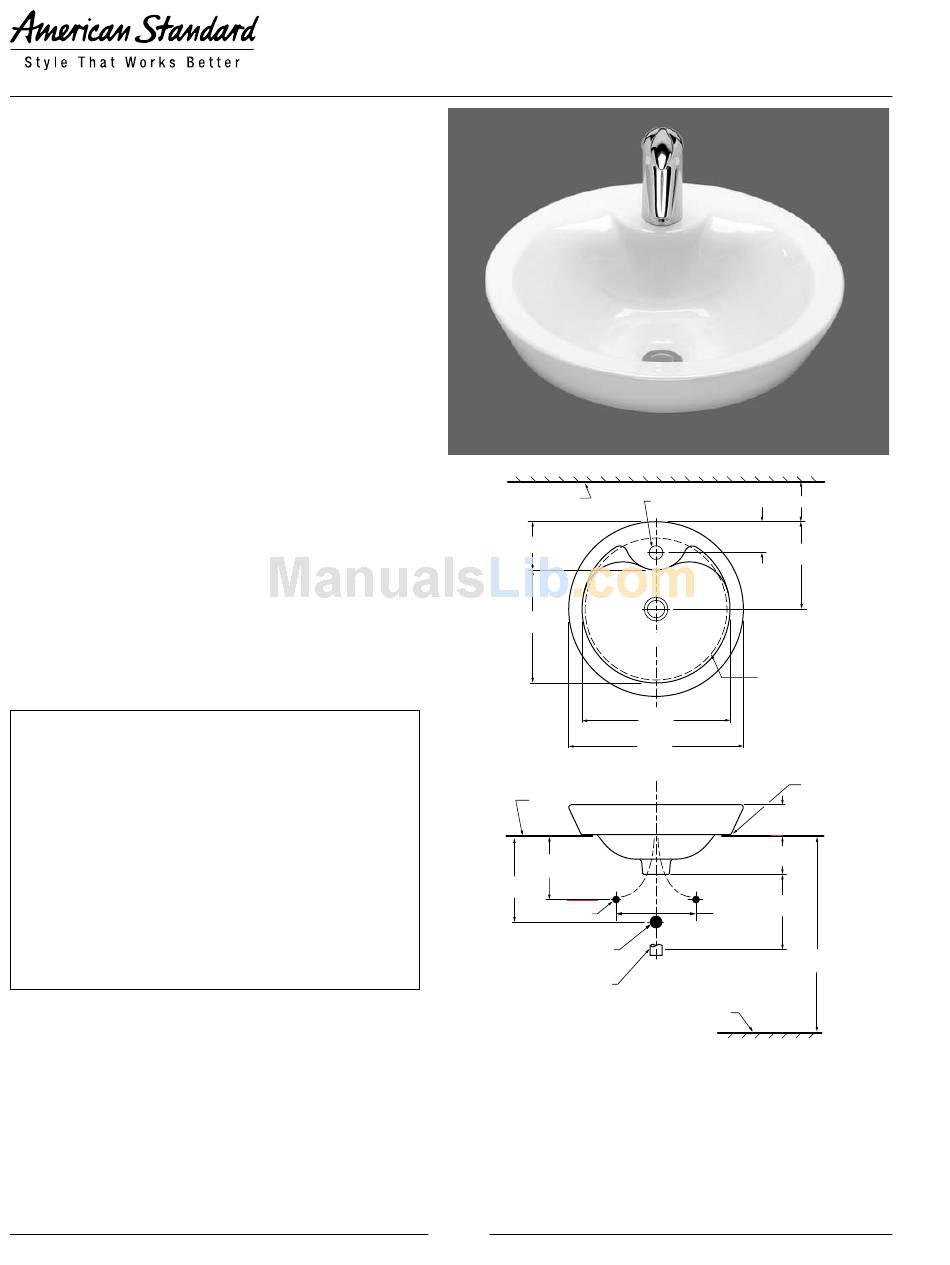

LOFT™ ABOVE-COUNTER SINK
❏
0660.000
• Stylish above-counter sink
• Made from vitreous china
• Integral faucet deck for single-control
faucet mounting
• Generous bowl depth
• Center drain outlet without overflow
• Can be mounted in Brook console table
• Supplied with cutout template and sealant
❏
0660.312 Same as above with front overflow
Nominal Dimensions:
451mm (17-3/4") Round
Bowl sizes:
376mm (14-3/4") round
127mm (5") deep
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• ASME A112.19.2M for Vitreous China Fixtures
• CAN/CSA B45 series
• A1995 National Building Code, section 3.7 and
CAN/CSA - B651-M90 and OBC 3.7
To Be Specified:
❏ Color: ❏ White ❏ Bone ❏ Linen ❏ Black
❏ Faucet*:
❏ Faucet Finish:
❏ Supplies:
❏ 1-1/4" Trap:
To Be Specified (Optional):
❏ Brook Console Table Frame 9373.100
❏ Frame Finish
❏ Brook wood top 9474.670 pre-cut for Loft and
Morning above counter sink
❏ Wood Top Finish
* See faucet section for additional models available
© 2008 AS America Inc.
ABOVE-COUNTER SINK
FINISHED WALL
OR SPLASHBACK
123mm
(4-7/8)
286mm
(11-1/4)
COUNTERTOP
(BY OTHERS)
*
165mm
(6-1/2)
*
222mm
(8-3/4)
SUPPLIES
AS REQ'D
1-1/4 O.D.
WASTE
1-1/4 O.D.
TAILPIECE
NOTES:
*
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND "P" TRAP ARE
SUGGESTED.
FITTINGS NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED
SEPARATELY.
FOR COUNTERTOP CUTOUT AND INSTALLATION INSTRUCTIONS USE
TEMPLATE SUPPLIED WITH SINK.
IMPORTANT: Dimensions of fixtures are nominal and may vary within the
range of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility
is assumed for use of superseded or voided pages.
J18
LOFT™
VITREOUS CHINA
35mm
OPTIONAL
(1-3/8) DIA. HOLE
83mm
(3-1/4)
222mm
(8-3/4)
C/L
COUNTERTOP
CUTOUT 330mm
(13) DIA.
ø376mm
(14-3/4)
ø451mm
(17-3/4)
SEALING
COMPOUND
76mm
(3)
95mm
(3-3/4)
178mm
203mm
(7)
(8)
787mm
(31)
FINISHED
FLOOR
Revised 2/08
