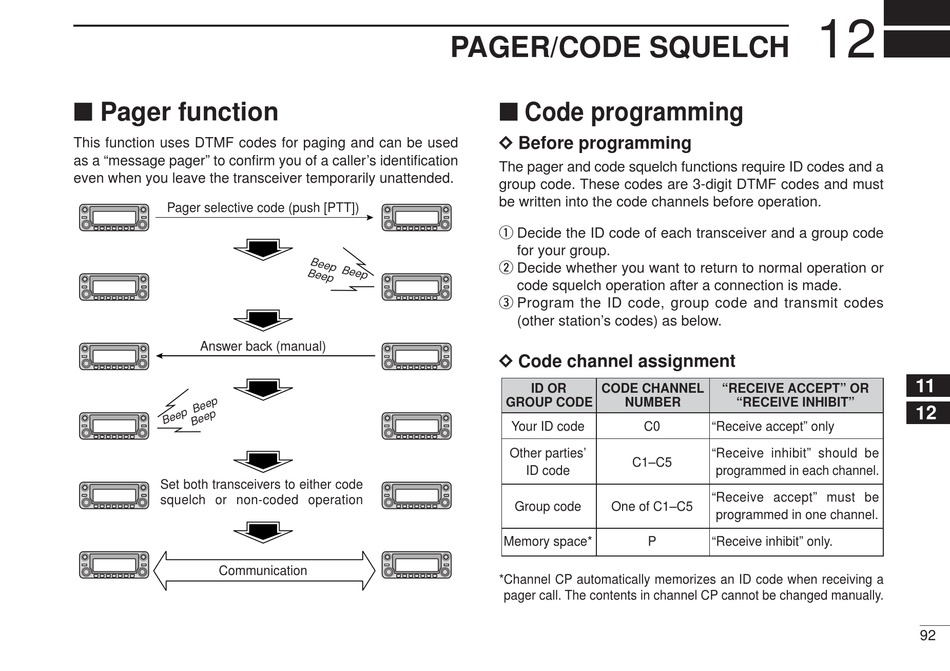

■ Pager function

This function uses DTMF codes for paging and can be used
as a "message pager" to confirm you of a caller's identification
even when you leave the transceiver temporarily unattended.
Pager selective code (push [PTT])
Answer back (manual)
Set both transceivers to either code
squelch or non-coded operation
Communication

PAGER/CODE SQUELCH

■ Code programming

D D Before programming
The pager and code squelch functions require ID codes and a
group code. These codes are 3-digit DTMF codes and must
be written into the code channels before operation.
q Decide the ID code of each transceiver and a group code
for your group.
w Decide whether you want to return to normal operation or
code squelch operation after a connection is made.
e Program the ID code, group code and transmit codes
(other station's codes) as below.
D D Code channel assignment
ID OR CODE CHANNEL
GROUP CODE NUMBER
Your ID code
Other parties'
ID code
Group code One of C1–C5
Memory space*
*Channel CP automatically memorizes an ID code when receiving a
pager call. The contents in channel CP cannot be changed manually.
"RECEIVE ACCEPT" OR
"RECEIVE INHIBIT"
C0 "Receive accept" only
"Receive inhibit" should be
C1–C5
programmed in each channel.
"Receive accept" must be
programmed in one channel.
P "Receive inhibit" only.
