Section 1 - Product Overview
•

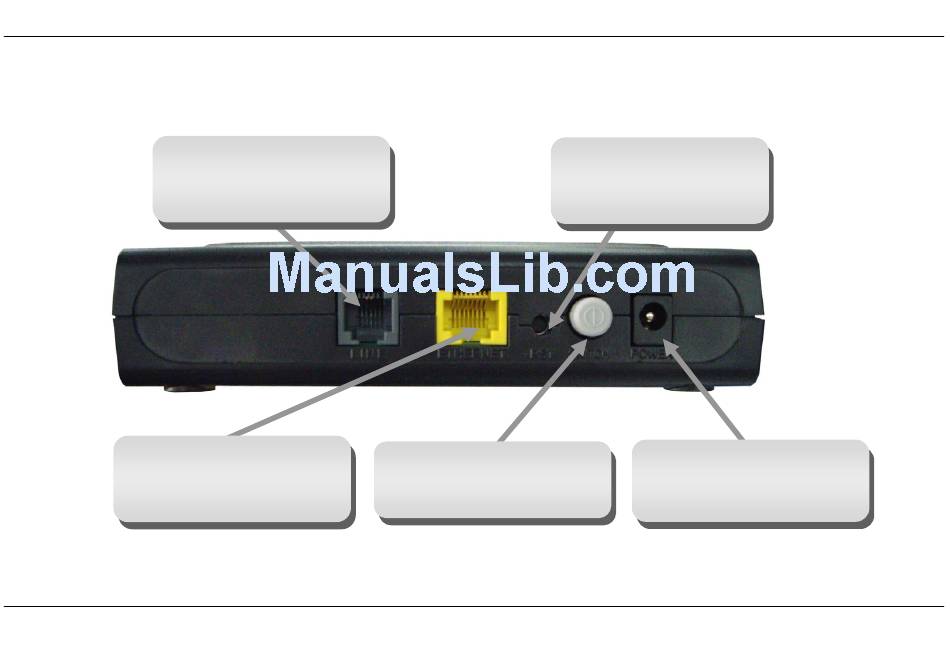

ADSL Port
Use the ADSL cable to connect
to the your telephone line (RJ-11
port)
Ethernet Port
Use the Ethernet port to connect
the Router to a computer or an
Ethernet LAN
D-Link DSL-2500U User Manual
Hardware Overview

Connections

Power Button
Push in to power-on the Router.
Push again to power-off the
Router
Reset Button
To manually reset, depress
button with the power on for at
least seven seconds
Power Insert
Use the adapter shipped with the
Router to connect to power
source
