QuickSpecs

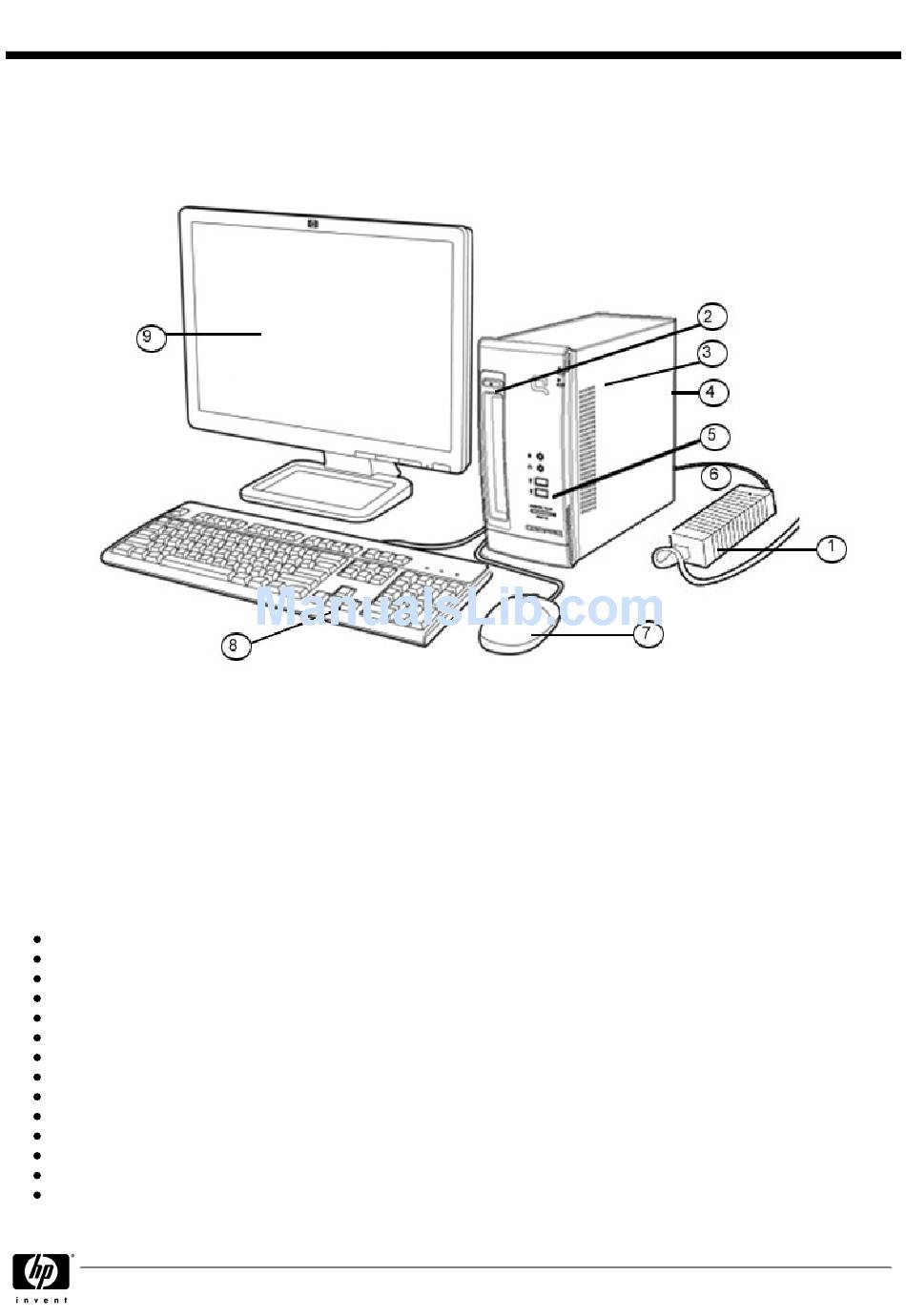

Overview
1.
65-watt power supply adapter
2.
(1) external 5.25-inch bay for optical drive
3.
(1) internal 3.5-inch bay for hard disk drive
4.
Rear I/O includes (4) USB 2.0 ports, RJ-45 network port,
VGA video port, audio in/out jacks, microphone jack
5.
Front I/O includes (2) USB 2.0 ports, audio out and mic
jacks, Media Card Reader
At A Glance
Intel Atom Pineview D410
Windows XP Home SP3 operating system
Intel Pinetrail Chipset
DDR2 SDRAM PC2-6400 (667/800 MHz) non-ECC system memory
Intel I/O Controller NM10
Integrated Intel Graphic Media Accelerator
PCIex 1 slot
Serial ATA controller
USB 2.0 support
Realtek ALC887 audio codec
Realtek RTL8103EL 10/100 Fast Ethernet controller
SATA 160 GB Hard drive
SATA SuperMulti Light Scribe DVD writer drive
Protected by HP Services. Terms and conditions vary by country. Certain restrictions and exclusions apply.
DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010
Compaq 100eu SFF PC (EMEA only)
6.
Half height expansion slot PCIe x1 slot
7.
USB Optical Scroll Mouse
8.
USB Standard Keyboard
9.
Monitor (sold separately)
Page 1
Advertisement
Table of Contents
Related Manuals for HP Compaq 100EU SFF PC
Summary of Contents for HP Compaq 100EU SFF PC
- Page 1 SATA 160 GB Hard drive SATA SuperMulti Light Scribe DVD writer drive Protected by HP Services. Terms and conditions vary by country. Certain restrictions and exclusions apply. DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010 Compaq 100eu SFF PC (EMEA only)
-
Page 2: Standard Features And Configurable Components (Availability May Vary By Country)
Communication Integrated Realtek RTL8103EL 10/100 Ethernet Controller Graphics Integrated Intel Graphics Media Accelerator DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010 Compaq 100eu SFF PC (EMEA only) Windows XP Home SP3* Genuine Windows Vista Business Windows XP Professional... -
Page 3: System Details
Hard Drive Interfaces Supported DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010 Compaq 100eu SFF PC (EMEA only) One (1) half-height PCI ex 1 slot Two (2) DDR2 SO-DIMM slots (4 GB maximum memory support) One (1) 5.25"... - Page 4 Maximum rate of change is 10 deg C/Hr. The upper limit may be limited by the type and number of options installed. DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010 Compaq 100eu SFF PC (EMEA only) Power button Power On LED...
-
Page 5: Spi Eeprom
50-60 Hz rated line frequency 47-63 Hz operating line frequency range DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010 Compaq 100eu SFF PC (EMEA only) Intel Atom Pineview D410 Intel I/O Controller Hub NM10 Intel I/O ITE 8758E1... - Page 6 Values are subject to change without notification and are for reference only. Specs Performance of system, options, and ancillary equipment will vary depending on the system configuration. Levels presented do not account for non-HP/Compaq installed hardware. Ambient Air Temperature Humidity...
- Page 7 NOTE 1: Terms and conditions may vary by country. Certain restrictions and exclusions apply. Other warranty variations may be offered in your region. NOTE 2: On-site service may be provided pursuant to a service contract between HP and an authorized HP third-party provider, and is not available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by country.
- Page 8 AC outlet. Adding or removing memory modules while voltage is present may cause irreparable damage to the memory modules or system board. HP recommends dual-channel symmetric configurations for maximum performance. For best performance, add the same amount of total memory to each channel and do not mix speeds. For dual-channel symmetric performance, the total amount of memory in each channel must be equal.
- Page 9 2. 3.5" Serial ATA Hard Drive 3. USB Ports 4. Audio 5. Media Card Reader DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010 Compaq 100eu SFF PC (EMEA only) Maximum Quantity Supported Controller SATA SATA Internal USB 2.0...
-
Page 10: Technical Specifications - Audio
HD Audio compatible codec Sampling Audio Jacks Power Support Other DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010 Compaq 100eu SFF PC (EMEA only) Integrated 5:1 channel Supports 48/96 KHz Mic-In Line-In Line-Out / Headphone Out Digital: 3.3V... -
Page 11: Technical Specifications - Communications
Network transfer rate Dimensions Management capabilities DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010 Compaq 100eu SFF PC (EMEA only) 8103E 2.5GHz data rate with X1 link width IEEE802.3, IEEE 802.3u, IEEE 802.3ab PCIexpress 1.1 Half/Full Duplex Operation EEPROM, 1Kb, 2Kb 10/100Mbps over CAT.5... -
Page 12: Technical Specifications - Graphics
PCIex16 300 MHz RAMDAC Up to 256MB of System Memory 75Hz OpenGL 1.4 Analog Connection 640 X 480 75,73,70 800 x 600 75,72 75, 70 Compaq 100eu SFF PC (EMEA only) Maximum Refresh Rate (Hz) Digital Connection 60,59 Page 12... -
Page 13: Technical Specifications - Input Devices
Environmental Approvals Ergonomic compliance N/A DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010 Compaq 100eu SFF PC (EMEA only) Keys 104, 105, 106, 107, 109 layout (depending upon country) Dimensions (L x W x H) 18.14 x 1.07 x 6.02 in (46.1 x 2.74 x15.3 cm) Weight 1.3lb(0.6 kg) minimum... - Page 14 Environmental Electrical Mechanical Regulatory Approvals ULcUL, FCC, CE, TUV/GS, VCCI, BSMI, C-Tick, MIC DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010 Compaq 100eu SFF PC (EMEA only) 48 rats/sec wheel Button - 1,000,000 Wheel - 200,000 times Operating Temperature32° to 104° F (0° to 40° C) Non-operating -4°...
-
Page 15: Technical Specifications - Hard Drives
QuickSpecs Technical Specifications - Hard Drives Serial ATA Hard Drives 160 GB (7200 rpm) DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010 Compaq 100eu SFF PC (EMEA only) Capacity 160,041,885,696 bytes Height 1 in (2.54 cm) Width Media diameter: 3.5 in (8.9 cm) Physical size: 4 in (10.2 cm) -
Page 16: Technical Specifications - Optical Storage
Power Environmental (all conditions non-condensing) DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010 Compaq 100eu SFF PC (EMEA only) 5.25-inch, half-height, tray-load Either horizontal or vertical SATA/ATAPI 8.5 GB DL or 4.7 GB standard 2.6 lb (1.2 kg) -
Page 17: Technical Specifications - Environmental Data
This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water and Toxic Enforcement Act of 1986). This product is in compliance with the IEEE 1680 (EPEAT) standard at the Silver where HP registers commercial desktop products. See your country. - Page 18 To recycle your product, please go to: Recycling nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner. The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities.
- Page 19 The warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
