Illustrated Parts & Service Map

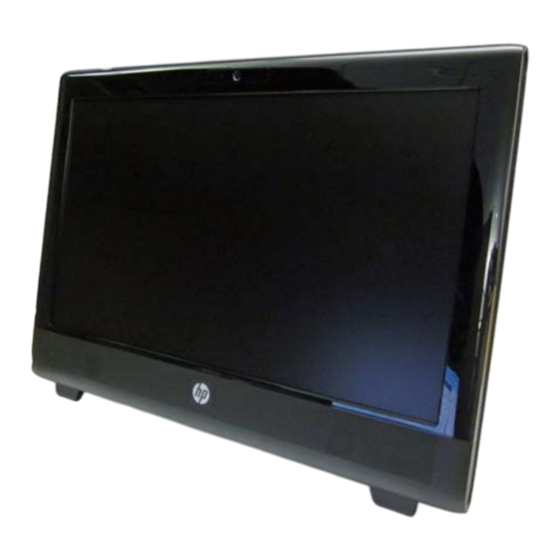

HP 100B All-In One PC
©
2011 Hewlett-Packard Development Company, L.P. The information contained
herein is subject to change without notice. HP shall not be liable for technical or edito-
rial errors or omissions contained herein. Intel, Pentium, Intel Inside, and the Intel
logo are trademarks or registered trademarks of the Intel Corporation and its subsid-
iaries in the U. S. and other countries.
Document Number 640046-001.
Key Specifications
Processor Type
AMD single-core and dual-core, soldered to system board
RAM Type
DDR3-SDRAM DIMMs, PC2-10600 (1333 MHz) non-ECC
Maximum RAM Supported
4 GB (2 slots)
Power
90W PFC/90W HV External AC power adapter
Display
20-inch, non-glare, 1600x900 CCFL LCD
LAN (Wired)
10/100/1000 baseT
Wireless
802.11 b/g/n Wireless LAN (optional)
Webcam
640x480 with digital Microphone (optional)
Graphics
ATI Radeon UMA Graphics
(Radeon HD 6300, DX11, UVD 3.0)
Drive Support
•
•
I/O Interfaces
(6) USB ports - 2 side, 4 rear, (1) Headphone jack,
(1) Line-out, (1) Microphone-in jack
Operating Systems
•
•
•
HP 100B AIO Illustrated Parts & Service Map
1st Edition January 2011.
(1) optical drive (DVD±RW SuperMulti DL)
(1) hard drive (750 GB, 500 GB, 250 GB)
Windows 7 Professional
Red Flag Linux
FreeDOS

Spare Parts

System Unit
1
Front bezel
2
Rear cover assembly
3
Fan assembly
4
Stand assembly
5
Foot, right
*
Foot, left
*
Display panel, 20-inch, Samsung/CMI
*
Display panel, 20-inch, LG
* Not shown
Cables
1
Hard drive cable
2
Optical drive cable
3
Power button board cable
4
WLAN antenna
*
Webcam cable
*
LVDS cable
*
Inverter cable
*Not shown
640046-001
646780-001
646781-001
646798-001
646783-001
646784-001
646785-001
646794-001
646795-001
646789-001
646790-001
646782-001
646806-001
646786-001
646787-001
646788-001
