Summary of Contents for Pride Mobility JAZZY Sport 2

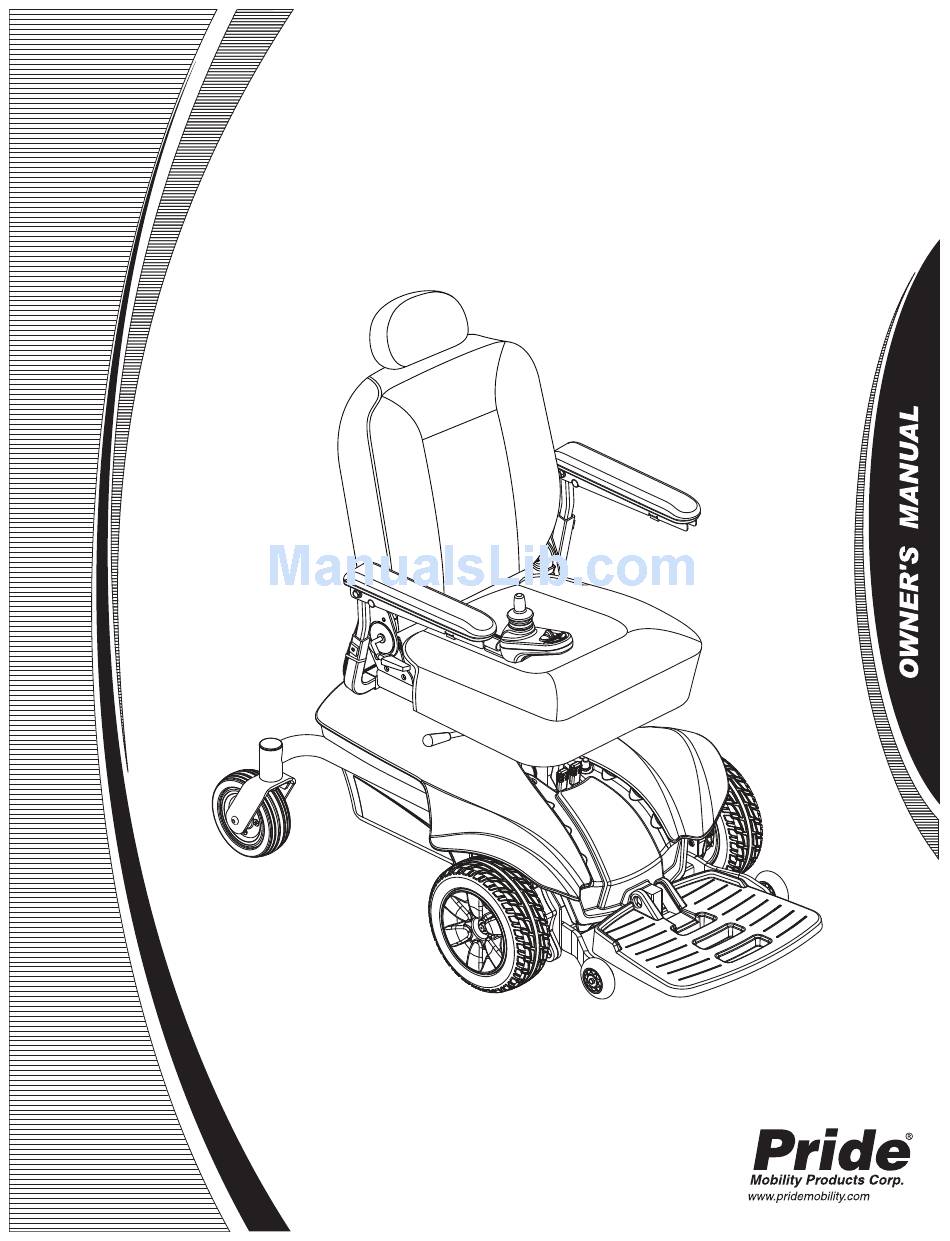

  • Page 1 JAZZY SPORT 2...
  • Page 2 The latest/current version of this manual is available on our website. NOTE: This product is compliant with WEEE, RoHS, and REACH directives and requirements. NOTE: The Jazzy Sport 2 and its components are not made with natural rubber latex. Consult with the man- ufacturer regarding any after-market accessories.

  • Page 3: Table Of Contents

    C O N T E N T S INTRODUCTION............................ 4 SAFETY ..............................5 III. YOUR POWER CHAIR......................... 7 IV. ASSEMBLY ............................11 COMFORT ADJUSTMENTS ......................12 VI. BATTERIES AND CHARGING ....................... 17 VII. CARE AND MAINTENANCE ......................21 Jazzy Sport 2 www.pridemobility.com...

  • Page 4: Introduction

    I . I N T R O D U C T I O N SAFETY WELCOME to Pride Mobility Products (Pride). The power chair you have purchased combines state-of-the-art components with safety, comfort, and styling in mind. We are confident that these design features will provide you with the conveniences you expect during your daily activities.
  • Page 5 Place unit on level ground and stand to one side when changing from drive mode to freewheel mode or freewheel mode to drive mode. Locked and in drive mode. Class II Equipment. Manufactured in Power chair information label Jazzy Sport 2 www.pridemobility.com...

  • Page 6: General Guidelines

    Check battery charge. See VI. “Batteries and Charging.” Ensure the manual freewheel levers are in drive mode before sitting on the power chair. NOTE: If you discover a problem, contact your authorized Pride Provider for assistance. www.pridemobility.com Jazzy Sport 2...

  • Page 7: Assembly

    THE JAZZY SPORT 2 POWER CHAIR The Jazzy Sport 2 Power Chair has two main assemblies: the seat assembly and the power base assembly. See figure 1. Typically, the seat assembly includes the armrests, seatback, and seat base. The power base assembly includes two motor/brake assemblies, two drive wheels, two rear caster wheels, two front anti-tip wheels, two batteries, and wiring harnesses.
  • Page 8 I I I . Y O U R P O W E R C H A I R SEAT POST MAIN CIRCUIT BREAKER MAIN SHROUD CONTROLLER HARNESS FRONT COVER CASTER WHEEL ANTI-TIP WHEELS Figure 2. The Jazzy Sport 2 Power Base www.pridemobility.com Jazzy Sport 2...
  • Page 9 See figure 3. CONTROLLER HARNESS BATTERY CONNECTORS MOTOR CONNECTORS MAIN CIRCUIT BREAKER BATTERY CONNECTORS Figure 3. Jazzy Sport 2 Electrical Components Jazzy Sport 2 www.pridemobility.com...
  • Page 10 WARNING! Do not use the freewheel lever handles as tie-down points to secure this product. FREEWHEEL LEVERS FREEWHEEL LEVERS Figure 4. Drive Mode (Drive Engaged) Figure 5. Freewheel Mode (Drive Disengaged) www.pridemobility.com Jazzy Sport 2...

  • Page 11: Initial Assembly

    5. Plug the controller harness into the connector on the power base. See figure 2. WIRE TIES Figure 7. Controller Harness Routing Jazzy Sport 2 www.pridemobility.com...

  • Page 12: Comfort Adjustments

    Your authorized Pride Provider has evaluated your power chair and made any necessary adjustments to suit your specific requirements. Do not change your seating configuration without first contacting Pride Mobility Products or your authorized Pride Provider.

  • Page 13: Armrest Width Adjustment

    Armrest Height Adjustment To change the armrest height: 1. Loosen the setscrew on the armrest. See figure 9. 2. Raise or lower the armrest to the desired height. 3. Tighten the setscrew to secure the armrest. Jazzy Sport 2 www.pridemobility.com...

  • Page 14: V. Comfort Adjustments

    To adjust the foot platform angle: 1. Flip up the foot platform and locate the adjustment screw. Figure 11. Foot Platform Angle Adjustment 2. Turn the adjustment screw to raise or lower the front of the foot platform. www.pridemobility.com Jazzy Sport 2...
  • Page 15 1. Remove the two adjustment screws from the side of each leg rest extension. 2. Slide the leg rest up or down to the desired length. 3. Reinstall the two adjustment screws. LEG REST EXTENSION ADJUSTMENT SCREWS Figure 13. Elevating Leg Rests Jazzy Sport 2 www.pridemobility.com...

  • Page 16: Positioning Belt

    MANDATORY! Inspect the positioning belt for loose parts or damage, including tears, worn spots, bent hardware, damaged latch mechanisms, dirt or debris, before each use of the power chair. If you discover a problem, contact your authorized Pride Provider for maintenance and repair. www.pridemobility.com Jazzy Sport 2...

  • Page 17: Batteries And Charging

    Refer to the manual supplied with the battery charger for more information. Jazzy Sport 2 www.pridemobility.com...
  • Page 18 Many factors come into play when deciding how often to charge the batteries. You may use your power chair all day on a daily basis or you may not use it for weeks at a time. www.pridemobility.com Jazzy Sport 2...

  • Page 19: Vi. Batteries And Charging

    More importantly, it will take a few “charging cycles” (a partial drain—then a full recharge) to establish the critical chemical balance that is essential to the battery’s peak performance and long life. It will be well worth it to take the time to break in your battery properly. Jazzy Sport 2 www.pridemobility.com...
  • Page 20 What about shipping? If you wish to use a freight company to ship your power chair to your final destination, repack your power chair in the original shipping container and ship the batteries in separate boxes. www.pridemobility.com Jazzy Sport 2...

  • Page 21: Care And Maintenance

    V I I . C A R E A N D M A I N T E N A N C E CARE AND MAINTENANCE Your Jazzy Sport 2 is a sophisticated power chair. Like any motorized vehicle, it requires routine maintenance checks. You can perform some of these checks, but others require assistance from an authorized service represen- tative.

  • Page 22: Daily Checks

    Take your power chair to your authorized Pride Provider for yearly maintenance, especially if you use your power chair on a daily basis. This helps ensure that your power chair is functioning properly and helps prevent future complications. www.pridemobility.com Jazzy Sport 2...

  • Page 23: Vii. Care And Maintenance

    WARNING! When changing a tire, remove only the center lug nut and washer, then remove the wheel. If any further disassembly is required, deflate the tire completely or it may explode. Jazzy Sport 2 www.pridemobility.com...

  • Page 24: Battery Replacement

    Figure 16. Jazzy Sport 2 Drive Wheel Removal injury and/or product damage may result. 8. Reinstall the drive wheel nut and washer onto the axle and tighten. See figure 16. WARNING! Make sure both the nut and the washer are reinstalled and tightened properly.
  • Page 25 + = Positive (Red) Terminal Post - = Negative (Black) Terminal Post Connect Red wire to Red Positive (+) Terminal Post. Connect Black wire Black Negative (-) Terminal Post. Figure 17. Battery Installation (Seat Removed for Clarity) Jazzy Sport 2 www.pridemobility.com...

  • Page 26: Corrective Maintenance

    Disconnect both batteries before load testing and follow the directions that come with the load tester. If either one of the batteries fails the load test, replace both of them. If your power chair still does not power up, contact your authorized Pride Provider. www.pridemobility.com Jazzy Sport 2...

  • Page 28: Jazzy Sport

    Jazzy Sport 2 Product Serial # Jazzy Sport 2 www.pridemobility.com...
