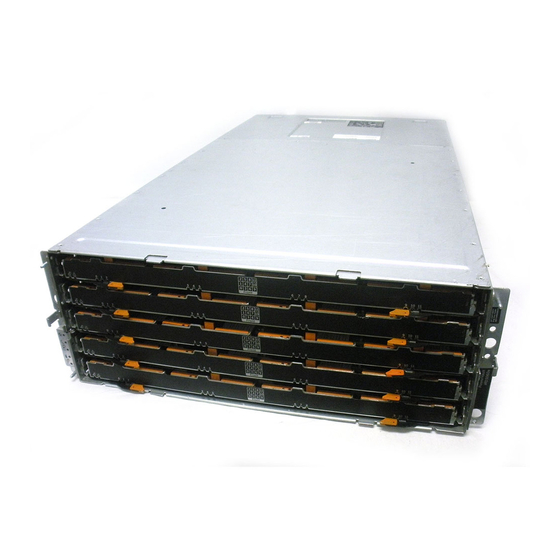

- Page 1 Dell PowerVault MD3060e Storage Enclosure Getting Started Guide Regulatory Model: E08J Series Regulatory Type: E08J001...
-
Page 2: Notes, Cautions, And Warnings
WARNING: A WARNING indicates a potential for property damage, personal injury, or death. Copyright © 2014 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell ™... -
Page 3: Installation And Configuration
(43.0 lb) and when fully populated with all the physical disks is 105.20 kg (232.0 lb). WARNING: Your system must be installed by Dell certified service technicians. For safe installation of an empty system, a minimum of three service technicians are required. To install a fully populated system, a mechanized lifting tool is required to position the system in a rack. - Page 4 Opening And Closing The Disk Drawer Figure 2. Opening and Closing the Disk Drawer Open the disk drawer to install or remove the physical disk carrier(s). NOTE: You can open only one disk drawer at a time. Forcing to open more than one drawer at a time may damage the assembly or produce unexpected results.
-
Page 5: Connecting The Power Cables
Connecting The Power Cable(s) Figure 4. Connecting the Power Cable(s) Connect the system’s power cable(s) to the system. Securing The Power Cable(s) Figure 5. Securing the Power Cable(s) Open the cable retention bracket by pulling the tabs on its sides, insert the cable, and secure the system power cable, as shown in the illustration. -
Page 6: Turning On The System
WARNING: See the safety and regulatory information that shipped with your system. Warranty information may be included within this document or as a separate document. You can leverage the capability of the Dell PowerVault MD3060e in the following two ways: •... -
Page 7: Obtaining Technical Assistance
• As a storage enclosure when connected to a Dell PowerEdge server via a Dell qualified Host Bus Adapter (HBA). • When using the MD3060e as a storage enclosure, attached to Dell PowerEdge Server(s), see the following guides: – Dell PowerVault MD3060e Storage Enclosure Deployment Guide — this document provides information about cabling your system and the installation and initial configuration of the Storage Enclosure software. - Page 8 950 m or 3117 ft) on the equipment NOTE: For information on supported expanded operating temperature range and configurations, see the Owner's Manual dell.com/support/ manuals. Humidity Percentage Range 10% to 80% Relative Humidity with 26 °C (78.8 °F) maximum dew point.
- Page 9 Environmental Operating One shock pulse in the positive z axis (one pulse on each side of the system) of 31 G for 2.6 m in the operational orientation. Storage Six consecutively executed shock pulses in the positive and negative x, y, and z axes (one pulse on each side of the system) of 71 G for up to 2 m.
- Page 10 Environmental NOTE: Applies to data center and non-data center environments. Gaseous Contamination NOTE: Maximum corrosive contaminant levels measured at ≤50% relative humidity Copper Coupon Corrosion Rate <300 Å/month per Class G1 as defined by ANSI/ ISA71.04-1985. Silver Coupon Corrosion Rate <200 Å/month as defined by AHSRAE TC9.9.
