Summary of Contents for Hotpoint WMT01

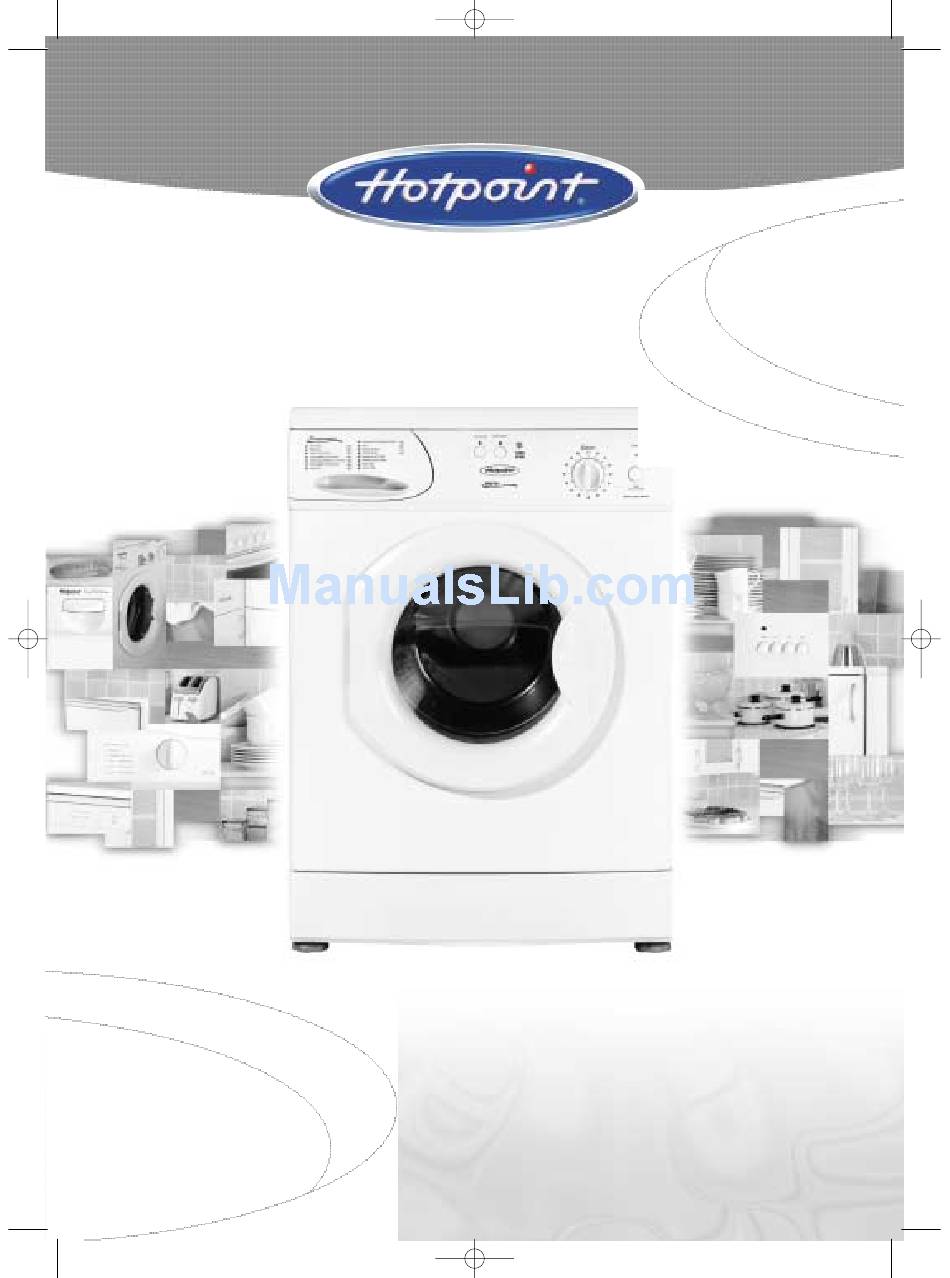

- Page 1 1666200014-01 WMT01/02/03 22/11/2001 3:08 pm Page 1 Installation and User Instructions For everyone you’ll ever be WMT01 WMT02 WMT03...
- Page 2 1666200014-01 WMT01/02/03 22/11/2001 3:08 pm Page 2 Congratulations on choosing Hotpoint!! Model WMT01 Please record the Model number and the Serial number Dispenser drawer Control panel of your machine on the Back Cover of the book for future reference. The Model number can be found on the control panel.
-
Page 3: Troubleshooting
1666200014-01 WMT01/02/03 22/11/2001 3:08 pm Page 3 The following instructions and information will help you to get the most out of your new machine... Safety first! This instruction manual contains important details on using your machine safely. If you pass the machine onto someone else, make sure that you give them this manual. - Page 4 1666200014-01 WMT01/02/03 22/11/2001 3:08 pm Page 4 This instruction manual contains important details on using your machine safely. Please keep it safe for your future reference. If you pass the machine onto someone else, please make sure that you give them this manual so that the new owner can read these safety warnings.
-
Page 5: Installing
1666200014-01 WMT01/02/03 22/11/2001 3:08 pm Page 5 Remove the polystyrene block... After removing the packaging from the machine, make sure that the polystyrene block (figure 1) has come away from the underside of the machine, with the polystyrene base. If it has not come away, carefully lower the machine on its side onto the polystyrene top cap and then remove the polystyrene block (see figure 2). - Page 6 1666200014-01 WMT01/02/03 22/11/2001 3:09 pm Page 6 2. Remove the transit fixings... There are two transit bolts fitted under plastic covers, one at either side of the rear of your machine. These bolts prevent damage to the machine while it is being transported.
- Page 7 1666200014-01 WMT01/02/03 22/11/2001 3:09 pm Page 7 3. Connect your machine to the electricity supply Make sure that the electrical socket is accessible. Take the mains lead from the back of the machine and plug it into the socket. We do not recommend wiring your machine directly into the mains supply.
-
Page 8: Connect To Water Supply
1666200014-01 WMT01/02/03 22/11/2001 3:09 pm Page 8 4. Connect your machine to the water supply... WARNINGS: temperature of your hot water supply should ideally be 60°C and Hot and cold fill no higher 1 Unclip the grey and blue fill hoses from the back of the than 70°C as... - Page 9 1666200014-01 WMT01/02/03 22/11/2001 3:10 pm Page 9 5.Connect the machine to a drainage system... Take care when you remove the drain hose from the clips on the back of the machine. All machines are tested with water before they leave the factory so a small amount of water may still be in the hose.
- Page 10 1666200014-01 WMT01/02/03 22/11/2001 3:10 pm Page 10 6. Move the machine into position... Your machine is heavy so care must be taken when moving it. To help you we have fitted wheels to the bottom rear of WARNING: the machine.
-
Page 11: Using Your Machine
1666200014-01 WMT01/02/03 22/11/2001 3:10 pm Page 11 Using your machine The rest of this instruction book will help you to make the most of your new washing machine. We have created the machine for the way you live, by listening to people just like you who use our products. -
Page 12: A Typical Wash Programme
1666200014-01 WMT01/02/03 22/11/2001 3:10 pm Page 12 A typical wash programme WARNINGS: Do not allow children to play with the machine or tamper with the controls. Do not overload the machine! It may damage laundry and reduce the quality of the wash. -
Page 13: Choose Suitable Detergent
1666200014-01 WMT01/02/03 22/11/2001 3:10 pm Page 13 IMPORTANT INFORMATION. We have set the detergent retaining flap, in the main detergent compartment to dispense powder detergent only. If you want to dispense liquid detergent put the retaining flap in its ‘down’ position. - Page 14 1666200014-01 WMT01/02/03 22/11/2001 3:11 pm Page 14 WARNING: Do not put any item(s) into the drawer other than detergents that are designed to be released from the drawer as they may cause damage or blockage. Dispensing powder detergent To achieve the best wash results the manufacturer’s recommended amount...
-
Page 15: Wash Programmes
1666200014-01 WMT01/02/03 22/11/2001 3:11 pm Page 15 Wash programmes On-Off / Selecting a programme The machine is switched on, by turning the programme selector dial away from the‘OFF’ position, to your selected programme. To start the programme press and release the ‘START/HOLD TO RESET’... -
Page 16: Automatic Features
1666200014-01 WMT01/02/03 22/11/2001 3:11 pm Page 16 Wash programmes The Programme End Indicator light As soon as the programme selector dial is turned to the WARNINGS: required programme the ‘PROG. END’ indicator light will Do not try to illuminate to show the machine has power. -
Page 17: Wash Programme Dial
1666200014-01 WMT01/02/03 22/11/2001 3:11 pm Page 17 Wash programme dial Turn from ‘OFF’ to the programme you need. Wash Programme label Automatic Pre-wash and Wash Programmes White cotton Heavy soil Cotton heavy soil Wash Programmes White cotton and linen without special finishes... - Page 18 This option is not available with the Cold Wash, Rinse and Spin or Spin only programmes. This option is only available on WMT01 and WMT 02. TIME SAVER... use this option for... Saving up to a third on the programme time.
-
Page 19: Maintenance Wash
1666200014-01 WMT01/02/03 22/11/2001 3:11 pm Page 19 Cleaning and maintenance Removing and cleaning the dispenser drawer and WARNINGS: compartments Do not clean any part of Note: You should clean the dispenser your machine drawer regularly. with abrasive cleaners, scouring agents, acids,... -
Page 20: Troubleshooting
1666200014-01 WMT01/02/03 22/11/2001 3:11 pm Page 20 Troubleshooting... In the unlikely event that you have problems with your machine, the following guide may help you to get your machine working correctly straight away... The machine will not start... Close the door. Check that the machine has power. - Page 21 1666200014-01 WMT01/02/03 22/11/2001 3:11 pm Page 21 Troubleshooting... The machine makes a noise or vibrates during a spin programme... If the noise is very loud you should check whether: i) You have removed the transit bolts. ii) You have removed the polystyrene block.
-
Page 22: Hotpoint Guarantee
Recycling & Disposal Information As part of Hotpoint’s continued commitment to helping the environment, Hotpoint reserves the right to use quality recycled components to keep down customer costs and minimise material wastage. Please dispose of packaging and old appliances carefully. To minimise risk of injury to children, remove the door, plug and cut mains cable off flush with the appliance. -
Page 23: After Sales Service
“No company is better positioned to offer an after sales service on a Hotpoint appliance than us - the manufacturer” As part of our commitment to you, all Hotpoint appliances have the added benefit of a fully inclusive parts and labour guarantee for the first 12 months. In addition to this you also have the advantage of free replacement parts for the first 5 years when fitted by a Hotpoint engineer. -
Page 24: Key Contacts
1666200014-01 WMT01/02/03 22/11/2001 3:11 pm Page 24 Over 1100 trained specialists, directly employed by us, ensure that you can have complete confidence in both the appliances and services we offer. Repair Service and Information Help Desk (Open 8 to 8 Mon - Fri, 8 to 6 Sat & 10 to 4 Sun)
