Summary of Contents for Hotpoint WMT05

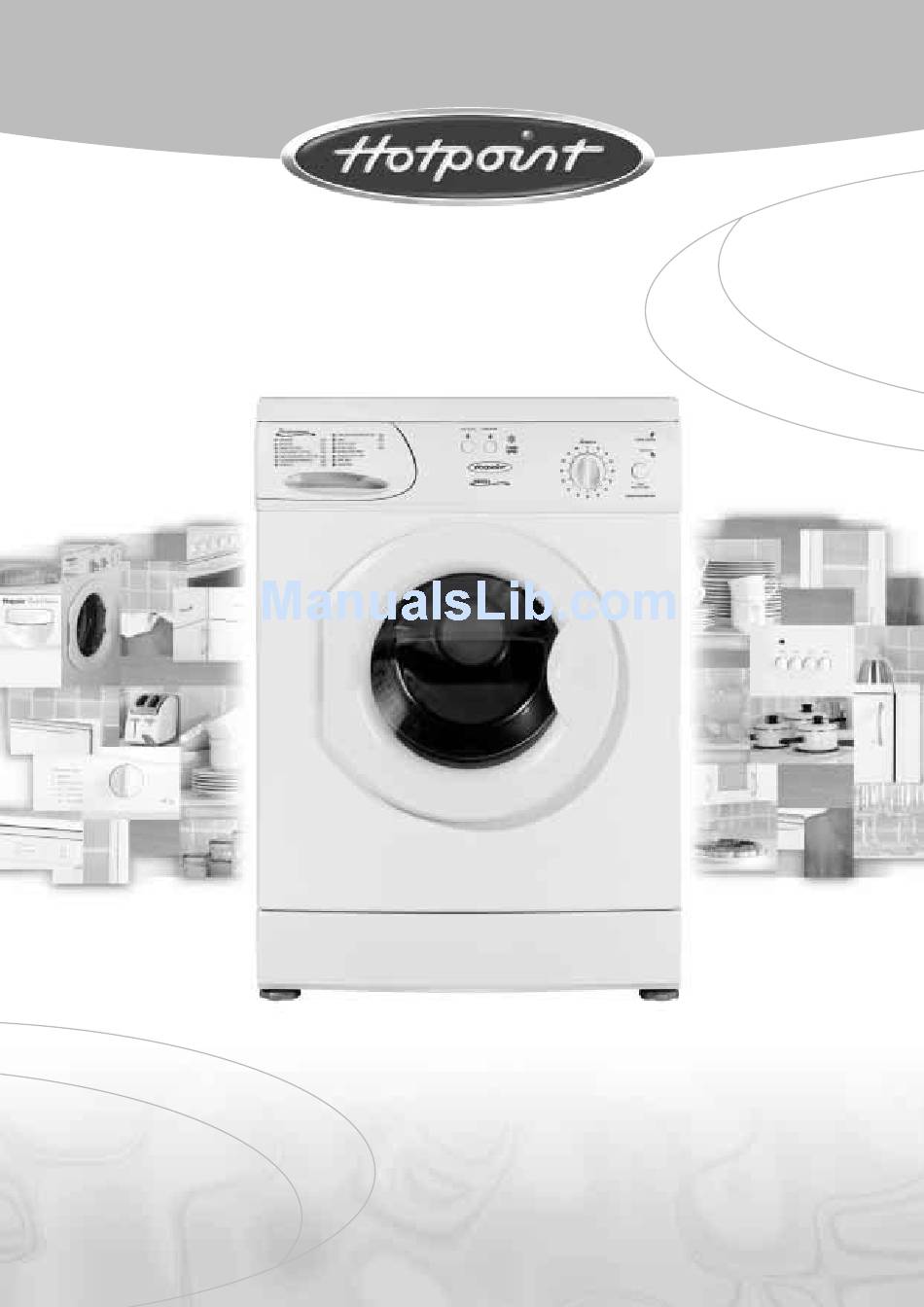

- Page 1 Installation and User Instructions WMT01 WMT02 WMT03 WMT05...
- Page 2 Congratulations on choosing Hotpoint!! Model WMT01 Please record the Model number and the Serial number Dispenser drawer Control panel of your machine on the Back Cover of the book for future reference. The Model number can be found on the control panel.
-
Page 3: Troubleshooting
The following instructions and information will help you to get the most out of your new machine... Safety first! This instruction manual contains important details on using your machine safely. If you pass the machine onto someone else, make sure that you give them this manual. - Page 4 Safety first This instruction manual contains important details on using your machine safely. Please keep it safe for your future reference. If you pass the machine onto someone else, please make sure that you give them this manual so that the new owner can read these safety warnings. Dispose of packaging Do not plug your materials carefully and...
-
Page 5: Installing
Remove the polystyrene block... After removing the packaging from the machine, make sure that the polystyrene block (figure 1) has come away from the underside of the machine, with the polystyrene base. figure 1 If it has not come away, carefully lower the machine on its side onto the polystyrene top cap and then remove the polystyrene block (see figure 2). -
Page 6: Remove The Transit Fixings
2. Remove the transit fixings... There are two transit bolts fitted under plastic covers, one at either side of the rear of your machine. These bolts prevent damage to the machine while it is being transported. Remove both transit bolts complete with spacers, by Location of transit following the instructions below. - Page 7 If you have damaged the existing lead and need a new one, earthed. contact Hotpoint Service UK on 08709 066066 or www.theservicecentre.co.uk (or in the Republic of Ireland on Do not use the 1850 302 200). A charge will be made. We strongly advise that plug unless fitting the new lead is carried out by a qualified electrician.
-
Page 8: Connect To Water Supply
If you have no hot water supply or your hot water pressure is low: A cold fill adaptor (figure 3) and fitting instructions are available from your local Hotpoint authorised Service Centre or by calling the Genuine Parts and Accessories Mail Order Hotline UK on 08709 077 077 or www.theservicecentre.co.uk... - Page 9 5.Connect the machine to a drainage system... Take care when you remove the drain hose from the clips on the back of the machine. All machines are tested with water before they leave the factory so a small amount of water may still be in the hose.
- Page 10 6. Move the machine into position... Your machine is heavy so care must be taken when moving it. To help you we have fitted wheels to the bottom rear of WARNING: the machine. Do not drag Please take care not to damage any floor coverings or lift the when moving the machine.
-
Page 11: Using Your Machine
Using your machine The rest of this instruction book will help you to make the most of your new washing machine. We have created the machine for the way you live, by listening to people just like you who use our products. You will find that your new machine has many useful features and is easy to use. -
Page 12: A Typical Wash Programme
A typical wash programme Sort your laundry into groups by washcare labels. Load the machine, making sure that clothes are not trapped WARNINGS: in the door. Close the washing machine door by pushing it until it clicks. Do not allow children to Add detergent and fabric conditioner, if required, to the... -
Page 13: Choose Suitable Detergent
The dispenser IMPORTANT INFORMATION. We have set the detergent retaining flap, in the main detergent compartment to dispense powder detergent only. If you want to dispense liquid detergent put the retaining flap in its ‘down’ position. Detergent retaining Drawer release latch flap in its ‘up’... - Page 14 Dispensing powder detergent To achieve the best wash results the WARNING: manufacturer’s recommended amount Do not put any of detergent should be measured and item(s) into added to the dispenser drawer (max. 400ml). the drawer other than detergents Dispensing that are liquid detergent designed to be The liquid...
-
Page 15: Wash Programmes
Wash programmes Programme End Indicator Light Door Locked Indicator Light ‘START/Hold To Reset’ Programme OFF position button selector dial On-Off / Selecting a programme The machine is switched on, by turning the programme WARNINGS: selector dial away from the‘OFF’ position, to your selected Do not allow programme. -
Page 16: Automatic Features
Wash programmes Door Locked Indicator Light OFF position Programme End Indicator Light The Programme End Indicator light As soon as the programme selector dial is turned to the WARNINGS: required programme the ‘PROG. END’ indicator light will Do not try to illuminate to show the machine has power. - Page 17 Wash programme dial Turn from ‘OFF’ to the programme you need. Wash Maximum temp. dry weight Wash *Approx. Spin Fabric ˚C load programme time Programme label speed Automatic Pre-wash and Wash Programmes White cotton 2 hours 30minutes - 5.5kg Fast 2 hours 40minutes Heavy soil Cotton...
- Page 18 ‘RINSE HOLD’ button again when the light is flashing. This option is not available with Wool or Spin only programmes. This option is only available on WMT02, WMT03 and WMT05. ECONOMY... use this option to... Save money and time on lightly soiled loads.
-
Page 19: Maintenance Wash
Cleaning and maintenance Removing and cleaning the Cleaning the dispenser drawer and outside WARNINGS: compartments Use a damp cloth Do not clean to clean the any part of outside surfaces Note: You should clean the dispenser of the machine. your machine drawer regularly. -
Page 20: Troubleshooting
TO RESET’ button to cancel. spin only programme. ii) The machine cannot fill. Check (Models WMT02, WMT03 and WMT05 that the water supply is turned on only): and that the inlet hoses are not If you have chosen ‘RINSE HOLD’, the... - Page 21 If the machine is still not working contact Hotpoint Service, see the back Steam is coming from the dispenser page. drawer... We have designed the machine to...
-
Page 22: Recycling & Disposal Information
Recycling & Disposal Information As part of Hotpoint’s continued commitment to helping the environment, Hotpoint reserves the right to use quality recycled components to keep down customer costs and minimise material wastage. Please dispose of packaging and old appliances carefully. To minimise risk of injury to children, remove the door, plug and cut mains cable off flush with the appliance. -
Page 23: After Sales Service
“No company is better positioned to offer an after sales service on a Hotpoint appliance than us - the manufacturer” As part of our commitment to you, all Hotpoint appliances have the added benefit of a fully inclusive parts and labour guarantee for the first 12 months. In addition to this you also have the advantage of free replacement parts for the first 5 years when fitted by a Hotpoint engineer. -
Page 24: Key Contacts
Key contacts After Sales Service Over 1200 trained specialists, directly employed by us, ensure that you can have complete confidence in both the appliances and services we offer. Repair Service and Information Help Desk UK: 08709 066 066 (Open 8 to 8 Mon - Fri, 8 to 6 Sat & 10 to 4 Sun) www.theservicecentre.co.uk Republic of Ireland: 1850 302 200 Note: Our operators will require the following information:...
