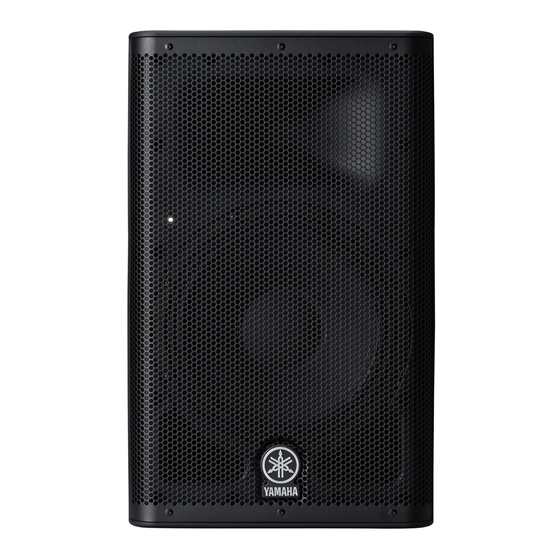

Yamaha DXR8 Manual
Dxs series/dxs series/dsr series
Hide thumbs
Also See for DXR8:
- Manual de instrucciones (22 pages) ,
- Owner's manual (22 pages) ,
- Service manual (115 pages)
Related Manuals for Yamaha DXR8
Summary of Contents for Yamaha DXR8
- Page 1 LPA606 P.O. BOX1, Hamamatsu Japan Printed in Japan www.yamahaproaudio.com *Specifications and appearance are subject to change without notice. *All trademarks and registered trademarks are property of their respective owners.
- Page 2 Don't Hold Anything Back At Yamaha, we understand that when inspiration hits, you can't have anything holding you back, and with DSR, DXR and DXS Series speakers powering your performances, nothing's going to come between you and your audience. Drawing...
- Page 3 With the express purpose of making the most powerful and reliable high-resolution speakers possible, we assembled a specialized team of Yamaha's most skilled engineers to examine, and improve on, every detail of loudspeaker design.
- Page 4 High Definition Sound All full-range models feature Yamaha's proprietary FIR-X tuning™ utilizing linear phase FIR* filters for the crossover. FIR-X tuning™ simultaneously optimizes frequency and phase response while adjusting the time alignment between the HF and LF transducers. This creates a very smooth response around the crossover point, providing much better clarity and imaging than what is possible with conventional crossovers.
- Page 5 POWER TO THE PEOPLE Power Rating Maximum SPL Frequency Range Coverage Angle DXR8 1100W 129dB SPL 57Hz–20kHz 8" cone 1.4" diaphragm, 1" throat H90°x V60° DXR10 1100W 131dB SPL 56Hz–20kHz 10" cone 1.4" diaphragm, 1" throat H90°x V60° Performance runs in the family, and like the acclaimed DSR Series before it, DXR Series loudspeakers offer superb high-definition sound and class-leading sound pressure levels—yet in a more compact and extremely functional...
- Page 6 High-Efficiency 1100W Class-D Amplifiers Rugged. Versatile. Functional. All-New Compact, High-Power DXR Amp Modules The durable, portable design of its enclosure makes the DXR Series perfectly suited for use in a variety of environments including front-of-house sound, rigged applications, floor-monitoring and more. All DXR Series loudspeakers are equipped with highly efficient Class-D amplifiers that were optimally designed to match the DXR's HF and LF transducers.
- Page 7 POWER IN VERSATILITY From the outset, every aspect of the DXR's design and Yamaha introduces a new line of configuration was carefully scrutinized to ensure it would be compact, high output active subwoofers perfectly suited to a variety of functions and different that match perfectly with DSR and DXR applications.
- Page 8 1100W of power, delivering design makes it ideal for a wide range of maximum SPL of 132dB with its impressive amplifier with a high-power woofer and Yamaha's cutting high-efficiency 950W Class-D amplifier and a The DXS’s fully optimized band-pass design extremely high output while maintaining applications.
- Page 9 POWER PERFECTLY PROCESSED Power Rating Maximum SPL Frequency Range Coverage Angle The DSR Series represents the ultimate in active loudspeaker systems, delivering the highest output in their class DSR112 1500W 134dB SPL 55Hz–20kHz 12" cone 2" diaphragm, 1" throat H90°x V60° with superior sound resolution—no matter how hard or how long you drive them.
- Page 10 DSR Series excels in both physical and electrical reliability, giving you the assurance of worry-free operation for many years to come. Yamaha’s next-generation Class-D amplifiers deliver as much as 1500W* of power with precision damping for tight and focused sound from compact, lightweight modules.
- Page 11 12" 2-way Active Loudspeaker 15" 2-way Active Loudspeaker Dual 15" 2-way Active Loudspeaker 18" Active Subwoofer DSR112 DSR115 DSR 215 DSR118W The DSR112 is the most compact and versatile The DSR115 is a high-power 15" 2-way Perfect for live sound applications that The DSR118W is a compact, high-power speaker in the series.
-
Page 12: Specifications
Specifications Specifications Specifications DXR8 DXR10 DXR12 DXR15 DXS12 DXS15 DSR112 DSR115 DSR215 DSR118W General General System Type 2-way, Bi-amp powered speaker, Bass-reflex type Powered subwoofer, Band-pass type System Type 2-way, Bi-amp powered speaker, Bass-reflex type Powered subwoofer, Bass-reflex type Frequency Range (-10dB) 57Hz –...
